Opticon LGP 6125

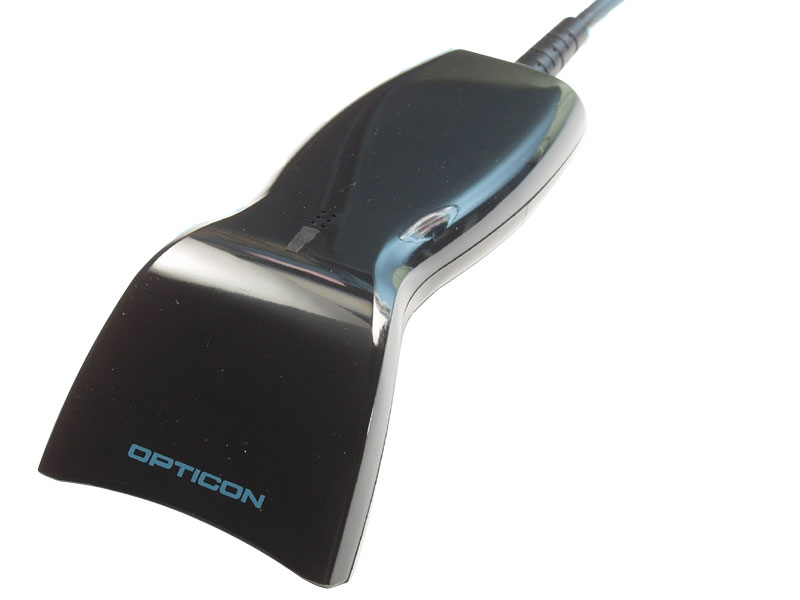

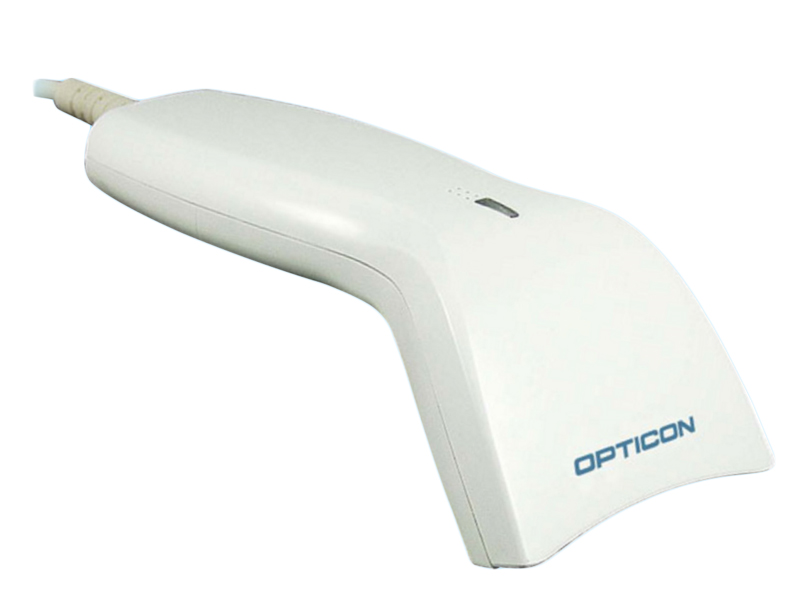

The pictures shown are general images for product LGP 6125 and may not be applicable to all part numbers

Buy it now
Lifetime Support
15 Day Return Period
LGP 6125 Features
Under $100
Color Options

Black, Beige

LGP 6125 Barcode Scanner

This product replaces the older Opticon OPI2201.

Operating at a lightening fast 200 scans per second, the Opticon LGP 6125 contact scanner also uses new decoding algorithms for fast, accurate decoding of bar codes, even poor quality or marginal bar code symbols.

The sleek, modern styling is more lightweight and ergonomic than other handheld CCD scanners. It is ideal for heavy, all-day scanning applications.


  • 2.6" window allows reading bar codes up to 3" wide
  • 6125 is available with the most popular interfaces: USB and keyboard wedge
  • It is easily programmable to match your specific applications
  • Opticon’s 5-Year warranty testifies to the durability and long life that CCD scanners provide
Product Specifications
Dimensions 152 x 72 x 22 mm
Weight 90 g (excluding cable)
Color Options Black
Interfaces Available USB
Keyboard Wedge
Scan Method CCD Scanner
Decoding Capabilities Standard 1D Barcodes
Mobility/Range Corded
Cable Length: ~2000mm
Scan Rate (Maximum) 200 scan/sec
Reading Angle
Print Contrast (Min.) 45%
Typical Depth of Field 0 - 30 mm
Indicators LED, Beep
Auto Sense Mode No
Drop Specification 1.5 m drop to concrete
Operating Temperature 0 -40° C
Environmental Sealing n/a
Ambient Light (Max) 2,000 lux (white light)
3,000 lux (florescent light)
Stand No
Warranty 5 Year Warranty

Opticon LGP 6125 Reviews

POSGuys Rating:

Check out the five year warranty on the LGP 6125! This unit passes the standard 1.5 meter drop test and is utilizes a manual trigger for user control.

Customer Reviews

Frequestly Asked Questions

Recommended Models

LGP-6125 Scanner, Black with USB Cable

Previously Available Models
