Opticon OPI2201

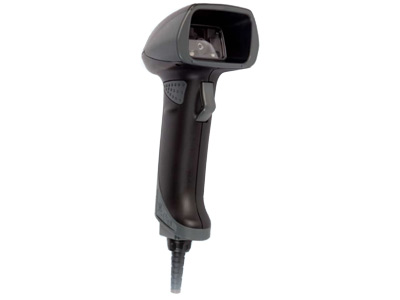

OPI2201 Barcode Scanner


The Opticon OPI2201 barcode scanner is uniquely positioned to give any retailer or healthcare provider a versatile 2D barcode scanning solution. Designed with an auto-focusing scan engine, the OPI2201 offers a variable field of view, speeding barcode reads tremendously. With the OPI2201, you get over a foot of scanning range for standard barcodes, and nearly six feet for large (39 mil) barcodes. Ideal for healthcare applications, the OPI2201 can also capture images, excellent for quickly adding insurance or drivers' license images to patient files.

Features
• Optional stand for presentation scanning
• Can capture images in one of four sizes
• USB, PS/2, RS-232 Serial interfaces available
• 0.59" to 14.37" scanning range for standard barcodes

Product Specifications
Dimensions 72 x 175 x 95 mm / 2.83 x 6.89 x 3.74 in
Weight 175 g / 6.2 oz (excl. cable)
Color Options Black
White
Interfaces Available USB
RS232
Keyboard Wedge
Scan Method CMOS area sensor, SXGA (1.3 million pixels), gray scale
Mobility/Range Corded
Decoding Capabilities Standard 1D, 2D, PDF Codes; Chinese Post, Korean Postal Authority Codes
Scan Rate (Maximum) Up to 30 fps, after auto-focus activation
Reading Angle Pitch: +/- 45°
Tilt: 360°
Skew: +/- 60°
Print Contrast (Min.) n/a
Typical Depth of Field Code 39: 15 - 100 mm / 0.59 - 3.94 in (0.1 mm / 4 mil); 15 - 155 mm / 0.59 - 6.10 in (0.127 mm / 5 mil),; 15 - 365 mm / 0.59 - 14.37 in (0.254 mm / 10 mil),; 90 - 1450 mm / 3.54 - 57.09 in (1.0 mm / 39 mil) QR Codes: 15 - 40 mm / 0.59 - 1.57 in (0.127 mm / 5 mil); 15 - 280 mm / 0.59 - 11.02 in (0.339mm / 13 mil)*
Indicators 1 LED (red/green/orange)
Buzzer
Auto Sense Mode Yes, In Stand
Image Capture Yes (Windows Bitmap, JPEG, TIFF)
Drivers License Data Parsing No
Mobile Phone Scanning Capabilites Yes
Healthcare Specific Model No
Operating Temperature -20 to 50°C / -4 to 122°F
Drop Specification 1.5 m / 5 ft drop onto concrete surface
Environmental Sealing n/a
Ambient Light (Max) Fluorescent 10,000 lx max
Direct sun 100,000 lx max
Incandescent 10,000 lx max
Stand Yes, As Accessory
Warranty 2 Year Manufacturer Warranty

Opticon OPI2201 Reviews

POSGuys Rating:

Customer Reviews

This product has not been reviewed yet, be the first to share your experience

Add a customer product review

Recommended Models

OPI2201 Barcode Scanner, Black with Auto Focus Imager, USB Interface
$279.00
  • color: Black
  • interface: USB
OPI2201 Barcode Scanner, Black with Auto Focus Imager, PS/2 Keyboard Wedge Interface
$279.00
  • color: Black
  • interface: PS/2
OPI2201 Barcode Scanner, White with Auto Focus Imager, USB HID Interface
$279.00
  • color: White
  • interface: USB

Additional Models

Barcode Scanner, Black with Auto Focus Imager, RS-232 Serial Interface
$279.00
  • color: Black
  • interface: RS-232
Barcode Scanner, White with Auto Focus Imager, USB (Comm Emulation) Interface
$279.00
  • color: white
  • interface: USB
Barcode Scanner, White with Auto Focus Imager, PS/2 Keyboard Wedge Interface
$279.00
  • color: white
  • interface: PS/2
Barcode Scanner, White with Auto Focus Imager, RS-232 Serial Interface
$279.00
  • color: white
  • interface: RS-232

Accessories

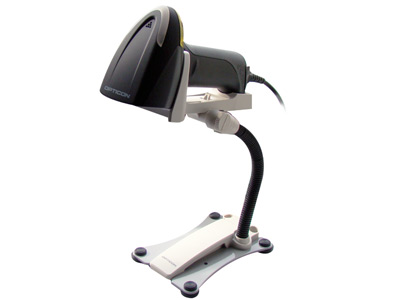

28-STD2201B-01 OPI2201 Stand, Black $49.00 Add to Cart

Previously Available Accessories

28-STD2201W-01 OPI2201 Stand, White Please Call
