Star Micronics BSH-20B
The pictures shown are general images for product BSH-20B and may not be applicable to all part numbers
Buy it now
View Accessories
Lifetime Support
15 Day Return Period
BSH-20B Features
Bluetooth
2D / QR

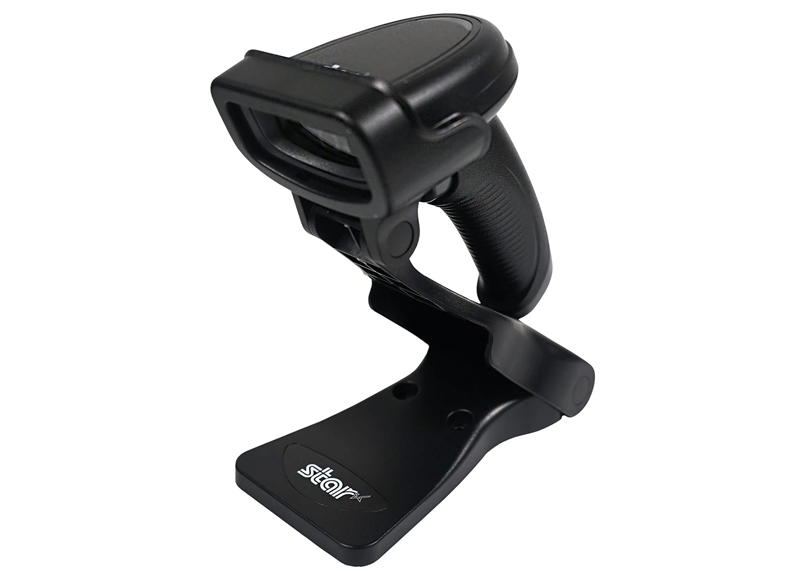

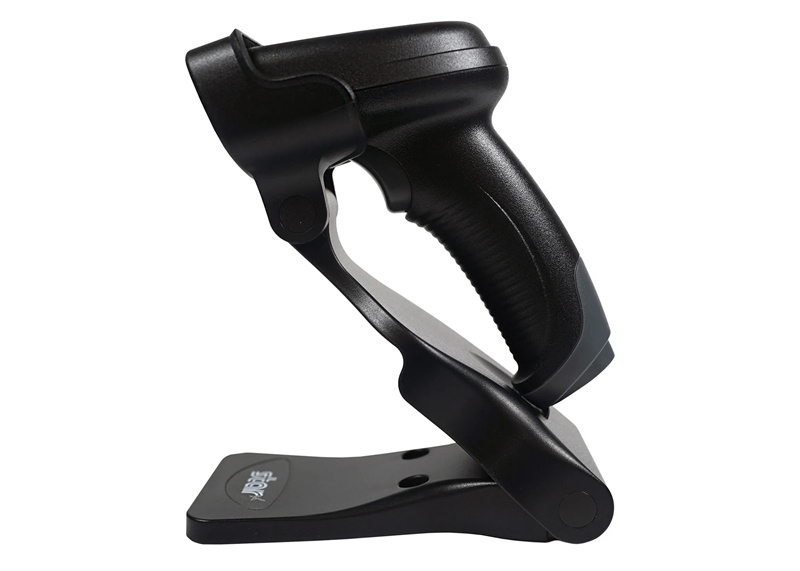

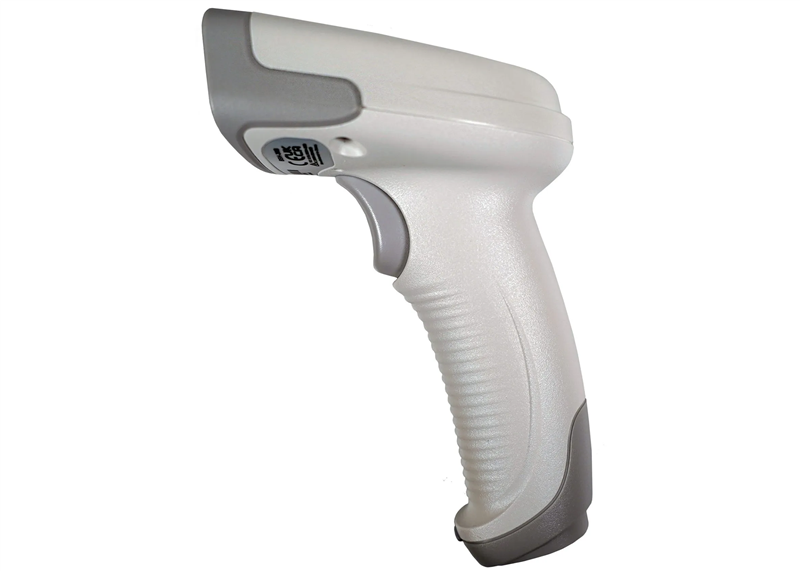

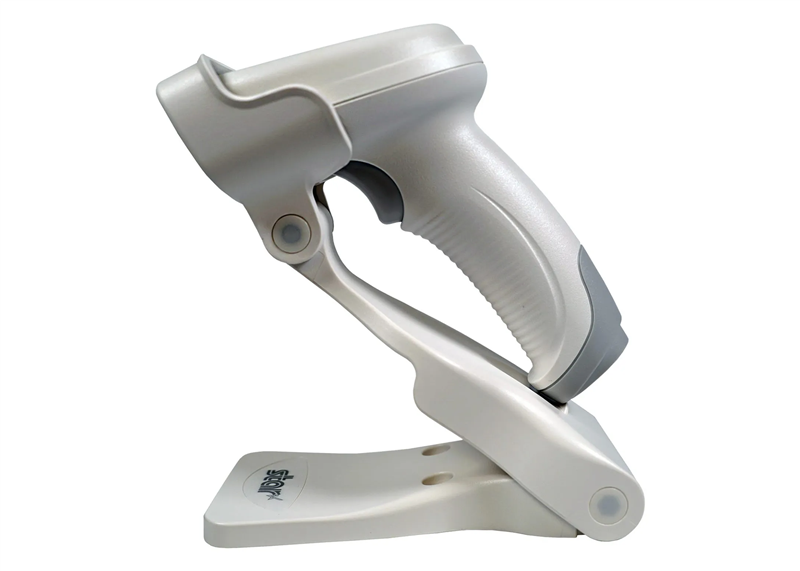

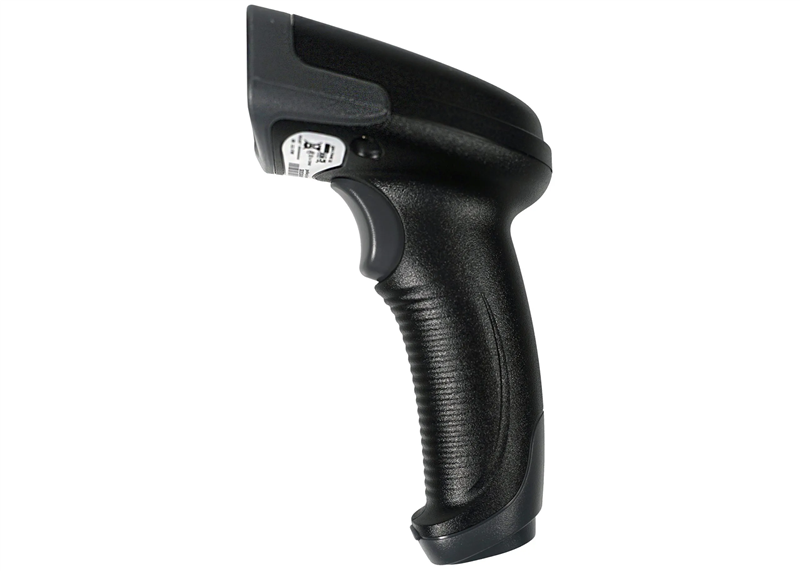

BSH-20B Barcode Scanner
Wireless Bluetooth Barcode Scanner
A global provider of complete POS hardware solutions, Star Micronics is proud to offer the BSH-20B wireless Bluetooth 1D/2D handheld barcode scanner with a stylish design, long battery life, and reliable wireless transmission. It has six scanning modes and captures images on paper, uneven media, or onscreen.
Key Features
- High-performance CPU captures high-density, high-volume, & distorted barcodes
- Two forms of wireless communication: Bluetooth 5.0 or USB dongle (included)
- 12 hours of continuous battery use
- No driver downloads needed with iOS, Android, and Windows
- 6 scanning modes (level, trigger, sense, continuous, pulse, batch)
- Smart scanner stand included
- 2-year warranty included with options to extend via EXTEND-A-STAR® and/or SWAP-A-STAR®
- Compatible with any POS software, including Star’s mCollection®
| Product Specifications | |
|---|---|
| Image Sensor | 640X480 CMOS |
| Illumination | White LED |
| Aiming | Red LED (625nm) |
| Symbologies |
|
| Resolution | ≥3mil (Code 128) |
| Typical Depth of Field |
|
| Scan Angle | Pitch: ±60°, Roll: 360°, Skew: ±60° |
| Field of View | Horizontal 45°, Vertical 34° |
| Min Symbol Contrast | 20% |
| Communication Modes | Synchronous mode, automatic batch mode, and manual batch mode |
| Radio Technology | Bluetooth 5.0 |
| Communication Distance | Bluetooth: ≤50m (164 ft) |
| Memory Capacity | 15000 pieces Code 128 (20 byte of each Code 128) |
| Battery | 2400 mAh lithium-ion battery |
| Expected Charge Time | 5.5 hours (with power adapter) |
| Expected Battery Life | 12 hours of continuous operation (scan once per 6 seconds) |
| Dimensions (L×W×H) | 144 (L) x 103 (W) x 69 (H) mm |
| Weight | 177g |
| Colors | Black and White |
| Notification | Beep, LED indicator, Vibration |
| Humidity | 5%~95% (non-condensing) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Drop | 1.5m |
| Sealing | IP42 |
Star Micronics BSH-20B Reviews
Customer Reviews
| Downloads |
|---|
| Driver |
| Quick Start Guide |
| Spec Sheet |
| User Manual |
