Star Micronics BSH-20U

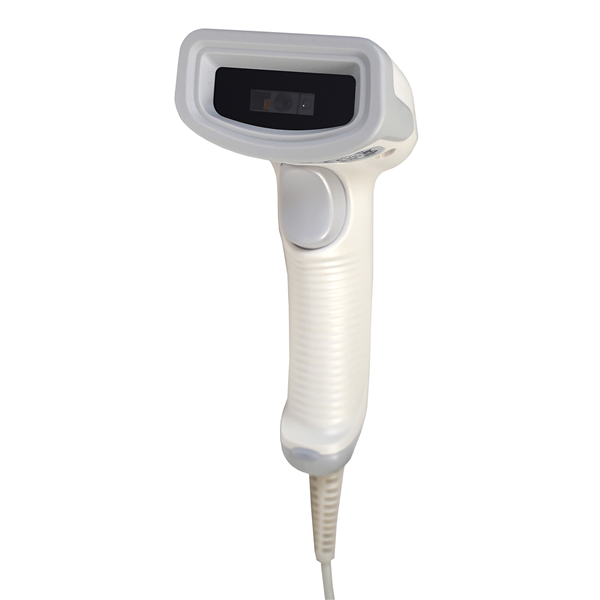

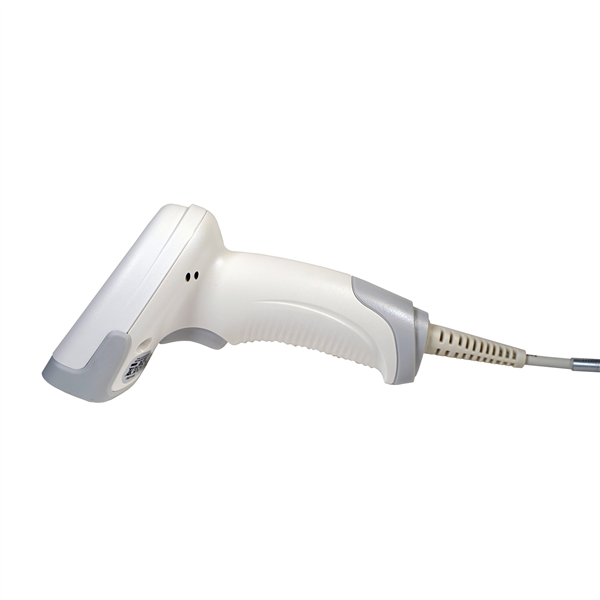

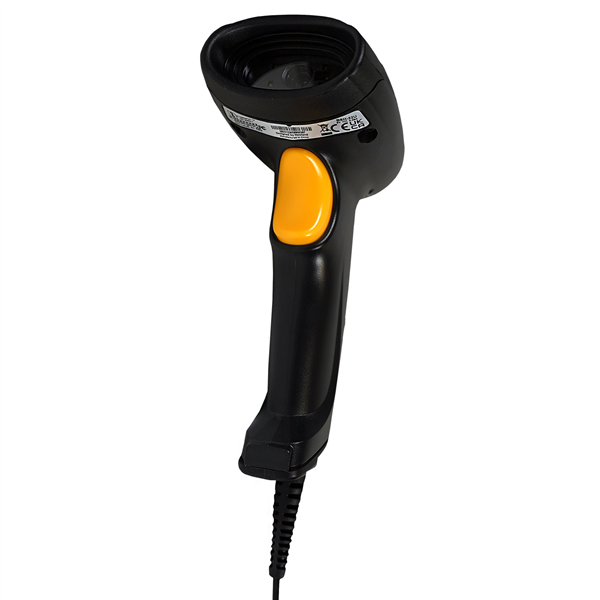

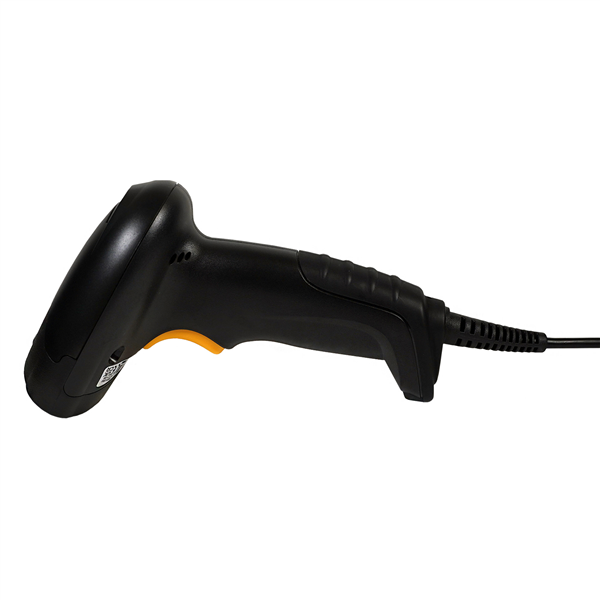

The pictures shown are general images for product BSH-20U and may not be applicable to all part numbers

BSH-20U Barcode Scanner

This product replaces the older Star Micronics BSH-HR2081.

Handheld USB Barcode Scanner

The BSH-20U is a versatile, cost-effective 1D/2D handheld USB barcode scanner equipped with a high-performance CPU. It excels in scanning high-density, high-volume, and distorted barcodes on various surfaces, including paper, uneven media, or digital displays. Designed for durability, it features an IP42-rated construction and drop-resistant housing, ensuring resilience in active business settings. It’s ideal for a range of markets like retail, hospitality, and the healthcare sector and is compatible with any POS system. It supports easy plug-and-play functionality with iOS, Android, and Windows devices. For businesses seeking advanced scanning capabilities, the BSH-20U is the efficient, reliable, and economical choice.

Key Features - BSH-20U Handheld 1D/2D USB Barcode Scanner
  • High-performance CPU captures high-density, high-volume, & distorted barcodes
  • Plug and play with iOS, Android, and Windows
  • Scans on paper, uneven media, or screen
  • 5 scanning modes (level, sense, continuous, pulse, batch)
  • Access to StarSCAN configuration utility for customized functionality
  • Ergonomic, IP42-rated design and 1.2m drop resistance
  • White models have washable antimicrobial housing, ideal for the health sector
  • 2-year warranty included with options to EXTEND-A-STAR® or SWAP-A-STAR®
  • Compatible with any POS software, including Star’s mCollection® products (mC-Print2/3 & mPOP®)
  • Star branded for superior quality guaranteed

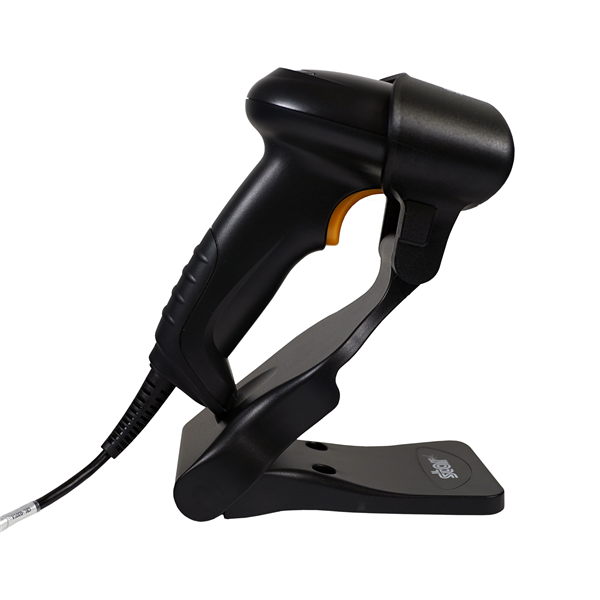

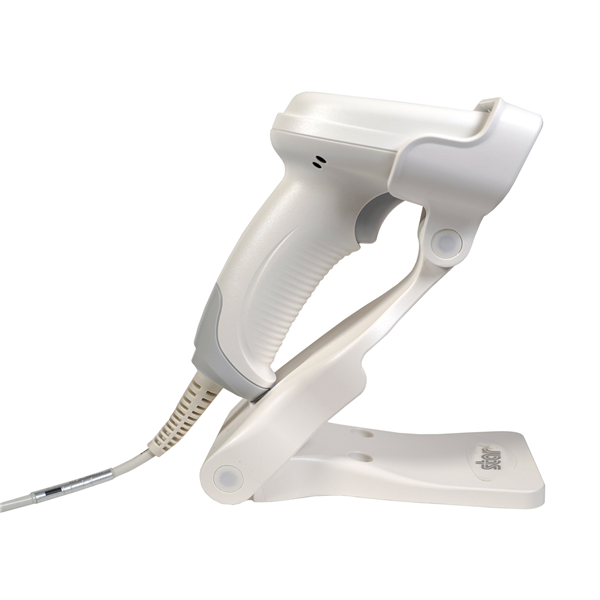

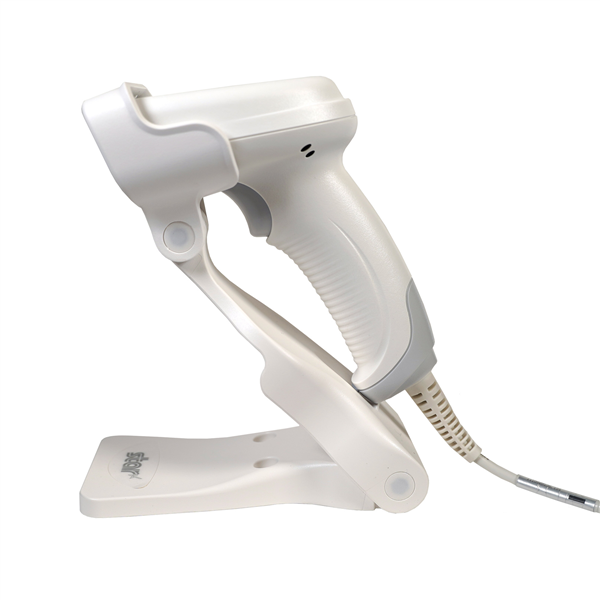

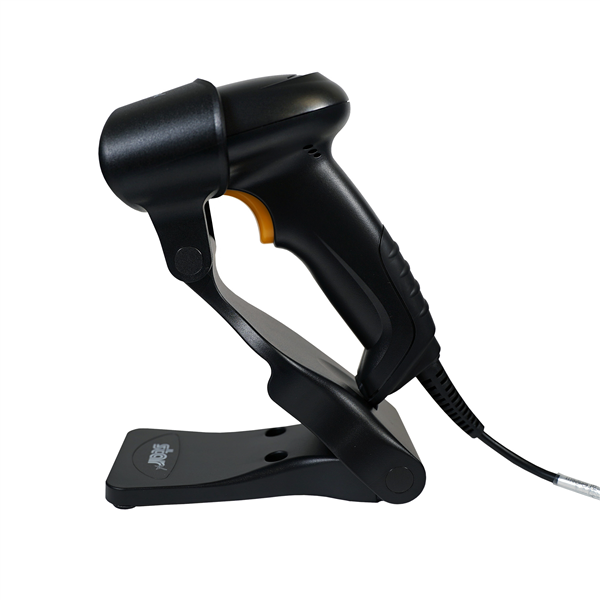

  • Scanner stand included
Included in Box
  • Scanner
  • Stand
  • Product Specifications
    Image Sensor 640×480 CMOS
    Illumination White LED
    Aiming Red LED
  • 2D: PDF417, Micro PDF417, QR Code, Data Matrix, Micro QR Code, Aztec
  • 1D: Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, ChinaPost25, MSI-Plessey, Plessey, GS1Databar (RSS)
  • Resolution* ≥3 mil
    Typical Depth of Field*
  • EAN-13: 50 mm-260 mm (13 mil)
  • Code39: 50 mm-115 mm (5 mil)
  • PDF417: 50 mm-120 mm (6.7 mil)
  • Data Matrix: 35 mm-125 mm (10 mil)
  • QR Code: 30 mm-170 mm (15 mil)
  • Scan Angle Pitch: ±55°, Roll: 360°, Skew: ±55°
    Field of View Horizontal 45°, Vertical 34°
    Min Symbol Contrast 20%
    Interface USB, RS232
    Operating Voltage 5VDC±5%
    Dimensions (L×W×H) 146mm x 103mm x 69mm
    Weight 125g

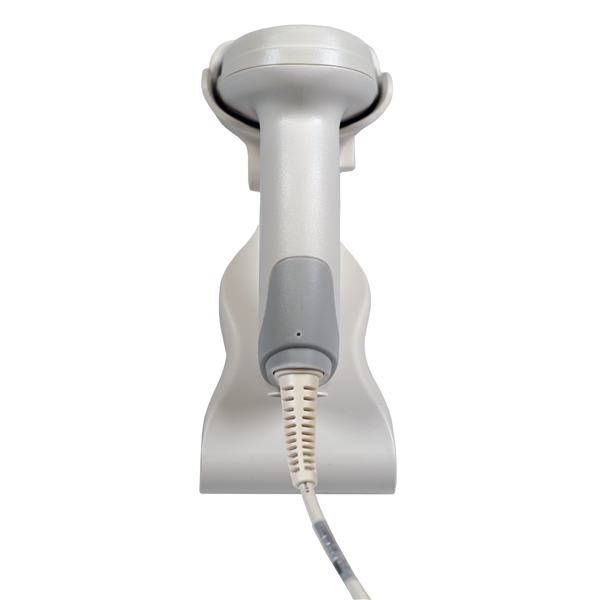

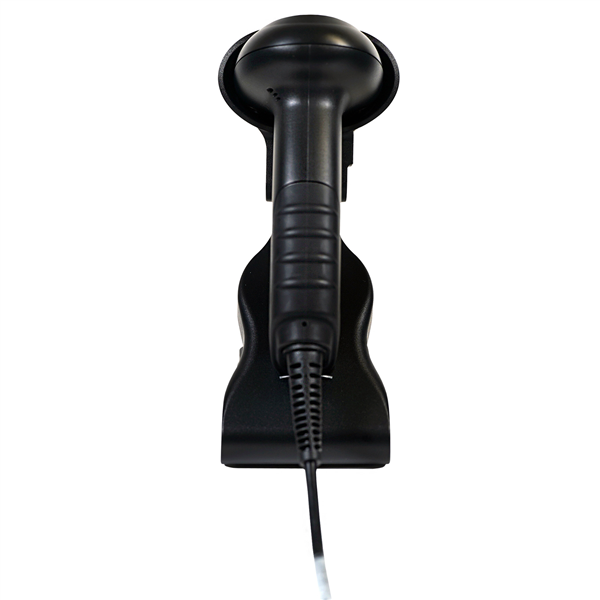

    Colors Black, White
    Notification Beep, LED
    Operating Temperature -20°C to 60°C (-4°F to 140°F)
    Storage Temperature -40°C to 70°C (-40°F to 158°F)
    Humidity 5%~95% (non-condensing)
    ESD ±15 KV (air discharge); ±8 KV (contact discharge)
    Drop 1.2 m
    Sealing IP42
