Star Micronics BSH-32B

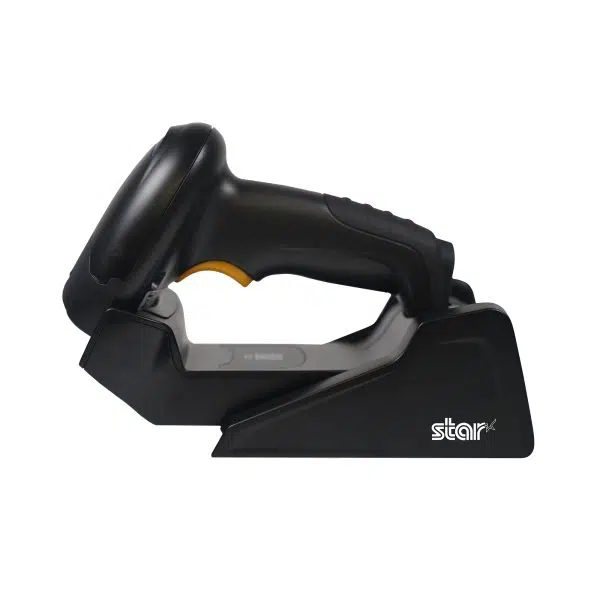

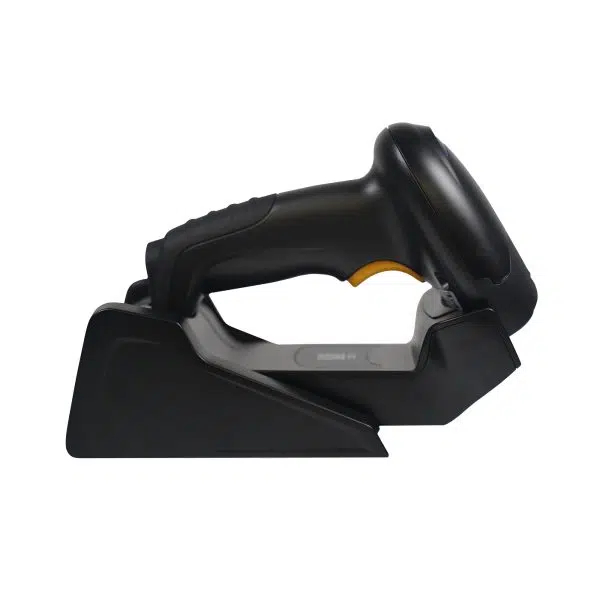

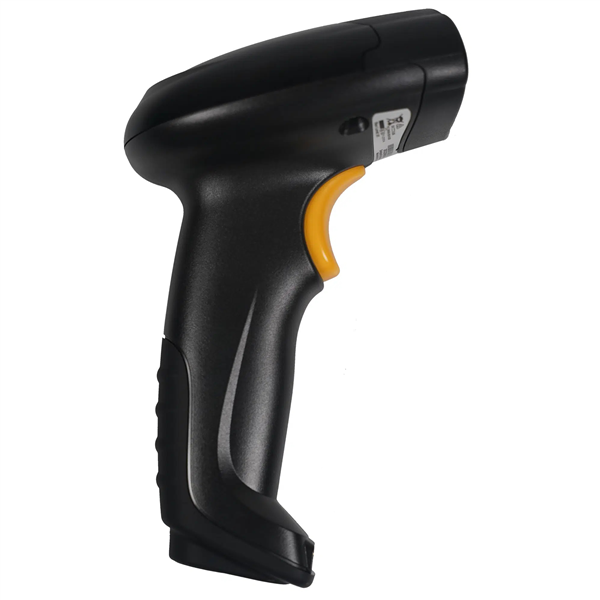

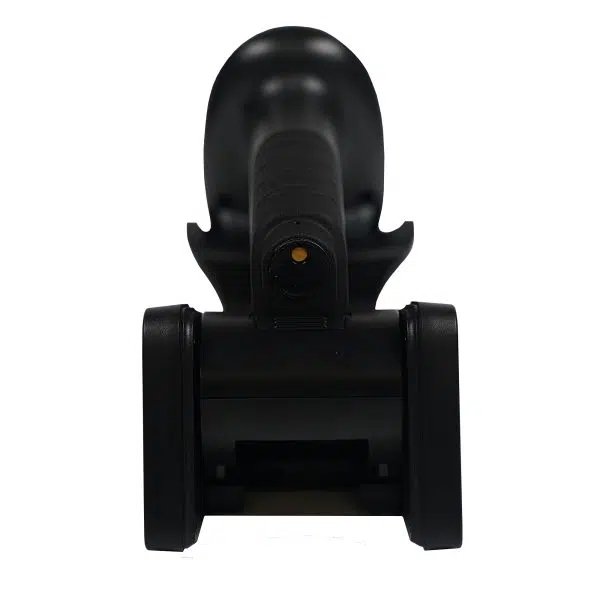

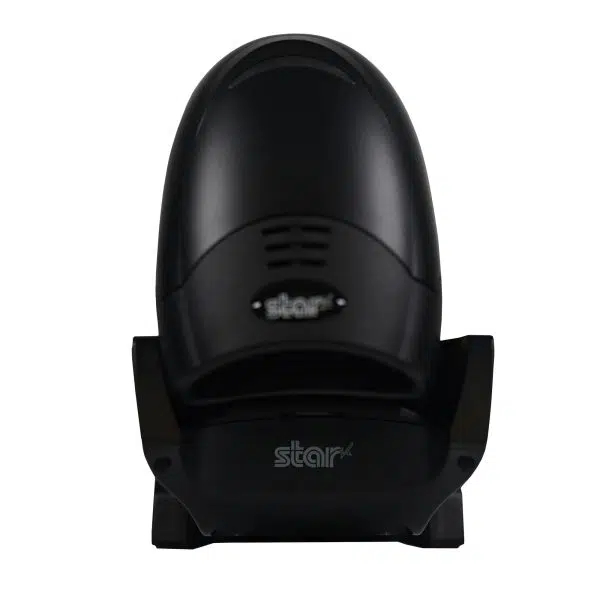

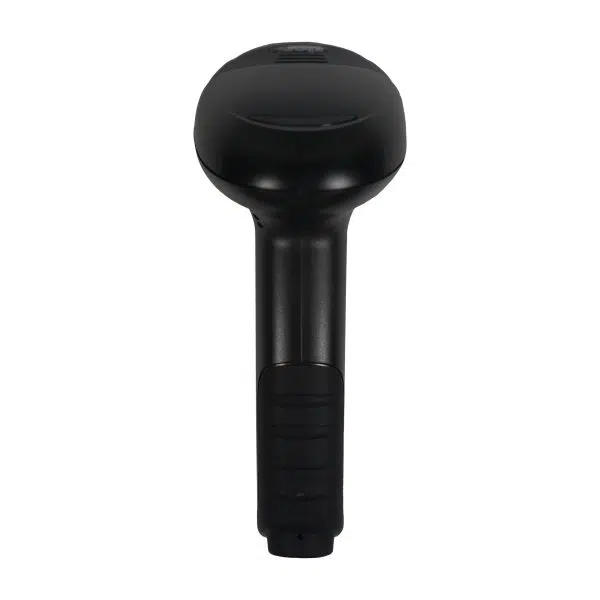

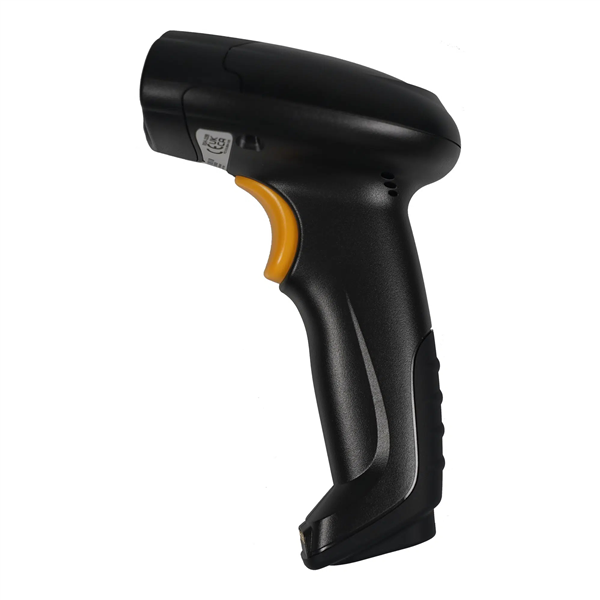

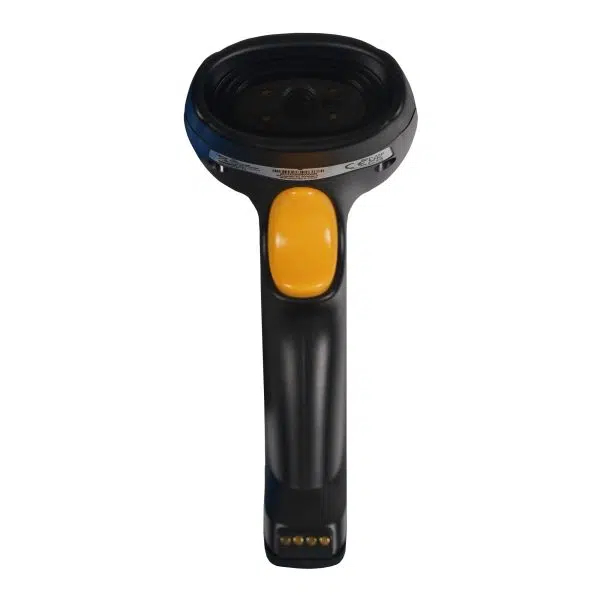

The pictures shown are general images for product BSH-32B and may not be applicable to all part numbers

Buy it now
Lifetime Support
15 Day Return Period
BSH-32B Features
Driver’s Licenses
Bluetooth
2D / QR

BSH-32B Barcode Scanner


This product replaces the older Star Micronics BSH-HR2081BT.

Premium Bluetooth Handheld Barcode Scanner

The BSH-32B from Star Micronics sets a new standard in untethered, wireless scanning, perfect for environments like bars, nightclubs, restaurants, retail, and inventory management. This premium handheld scanner is designed for power and durability, featuring a high-powered CPU and a high-resolution image sensor capable of accurately reading and parsing 1D and 2D barcodes on various surfaces. Its advanced Bluetooth 5.0 technology ensures a reliable connection up to 50m for versatile connectivity. The scanner’s robust design, IP42 rating, and 1.2m drop resistance ensure longevity in fast-paced settings. With a 2400mAh battery allowing up to 12 hours of continuous use and a convenient charging cradle, it’s ideal for extended operations in purchase/sales management, ticketing, or back-of-house tasks. Available in sleek black with Star branding, the BSH-32B blends high performance with ergonomic design for maximum efficiency and comfort in any professional environment.

Key Features - BSD-40U Desktop 1D/2D Barcode Scanner
  • High-resolution CMOS captures high-density, high-volume, and distorted barcodes on paper or screen
  • Long Battery Life: 12 hours of continuous operation (one scan every six seconds)
  • High-Performance CPU: Can read and parse barcodes
  • Two Forms of Communication: Connects directly to the host device via Bluetooth low-energy (BLE) or can be wirelessly connected via the charging cradle
  • No driver downloads needed with iOS, Android, and Windows
  • Access to StarSCAN configuration utility for customized functionality
  • 2-year warranty included with options to extend via EXTEND-A-STAR® and/or SWAP-A-STAR®
  • Plugs directly into any POS system, including Star’s mCollection® products
  • Ergonomic, IP42-rated design and drop-resistant (1.2m)

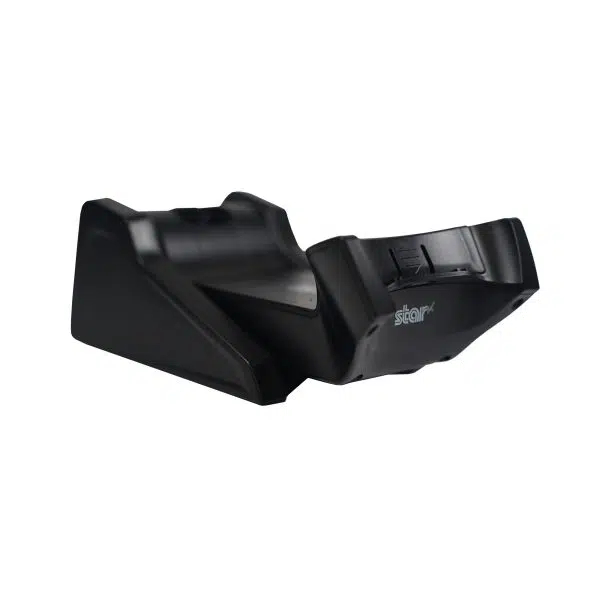

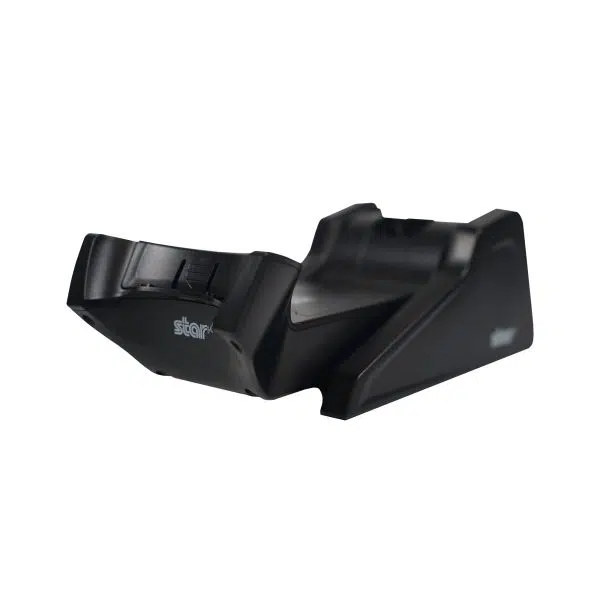

  • Convenient charging cradle included
Included in Box
  • Scanner
  • Charging Cradle
  • Charge Cable
  • USB Wireless Adapter
  • Product Specifications
    Image Sensor 1280×800 (megapixel) CMOS
    Illumination White LED & Red LED (622 nm-628 nm)
    Aiming Green LED (515 nm-535 nm)
    Symbologies
  • 2D: PDF417, Micro PDF417, QR Code, Micro QR Code, Aztec, Data Matrix, Chinese Sensible Code, Maxicode.
  • 1D:EAN-8, EAN-13, UPC-E, UPC-A, Code128, Coupon, UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, Industrial 25, Standard 25, China Post 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128
  • Resolution ≥3 mil
    Typical Depth of Field
  • EAN-13: 50 mm-495 mm (13 mil)
  • Code39: 85 mm-220 mm (5 mil)
  • PDF417: 70 mm-215 mm (6.7 mil)
  • Data Matrix: 50 mm-220 mm (10 mil)
  • QR Code: 20 mm-325 mm (15 mil)
  • Scan Angle Pitch: ±55°, Roll: 360°, Skew: ±55°
    Field of View Horizontal 39°, Vertical 24°
    Min Symbol Contrast 25%
    Driver’s License Parsing Can parse according to American Association of Motor Vehicle Administrators (AAMVA) October 2020 Specification.
    Communication Modes Synchronous, asynchronous and batch mode
    Radio Technology Bluetooth 5.0
    Communication Distance 50m/164 ft (direct line of sight in open air)
    Memory Capacity ≥15000 pieces of Code 128 (20 byte of each Code 128)
    Battery 2400 mAh lithium-ion battery
    Expected Charge Time 4 hours (with power adapter)
    Expected Battery Life 12 hours of continuous operation (scan once per 6 seconds)
    Interface USB
    Operating Voltage 5VDC±5%
    Dimensions (L×W×H) 113mm x 71mm x 158mm
    Weight 214g
    Colors Black
    Notification Beep, LED
    Operating Temperature -20°C to 60°C (-4°F to 140°F)
    Storage Temperature -40°C to 70°C (-40°F to 158°F)
    Battery Charge Temperature 0°C to 45°C (32°F to 113°F)
    Humidity 5%~95% (non-condensing)
    ESD ±8 KV (air discharge); ±4 KV (contact discharge)
    Drop Scanner: 1.2 m/3.9 ft Cradle: 1 m/3.3 ft
    Sealing IP42
