Star Micronics BSH-32U High-Density

The pictures shown are general images for product BSH-32U High-Density and may not be applicable to all part numbers

Buy it now
Lifetime Support
15 Day Return Period
BSH-32U High-Density Features
Driver’s Licenses
2D / QR

BSH-32U High-Density Barcode Scanner


Premium USB Handheld Barcode Scanner

The BSH-32U from Star Micronics is a premium handheld USB barcode scanner that combines high performance with robust durability. Equipped with a powerful CPU and a super high-resolution image sensor, this scanner excels in various environments, including retail stores, bars and restaurants, event venues, and more. It adeptly reads and parses both 1D and 2D barcodes from paper, digital screens, and uneven surfaces, making it ideal for scanning IDs, driver’s licenses, QR codes, and product labels. The BSH-32U’s design is stylish and practical, featuring an IP42-rated, drop-resistant (1.5m) housing for enhanced durability. Available in smooth black and Star-branded, it seamlessly plugs into any point-of-sale (POS) system, including Star Micronics’ mPOS product line, the mCollection®. The BSH-32U USB barcode scanner is a versatile solution for any business seeking accuracy and efficiency in its scanning operations.

Key Features - BSH-32U Premium Handheld 1D/2D USB Barcode Scanner
  • High-resolution CMOS captures high-density, high-volume, & distorted barcodes
  • High-Performance CPU: Can read and parse barcodes (IDs, driver’s licenses)
  • Scans on paper, uneven media, or screen
  • Access to StarSCAN configuration utility for customized functionality
  • Ergonomic, IP42-rated design and 1.5m drop resistance
  • 2-year warranty included with options to extend via EXTEND-A-STAR® and/or SWAP-A-STAR®
  • Plugs directly into any POS system, including Star’s mCollection® products
  • Star branded for superior quality guaranteed
  • Scanner stand included

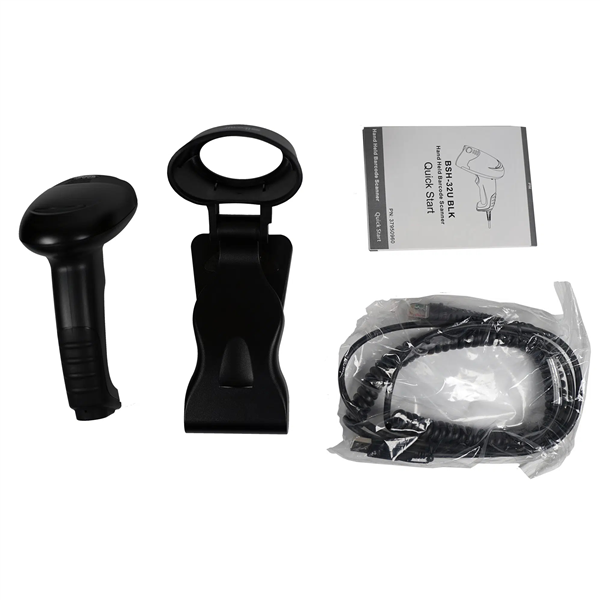

Included in Box
  • Scanner
  • USB Cable
  • Stand
  • Product Specifications
    Sealing Sealing IP42
    Image Sensor 1280×800 (megapixel) CMOS
    Color Color Black
    Resolution ≥3mil
    Symbologies
  • 2D -PDF417, QR Code, Data Matrix, Aztec, Maxicode, etc.
  • 1D & OCR - EAN-8, EAN-13, UPC-E, UPC-A, Code128, Coupon, UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, Industrial 25, Standard 25, China Post 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128
  • Postal -USPS Postnet, Royal Mail, KIX Post, Australian Postal, etc.
  • Dimensions I Weight 113.4(W)×71.4(D)×158.0(H) mm |156g
    Typical Depth of Field
  • EAN-13: 45 mm-510 mm (13 mil)
  • Code 39: 75 mm-220 mm (5 mil)
  • PDF 417: 70 mm-215 mm (6.7 mil)
  • Data Matrix: 50 mm-220 mm (10 mil)
  • QR Code: 20 mm-330 mm (15 mil)
  • Scan Angle Pitch: ±55°, Skew: ±55°, Roll: 360°
    Field of View Horizontal 39°, Vertical 24°
    Min Symbol Contrast 25%
    Driver’s License Parsing Can parse according to American Association of Motor Vehicle Administrators (AAMVA) October 2020 Specification.
    Interface RS-232, USB
    Drop Resistance 1.5 m
    Warranty 2 Year
