UniTech MS120

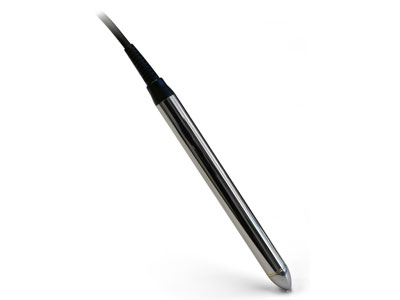

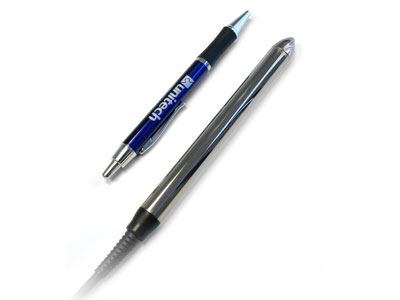

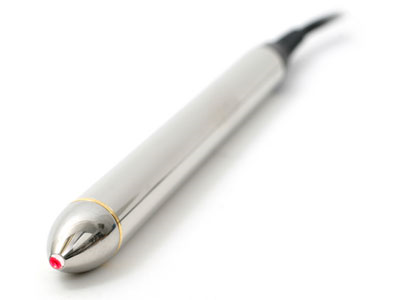

The pictures shown are general images for product MS120 and may not be applicable to all part numbers

Buy it now
Lifetime Support
15 Day Return Period
MS120 Features
Under $100
Color Options

Stainless Steel

MS120 Barcode Scanner


The MS120 Series Bar Code Wands are targeted toward low reading volume and cost effective solutions. The advanced optics and electronic design convert bar code labels into a high quality digital signal. Able to read color, faded and low contrast barcodes quickly and accurately, the MS120 is a proven solution. The polished sapphire tip reduces wear on labels and is also easily replaced if damaged. The MS120 is available with three different interfaces. The MS120A is an undecoded model which interfaces via a 9-Pin squeeze release connector. The MS120-2 has an RS232 interface with a built-in decoder. With a key-board wedge (AT or PS/2) interface the MS120-3 also has a built-in decoder. It's shape gives the MS120 the comfort and handling of a normal ink pen. Just sweep the tip of the wand across the bar code in either direction and listen for the good read beep that lets you know the data has been successfully captured. It doesn't get any easier than that.
Product Specifications
Dimensions
Weight 60g (cable not included)
Color Options Stainless Steel
Interfaces Available Keyboard Wedge
RS232
Scan Method Contact Pen Scanner
Decoding Capabilities Standard 1D Barcodes
Mobility/Range Corded
Scan Rate (Maximum) 2 - 30 inches/sec
Reading Angle 0 to 45°
Print Contrast (Min.) 50%
Typical Depth of Field .004" ( 0. 1mm)
Indicators Beep
Operating Temperature 23° to 131°F ( 0 to 55°C)
Drop Specification
Environmental Sealing n/a
Ambient Light (Max)
Stand 400120-Z010 Optional Pen Holder
Warranty 1 Year Manufacturer

UniTech MS120 Reviews

POSGuys Rating:

Customer Reviews

Downloads
Data Sheet
Manual

Recommended Models

MS120 Wand Scanner, Stainless Steel, with DB-9-F Cable, Squeeze Release Connector

Additional Models

MS120-2 W/O POWER SUPLY CONNECTION
MS120 Wand Scanner, Stainless Steel, with PS/2 Cable, PS/2 Keyboard Wedge Interface - Replaces MS120-3PS2G

Accessories

Replacement Wand Tip for the MS120 Pen Scanner
MS210 Power Supply
Stand for the MS100 and MS120

Previously Available Models
