UniTech MS180

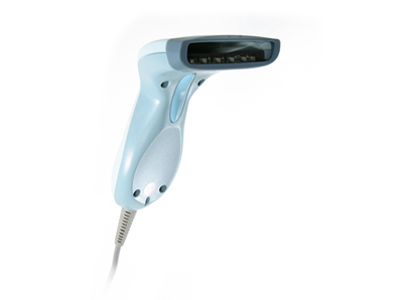

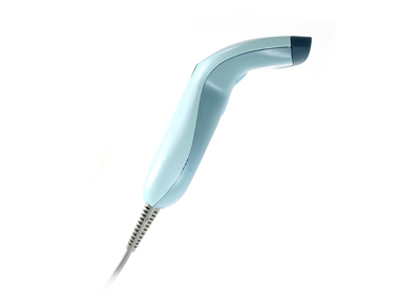

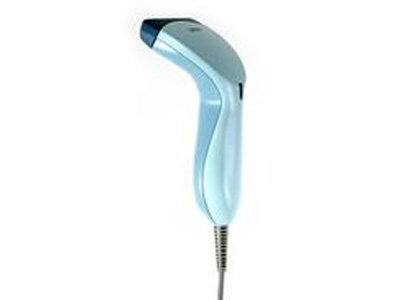

The pictures shown are general images for product MS180 and may not be applicable to all part numbers
MS180 Barcode Scanner
The UniTech MS180 has reached end of life. It has been replaced by the UniTech MS250.
The UniTech MS180 sports a flexible, multiple interface design for keyboard wedge, RS232, USB, wand emulation and sixteen popular terminals by simply replacing the cable. This feature also prevents downtime caused by damaged cables. In addition, the IBM PC XT/AT keyboard wedge interface supports 8 different character sets.
The MS180 decodes all major symbologies, reducing processing time and labor costs, while increasing accuracy. The decoder also allows editing and modifying scanned data before sending it to the host device. Setup for the MS180 is simple, and settings can be cloned to other readers through the use of custom bar code labels.
The ergonomic design makes the scanning process easier and more comfortable. Aside from good looks, the MS180 is rugged enough to withstand multiple six-feet drops to concrete.
| Product Specifications | |
|---|---|
| Dimensions | L 190 x W 88 x H 50 mm |
| Weight | 125g (w/o cable) |
| Color Options | Blue/Grey |
| Interfaces Available | USB, AT/PS2 |
| Scan Method | CCD Scanner |
| Decoding Capabilities | Standard 1D Barcodes |
| Mobility/Range | Corded |
| Scan Rate (Maximum) | 33 scans / sec |
| Reading Angle | 30-150° |
| Print Contrast (Min.) | 45 % |
| Typical Depth of Field | 0 ~ 16 mm on 4/5/6/10/13 mils; 0 ~ 25 mm on 40 mils |
| Indicators | Beep LED |
| Auto Sense Mode | Trigger, Flash, Multi-scan, continuous and One Press one Modes |
| Operating Temperature | 0° C ~ 50° C |
| Drop Specification | 1.5 M to concrete (10 times) |
| Environmental Sealing | n/a |
| Ambient Light (Max) | |
| Stand | MS201 Optional Desktop Holder (MS201) |
| Warranty | 3 Year Manufacturer |
UniTech MS180 Reviews
The UniTech MS180 barcode scanner has trigger, flash, multi-scan, and continuous operation modes for user flexibility, setting it apart from some of the other basic ccd entry level scanners.
