Honeywell 4800i

4800i Discontinued


The Honeywell 4800i has reached end of life. It has been replaced by the Honeywell Granit 1910i.

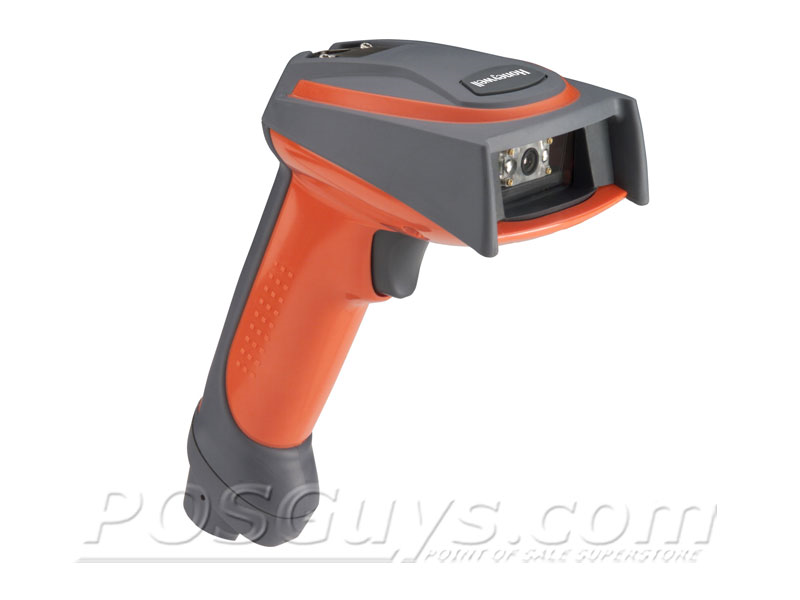

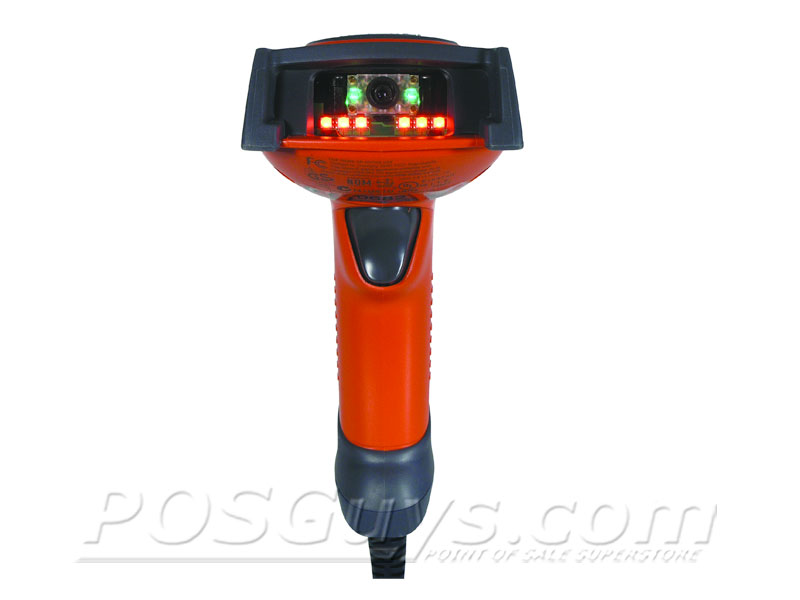

The 4800i Industrial 2D Area Imager is the first hand held area image reader powered by Adaptus imaging technology. Adaptus technology decodes faster, farther, and future-proofs your investment.

Whether your application is reading conventional linear bar codes or tomorrow's 2D matrix symbologies, the 4800i can capture them all today. If your application requires signature capture, OCR, or digital photography, the 4800i can solve them all.

The 4800i can be used in a wide range of applications from circuit board manufacture to package delivery tracking. Bar codes, images and signature capture can also provide positive proof of delivery.

The 4800i was designed to be extra tough to meet the challenges of industrial applications. Full shock-absorbing rubber protects the imager from dozens of 6.5 feet (2 meter) drops to concrete. In addition to an IP54 rating the 4800i is backed by an industry-best 5-year warranty.

Ver lista en español de 4800i en EquiposTVP.com

Product Specifications
Dimensions 135 x 81 x 163 mm (5.3 x 3.2 x 6.4 in)
Weight 213 g (7.5 oz)
Color Options Orange/Grey
Interfaces Available Keyboard Wedge
USB
RS-232
Scan Method Area Imager (Pixel Array: 752 x 480)
Decoding Capabilities Reads standard 1D, stacked, 2D and postal symbologies; limited OCR font reading.
Mobility/Range Corded
Motion Tolerance Standard: 10 cm/s (4 in/s)
Streaming Presentation: 50 cm/s (20 in/s) with 13 mil UPC at optimal focus
Reading Angle Pitch: 40°
Skew: 40°
Print Contrast (Min.) 20%
Typical Depth of Field Standard Range:
8.3 mil (1D) 76- 180 mm (3.0 - 7.1")
13 mil (UPC) 41- 323 mm (1.6 - 12.7")
6.6 mil (PDF) 102 - 145 mm (4.0- 5.7")
10 mil (PDF) 66- 216 mm (2.6 - 8.5")
15 mil (PDF) 46- 246 mm (1.8 - 9.7")
35 mil (MC) 38.1 - 318 mm (1.5 - 12.5")
Indicators Dual LED
Good Read Beep
Drivers License Data Parsing No
Image Capture Yes, signature capture, OCR, and digital photography
Mobile Phone Scanning Capabilites No
Auto Sense Mode Yes, In Stand
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Drop Specification Designed to withstand 2 m (6.5´) drops
Environmental Sealing IP54
Ambient Light (Max) 100,000 Lux
Stand HFSTAND5E Yes, As Accessory
Warranty 5 year factory warranty

Honeywell 4800i Reviews

POSGuys Rating:

Customer Reviews

Add a customer product review

Recommended Models

4800i Area Imager, Orange with Cable, PS/2 Keyboard Wedge Interface
This model has reached end of life.
Please Call
  • color: Orange
  • interface: PS/2

Additional Models

Area Imager, Orange with Scanner Unit Only, (Requires Cables)
This model has reached end of life.
Please Call
  • color: Orange
  • interface: Multi

Accessories

42203758-04E Serial Interface Cable
$34.00
Add to Cart
PS5U-41E Power Supply Cable
$25.00
Add to Cart
42206132-02E Keyboard Wedge Cable 9´ Coiled
$20.00
Add to Cart
SVC4800I-SMS5 4800i - 5-Year Warranty, 1-day turnaround, comprehensive coverage.
$71.00
Add to Cart
E-SVC4800I-S 4800i - 3-day turnaround, Annual Contract, Post Sale
$36.00
Add to Cart
42206161-01E 7.5-Foot USB Cable: Black (Compatible with the Honeywell 3800g, 4600g, 3800r, 3800i, 4800i)
$25.00
Add to Cart

Previously Available Models

4800i Area Imager, Orange with Cable, USB Interface
This model has reached end of life.
Please Call
