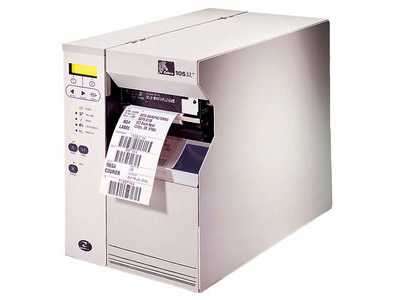

Zebra 105SL

105SL Discontinued


The Zebra 105SL has reached end of life.

Design Principle
-Rugged, all-metal construction
-Moderate to high-duty cycle
-Fast output with cutting-edge connectivity
-More user-friendly features
-The 105SL offers the ruggedness and reliability of the popular 105Se with significantly enhanced capabilities. Based on a proven platform, the
-105SL incorporates enhanced memory and processing capacity combined with cutting-edge connectivity that make it the choice of experienced users.

Applications
-Designed for experienced bar code users requiring a dedicated printer for batch or single format printing

The Zebra Advantage
-Innovative, high-quality leading technology products
-Broadest product line in the industry
-Global Service & Support: World wide technical support/ 24/7 online support
-Fast, friendly customer service with multi-lingual abilities
-Global network of authorized resellers
-Competitive product warranty: 12 month labor&parts and 6 month printhead warranty

Other Models Available, Please Call or Email !!!

These printers do not ship with labels. Labels can be ordered here.

Product Specifications
Interface Centronics® RS-232 RS-422*, and RS-485* serial ports; IEEE 1284 bi-directional parallel
Print Method Direct thermal or thermal transfer
Print Speed 8 in / second (203 mm / second)
Print Resolution 203 dpi, 300 dpi (optional)
Maximum Print Area Width: 4.09 in (104 mm)
Length: 106 in (2,692 mm) at 203 dpi - 65 in (1,651 mm) at 300 dpi
Paper Dimensions Width: 0.79 to 4.52 in (20 to 115 mm)
Roll Diameter: 8 in (203 mm) maximum
Paper Thickness 0.003 to 0.0012 in (0.076 to .305 mm)
Character Set IBM code page 850 international character set, optional European and Asian font sets
Resident Fonts 9 bitmapped, 1 mooth scalable (CG Triumvirate­™ Bold Condensed)
Barcodes Supported Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 or 5 digit extensions, Plessey, POSTNET, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar

2D Barcodes: CODABLOCK, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, Micro PDF417, RSS Code
Graphics Printing Supports user-defined fonts and graphics including custom logos, ZPL II drawing commands for boxes and lines
Memory 2 MB Flash, 6 MB SDRAM (3 MB user-available)
Printer Languages ZPL and ZPLII, ZBI™
Two Color Printing Capabilities No
Auto Cutter Optional - full width cutter with orderable catch tray
Peeler / Presenter Optional
Internal Rewind Optional
LCD Display Yes - 2-line, 16 character LCD control panel
Weight 55 lb (25 kg)
Dimensions 11.2W x 19.5D x15.5H in (283 x 495 x 394 mm)
Operating Temperature 41°F - 104°F (5°C - 40°C)

Zebra 105SL Reviews

POSGuys Rating:

Customer Reviews

Add a customer product review

Recommended Models

203 DPI, Serial/Parallel Interfaces, 6MB DRAM, 4MB Flash, LCD
This model has reached end of life.
Please Call
  • color: Beige
  • feature: 6 MB DRAM
  • interface: Parallel/RS-232
300 DPI, Serial/Parallel Interfaces, 6MB DRAM, 4MB Flash, LCD
This model has reached end of life.
Please Call
  • color: Beige
  • feature: 6 MB DRAM
  • interface: Parallel/RS-232

Additional Models

203 DPI, Serial/Parallel Interfaces, 4MB DRAM, 4MB Flash, LCD, Rewind & Peel
This model has reached end of life.
Please Call
  • color: Beige
  • feature: 4 MB DRAM, Rewind & Peel
  • interface: Parallel/RS-232
300 DPI, Serial/Parallel Interfaces, 4MB DRAM, 4MB Flash, LCD, Rewind & Peel
This model has reached end of life.
Please Call
  • color: Beige
  • feature: 4 MB DRAM, Rewind & Peel
  • interface: Parallel/RS-232
