Brady V4500
The pictures shown are general images for product V4500 and may not be applicable to all part numbers

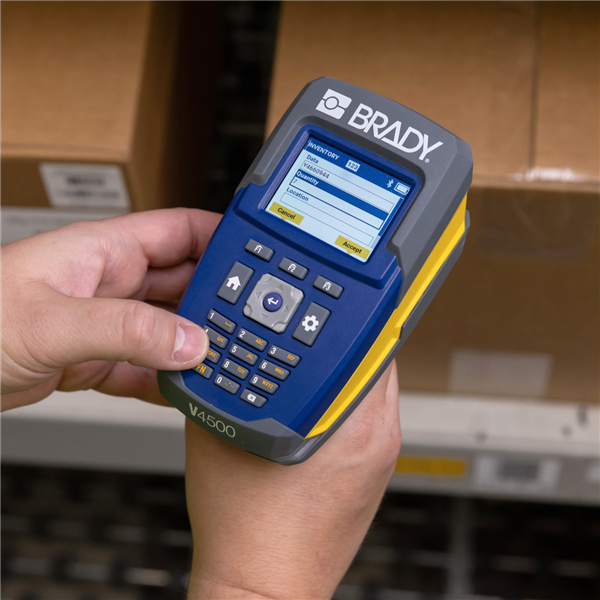

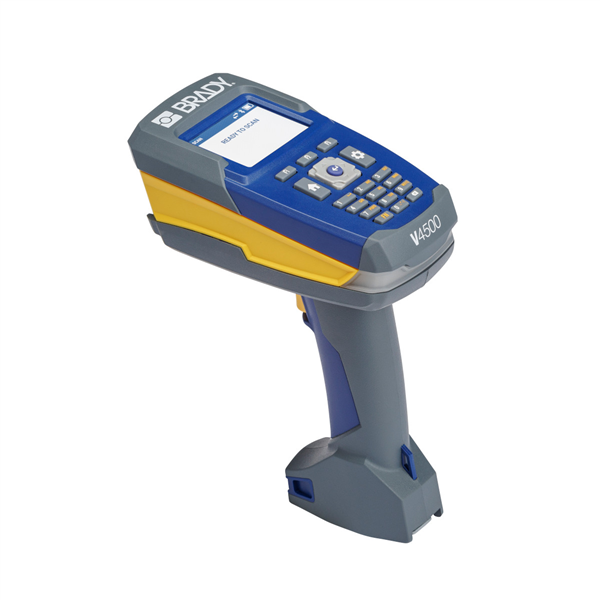

V4500 Industrial Barcode Scanner
Digitize data capture and automate your workflows with ease — and accuracy
The rugged versatility you need. The seamless experience you've been waiting for. Open it up. Power it on. Get it done. The all-new V4500 rugged industrial scanner is purpose-built for the unique challenges of manufacturing and warehouse tasks, enduring even the harshest conditions. Transform your inventory and work in process management with our patented high-performance scan engine that helps you conquer tiny barcodes and hard to read surfaces. Automate your business with accuracy. Connect your operations seamlessly. Streamline your workflows sustainably. Work smarter with Brady Intelligent Manufacturing.
Automated keyboard device + dynamic user interface
Take the pain out of programming
Easily connect to the cloud and your ERP system
Industrial-grade rugged durability
Withstands 6' drops (MIL-STD-810G)
All-day battery life
Lasts a full shift with over 75,000 scans & stay productive with inductive charging
Automated keyboard device + dynamic user interface
Take the pain out of programming
Easily connect to the cloud and your ERP system
Industrial-grade rugged durability
Withstands 6' drops (MIL-STD-810G)
All-day battery life
Lasts a full shift with over 75,000 scans & stay productive with inductive charging
Get Better Visibility Throughout your Facility
Pen and paper manual entry leads to costly errors. Replace traditional data entry and get more control and visibility as goods enter and exit your facility. The dynamic interface with the automated keyboard feature allows you to change settings right on the scanner to optimize productivity — and shows the full process of each scan on-screen to eliminate errors and reduce risk. Easily program to fit your workflows and navigate complexities. Sort and arrange data exactly how you want with the powerful data parsing feature. Verify the accuracy of shipments, locate misplaced goods and eliminate incomplete shipments or inaccurate data. Scanning made simple, with the most helpful support in the industry.
Industrial Design - Intuitive Functionality
Our proprietary Cortex Decoder technology powers the patented high-performance scan engine that reads at incredible lengths and speeds. Helping you conquer tiny barcodes, while navigating shiny and hard to read surfaces with ease. A mobile scanning powerhouse that goes where you go to give you the flexibility you need — with the premium performance you expect from Brady.
Open it up. Power it on. Get it Done.
Start up in seconds. Do data differently.
The V4500 is the ultra high-performance yet intuitive entry-level scanner you need to optimize your workflows — and modernize your overall operations. A highly capable and complex instrument made super simple and easy to use. The intuitive screen and the best customer support team in the industry help get your team up to speed in no time. Go from out of the box to your first scan in seconds — one configuration code and you're good to go!
Programming doesn't have to be painful.
We've made a scanner that seamlessly fits your workflow — not the other way around. Customize how you work with the intuitive interface. Start with a simple scan and easily connect to the cloud and your ERP system. Sort and arrange data exactly how you want with the powerful data parsing feature. Get up and running quickly and maximum your productivity.

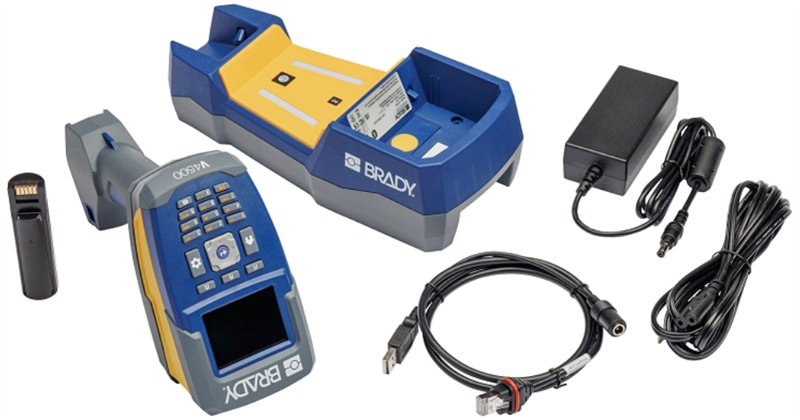

- V4500 Barcode Scanner
- V1300 Cradle
- V1200 Li-ion Battery
- Power Cord
- Power Adapter
- USB/Connection Cable
- Quick Start Guide
Product Specifications | |
---|---|
Scanner Dimensions | 5.984 in. L x 3.386 in. W x 7.776 in. H (152mm X 86mm x 197.5mm) |
Charging Station Dimensions | 10.079 in. L x 4.449 in. W x 2.953 H (256mm x 113mm x 75mm) |
Scanner Weight | 1.166 lbs (529 g) |
Charging Station Weight | 1.018 lbs (462 g) |
IP Rating | IP 65 |
Colors | Blue, Yellow and Gray |
Display | Color LCD Screen Diagonal 2.4 inch |
Keypad | 22 Keypads, alpha-numeric, 5 key directional pad, funtion keys |
Field of View | High density field: 30° horizontal by 20° vertical; Wide field: 50° horizontal by 33.5° vertical |
Focal Point | Approximately 3.9 in. (100 mm) |
Sensor | CMOS 1.2 megapixel (1280 x 960) gray scale |
Optical Resolution | High density field: 960 x 640; wide field: 960 x 640 |
Pitch | ± 65° (from front to back) |
Skey | ± 60° from plane parallel to symbol (side-to-side) |
Rotational Tolerance | ± 180° |
Symbol Contrast | 15% minimum reflectance difference |
Target Beam | Single blue targeting bar, 0.0000185” (470 nm) |
Ambient Light Immunity | Sunlight: Up to 9,000 fc (96,890 lux) |
Crush | 250 lbs-ft |
Bluetooth Radio Range | 60m |
User Indications | Lights, Sound and Vibration |
Power Requirements | 9VDC, Max 1.5A |
Number of Scans | 75,000+ |
Battery | Lithium Ion, 3.6V, 3300mAh |
ESD Protection | 15 kV air, 8 kV direct |
Charge Station Communication Interfaces | USB 2.0 (Generic HID, HID Keyboard) |
Scanner Communications | Bluetooth® 5 Low Energy (Class II) |
Supported Host Interfaces | Keyboard Wedge, USB, RS232 |
Warranty | 3 Years Scanner & Cradle; 1 Year Battery |
Operating Temperature | -4° to 122° F (-20° to 50° C) |
Storage Temperature | -22° to 150° F (-30° to 65° C) |
Humidity | 5% to 95% non-condensing |
Decode Capability | |
Data Structure Validation | ISO15418, ISO15434, HIBC UDI |
Environmental Regulatory | RoHS, REACH |
Harsh Environment | WD-40, Lubricating Oil, Bearing Grease, Aluminum and Steel Cutting Oil, 99% Isopropyl Alcohol, Acetone, Ammonia Solution, Bleach |
EMI/RFI | EN 55032, EN 55035, EN 62311:2008, EN 61000-3-2, EN 61000-3-3, EN 300328 |
Data Structure Validation | ISO15418, ISO15434, HIBC UDI |
Downloads |
---|
V4500 Quick Start Guide |
V4500 Spec Sheet |
