DataLogic PBT8300

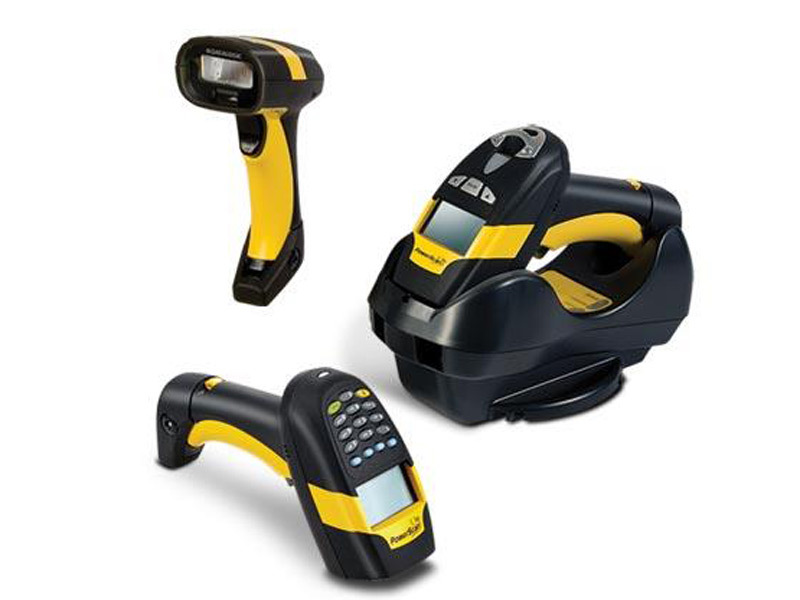

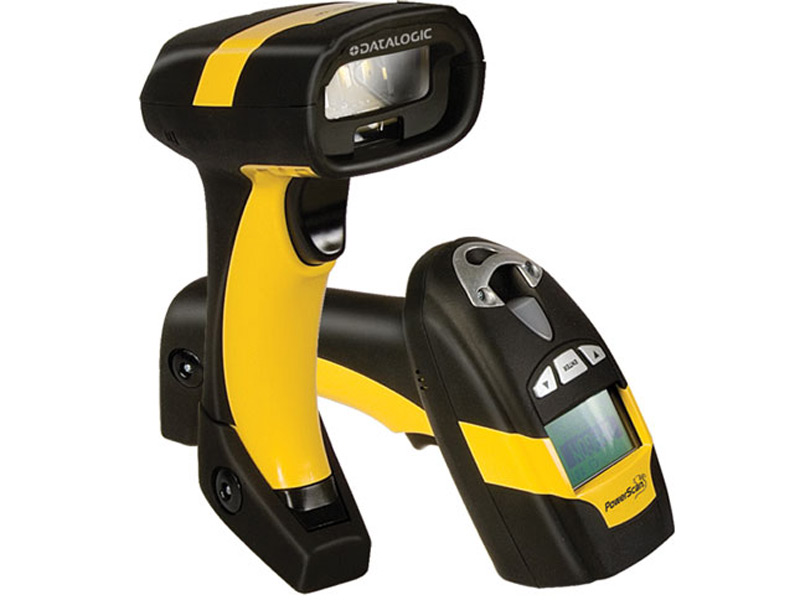

The pictures shown are general images for product PBT8300 and may not be applicable to all part numbers
Yellow/Black
PBT8300 Industrial Barcode Scanner
The DataLogic PBT8300 has reached end of life. It has been replaced by the DataLogic PowerScan PBT9500.
This product replaces the older DataLogic PowerScan PBT7100.
Datalogic's PBT8300 is another great addition to the PowerScan Industrial Barcode Scanner Line. Combining standard Bluetooth 2.0 technology and the incredible reliability and reading performance found in PowerScan products, the PBT8300 is the ideal choice for a cordless Industrial linear scanner.
Having a mobility range that can exceed 295ft, and a scanning range option of up to 41 ft, capturing data in a large warehouse is now just a task and not a chore. Available with many different feature options from a basic no-display standard range scanner to an Auto Range advanced model featuring a full display and 16-key alphanumeric keyboard, you are sure to find the model that suits your businesses needs. An IP64 rating and a 3 year warranty will give you the confidence in Datalogic's commitment to quality for rugged environments.
- Features
- Bluetooth 2.0 Compliant, supports SPP and HID Profiles
- 295-foot radio range
- Available in Standard (up to 3.3ft) or Auto Range (up to 41 ft)
- User Replaceable Lithium-ion Battery
- Green Spot for visual good scan feedback
- Product Breakdown
- PBT8300
Basic cordless model - PBT8300-D
Intermediate model with a display and 3-key keypad - PBT8300-DK
Advanced model with full display and 16-key alphanumeric keyboard
| Product Specifications | |
|---|---|
| Dimensions | PBT8300: 20.7 x 11.4 x 6.9 cm / 8.1 x 4.5 x 2.7 in PBT8300-D, PBT8300-DK: 21.0 x 11.4 x 6.9 cm / 8.3 x 4.5 x 2.7 in Cradle: 24.0 x 10.8 x 9.5 cm / 9.5 x 4.3 x 3.7 in |
| Weight | PBT8300: 380.0 g / 13.4 oz PBT8300-D: 410.0 g / 14.4 oz PBT8300-DK: 420.0 g / 14.8 oz Cradle: 380.0 g / 13.4 oz |
| Color Options | Yellow/Black |
| Interfaces Available | RS-232 / USB / Keyboard Wedge / Wand Multi-Interface Ethernet (Standard, Industrial) in compatibility mode (BC9180-BT) |
| Scan Method | Linear Imager |
| Decoding Capabilities | 1D / Linear Codes Stacked Codes |
| Mobility/Range | 295 ft Open Air from Base Station |
| Battery Type | Lithium-Ion, 2150 mAh |
| Operating Time | 50,000 Reads Per Charge |
| Recharge Time | External Power: 4 Hours Host Power: 10 hours |
| Reading Angle | Pitch: 5 to 55° / -5 to -55; Roll (Tilt): +/- 20° Skew (Yaw): +/- 60° |
| Print Contrast (Min.) | 15% |
| Typical Depth of Field | PBT8300 5 mils: 2.1 to 13.3 cm / 0.8 to 5.2 in 7.5 mils: 3.5 to 24.2 cm / 1.4 to 9.5 in 10 mils: 2.9 to 42.8 cm / 1.1 to 16.8 in 13 mils: 2.3 to 55.1 cm / 0.9 to 21.7 in 20 mils: 6.3 to 78.5 cm / 2.5 to 30.9 in 40 mils: 2.5 to 97.8 cm / 1.0 to 38.5 in |
| Typical Depth of Field | PBT8300AR 7.5 mils: 18.0 to 50.0 cm / 7.0 to 19.7 in 10 mils: 18.0 to 85.0 cm / 7.0 to 33.5 in 15 mils: 15.0 to 165.0 cm / 5.9 to 65.0 in 20 mils: 12.0 to 210.0 cm / 4.7 to 82.7 in 40 mils: 18.0 to 375.0 cm / 7.0 to 147.6 in 55 mils: 25.0 to 485.0 cm / 9.8 to 15.9 ft Reflective -100 mils: 1.5 to 12.5 m / 4.9 to 41.0 ft |
| Indicators | Beeper (Adjustable Tone and Volume) Datalogic Three Green Lights (3GL™) Good Read Feedback Datalogic ‘Green Spot’ on the Code Dual Good Read LEDs Good Transmission |
| Operating Temperature | -20 to 50 °C / -4 to 122 °F |
| Storage Temperature | -20 to 70 °C / -4 to 158 °F |
| Drop Specification | 50 drops from 2.0 m / 6.6 ft to concrete |
| Environmental Sealing | PBT8300: IP65 PBT8300-D, PBT8300-DK: IP64 |
| Stand | Not Included |
| Warranty | 3-Year Factory |
