DataLogic PowerScan PM8500

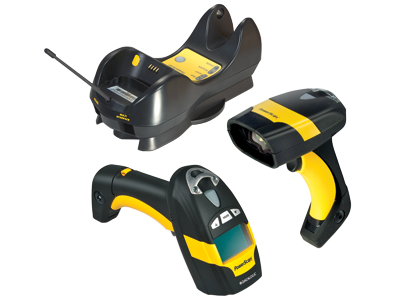

The pictures shown are general images for product PowerScan PM8500 and may not be applicable to all part numbers

PowerScan PM8500 Industrial Barcode Scanner


The DataLogic PowerScan PM8500 has reached end of life. It has been replaced by the DataLogic PM 9500.

The Datalogic PowerScan PM8500 barcode scanner gives you high end industrial 2D scanning wherever you need it. This cordless scanner uses a 433 MHz or 910 MHz radio to communicate with the host station from up to 164 feet away. If you need more than just basic scanning, the PowerScan PM8500 also comes with an optional LCD display and three function buttons.

Available with your choice of standard range, high density, or wide angle scan engine, the PowerScan PM8500 has a model that meets your specific scanning requirements. A five-dot aiming system improves scanning accuracy, and Datalogic's 3GL system provides scan feedback in noisy environments, illuminating the barcode just scanned and two green LEDs on the scanner itself.

The reinforced body seals the PowerScan PM8500 from dirt and water at an IP65 rating, meaning no dust nor low pressure jets of water can harm the internal components. It can also resist 50 drops of 6 feet to concrete and operate in temperatures as low as 14° F, making this a great outdoor or warehouse scanner.

Features
• IP65 seal keeps out dirt and water; IP64 on scanner with Display
• Standard Range, Wide Angle, and High Density scan engines available
• Available with LCD display and three-key pad
Product Breakdown
ModelScannerMaximum Resolution (1D)Scanning Range (13 mil 1D)
PM8500Standard Range4mil1.9" to 10"
PM8500 WAWide Angle5mil0.6" to 10.2"
PM8500 HDHigh Density2mil1.9" to 5.5"
Product Specifications
Dimensions Scanner: 8.3 x 4.5 x 2.7 in
Cradle: 9.5 x 4.3 x 3.7 in
Weight Scanner: PM8500: 12.7 oz. (360 g)
PM8500-D: 13.8 oz (393 g)

Cradle: 13.4 oz (380 g)
Keys PM8500-D Only: 3-Key Keypad
Display Size PM8500-D Only: 32 x 96 pixels
Display Type PM8500-D Only: Graphic with Backlight
Color Options Yellow/Black
Interfaces Available RS-232
USB
Keyboard Wedge
Scan Method Area Imager
Decoding Capabilities Standard 1D & 2D Barcodes
Mobility/Range Wireless
433,92 MHz: Up to 50 m / 164 ft (Open Air)
910 MHz: Up to 30 m / 98 ft (Open Air)
Battery Li-ION 2150 mAh;
Operating Time + 30,000 Reads per Charge
Recharge Time 4 Hours (External Power)
Multi-Point Communication Yes, Up to 32 Readers per Radio Receiver
Reading Angle Pitch: +/- 35°
Roll (Tilt): 360°
Skew (Yaw): +/- 40°
Print Contrast (Min.) 15%
Typical Depth of Field PM8500:
5 mils: 7.5 to 15.5 cm / 2.9 to 6.1 in
10 mils: 5.5 to 24.5 cm / 2.1 to 9.7 in
13 mils: 5.0 to 27.0 cm / 1.9 to 10 in
20 mils: 5.5 to 36.5 cm / 2.1 to 14.4 in
10 mils PDF: 4.0 to 25.5 cm / 1,5 to 10.0 in
10 mils Data Matrix/QR: 7.0 to 19.5 cm / 2.7 to 7.7 in
Indicators Beep
Datalogic Green Spot Technology
Dual Good Read LEDs
Auto Sense Mode Yes, In Optional Hands Free Stand
Drivers License Data Parsing No
Image Capture No
Mobile Phone Scanning Capabilites No
Environmental Sealing PM8500: IP65
PM8500-D: IP64
Ambient Light (Max) 0 - 100,000 lux
Operating Temperature -10 to 50 °C / 14 to 122 °F
Storage Temperature -40 to 70 °C / -40 to 158 °F
Drop Specification Withstands 50 drops from 2,0 m / 6,6 ft onto a concrete surface
Stand Yes, Optional Hands Free Stand
Warranty 3 Year Manufacturer
