DataLogic Powerscan PM8300

The pictures shown are general images for product Powerscan PM8300 and may not be applicable to all part numbers

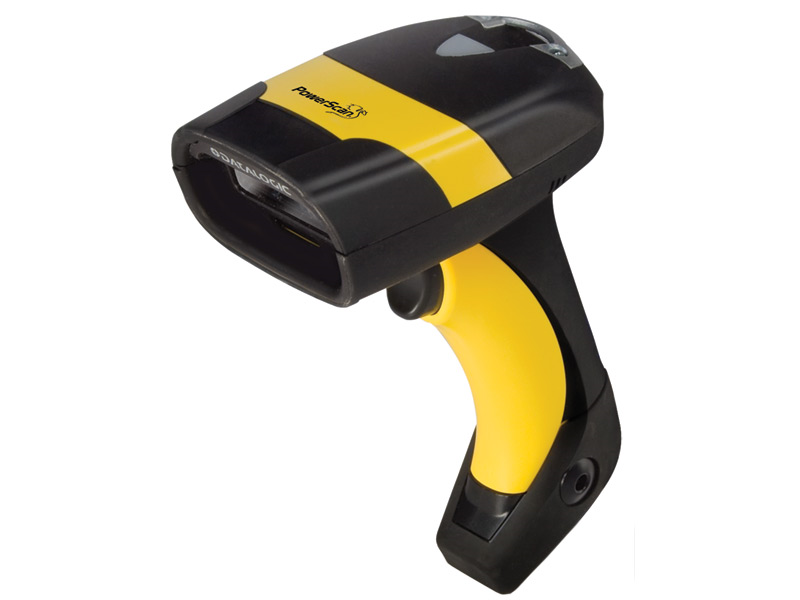

Powerscan PM8300 Industrial Barcode Scanner


The DataLogic Powerscan PM8300 has reached end of life. It has been replaced by the DataLogic PowerScan PD9330.

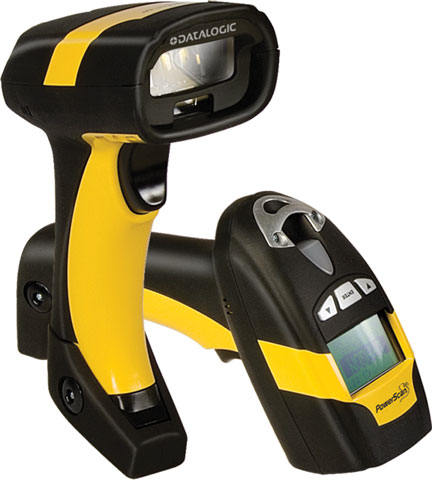

The Datalogic Powerscan PM8300 cordless barcode scanner features a heavy duty design and optional LCD display, giving you an excellent solution for industrial and rough retail barcode scanning. The optional display shows what has just been scanned, eliminating the hassle of walking back to the PC to verify formatting, and helps keep track of barcodes when in data collection mode.

Datalogic has built the PM8300 to survive the harshest of conditions with a ruggedized yellow body able to withstand 50 drops from 2 meters to concrete. The body also protects the scanner from temperatures as low as -4° F and completely seals it from dust and low pressure jets of water, meaning the Datalogic Powerscan M8300 will survive nearly any industrial environment.

Features
  • Can scan from up to 3.3' away for standard models and 33' for auto-ranging models
  • Can scan barcodes as small as 3 mil for standard models and 7.5 mil for auto-ranging models
  • Point-to-point and multi-point transmissions extend radio range
  • IP65/IP64 seal to protect from dust and water
  • Product Specifications
    Dimensions Cradle: 9.44 x 4.25 x 3.75 in
    Weight Scanner: 13.9 oz (395g)
    Cradle: Approx. 13.4 oz / 380 g
    Keys M8300-D Only: 3 keys
    Display Type M8300-D: Graphic with Backlight
    Display Size M8300-D: 32 x 96 dots
    Color Options Black/Yellow
    Interfaces Available USB
    RS-232
    Keyboard Wedge
    Scan Method Laser Scanner
    Decoding Capabilities Standard 1D Barcodes & GS1 DataBar
    Mobility/Range Wireless (433.92 MHz or 910 MHz)
    433.92 MHz: Up to 164 ft / 50 m
    910 MHz: Up to 99 ft / 30 m
    Battery Li-Ion 2150 mAh
    Recharge Time External: max. 4 hrs
    Host: max. 10 hrs
    Scan Rate (Maximum) 35 ± 5 scans/sec
    Reading Angle Skew: ±60°
    Pitch: 5 to 55°, -5 to -55°
    Tilt: ±20°
    Print Contrast (Min.) 15%
    Indicators LED
    Beep
    Auto Sense Mode Yes, In Optional Stand
    Operating Temperature -4 to 122 °F / -20 to 50 °C
    Storage Temperature -4 to 158 °F / -20 to 70 °C
    Drop Specification Withstands 50 drops from 6.5 ft / 2 m to concrete
    Environmental Sealing IP65 (without display); IP64 (with display)
    Ambient Light (Max) Immune to light exposure in offices, facilities, and direct exposure to sunlight
    Stand Yes, As Accessory
    Warranty 2 Year Warranty
