Honeywell 3800i

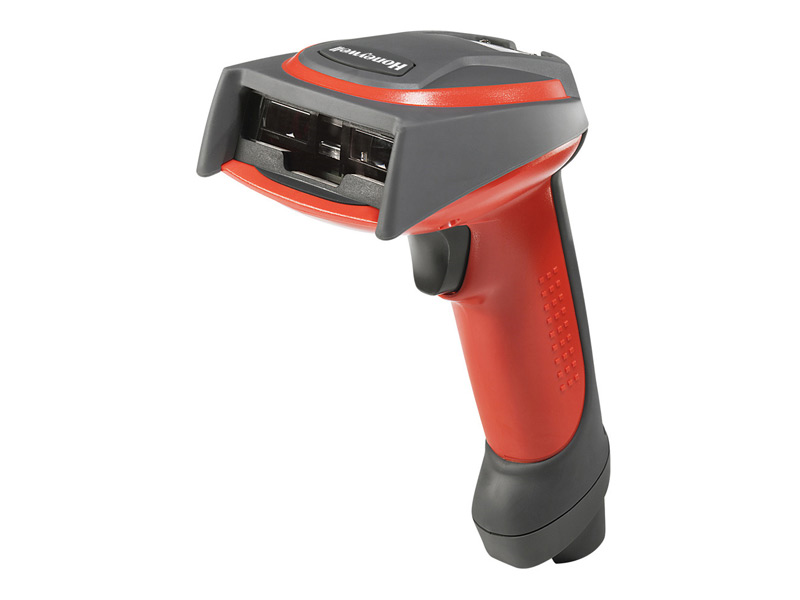

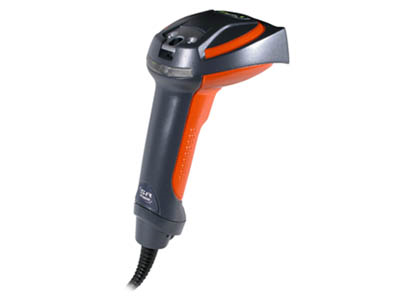

The pictures shown are general images for product 3800i and may not be applicable to all part numbers

3800i Industrial Barcode Scanner

The Honeywell 3800i has reached end of life. It has been replaced by the Honeywell Granit 1910i.

Advanced scan engine enabling increased scan range, the 3800i (formerly the 5800) industrial scanner's imaging technology reads barcodes at up to 82 inches from the label.

Truly ruggedized, the 3800i sports sealed optics, an impervious casing and impact bumpers to survive extreme temperatures and rough operating environments.

    Additional Features
  • No internal moving parts
  • Convenient point & shoot design
  • Reads all standard barcode symbologies
  • 270 scans/decodes per second
  • Reads dirty or poorly printed barcodes
  • IP54 dust & water rating
Product Specifications
Dimensions 135 x 81 x 163 mm (5.3 x 3.2 x 6.4 in)
Weight 7.5 oz (213 g)
Color Options Red/Grey
Interfaces Available USB
TTL Level RS232
True RS232
Keyboard Wedge
IBM 46xx (RS485)
Light Pen (Wand) Emulation
Scan Method Linear Image (CCD: 3648 pixels)
Decoding Capabilities Reads standard 1D and GS1 Databar symbologies.
Mobility/Range Corded
Scan Rate (Maximum) 270 scans per second
Reading Angle Pitch: 65°
Skew: 65°
Print Contrast (Min.) 20%
Typical Depth of Field 7.5 mil: 165 - 381 mm (6.5 - 15")
100% UPC: 64- 711 mm (2.5 - 28")
15 mil: 64 -787 mm (2.5 - 31")
20 mil: 38 - 1067 mm (1.5 - 42")
55 mil: 102 - 2083 mm (4.0 - 82")
Indicators Beep
Visible Light
Auto Sense Mode Yes, In Stand
Operating Temperature -30°C to 50°C (-22°F to 122°F)
Storage Temperature -40°C to 60°C (-40°F to 140F)
Drop Specification Designed to withstand 2.0 m (6.5) drops
Environmental Sealing IP54
Ambient Light (Max) 70,000 Lux
Stand HFSTAND5 Yes, As Accessory
Warranty 3 year factory warranty

Honeywell 3800i Reviews

POSGuys Rating:

The 3800i used to be the Honeywell's best extended range scanning option but has been replaced by the 1980i which has substantially more range and advanced decoding capabilities.
