Honeywell Granit Ultra 2105i

Granit Ultra 2105i Product Image

The pictures shown are general images for product Granit Ultra 2105i and may not be applicable to all part numbers

Granit Ultra 2105i Industrial Barcode Scanner


Granit Ultra scanners offer ultra scan performance, ultra durability, and ultra ease of use for premium productivity in rugged scanning applications from contact up to arm length (SR model) or 10m(33”) for 100mil C39 symbols (XR model).

Ultra Scan Performance

For a scanner to optimize productivity, it should read and transmit common barcodes nearly as fast as the user can pull the trigger, and Granit Ultra is engineered to do just that. Granit Ultra integrates high speed processing, AI algorithms, and decoding enhancements to result in an average 45% scanning speed increase vs. Granit XP*, enabling improved productivity.

Ultra Durability

In modern warehouse, distribution center, and manufacturing environments, any scanner must be durable enough to survive harsh operating conditions. Under exactly that kind of rough treatment, Granit is ready to deliver.

Ultra Ease of Use

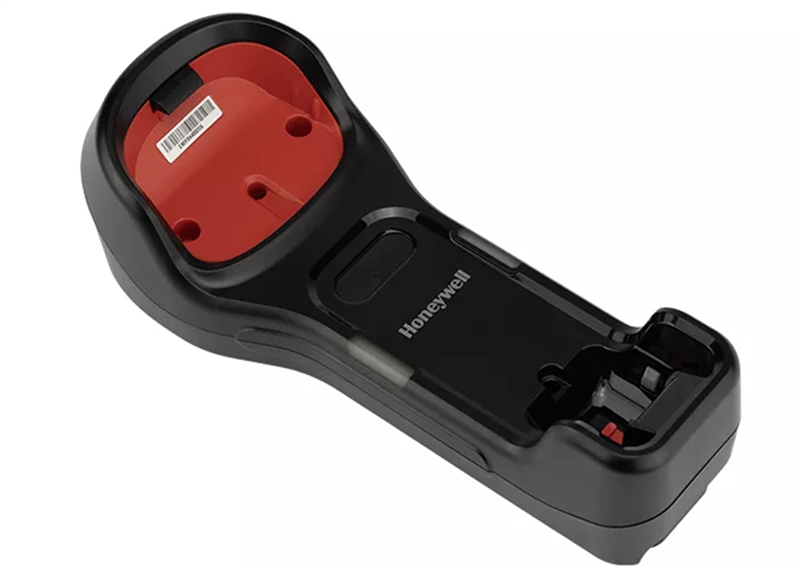

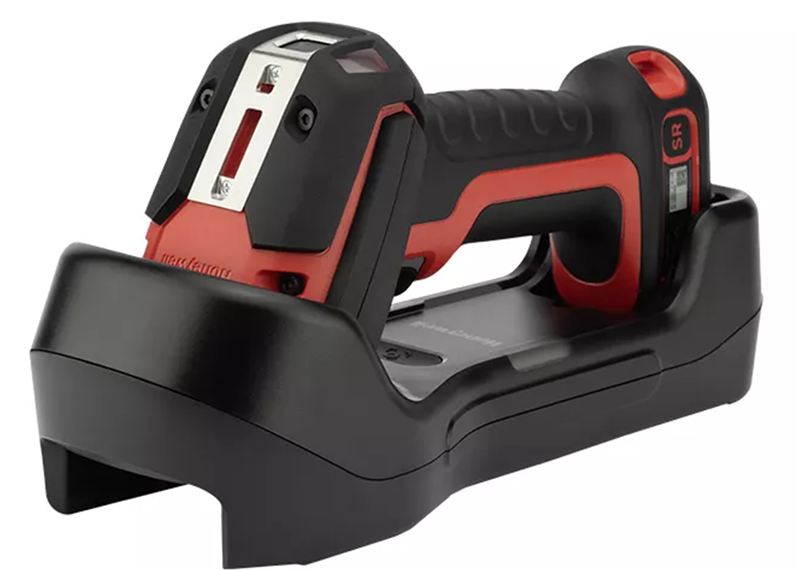

Ready to operate right out of the box for many applications, Granit offers easy custom configuration in the time it takes to scan a barcode. For further workflow improvement, Granit can also read multiple codes in the field of view, organizing and outputting the data in a predefined order using Honeywell’s Data Format Editor. The all new charge and communication base is loaded with features to simplify common tasks. Easy drop-in charging makes scanner placement in the cradle fast and efficient for flat work surfaces; engaging the latching mechanisms helps ensure secure retention for vertical or vehicle mounting.

Product Specifications
Dimensions (LxWxH) 194.8mm × 75.8mm × 139.5mm (7.7 in × 3.0 in x 5.5 in)
Weight
  • Weight-Scanner: 425g (15 oz)
  • Charge and Communication Base dimensions (L x W x H): 250.1mm x 102mm x 80.7mm (9.8 in x 4.0 in x 3.2 in)
  • Weight—Charge and Communication Base: 357g (12.6 oz)
Drop
  • 3m (10 ft): MIL-STD-810G, 25°C (77°F), 55% relative humidity
  • 2.5m (8.2 ft): 20 drops from -20°C to 50°C (4°F to 122°F), 55% relative humidity
  • 2m (6.5 ft): 50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled relative humidity
Tumble 7,500 1m (3.3ft) tumbles
Environmental Sealing
    Scanner: IP65 and IP68
  • Charge and Communication Base: IP65
Decode Capabilities
  • 1D: Code 39, code 128, code 93, code 11, code 32 Pharmaceutical, codabar, EAN, UPC, China Post, GS1 databar
  • 2D: Aztec, Data Matrix, QR/Micro QR code, Maxicode, Chinese sensible (Han Xin) code, postal code, PDF417, DotCode,
  • Digital Watermarking: Digimarc
  • OCR: OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 point OCR typeface
ESD +/-20KV air discharge, +/-8kV contact discharge, +/-8kV indirect coupling plane
Humidity Up to 95% relative humidity, non-condensing
Operating Temperature -20°C to 50°C (-4°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Voltage 4.4VDC to 5.5 VDC
Interface USB, Keyboard Wedge, RS-232 TTL (cables available to convert for +/-12V True use)
Field of View
  • SR: Horizontal: 42°, Vertical 36°
  • XR-Near: Horizontal: 42°, Vertical 36°
  • XR-Far: Horizontal: 16°, Vertical 14
Roll, Pitch, Skew +/-360°, +/-65°, +/-65°
Illumination
  • SR: Warm White 2700K LED
  • XR: Yellow-Green LED
Scan Pattern
  • SR: Area imager (1280x1080 pixel array)
  • XR: Near and Far: Area imager(1280x1080 pixel array)

Honeywell Granit Ultra 2105i Reviews

POSGuys Rating: Not Rated

Customer Reviews

Recommended Models

Granit Ultra USB Kit: Bluetooth, Rugged, 1D/2D, Standard Range, Vibrator, Contact Charging, Red Scanner (2105ISR-3USB-CL), Battery (BAT-SCN11), USB Cable (CBL-500-300-S00), Horizontal Base (CCB23-100BT-07N-N), NA
$1128.96 Add to Cart
Kit:USB Kit
Scan Engine:Standard Range

Additional Models

Granit Ultra RS232 Kit: Bluetooth, Rugged, 1D/2D, FlexRange, Vibrator, Contact Charging, Red Scanner (2105IXR-3SER-CL), Battery (BAT-SCN11), RS232 Cable (CBL-020-300-C00), Horizontal Base (CCB23-100BT-07N-N), NA
$1361.29 Add to Cart
Kit:RS232 Kit
Scan Engine:FlexRange
Granit Ultra USB Kit: Bluetooth, Rugged, 1D/2D, FlexRange, Vibrator, Contact Charging, Red Scanner (2105IXR-3USB-CL), Battery (BAT-SCN11), USB Cable (CBL-500-300-S00), Horizontal Base (CCB23-100BT-07N-N), NA
$1297.56 Add to Cart
Kit:USB Kit
Scan Engine:FlexRange
Granit Ultra Scanner-Only: Bluetooth, Rugged, 1D/2D, Standard Range, Vibrator, Contact Charging, Red Scanner, Battery (BAT-SCN11), NA
Scan Engine:Standard Range
Granit Ultra Scanner-Only: Bluetooth, Rugged, 1D/2D, FlexRange, Vibrator, Contact Charging, Red Scanner, Battery (BAT-SCN11), NA
$1076.44 Add to Cart
Scan Engine:FlexRange

Accessories

Smart battery: Lithium-ion battery for Xenon Ultra 1962 Bluetooth scanners.
Cable: RS232 (+5V signals) DB9 Female, Host 5V Power With Option For External 5V Power, 300cm length, Coiled, No EAS, black, with ferrite, Industrial, Compatible with RJ45 5V Scanner Products
Cable: Industrial: RS232 (5V signals), black, DB9 Female, 3m (9.8ft), coiled, 5V external power with option for host power on pin 9
Holder: Desktop, wall mount, includes mounting hardware.
Honeywell RS-232 Serial Interface Cable, Black, DB9 Female, 3m Length, ± 5V Signals (TTL Interface, Requires Power Supply: Part Number 46-00525)
USB Interface Cable, Black, 3 Meter, Straight
USB Interface Cable, Black, 3 Meter, Coiled
USB Interface Cable, Black, 5m Length
Cable: USB, black, 12V locking, 3m (9.8ft), straight, 5V host power
Cable: USB, black, 12V locking, 3m (9.8ft), coiled, 5V host power
Cable: USB, black, 12V locking, 5m (16.4ft), coiled, 5V host power
Xenon 1900 PS/2 Keyboard Wedge Interface Cable, Black, Coiled, 3m Length
