Opticon OPR 3001

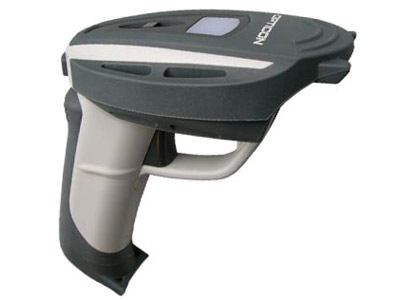

The pictures shown are general images for product OPR 3001 and may not be applicable to all part numbers
OPR 3001 Industrial Barcode Scanner
The Opticon OPR 3001 has reached end of life.
A rubberized pistol grip, trigger guard, and IP54 seal specification give the Opticon OPR 3001 the durability to stand up in harsh industrial environments. The rugged ABS plastic housing allows the OPR 3001 to withstand multiple drops from 6.5', and the IP54 seal protects it from windblown dust and water sprays from any direction. Designed for aggressive reading of poorly printed and damaged barcodes, the OPR 3001 is well suited for commercial retail environments, warehouses and back-office retail applications including shipping and receiving.
Features Scans 1D and PDF417 symbologies
Withstands 4,000lx of indoor light; 80,000lx of direct sunlight
1.18" to 23.23" optimum scan range
Rugged ABS Plastic Housing
Features
| Product Specifications | |
|---|---|
| Dimensions | 6.1 x 2.68 x 5.91 in (155 x 68 x 150 mm) |
| Weight | 230 g / 0.51 pounds / 8.1 oz |
| Color Options | Grey |
| Interfaces Available | RS232, Keyboard Wedge, USB(HID) |
| Scan Method | Laser Scanner |
| Decoding Capabilities | Standard 1D Barcodes & PDF417/MicroPDF417 |
| Mobility/Range | Corded |
| Scan Rate (Maximum) | 100 scans/sec |
| Reading Angle | Pitch: +/- 35° Tilt: +/- 20° Skew: +/-50° |
| Print Contrast (Min.) | 45% |
| Typical Depth of Field | 39 mil: 30 - 590 mm / 1.18 - 23.23 inches 20 mil: 10 - 360 mm / 0.39 - 14.17 inches 10 mil: 10 - 200 mm / 0.39 - 7.87 inches 6 mil: 10 - 90 mm / 0.39 - 3.54 inches 5 mil: 20 - 60 mm / 0.79 - 2.36 inches |
| Indicators | LED Beep |
| Auto Sense Mode | Yes, In Auto Trigger Mode |
| Operating Temperature | -10 to +60 °C (14 to 140°F) |
| Storage Temperature | -30 to +70 °C (-22 to 158°F) |
| Drop Specification | 2 m / 6.5 ft drop onto concrete surface |
| Environmental Sealing | IP54 |
| Ambient Light (Max) | Fluorescent light immunity: 4,000 lx max Direct sun light immunity: 4,000 lx max Incandescent light immunity: 80,000 lx max |
| Stand | No |
| Warranty | Two Year Manufacturer Warranty |
