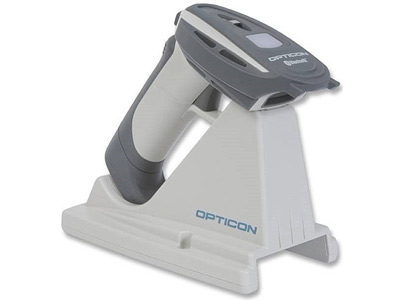

OPR3101 Industrial Barcode Scanner
The Opticon OPR3101 has reached end of life. It has been replaced by the Honeywell 3820.
The Opticon OPR3101 barcode scanner gives any light industrial or retail location a durable and efficient means to capture data. The built-in Bluetooth 2 radio allows the OPR3101 to communicate from up to 35 feet away, and if the signal is lost, the barcode scanner will store scanned data until it gets back into range.
Ideal for rough retail or light industrial applications, the OPR3101 features an IP54 seal to protect it from dust and water. Rubber overmolding protects the barcode scanner from drops of 6.5 feet to concrete, and a trigger guard keeps your knuckles safe from accidental collisions with inventory. This unique design makes the Opticon OPR3101 barcode scanner a smart choice for any rough environment.
Features Lithium Ion Battery Provides up to 25 hours operational time
Reads standard 1D barcodes, PDF417, and microPDF417 2D barcodes
0.79" to 9.06" scan range for 10 mil barcodes
IP54 Seal protects from windblown dust and water splashes
Ideal for rough retail or light industrial applications, the OPR3101 features an IP54 seal to protect it from dust and water. Rubber overmolding protects the barcode scanner from drops of 6.5 feet to concrete, and a trigger guard keeps your knuckles safe from accidental collisions with inventory. This unique design makes the Opticon OPR3101 barcode scanner a smart choice for any rough environment.
Features
Product Specifications | |
---|---|
Dimensions | 68 x 165 x 155 mm / 2.68 x 6.50 x 6.10 in |
Weight | 290 g / 10.2 oz (incl. battery) |
Color Options | Grey |
Interfaces Available | USB |
Scan Method | Laser Scanner |
Decoding Capabilities | Standard 1D Barcodes & PDF417/MicroPDF417 |
Mobility/Range | Bluetooth Version 1.2 Class 2 Range: Up to 10 m (30 ft) |
Battery | Lithium-Ion 3.7V 1620mAh |
Operating Time | 25 hours (1 scan / 5 sec) |
Optional Batch Mode | Yes, Out of Range |
Scan Rate (Maximum) | 100 scans/sec |
Reading Angle | Pitch: +/- 35° Tilt: +/- 20° Skew: +/-50° |
Print Contrast (Min.) | 45% |
Typical Depth of Field | 5 mil 30 - 100 mm / 1.18 - 3.94 in 10 mil 20 - 230 / 0.79 - 9.06 in 20 mil 20 - 430 / 0.79 - 16.93 in 39 mil 40 - 720 mm / 1.57 - 28.35 in |
Auto Sense Mode | Yes, In Cradle |
Operating Temperature | -10 to 60 °C / 14 to 140 °F |
Storage Temperature | -20 to 60 °C / -4 to 140 °F |
Drop Specification | 2 m / 6.5 ft drop onto concrete surface |
Environmental Sealing | IP 54 |
Ambient Light (Max) | Fluorescent 4,000 lx max Direct sun 80,000 lx max Incandescent 4,000 lx max |
Accessories | CHG3101 Cradle: Charging CRD3101 Cradle: Bluetooth communication |
Stand | Yes, As Charging Cradle |
Warranty | 3 Year Warranty |
