Symbol LS3408

LS3408 Product Image

The pictures shown are general images for product LS3408 and may not be applicable to all part numbers

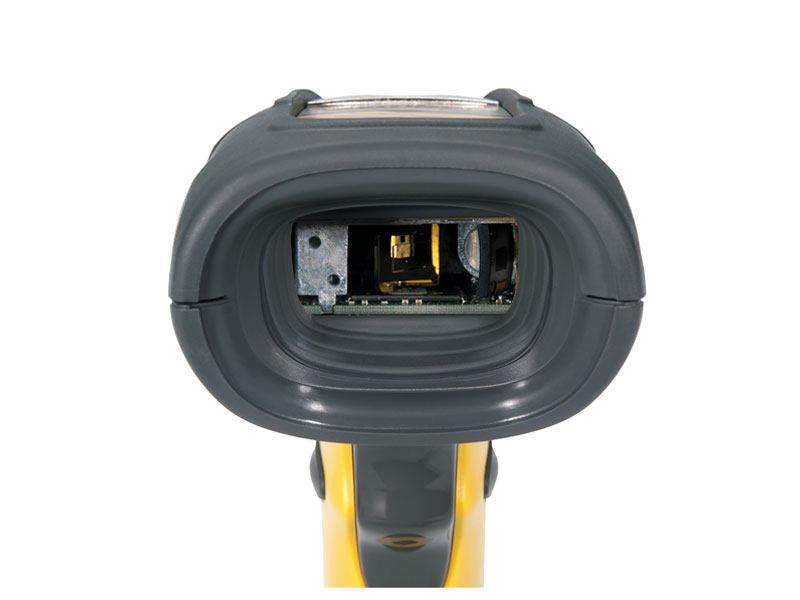

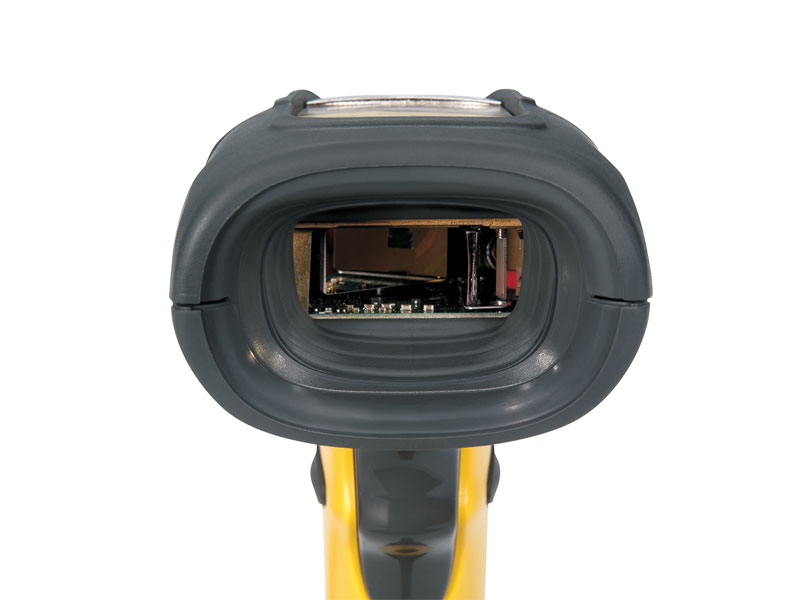

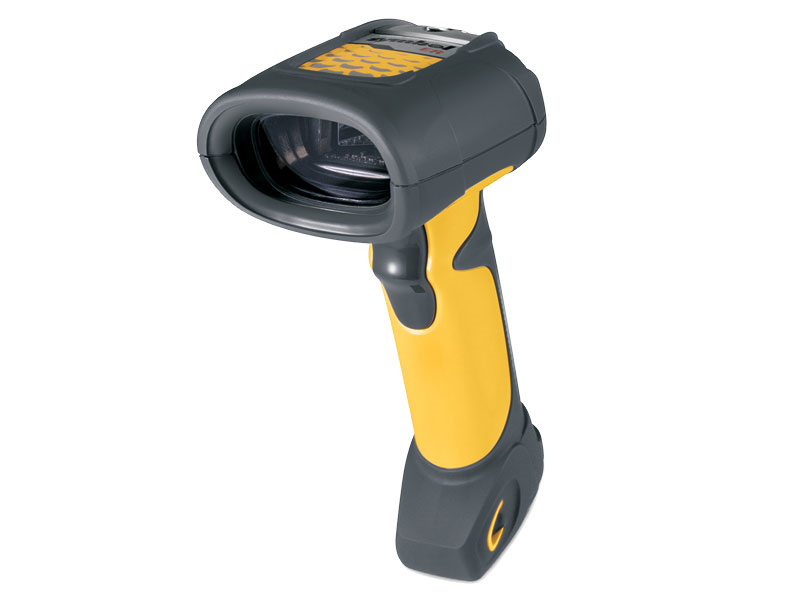

LS3408 Industrial Barcode Scanner

The Symbol LS3408 has reached end of life. It has been replaced by the Zebra DS2208.

This product replaces the older Symbol LS3008.

The LS3408 industrial barcode scanner series from Symbol Technologies features multiple plug and play host connectivity options and outstanding performance for reading barcodes in busy production and retail warehouse environments.

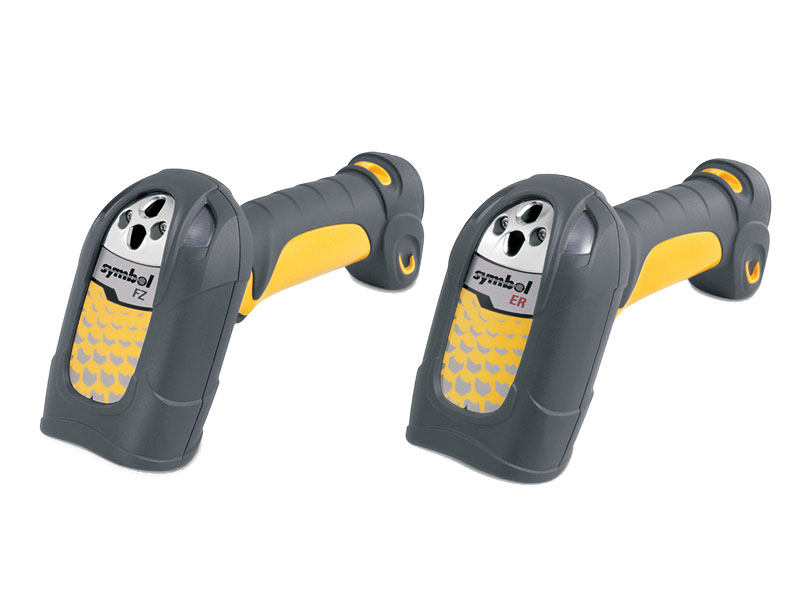

The rugged LS3408ER barcode scanner sports superior readability of barcodes at both long and close ranges.

    Additional Features
  • Reads all standard 1D & RSS codes
  • IP65 dust and water resistance rating
  • Withstands multiple 6.5ft drops to concrete
  • Universal cables for easy replacement
  • Flash memory for upgrade accessibility

Click Here for Additional Warranty Information
The LS3408FZ has been replaced by the LI3678
Product Specifications
Dimensions 7.34 x 4.82 x 2.93 in
Weight 12.35 oz (350 g)
Color Options Twilight Black/Yellow
Interfaces Available USB
Keyboard Wedge
Wand Emulation
Scanner Emulation
IBM 468X/469X
Scan Method Laser Scanner
Decoding Capabilities Standard 1D Barcodes and RSS Variants
Mobility/Range Corded
Scan Rate (Maximum) 36 scans per second typical
Reading Angle Pitch: +/- 65°
Tilt: +/- 20°
Skew: +/- 50°
Print Contrast (Min.) 25%
Typical Depth of Field
Indicators LED
Adjustable Beep
Auto Sense Mode Yes, In Intellistand (Optional)
Operating Temperature -22° to 122° F/-30° to 50° C
Storage Temperature -40° to 158° F/-40° to 70° C
Drop Specification Unit functions normally after repeated 6.5 ft./2 m drops to concrete
Environmental Sealing IP65
Ambient Light (Max) Indoor: 4,842 LUX/450 ft. candles
Outdoor: 86,080 LUX/8,000 ft. candles
Stand 20-54090-07R Yes, Optional Intellistand
Warranty 3 Year Manufacturer

Symbol LS3408 Reviews

POSGuys Rating:

Uses an older laser technology while decent at giving extended range is not as good as the new DS3678-ER.

Customer Reviews

Frequestly Asked Questions


Power Supply (110VAC-60Hz)
RS232-DB9 Cable, 9ft Coiled
9 ft. Keyboard Wedge Cable for DS9808
USB Interface Cable (Original Part)
Synapse Adapter Cable, 9ft
Symbol 1-Year Bronze Service Center Repair Warranty, 3-Day Turnaround (must be purchased within 15 days of scanner purchase)
Symbol 3-Year Comprehensive Coverage Warranty (must be purchased within 15 days of scanner purchase)
Standard Cradle Power Supply, Level VI AC/DC Power Supply Wall Adapter, w/Captive DC cable and US Adapter Clip AC Input: 100-240V, 0.2A DC Output: 5.2V, 1.1A, 5.7W (Standard Cradle Only)
