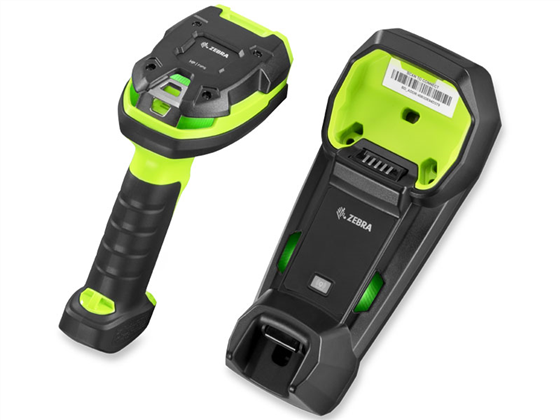

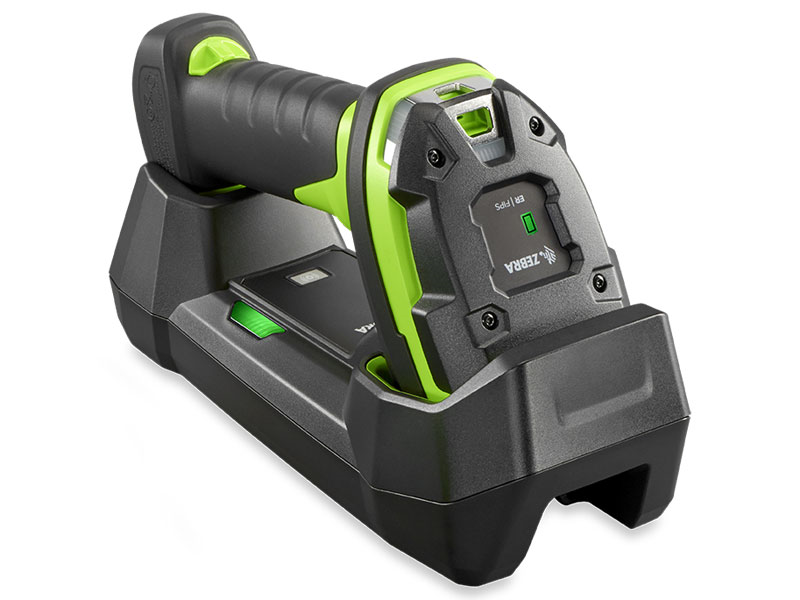

DS3678-XR Product Image

The pictures shown are general images for product DS3678-XR and may not be applicable to all part numbers

DS3678-XR Industrial Barcode Scanner


The DS3600-XR sets a new standard in extended range performance, enabling workers to scan barcodes faster and further than just about any other scanner on the market right now. The DS3600-XR maintains the proven ruggedness of the DS3600-ER, increases scanning range by more than 40% and aimer visibility up to 7x — while decreasing device weight by 10%. It reads barcodes from as close as 2 in./5 cm to over 105 ft./32 m — nearer and farther than any scanner in its class. A high visibility green laser aimer makes scanning easier and more accurate at varying distances and lighting conditions.

Ultra-Rugged — the Most Indestructible Design in its Class

Ready for the world’s harshest environments, the DS3600-XR has the highest drop, tumble and sealing specifications in its class. It can survive 10 ft./3 m drops to concrete and 7,500 tumbles. With dual IP65/IP68 sealing, the DS3600-XR is dust proof, can handle the force of jetting water and be fully submerged in water. And built to withstand extreme heat, cold and humidity, it can be used anywhere — indoor, outdoor and even in the freezer. This ruggability extends to the cradle as well. The 3600 Series are the first scanners in their class to offer a cradle with IP65 sealing. Industrial charging contacts withstand 250,000 insertions. And Zebra’s exclusive Connect+ Contact technology assures reliable, corrosion-free charging over the life of the scanner.

Cordless Scanning

The cordless DS3678-XR supports more than 80,000 scans in a single charge — that’s at least 23 hours of continuous scanning and 60% more scans per charge than competitive models in this product class. The smart PowerPrecision+ battery provides comprehensive health information, so you can easily spot and replace aging batteries. The first-in-its-class battery ‘charge gauge’ and Bluetooth status LED make it easy to monitor battery power as well as Bluetooth connectivity. Have a larger operation with multiple scanners? Simply pair the DS3600-XR to a different base to automatically configure it for a new host application. For example, take a scanner from the forklift and use it for shipping without manually changing settings.

Reduce Equipment Loss

With the scanner's Virtual Tether feature, you can ensure that your scanners are always where they should be, fully charged and ready for work. The scanner and cradle alert users when a scanner is taken beyond its Bluetooth range or left out of the cradle for a predefined length of time.

Highlighted Features

  • Up to 105' Scan Range (Code 39 at 100 mil)
  • 80,000 scans and 23 hours on a single charge.
  • Best-in-class ruggedability. Survive 10 ft./3 m drops to concrete & IP68 Rating
  • Connect+ Contact technology rated for 250k cradle insertions & resistant to corrosion.
  • Exclusive Wi-Fi Friendly Mode eliminates the wireless interference that Bluetooth devices
Product Specifications
Dimensions Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D
18.5 cm H x 7.7 cm W x 14.2 cm D
Weight 14.46 oz./410 g
Supported Host Interfaces USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP
Battery PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
Scans per Full Charge (Cordless) 80,000
Aimer 520 nm laser
2D Barcode Support PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
1D Barcode Support Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
Drop Specification DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature
Cordless: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C
Corded: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C
Tumble Specification 7500 3.3 ft./1.0 m tumbles
Sealing Scanner: IP65 and IP68 per applicable IEC sealing specifications
FLB cradle: IP65
Bluetooth Radio Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles
Data Rate 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy
Radio Range 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy

Zebra DS3678-XR Reviews

POSGuys Rating:

The DS3678-XR is truly at the top of its class. With an unparalleled scan range and durability, the scanner is ready for just about any industrial environment or task you throw at it. The addition of additional features to reduce WiFi network interference, a virtual tether feature to reduce asset loss, battery management features, and the customer support Zebra offers put it over the top. If you're looking for an industrial scanner, it's hard to do better than this.

Customer Reviews

Recommended Models

DS3678-XR Industrial Wireless Barcode Scanner. Standard USB Cradle Kit. Includes Scanner (DS3678-XR6F003VZWW), Shielded USB Cable (CBA-U42-S07PAR), Cradle (STB3678-C100F3WW), and Power Supply/Line Cord (PWR-BGA12V50W0WW & 23844-00-00R)
$1269.81 Add to Cart
DS3678-XR Industrial Wireless Scanner. TAA Compliant. Scanner Only. Purchase Cradle & Power Supplies Separately.
DS3678-XR Industrial Wireless Scanner. Scanner Only. Purchase Cradle & Power Supplies Separately.
$1056.65 Add to Cart

Additional Models

DS3678-XR Industrial Wireless Barcode Scanner. Rockwell Industrial Ethernet Kit. Includes: Scanner (DS3678-XR6F003VZWW), Serial Cable (CBA-RF5-S07ZAR), Cradle (STB3678-C100F3WW), and Ethernet Adapter (EA3600-R1CP-00) supporting Ethernet/IP, Modbus TCP, and TCP/IP protocols.
$2811.43 Add to Cart
DS3678-XR Industrial Wireless Barcode Scanner. Siemens Industrial Ethernet Kit. Includes: Scanner (DS3678-XR6F003VZWW), Serial Cable (CBA-RF5-S07ZAR), Cradle (STB3678-C100F3WW), and Ethernet Adapter (EA3600-S1CP-00) supporting PROFINET, Modbus TCP, and TCP/IP protocols.
$2811.43 Add to Cart
DS3678-XR Industrial Wireless Barcode Scanner. Standard USB Cradle Kit (No Line Cord). Includes: Scanner (DS3678-XR6F003VZWW), Shielded USB Cable (CBA-U42-S07PAR), Cradle (STB3678-C100F3WW), and Power Supply (PWR-BGA12V50W0WW).
$1261.32 Add to Cart
DS3678-XR Industrial Wireless Barcode Scanner. Forklift Cradle USB Trickle Charge Kit. Includes: Scanner (DS3678-XR6F003VZWW), Shielded USB High Current Cable (CBA-U46-S07ZAR), Cradle with Mounting Bracket (FLB3678-C100F3WW & BRKT-MM0036W-00).
$1335.93 Add to Cart

Accessories

Forklift Cradle for 3678 Scanners, Sealed IP64 Rated, Bluetooth, Multi Interface. Purchase Mounting Bracket Separately. (BRKT-MM0036W-00)
Standard Bluetooth Cradle for 3678 Family Scanners. Cradle Only. Order Power Supply & Line Cords Separately (PWR-BGA12V50W0WW, 23844-00-00R, and CBL-DC-375A1-01)
Spare Battery For Zebra 36XX Family Scanners. 3150 mAh. PowerPrecision Plus. Batteries Must be Shipped via Ground Shipping.
DS3600, Battery Charger Kit: Includes 4 Slot Charger (SAC3600-4001CR), Power Supply (PWR-BGA12V50W0WW), DC Line Cord (CBL-DC-375A1-01) and AC LINE CORD (23844-00-00R)
Power Supply Kit For Zebra Presentation Cradle and Mobile Computers (Three Piece). Includes Power Supply (PWR-BGA12V50W0WW), Line Cord (23844-00-00R), and DC Line Cord (CBL-DC-375A1-01). For Presentation Cradle or Zebra Mobile Computers Only.
3 Year Comprehensive Warranty For Zebra DS3678 Barcode Scanners. Includes Accidental Damage and Issues Caused By Wear & Tear. 3-Business-Day Repair Depot Turnaround. Includes Coverage for Cradles. Can Be Added Up to 30 Days After Product Purchase.
Forklift Mounting Bracket for DS3600 Cradle. Purchase Cradle (FLB3678-C100F3WW) Seperately.
Forklift Holder for Zebra DS3X78 & LS3X78 Industrial Barcode Scanners
Industrial Ethernet Adapter for Zebra DS3600 Barcode Scanners. Standard TCP/IP - Point-To-Point, 24 VDC, RJ45. Power Supply (PWR-BGA12V50W0WW) & Line Cords (CBL-DC-388A1-01 & 23844-00-00R) Sold Separately.
$1047.40 Add to Cart
Power Supply, DC/DC Low Voltage Power Converter, Input: 9-30V, 4.4A, Output: 12V, 2.5A. For nominal voltage input of 12V and 24V systems.
$1010.29 Add to Cart
4 Slot Battery Charger for 3600 Series Battery; Power Supply & AC Line Cord Required - Order Separately (AC Line Cord CBL-DC-388A1-01 and Power Brick PWR-BGA12V50W0WW)
