UniTech MS240

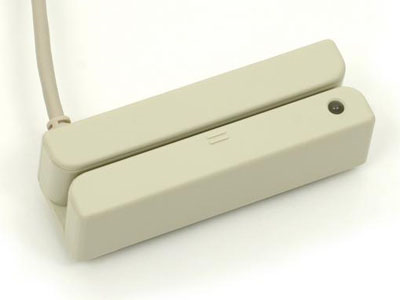

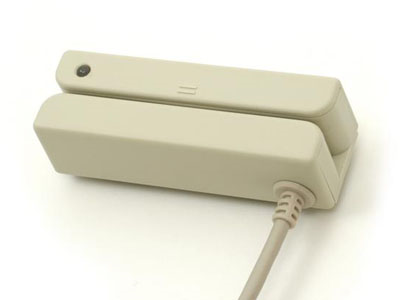

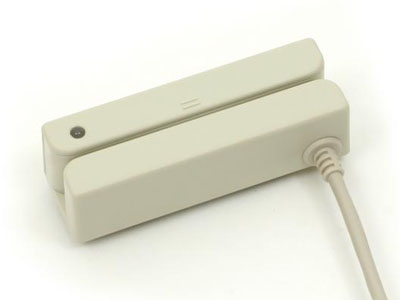

The pictures shown are general images for product MS240 and may not be applicable to all part numbers

MS240 Magnetic Card Readers

The UniTech MS240 has reached end of life. It has been replaced by the UniTech MS246.

The MS240 is avaliable in dual and triple track configurations for reading ISO cards and driver's licenses. Readers can be attached to most computer keyboards or to any flat surface. When using the keyboard wedge interface, no programming, software drivers, or external power is required. Just connect the reader to the keyboard and the keyboard port on almost any PC and you're ready to read magnetic stripe cards. Data is read from the card and sent to the PC just as if it were entered from the keyboard. The MS240 is low-power CMOS, so no external power source is required. Cards can be swiped and read in both directions. An LED provides feedback to the user indicating ready to read or read error.
Product Specifications
Color Options Black, Beige
Interface PC XT/AT, PS/2, RS-232
Track Numbers Tracks 1-2-3 or Tracks 1-2
Programmability Prefix, suffix, track selection, sentinel and terminator enable/disable
Weight 10.56 oz
Dimensions 3.94L x 1.34W x 1.58H in. - 11 x 34 x 40 mm
Mounting Options May be mounted on a keyboard or flat surface.
Warranty 1 Year
