Cipher Lab 1660
The pictures shown are general images for product 1660 and may not be applicable to all part numbers

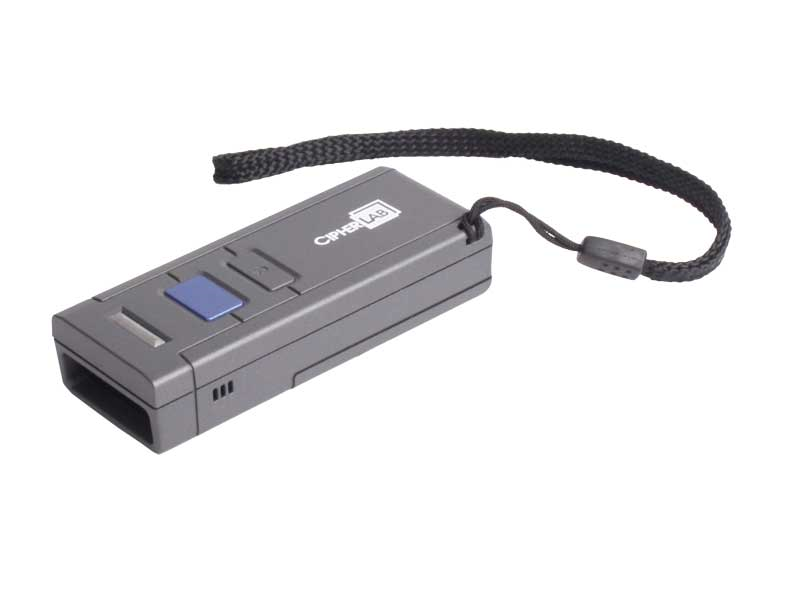

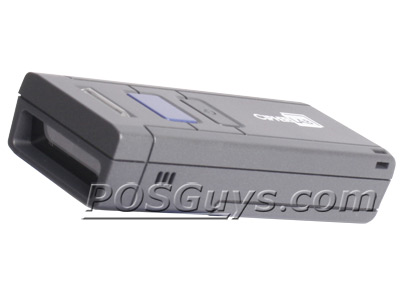

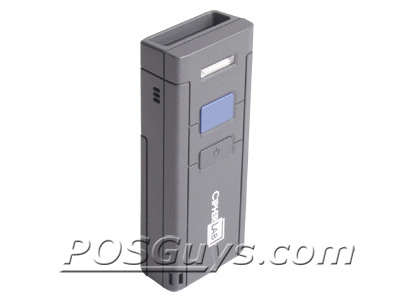

1660 Mobile Barcode Scanner
The Cipher Lab 1660 has reached end of life.
The CipherLab 1660 barcode scanner is a handy solution for barcode scanning on the go. This pocket-sized barcode scanner uses BlueTooth class 3 communications technology to pair with the CipherLab 3610 transponder or any BlueTooth-capable device, giving you 10 meters of range and fast data transmission. With the optional wedge software, the 1660 can become an Android barcode scanner, pairing with cell phones running Google's OS.
Powered by a pair of AAA batteries, the 1660 can run for about 30 hours of consistent scanning before swapping batteries. With the batteries installed, the 1660 weighs in at a scant 1.76 oz., light enough to barely be noticed during a workshift. The lightweight design and ease of setup make the CipherLab 1660 barcode scanner a fantastic and economical solution for anyone needing mobile barcode scanning.
Features 15" scan range
256k memory stores barcodes when out of radio range
Configuration software available
Runs in SPP or HID modes
A special driver is necessary to pair with Blackberries or Android phones. Please call for more information.
Powered by a pair of AAA batteries, the 1660 can run for about 30 hours of consistent scanning before swapping batteries. With the batteries installed, the 1660 weighs in at a scant 1.76 oz., light enough to barely be noticed during a workshift. The lightweight design and ease of setup make the CipherLab 1660 barcode scanner a fantastic and economical solution for anyone needing mobile barcode scanning.
Features
A special driver is necessary to pair with Blackberries or Android phones. Please call for more information.
| Product Specifications | |
|---|---|
| Dimensions | Scanner: 3.7 x 1.4 x 0.8 in |
| Weight | Scanner: 1.76 oz (w/o batteries) |
| Color Options | Grey |
| Interfaces Available | Communicates with 3610BT Transponder (USB), Bluetooth enabled devices (PC or Laptops) or Pairs with Blackberry or Andiod phones (with special driver) |
| Scan Method | Linear Imager |
| Decoding Capabilities | Standard 1D and GS1 DataBar (RSS) Barcodes |
| Mobility/Range | Bluetooth Class 3 v2.0 (2.4 GHz) 10m/33ft (Batch mode with 256k memory when out of range) |
| Battery | 2 AAA Batteries |
| Recharge Time | n/a |
| Scan Rate (Maximum) | 100 scans/second |
| Operating Time | 30 hours based on 1 scan/5 seconds |
| Reading Angle | Pitch: +/-70° Skew: +/-70° |
| Print Contrast (Min.) | 30% |
| Typical Depth of Field | 3.5 - 38xm/ 1.4 - 15 in. |
| Indicators | Visible Light Beep |
| Auto Sense Mode | No |
| Operating Temperature | 32° to 122° F |
| Drop Specification | n/a |
| Environmental Sealing | n/a |
| Ambient Light (Max) | n/a |
| Stand | No |
| Warranty | 1 Year |
