Opticon OPN-3102i

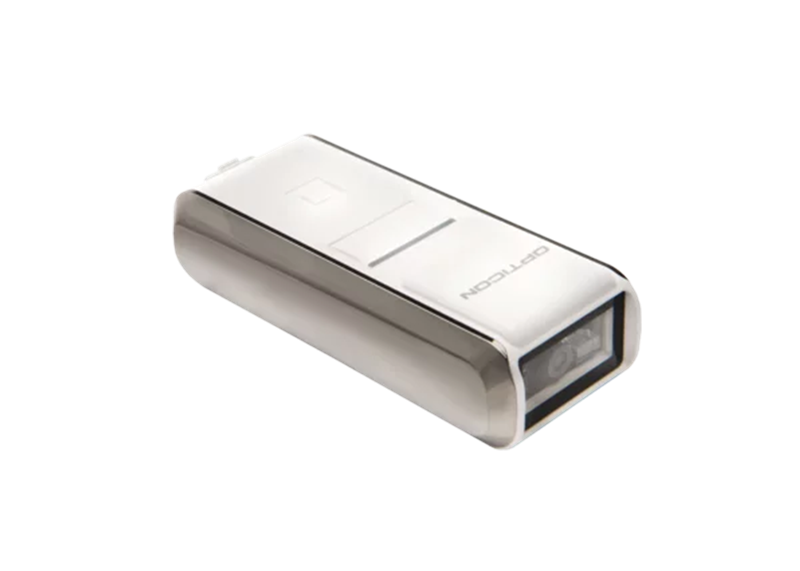

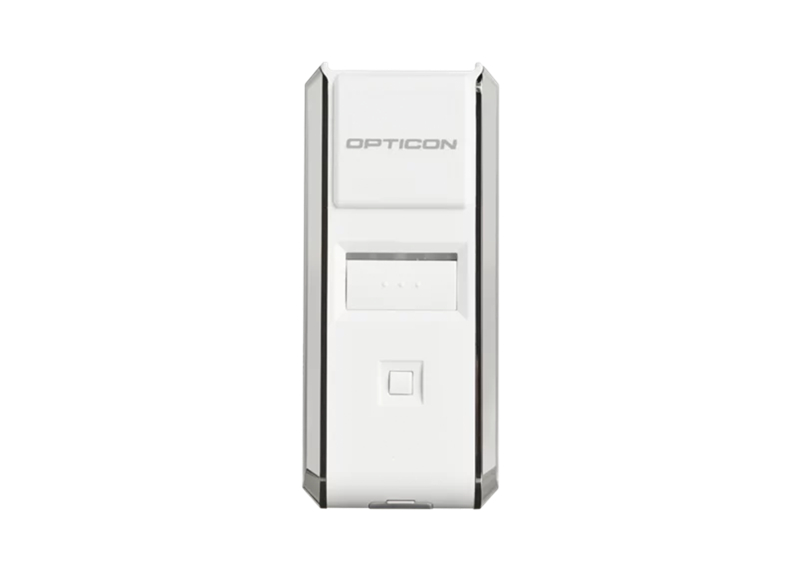

The pictures shown are general images for product OPN-3102i and may not be applicable to all part numbers
OPN-3102i Mobile Barcode Scanner
This product replaces the older Opticon OPN3002i.
The OPN-3102i is a 2D companion barcode scanner in a compact design. It is lightweight and fits easily in your pocket, making it the ideal companion scanner to bring along. It has real-time data transfer through Bluetooth and, when no connection is available, can store data locally as well. The OPN-3102i supports Apple MFi as well. The integrated NFC tag enables easy Bluetooth pairing and the device can also be charged wirelessly.
The OPN-3102i is a powerful 2D scanner equipped with a high capacity battery so the scanner can go for hours without charging. The Bluetooth connection facilitates real-time data transfer to your system and is able to connect with any device including Apple. This means that any data shared with an Apple product is transferred more quickly. This companion scanner is also resistant to drops up to 1.5 meters without the need for special protection. The OPN-3102i comes in black and white, and the dedicated CRD-3000 cradle charges your device wirelessly. The OPN-3102i looks sleek, modern, and scans up to 100 fps.
Using the OPN-3102i is simple and straightforward. One button to scan the barcode and one button to correct any mistakes made, both actions providing visual feedback for smooth interaction.
Features OPN-3102i barcode scanner:
- 1D & 2D scanning
- Apple MFi certified
- Bluetooth connection
- Lightweight
- NFC tag for easy Bluetooth pairing
- Wireless charging
- Up to 100 fps
| Product Specifications | |
|---|---|
| Form Factor | Pocket size scanner |
| Connection | Wireless |
| Reading Type | 2D |
| Communication Interface | Bluetooth, NFC, USB |
| Bluetooth | Ver. 2.1, SPP, HID, 1 to 1 connection, master / slave mode, authentication and encryption |
| NFC | Type A and B, for easy Bluetooth connection |
| USB | Micro USB |
| Non-Visual | Buzzer, vibrate |
| Light Source | Green aiming LED, warm white LED |
| Scan Method | CMOS area sensor, 640 x 480 pixels |
| Scan Rate | Up to 100 fps |
| Drop Test | 1.5 m / 5 ft drop onto concrete surface |
| IP Rating | IP54 |
| Dimensions (WxHxD) | 36 x 83 x 21.5 mm / 1.42 x 3.27 x 0.85 in |
| Weight Body | Ca. 60 g / 2.12 oz (incl. battery) |
| Product Compliance | CE, FCC, VCCI, RoHS, IEC62471:2006, EN60950-1, IEC60950-1, EN62479, EN55032 Class B, EN55024 |
| Enclosed | MicroUSB cable, Neck strap |
Opticon OPN-3102i Reviews
Customer Reviews
| Downloads |
|---|
| Data Sheet |
| Quick Start Guide |
