UniTech MS633

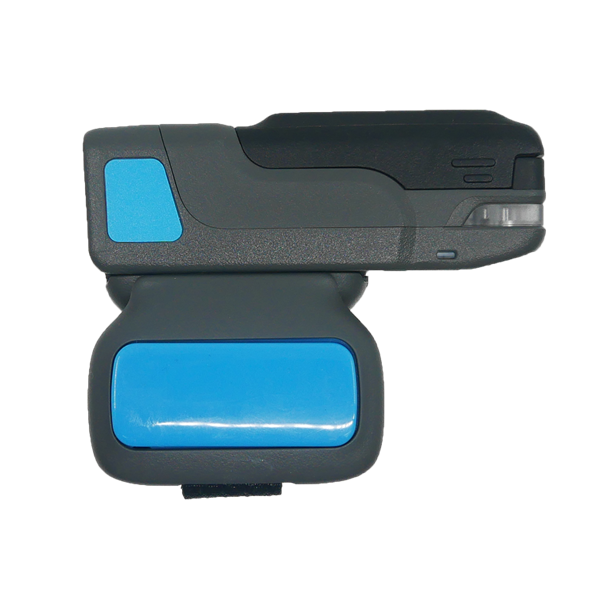

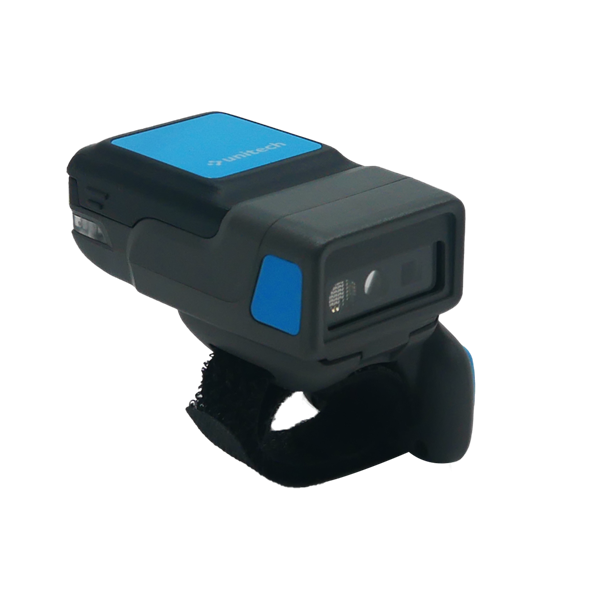

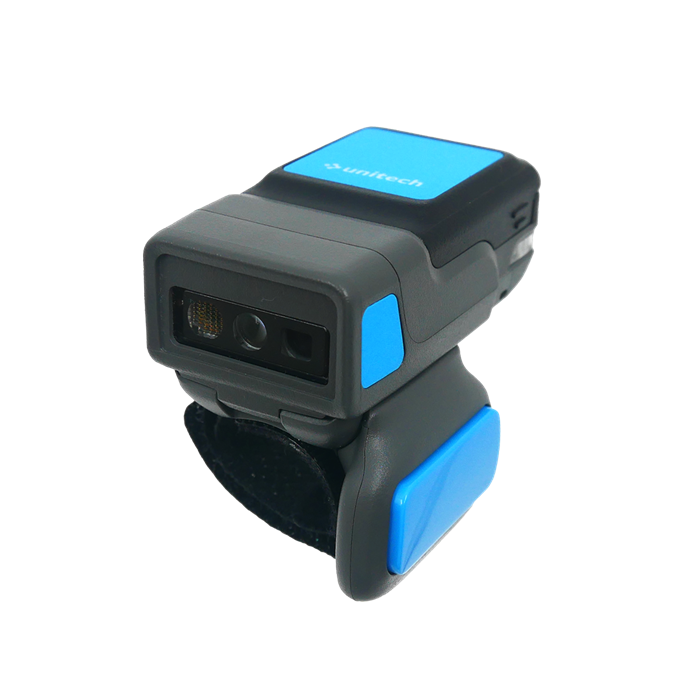

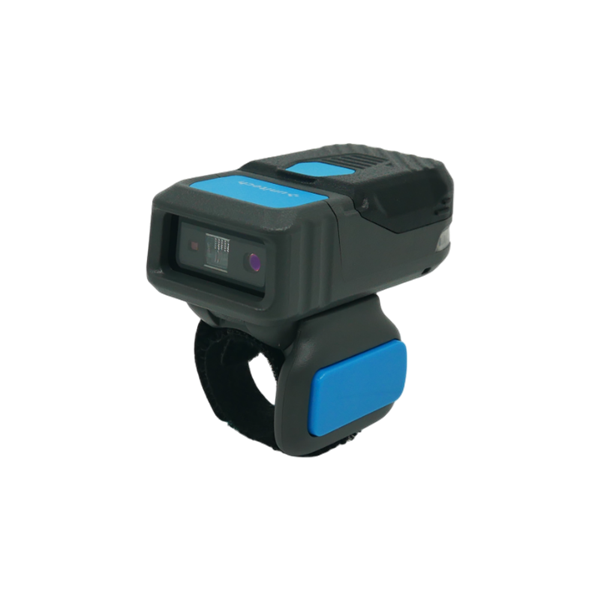

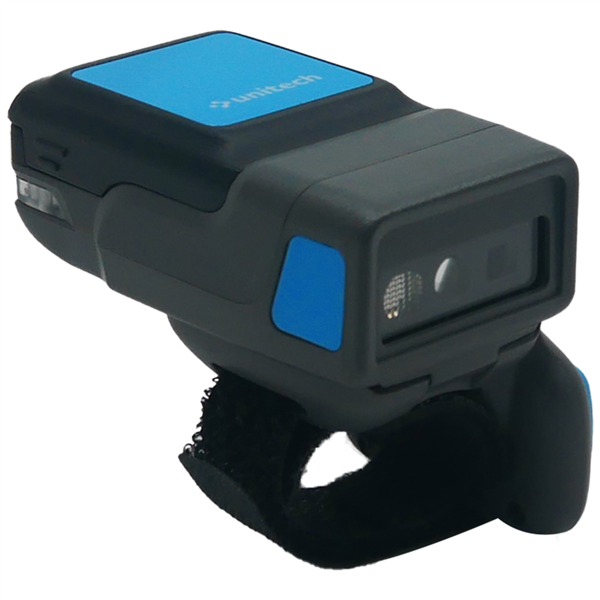

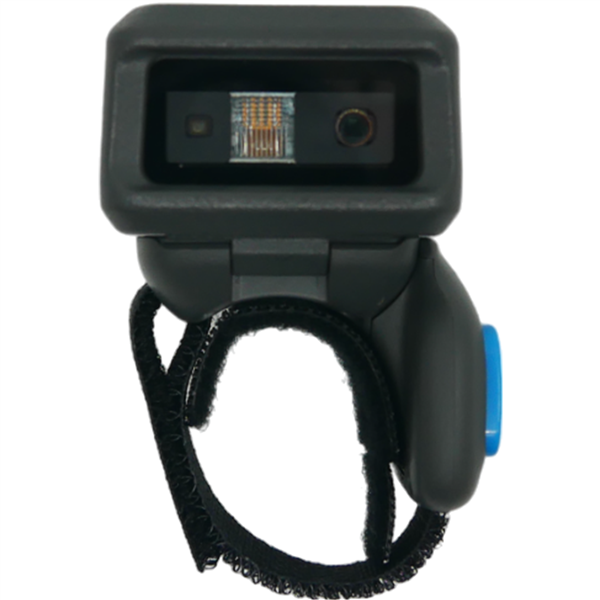

The pictures shown are general images for product MS633 and may not be applicable to all part numbers

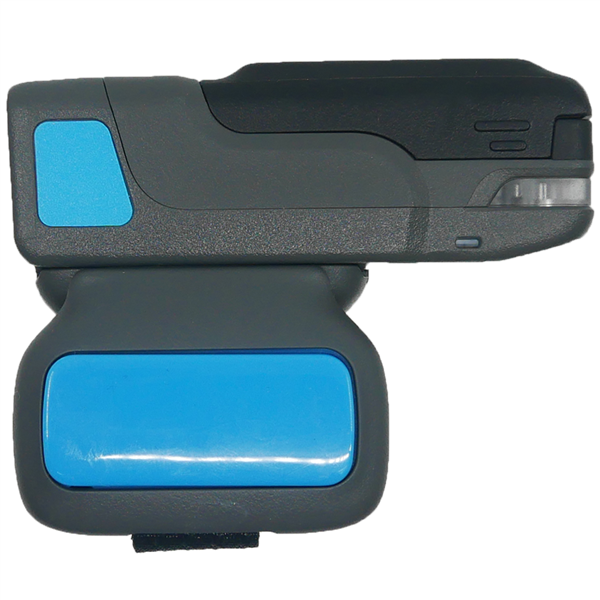

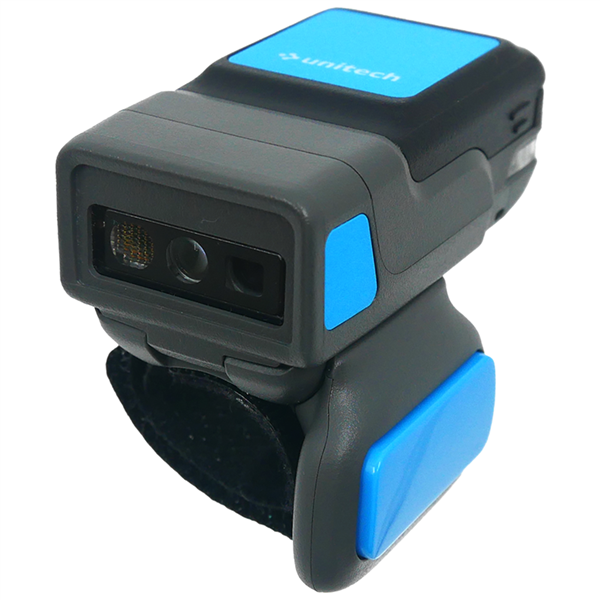

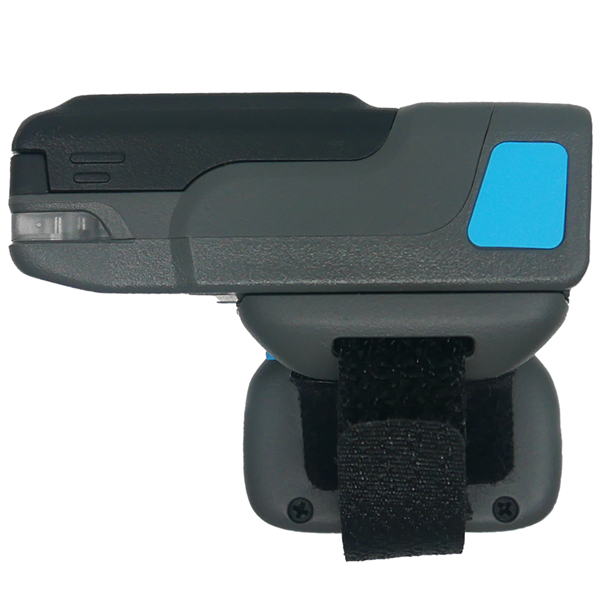

MS633 Mobile Barcode Scanner
This product replaces the older Opticon RS-2006.
The MS633 ring scanner features a lightweight, wearable design that offers exceptional freedom of movement, allowing users to scan barcodes comfortably while keeping both hands free for other tasks.
Lightweight & Comfortable
Weighing just 56 grams, the MS633 Bluetooth 2D Ring Scanner delivers powerful scanning in an ultra-light form—ideal for extended use across retail, inventory, warehousing, and logistics. Its ergonomic build minimizes fatigue and enhances workflow efficiency.
Exceptional Middle Range Scanning Capability
With a scanning range of up to 12 meters, the MS633 enables users to capture barcodes from a distance, reducing the need to physically handle items and improving operational speed.
Hands-Free Operation
Designed for left or right-hand use, the MS633 supports seamless hand-switching and hands-free operation, boosting comfort and reducing fatigue in fast-paced, high-mobility environments.
Reliable Wireless Connectivity
Stay connected across large areas with stable Bluetooth communication—ideal for warehouses, retail floors, and other dynamic workspaces where mobility is key to productivity.
Unitech Software Solutions
Compatible with Unitech’s ScanBridge Utility and Scanner SDK, the MS633 offers customizable integration for optimized performance within your workflow—making it more than just a scanner, but a complete scanning solution.
Features
- Lightweight and unique wearable ring design
- Premier barcode reading distance: Up to 12M
- One push rotate design allows right and left hand operation to switch easily
- Flexible wireless design for extended operation ranges
- Changeable and rechargeable battery pack
- Full Shift Battery Life: Up to 9 Hours
- Instant decoding feedback: LED, Buzzer and Vibrator indicators.
- Support Unitech software solutions, ScanBridge Utility and Scanner SDK
How Can I Charge my MS633 Ring Scanner?

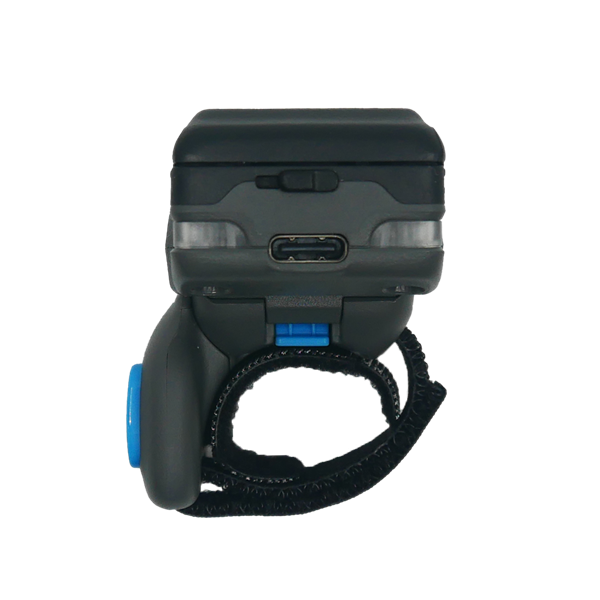

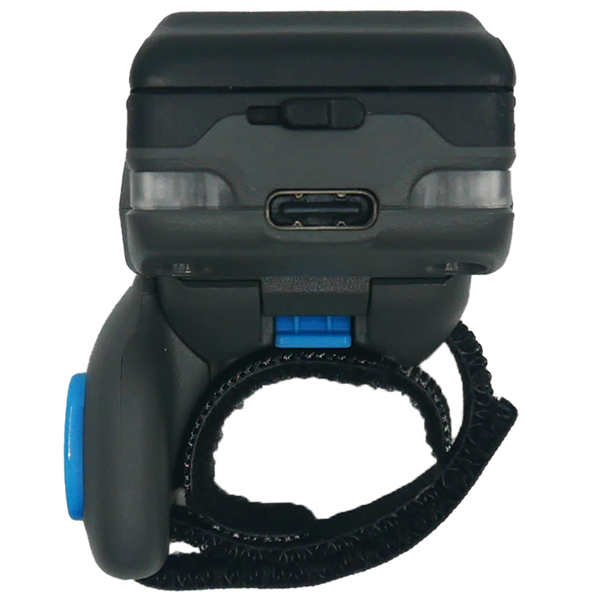

The MS633 Ring Scanner charges using a USB Type-C cable, which is included with all models. A power supply is required for charging and is not included with standard configurations. Our kits include both the USB-C cable and power supply for a complete, ready-to-use solution.
| Product Specifications | |
|---|---|
| Dimensions | MS633: 64.8mm(L)×34.5mm(W)×24.7mm(D), MS633 LR: 70.0mm(L)×36.4mm(W)×28.4mm(D) |
| Weight | MS633: 56g, MS633 LR: 67g |
| Trigger Switch Life | 500,000 times |
| Optical Resolution | CMOS Image (1280 x 960 pixels), MS633 LR: CMOS Image (2688 x 1520 pixels) |
| Roll | 360° |
| PItch | ±60° |
| Skew | ±60° |
| Aiming Element | Green Laser |
| Illumination Element | 1 Warm-White LED, MS633 LR: 2 Warm-White LED |
| Field of View | 44.5º horizontal, 33.5º vertical, MS633 LR: 37º horizontal , 21º vertical |
| Ambient Light | 107,639 lux (direct sunlight) |
| Supported 1D Symbologies | Code39, Code128, Codabar, Code11, UPC/EAN, 2of5 Databar, Code39, MSI, UK Plessy, Telepen, Composite, TLC-39 |
| Supported 2D Symbologies | Postal Codes, PDF, Micro PDF, Composite, TLC-39, Aztec, Data Matrix, QR, Maxicode, Han Xin, Grid Matrix, OCR |
| Power | 600mAh |
| Operating Temperature | 14°F ~ 122°F / -10°C~50°C |
| Humidity | 5% to 85% non-condensing |
| Drop Specification | Multiple 4.9 ft./1.5 m drops to concrete |
| Decode Ranges | MS633:
5mil Code39: 6.1cm~24.1cm/2.4in.~9.5in.
5mil Code128: 7.1cm~22.9cm/2.8in.~9.0in.
6.67mil PDF417: 6.1cm~20.3cm/2.4in.~8.0in.
10mil DataMatrix: 7.4cm~21.6cm/2.9in.~8.5in.
100% UPCA: 4.6cm~49.5cm/1.8in.~19.5in.
15mil QR Code: 3.0cm~29.2cm/1.2in.~11.5in.
20mil QR Code: 3.0cm~35.6cm/1.2in.~14.0in.
MS633 LR: 3mil Code 39: 6.9cm~41.1cm/2.7in.~16.2in. 5mil Code 39: 6.4cm~67.6cm/2.5in.~26.6in. 5mil PDF417: 7.1cm~49.8cm/2.8in.~19.6in. 6.7mil PDF417: 6.6cm~65cm/2.6in.~25.6in. 10mil DataMatrix: 5.6cm~68.8cm/2.2in.~27.1in. 100% UPC(13mil): 6.4cm~180cm/2.5in.~71in. 15mil Code 128: 18.2cm~182.9cm/7.2in.~72in. 200mil DataMatrix: 20cm~1440cm/7.9in.~566.9in. 200mil QR: 25cm~1800cm/9.8in.~708.7in. |
