Custom America K-Ranger

The pictures shown are general images for product K-Ranger and may not be applicable to all part numbers

K-Ranger Mobile Computers

Mobile Computer with Keypad and 4G Connection

The Custom America K-Ranger provides decent performance and functionality. The device offers a mid-range processor, a well-equipped integrated barcode scanner, and a host of accessories to support a range of retail, T&L, and light industrial applications. The device can handle falls up to 5 feet and an IP65 certified sealing plus Dragontrail scratch-resistant touchscreen equip this unit for moderate impacts.

Key Features - K-Ranger Mobile Computer
  • Fully rugged for warehousing/transportation/ manufacturing/retail applications
  • IP65 certified, 1.5 m (5ft.) drop resistance
  • Projected capacitive multi-touch panel
  • High mobility with multiple connectivities
  • Reading ID/2D barcodes

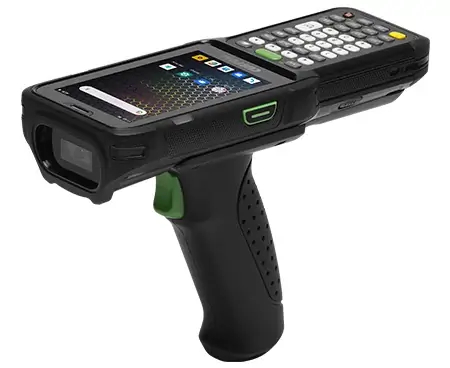

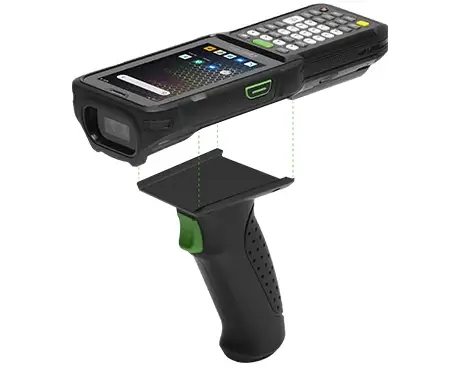

  • Enhanced model: attachable pistol grip
  • Version with standard and long range optic
Included in Box
  • K Ranger
  • Battery
  • User Manual
  • Warranty Card
  • Product Specifications
    Waterproof IP65
    OS Android™ 9
  • KR500-G Model comes with a Keyboard
  • KR550-G Model comes with a Keyboard
  • Attachable Pistol Grip
  • KR500-G Model can use Pistol Grip
  • KR550-G Model can use Pistol Grip
  • Long range KR550-G Variant Only
    Camera 8 Mpx (only for brick version)
    Display 4" TFT LCD 800 × 480 resolution, projected capacitive, multi-touch screen
    CPU Qualcomm Snapdragon 450/8* Cortex A53 1.8 GHz
    Power Rechargeable Li-ion 5200 mAh; Charger 12V 2A power adapter; 5V 2A (slow charge)
    Storage ROM+RAM 16 GB + 2 GB
    Accessible SD up to 128 GB
    GSM 850/1900
    3G WCDMA WCDMA: B2/B4/B5
    4G LTE
  • TDD-LTE:B38/B40/B41
  • FDD-LTE:B2/B4/B5/B7/B12/B13/B17/B26/B27
  • Wi-Fi 2.4/5 GHz - Integrated IEEE 802.11 a/b/g/n
    2D Scanner
  • KR500-G ScanEngine SE4750 - 1D/2D Barccode
  • KR550-G ScanEngine SE4850 - 1D/2D Barcode Long Range
  • Bluetooth 4.2
    Keypad 38 keys + Alphanumeric
    Sim Card 1 Nano Sim 2G/3G/4G (LTE Europe)
    Drop Multiple Drops to Concrete 1.5 m
    Sensors Accelerometer (G-sensor), gyroscope, e-compass, proximity sensor, ambient light sensor
    NFC Integrated
    Battery 5200 mAh
    Operation temperature -15 °C to 55 °C
    Storage temperature -20 °C to 60 °C
    Dimensions 77.8 mm (H) x 202.4 mm (W) x 41.6 mm (D)
    Weight (without battery)
  • KR500-G 314gr
  • KR550-G 349gr
