DataLogic DL-Axist

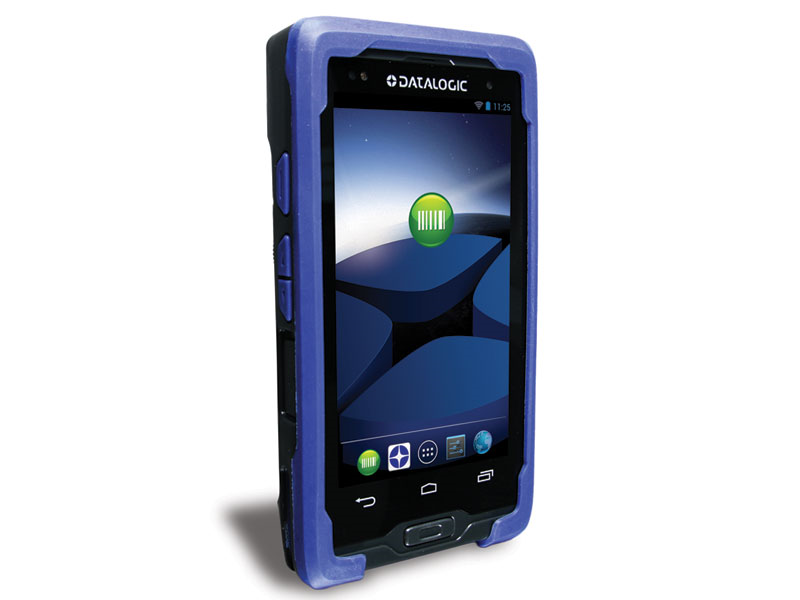

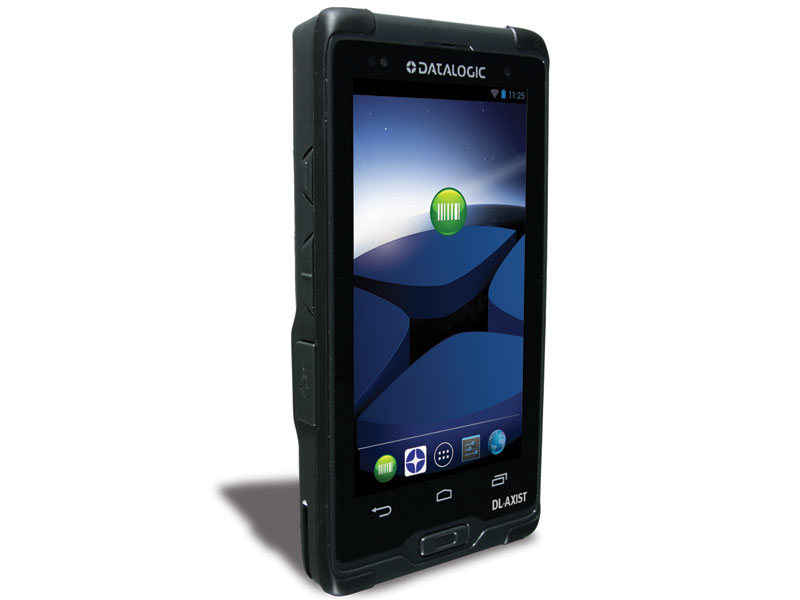

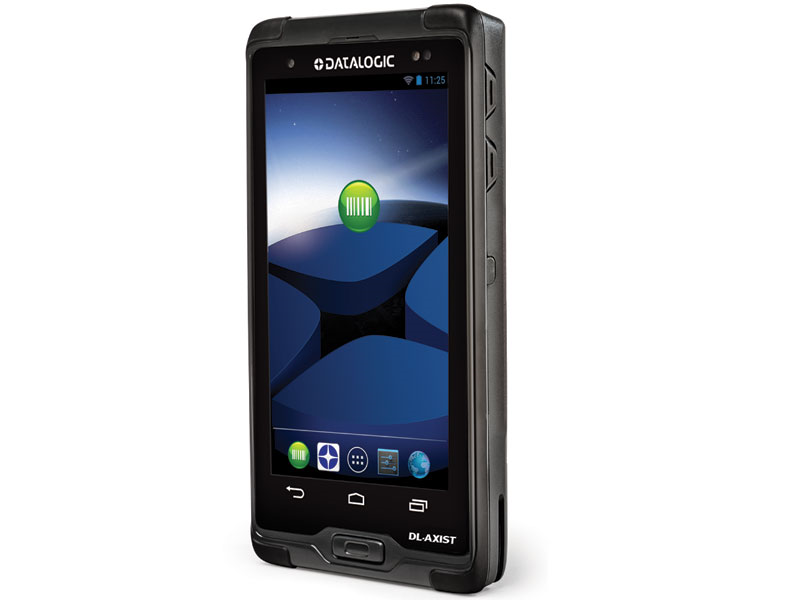

The pictures shown are general images for product DL-Axist and may not be applicable to all part numbers

DL-Axist Mobile Computers

The DataLogic DL-Axist has reached end of life. It has been replaced by the DataLogic Memor 10.

The DL-Axist PDA is a fully featured PDA, leveraging the rich Datalogic expertise in the rugged market and distinguishing from consumer smartphones (also from emerging rugged smartphone solutions) both from a hardware and software point of view. Additionally, the industrial sector is already offering some full touch devices with the Android OS, so the following selling points will help position the DL-Axist PDA and differentiate from existing solutions:

  • Brilliant 5 inch HD Display vs. competitive products mainly between 4.3 to 4.7 inches
  • Strong Ruggedization: Gorilla® Glass 3 touch screen, IP67, drop spec from 1.8 m / 6.0 ft to concrete with rubber boot option and -20 ºC / -4 ºF operating temperature
  • Suitability to scan intensive applications
  • Datalogic’s ‘Green Spot’ technology for visual good-read feedback
  • Datalogic’s SoftSpot technology (touch trigger) for novel use of the touch screen display
  • 3 physical scan keys
  • Superior Wi-Fi coverage through MIMO technology and fast roaming protocols
  • Largest battery in the rugged PDA market (6400 mAh)
  • WWAN version with voice and data (4G HSPA+) and dedicated enterprise class aGPS module
  • NFC to streamline configuration
  • Tap to Configure (patent pending)
  • Tap to Pair (for example, when connecting to a Bluetooth peripheral
Charging Note: The DL-Axist does come with aUSB cable for charging and communications, however proper charging docks and power supplies must be purchased separately. See Accessories for all your charging needs.
Product Specifications
Weight 350.0 g / 12.3 oz
Dimensions 15.7 x 8.0 x 1.9 cm / 6.2 x 3.1 x 0.7 in
Operating System Android v4.1
v4.4 coming soon as a free update
Processor OMAP 4430 @ 1 GHz Dual Core
Memory RAM: 1 GB
eMMC Flash: 8 GB
Screen 5 inch TFT HD resolution 720 x 1280
Battery Removable Li-Ion Battery
Standard: 3.8 V; 3200 mAh (11.8 Watt-hours), ships with Wi-Fi models only
Extended:Extended: 3.8 V; 6400 mAh (23.6 Watt-hours); ships with WWAN Models
Camera 5 megapixel, Auto Focus
Scan Method 2D Imager
Keyboard On Screen
Interface Micro-USB connector: High Speed USB 2.0 Host and Client
Ethernet: via single dock, up to 1 Gbps
Cellular Radio Bluetooth Wireless Technology v4.0 (IEEE 802.15)
GPS Integrated Assisted-GPS (A-GPS) with u-blox technology
NFC Support for the following standards: ISO14443-4 (type-A, type-B); ISO15693; Mifare; Felica
Expansion Micro-SD card slot: Compatible with Micro SD-HC cards
Data transfer up to 48 Mbps; User-accessible
Operating Temperature Operating: -20 to 50 ºC / -4 to 122 ºF
Drop Specification / 6.0 ft onto concrete (with rubber boot - sold separately)
Seal Specification IP67
Warranty 1-Year Factory Warranty
