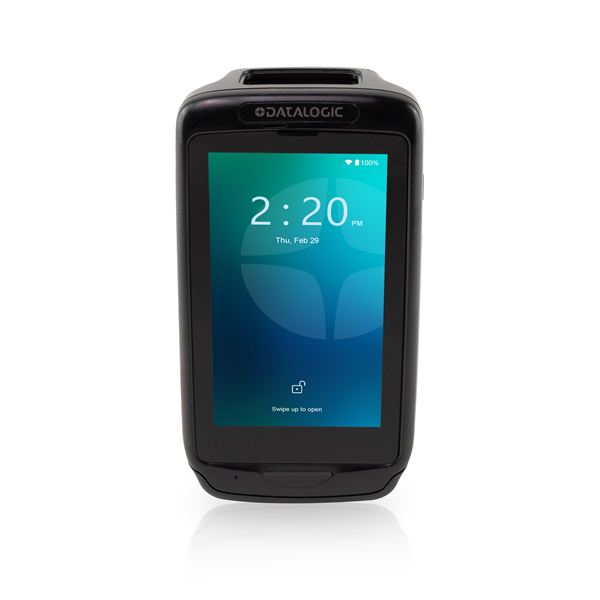

DataLogic Joya Touch 22

Joya Touch 22 Product Image

The pictures shown are general images for product Joya Touch 22 and may not be applicable to all part numbers

Joya Touch 22 Mobile Computers


This product replaces the older DataLogic Joya Touch A6.

Standard Specs for the Joya Touch 22 Include:
  • Connectivity: 802.11 a/b/g/n/ac (Wi-Fi 5) & Bluetooth
  • Display: 4.3" full touch TFT-LCD color display; FWVGA: 854 x 480 pixels; 16M colors, LED backlight. Capacitive, multi-touch, Gorilla® Glass 3 with air gap.
  • Battery:  Replaceable battery pack with rechargeable Li-Ion batteries; 3.6 V; 3,300 mAh (12 Watt-hours)
  • Decoding Capability: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
    2D Codes: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code
    Stacked Codes & Postal Codes: See Spec Sheet
  • Camera: Black and White via Scan Engine, 2MP quality.
  • CPU: Qualcomm® SDA660 System-on-Chip 2.2 GHz
  • Memory: System RAM: 4 GB; System Flash: 32 GB
  • Operating System: Android 11 (Upgradeable to Android 13 and one other dessert upgrade)
  • Drop Specifications: Withstands repeated drops from 1.2 m / 4.0 ft onto steel or concrete according to IEC 60068-2-32 method 1
  • Tumble Specification: 1,000 0.5 m / 1.64 ft tumbles at room temperature according to IEC 60068-2-232 method 2
  • Sealing: The device is not water resistant. Keep it dry.

Empowered to Deliver More
Datalogic, the pioneer of self-scanning solutions for more than 15 years, is pleased to announce the new updated version of the Joya Touch 22, the ultimate self-shopping companion. The updated device has enhanced selfscanning capabilities allowing consumers to scan and pack items faster, leading to queue-busting at the checkout while offering a comfortable and unique shopping experience. The new device is designed to meet the most demanding Self-Scanning application requirements and is optimized to delight your customers with a colorful 4.3 inch bright display, ideal for in-store lighting.

Accelerate Your ROI

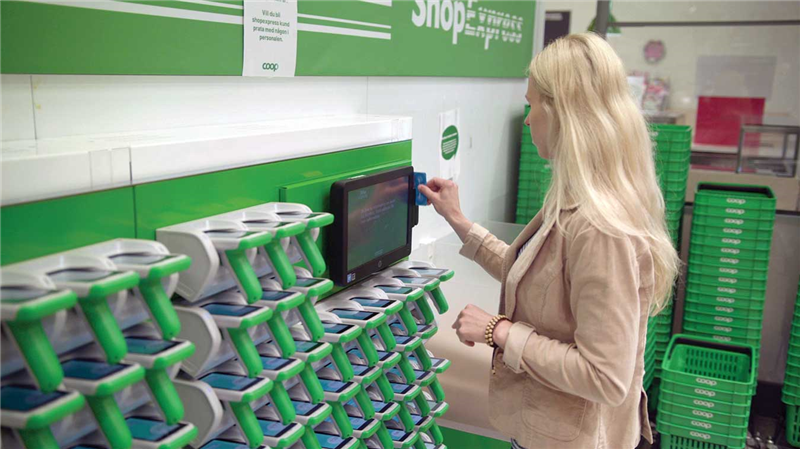

Invest less and get more value with Joya Touch 22 update. Our unique wireless charging technology in the self-shopping market eliminates down time from damaged pins. The Boost Recharge feature ensures quick recharging,
optimizing the number of devices needed per store. Give your customers, your staff and your budget a break with a device that delivers the best value.

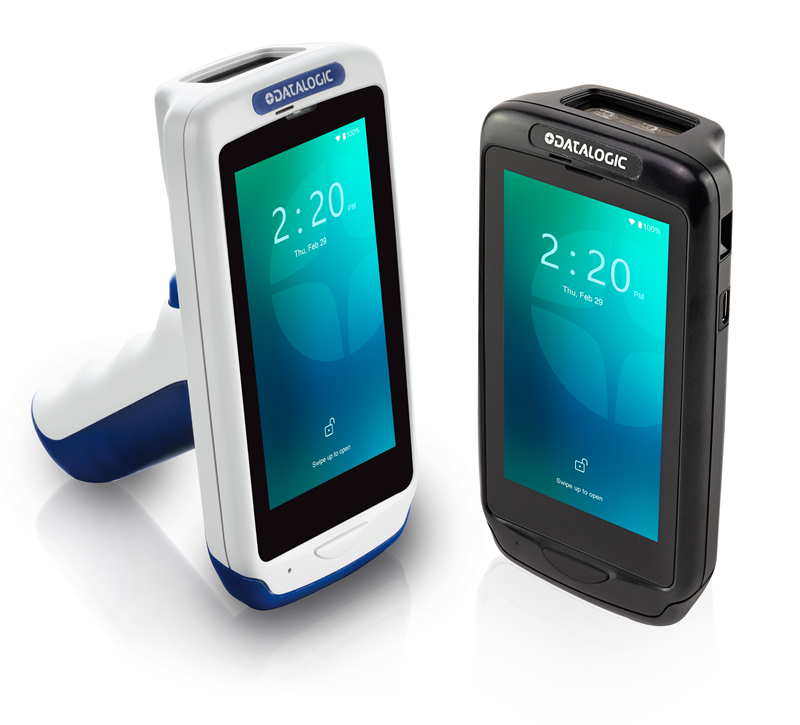

One Device with Two Form Factors in Custom Colors
Enjoy a new approach with a tailored solution. The Joya Touch 22 update device can be personalized with standard or custom-made colors, enhancing your brand to make it more visible, increasing your customer loyalty, and for
those operational applications where a professional look is preferred, it is available with black housing, a perfect companion for any situation. Available in two form factors: a pistol-grip version with a comfortable trigger and a handheld version resembling a smartphone. Users can change from one to the other with ease, adapting to different use cases.

Top Reading Performance
Joya Touch 22 update offers advanced scanning technology with a Megapixel imager for improved near field scanning performance for all types of 1D/2D codes. The ‘Presentation mode’ leverages the ToF sensor for automatic

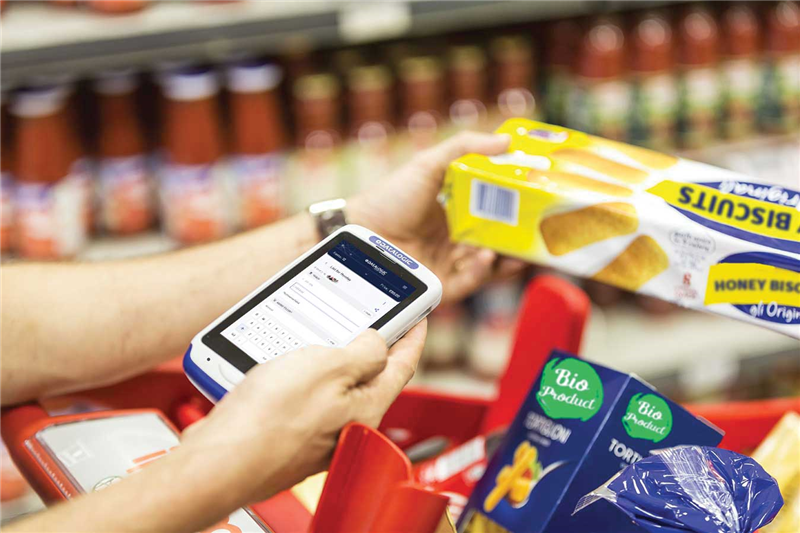

reading without holding the device, letting your customers enjoy a more comfortable and frictionless shopping experience.

Extend Support and Cooperation with Independent Software Vendors
Datalogic recognizes the unique value and expertise that Independent Software Vendors (ISVs) enhance to our solutions offered in retail segment. Our software partners offer a wide range of applications including self-shopping scanning features, enhanced promotions, location-based promo and offers, recipes, shopping list, payment and product way finders ensuring a smooth shopping experience.

Features
• Qualcomm® platform SDA660 System-on-Chip running at 2.2 GHz
• Android™ operating System with Google Mobile Services
• 4 GB RAM Memory and 32 GB Flash Memory storage
• Wi-Fi featuring 2x2 MU-MIMO for higher throughput and coverage
• Advanced Megapixel imager, ideal for all types of 1D/2D codes on printed material or displayed on screens
• Bluetooth® v5.1 with BLE to support different peripherals consuming less power
• Backward compatibility with all Joya Touch and Memor 1 accessories
• Datalogic’s ‘Green Spot’ technology for visual good-read feedback
• Compatible with all major MDM providers
• Large 4.3 inch capacitive multi-touch FWVGA display with Corning Gorilla® Glass 3
• Datalogic’s SoftSpot™ technology for innovative triggering through the touch display
• Wireless charging technology eliminates all contacts on the device and cradle
• Precise indoor location with Quuppa Intelligent Locating System™
• EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI. Datalogic Shield, a service for Android security patches and OS upgrades is included with EASEOFCARE.

Product Specifications
WLAN IEEE 802.11 a/b/g/n/ac and 802.11 d/e/h/i/k/r/v/w/mc (for indoor localization); IPv4, IPv6 2x2 MU-MIMO for higher throughput and coverage
Frequency range: country dependent, typically 2.4 GHz and 5 GHz bands
Security standards: WPA/WPA2/WPA3 Personal and Enterprise 802.1x EAP: PEAP/MSCHAPv2, PEAP/GTC, TLS, TTLS/PAP, TTLS/MSCHAP, TTLS/MSCHAPv2, TTLS/ GTC, PWD, TLS (WPA3 SuiteB/192-bit)
WPAN Class 2, Bluetooth V5.1, with BR/EDR and Bluetooth Low Energy (BLE)
NFC NFC communication between device and cradle
Decoding Capabilities
  • 1D / Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
  • 2D Codes: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code
  • Postal Codes: Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
  • Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
  • Digital Watermark : Codes Digimarc Barcode (Red LED illumination model)
  • Electrical
  • Battery: Replaceable battery pack with rechargeable Li-Ion batteries; 3.6 V; 3,300 mAh (12 Watt-hours)
  • Wireless Charging: Two charging options: Fast charging or Standard charging
  • Environmental Drop Resistance Withstands repeated drops from 1.2 m / 4.0 ft onto steel or concrete according to IEC 60068-2-32 method 1 Temperature Operating: -10 to 50 ºC / 14 to 122 ºF Tumble Specification 1,000 0.5 m / 1.64 ft tumbles at room temperature according to IEC 60068-2-232 method 2
    Interfaces
  • Interfaces: USB-C: High Speed USB 2.0 Host and Client
  • User Interfaces
  • Interfaces: USB-C: High Speed USB 2.0 Host and Client
  • SoftSpot Technology: Virtual trigger/scan key

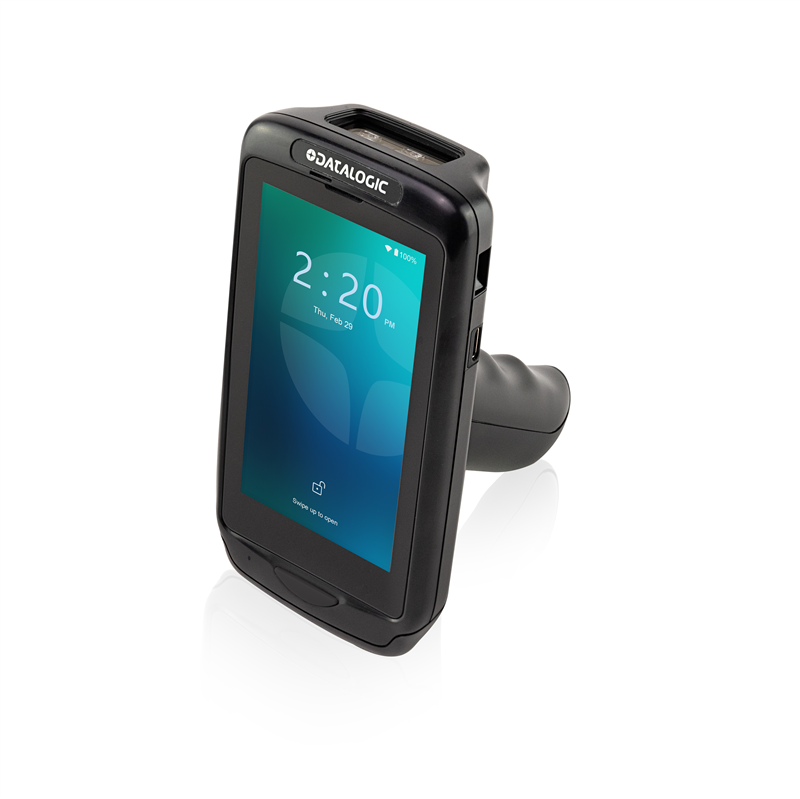

  • Triggers: Pistol-grip (pistol variant only); motion trigger
  • Vibration: Software programmable
  • Image Capture
  • Black and White via Scan Engine: Auto contrast and brightness; Auto noise removal; Exposure and illumination controls
  • Physical Characteristics
  • Color Customization: Top case and battery cover (both handheld and pistol-grip models) and Scan Trigger (pistol-grip models) are available in various standard or custom colors
  • Colors (Standard):
  • Enclosures: Light Grey; Dark Grey and Black
  • Battery Covers: Blue; Red; Green; Orange; Yellow; Light Grey and Black
  • Display: 4.3 inch full touch TFT-LCD color display; FWVGA: 854 x 480 pixels; 16M colors, LED backlight
  • Touch Screen: Capacitive, multi-touch, Gorilla® Glass 3 with air gap
  • Physical Keys:
  • Handheld: Home/scan fully programmable key
  • Pistol-Grip: Home/scan fully programmable key; Scan Trigger key
  • Lighting: Software programmable, lights at the bottom of the battery cover
  • Dimensions
  • Handheld: 14.5 x 7.7 x 3.4 cm / 5.7 x 3.0 x 1.3 in
  • Pistol-Grip: 14.5 x 7.7 x 11.6 cm / 5.7 x 3.0 x 4.5 in
  • Weight:
  • Handheld: 285 g / 10.1 oz
  • Pistol-Grip: 317 g / 11.2 oz
  • DataLogic Joya Touch 22 Reviews

    POSGuys Rating: Not Rated

    Customer Reviews

    Recommended Models

    Joya Touch 22 Hand-Held, WiFi & BT, 2D with White Illumination & Green Spot, Dark Black/Black, FCC & CE. Comes with Single Slot Charge Dock.
    $1145.60 Add to Cart
    Device Color:Dark Black/Black
    Pistol-Grip or Hand-Held:Hand-Held
    Kit with Charge Dock:Single Slot Charge Dock
    Illumination Color:White
    Joya Touch 22 Pistol-Grip, WiFi & BT, 2D with White Illumination & Green Spot, Dark Black/Black/Black, FCC & CE. Comes with Single Slot Charge Dock.
    $1197.71 Add to Cart
    Device Color:Black/Black/Black
    Pistol-Grip or Hand-Held:Pistol-Grip
    Kit with Charge Dock:Single Slot Charge Dock
    Illumination Color:White

    Additional Models

    Joya Touch 22 Pistol-Grip, WiFi & BT, 2D with White Illumination & Green Spot, Black/Black, FCC & CE
    $1032.96 Add to Cart
    Device Color:Black/Black
    Pistol-Grip or Hand-Held:Pistol-Grip
    Illumination Color:White
    Joya Touch 22 Pistol-Grip, WiFi & BT, 2D with White Illumination & Green Spot, Gray/Blue, FCC & CE
    $1056.92 Add to Cart
    Device Color:Gray/Blue
    Pistol-Grip or Hand-Held:Pistol-Grip
    Illumination Color:White
    Joya Touch 22 Hand-Held, WiFi & BT, 2D with Red Illumination & Green Spot, Gray/Blue/Blue, FCC & CE
    $1056.92 Add to Cart
    Device Color:Gray/Blue/Blue
    Pistol-Grip or Hand-Held:Hand-Held
    Illumination Color:Red
    Joya Touch 22 Pistol-Grip, WiFi & BT, 2D with Red Illumination & Green Spot, Gray/Blue/Blue, FCC & CE
    $1057.92 Add to Cart
    Device Color:Gray/Blue/Blue
    Pistol-Grip or Hand-Held:Pistol-Grip
    Illumination Color:Red
    Joya Touch 22 Pistol-Grip, WiFi & BT, 2D with White Illumination & Green Spot, Gray/Blue/Blue, FCC & CE
    $1082.45 Add to Cart
    Device Color:Gray/Blue/Blue
    Pistol-Grip or Hand-Held:Pistol-Grip
    Illumination Color:White
    Joya Touch 22 Pistol-Grip, WiFi & BT, 2D with White Illumination & Green Spot, Black/Black/Black, FCC & CE
    $1082.45 Add to Cart
    Device Color:Black/Black/Black
    Pistol-Grip or Hand-Held:Pistol-Grip
    Illumination Color:White
    Joya Touch 22 Pistol-Grip, WiFi & BT, 2D with White Illumination & Green Spot, Gray/Green/Green, FCC & CE
    $1088.64 Add to Cart
    Device Color:Gray/Green/Green
    Pistol-Grip or Hand-Held:Pistol-Grip
    Illumination Color:White
    Joya Touch 22 Pistol-Grip, WiFi & BT, 2D with White Illumination & Green Spot, Dark Gray/Orange/Orange, FCC & CE
    $1088.64 Add to Cart
    Device Color:Gray/Orange/Orange
    Pistol-Grip or Hand-Held:Pistol-Grip
    Illumination Color:White
    Joya Touch 22 Developer Demo Kit, WiFi & BT, 2D with White Illumination & Green Spot, Gray/Blue, FCC & CE. Comes with 3 Slot Charge Cradle + Wall Bracket. Requires Separate Purchase of Power Line Cord.
    $2712.96 Add to Cart
    Kit with Charge Dock:3 Slot Charge Cradle
    Device Color:Gray/Blue
    Pistol-Grip or Hand-Held:Pistol-Grip

    Accessories

    Joya Touch Single slot cradle, locking (light gray); Requires a PS (91ACC0048) and line cord
    Joya Touch Single slot cradle, locking (dark gray); Requires a PS (91ACC0048) and line cord
    Joya Touch 3-Slot Cradle for General Purpose; Contains 1 unlocking key and 1 pair of desktop feet. Requires Power Supply and Line Cord
    Joya Touch Single slot cradle, charge only (light gray); PS with regional plugs included
    Joya Touch Single slot cradle, charge only (dark gray); PS with regional plugs included

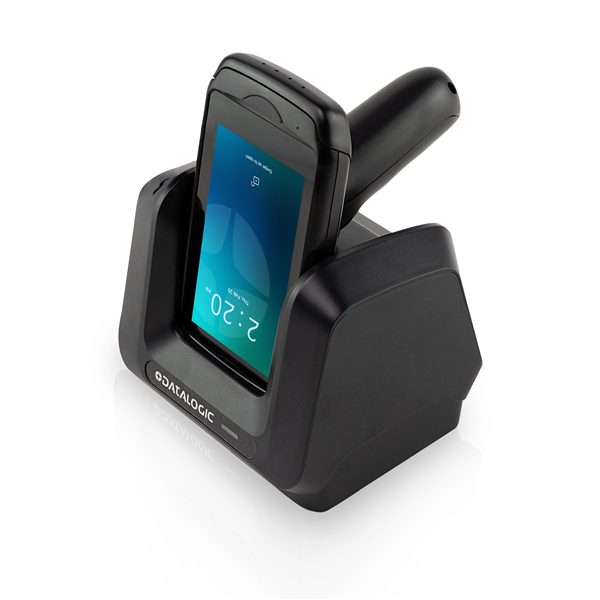

    Single Slot Dock, Locking, Black; Requires PS (91ACC0048) and line cord for Joya Touch & Memor 1
    Single Slot Dock, Charge only, Black; PS with regional plugs included for Joya Touch & Memor 1
    Memor 1 3-Slot Dock for General Purpose, Black; Requires PS (91ACC0048) and Line Cord
    Joya Touch 3-Slot Cradle for Wall Mounting. Requires power supply, line cord and wall bracket.
    Joya Touch 3-Slot Cradle, without User LED, for Wall Mounting. Requires Power Supply, Line Cord and Wall Bracket.
    Datalogic Ease of Care 3-Year Comprehensive Warranty for Joya 22. Covers Normal Wear & Tear and Accidental Breakage Coverage. 2-Business-Day Turnaround For Replacement Unit (Excluding Transit). Both Ways Freight Paid By Datalogic.
