DataLogic Lynx

The pictures shown are general images for product Lynx and may not be applicable to all part numbers

Lynx Mobile Computers

The DataLogic Lynx has reached end of life.

This product replaces the older DataLogic Elf.

Windows Mobile and WinCE are no longer available please contact POSGuys for alternatives or to check refurbished stock

The Datalogic Lynx mobile computer offers a great combination of tools and functionality, ideal for both field mobility applications and in-house data capture. The small form factor of the Lynx makes it an easily pocketable solution for mobile POS and more.

Running Windows Embedded Handheld 6.5.3, the Lynx supports most major mobile productivity application platforms. The speedy XScale processor and 256 MB of RAM handle most software with the efficiency you need, while the multiple wireless radios keep you in contact virtually anywhere.

The Lynx comes with your choice of 1D laser scanner or 2D imager, allowing you to scale the performance to best meet your business's needs. The scanners give you a pretty good depth of field, ensuring easy and comfortable scans for your employees. For applications needing photographs such as shipment verification, a built-in 3 megapixel takes crisp full-color images.

Field work can be taxing on mobile hardware. Thankfully Datalogic built the Lynx to handle the day-to-day use and abuse field sales and delivery services put on their equipment. The mobile computer is reinforced to survive drops of about four feet to concrete, protecting it from the accidental drop off the back of a truck or out of a pocket. An IP54 seal keeps water splashes and dirt from harming internal components, further increasing its lifespan.

  • Windows Embedded Handheld 6.5.3
  • 256 MB RAM, 512 MB Flash
  • XScale PA310 806 MHz Processor
  • 1D Laser Scanner or 2D Imager
  • IP54 Seal
  • Bluetooth, 802.11b/g/n, 3G/4G Radios
Charging Note: The Lynx does come with charging equipment. Additional USB cables, charging docks, and power supplies must be purchased separately. See Accessories for all your charging needs.
Product Specifications
Weight With Standard Battery: 9.5 oz
With Extended Battery: 10.6 oz
Dimensions With Standard Battery: 2.6" x 1.0" x 5.6"
With Extended Battery: 2.6" x 1.3" x 5.6"
Operating System Windows Embedded Handheld 6.5
Processor 806 MHz XScale PXA310
Memory 256 MB RAM, 512 MB Flash
Screen 2.7" TFT LCD Display
Battery Standard: 3.7V 1,800 mAh
Extended: 3.7V 3,600 mAh
Camera 3 Megapixel with autofocus and flash
Scan Method 2D Area Imager

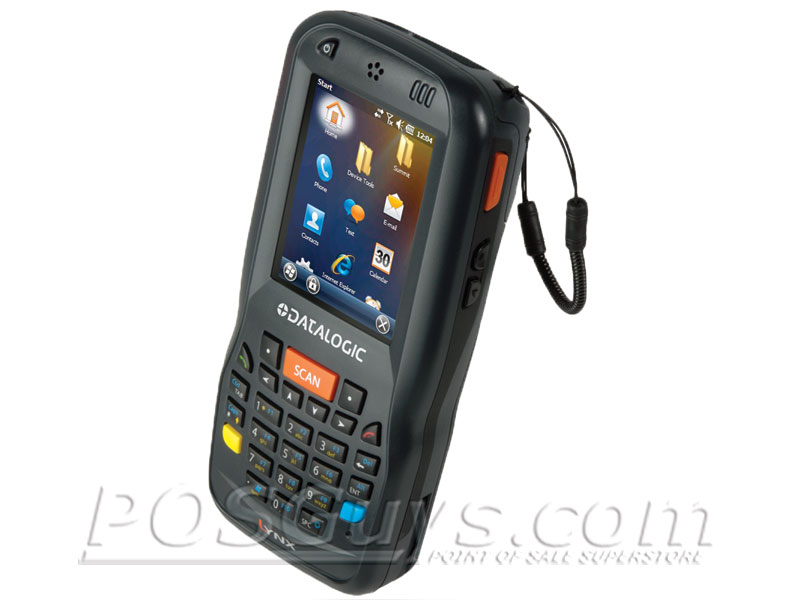

Keyboard 27-Key Numeric
Interface USB, Bluetooth, 802.11a/b/g
Cellular Radio 3G/4G HSPA+
GPS Integrated Assisted-GPS (A-GPS) with Skyhook‘s Core Engine Hybrid Positioning System
Expansion MicroSD slot, supports cards up to 32 GB capacity
Operating Temperature 32° to 122° F
Drop Specification Withstands 4-foot drops to concrete
Seal Specification IP54

DataLogic Lynx Reviews

POSGuys Rating:

Customer Reviews

Recommended Models

Lynx Mobile Computer, Black with 2D Imager, 46-Key QWERTY Keypad, Windows Embedded Handheld 6.5, 256 MB RAM, 512 MB Flash, Bluetooth, 802.11 b/g/n V4, **Requires Power Supply 94ACC0071**LYNX 00N0W1 1Q1-MEN0
Please Call
Operating System:Windows Embedded Handheld 6.5

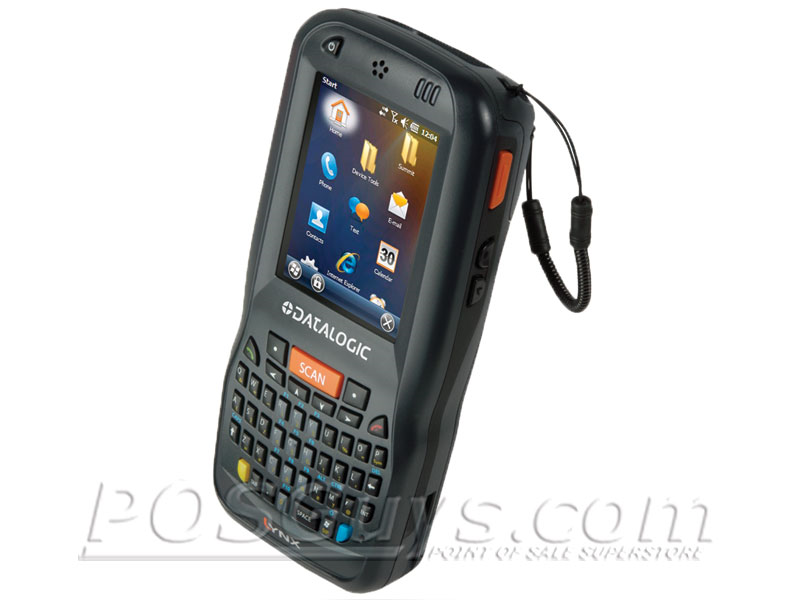

Keypad:46-Key QWERTY
Included:Power Supply Not Included


Handylink USB Interface Cable, Female USB End, For use with Printers or other Peripherals, 15-Centimeter
Handylink RS-232 Null Modem Serial Interface Cable, Female RS-232 End, 2-Meter
Handylink RS-232 Serial Interface Cable, Male RS-232 End, Power on Pin 9, For use with Printers or Other Peripherals, 15-Centimeter
Handylink DEX Interface Cable
Lynx 4-Bay Charging Cradle, Black with 4 Secondary Battery Charging Bays (Power Cables Not Included)
Lynx Replacement Battery, 1800 mAh (Batteries must be shipped via ground shipping)
Lynx Replacement Battery, 3600 mAh (Batteries must be shipped via ground shipping)
Power Supply for Single Slot Dock
AC Line Cord, US
Skorpio X3 Interface Cable, Connects Dock to PC, USB Interface
Skorpio X3 Interface Cable, From Device to Computer, USB Interface
Dock, Single, Desk (RS232/ Micro USB) + Battery, Spare Charging, Power Supply with Regional Plugs included
Lynx 5 Day 3 Year Warranty
Lynx 2 Day,3 Year Comprehensive Warranty
Lynx Overnight Comprehensive 3 Year Warranty
Power Supply for Lynx, MicroUSB

Previously Available Models
