Elo TouchSystems M51
The pictures shown are general images for product M51 and may not be applicable to all part numbers
M51 Mobile Computers
From Enhancing Retail Store Operations and Warehouse Management to Ticketing – Boost Efficiency With the M51 Mobile Computer.
The Elo M51 is an enterprise-grade rugged mobile computer designed to meet the demands of large enterprises. It features a 6-inch FHD scratch-resistant touch display, Android 14 OS, a powerful Qualcomm 6490 octa-core processor, integrated NFC, and an optional 2D barcode scanner. Whether enhancing retail store operations, optimizing warehouse management, or streamlining ticketing processes, the Elo M51 enables your employees to boost efficiency and improve operational workflows. Built to withstand the rigors of commercial use, the M51 is purpose-built with chemically strengthened glass and rugged housing that meets IP68 and MIL-810G standards. The mobile computer also includes a warmswappable 4,500 mAh battery that provides up to 12 hours of battery life.
Propel Your Productivity
- Qualcomm 6490 octa-core processor
- Android 14 with GMS & OS 360*
- Warm-swappable 4,500 mAh battery
- 12 hour battery life**
- WiFi 6E, 5G LTE & Bluetooth 5.2
6-inch full HD display
The M51 Android mobile computer offers a brilliant, 6-inch FHD multi-touch display complete with chemically strengthened glass.
Integrated NFC
With the integrated NFC, customers can quickly and easily tap contactless payments through the glass.

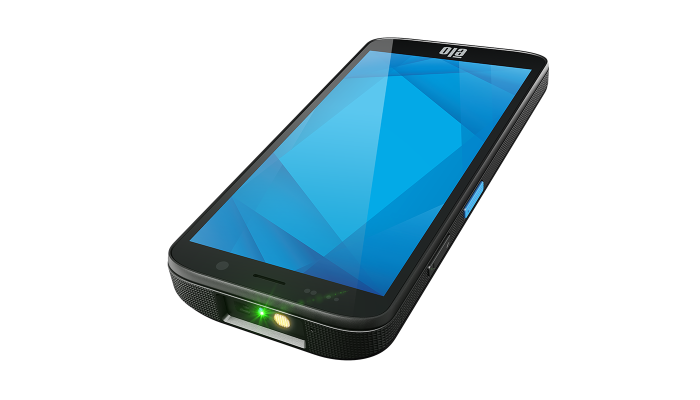

Barcode Scanner
With the optional 2D barcode scanner, you can easily manage inventory, expedite queues, fulfill curbside pickups, or scan ticket at venues.
Integrated Cameras
The M51 offers an integrated 13MP auto-focus rear camera and a 8MP fixed-focus front camera.
| Product Specifications | |
|---|---|
| Display | 6” Optically Bonded High-Definition LCM; 2160x 1080; LED back-light; 500 NITS |
| Touchscreen | Capacitive touch with Corning Gorilla Glass Victus, Water droplet rejection, Anti-Fingerprint Coating |
| Operating System | Android 14 with GMS, Planned upgrade to Android 16 |
| Processor | Qualcomm QCM6490 8x Kryo 670 CPU up to 2.7GHz |
| Memory | 8GB LPDDR5 |
| Storage | 128GB UFS |
| Expansion Slot | MicroSD card supports up to SDXC UHS-1 1TB |
| SIM | 1 nano SIM;1 eSIM |
| I/O Ports | USB Type-C for display, charging, and data, Rear pogo pad for scan trigger handle, Bottom pogo pad for charging |
| Wireless | IEEE 802.11 a/b/g/n/ac/ax, WIFI 6E, 2x2 MU-MIMO, Bluetooth 5.2 |
| Cellular | |
| GPS | GPS, GLONASS, Galileo and BeiDou-concurrent L1/G1/E1/B1 (GPS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS, GAL, BeiDou); AGPS support |
| Notification | 1x combination Green/Amber LED for charging status, 1x combination Blue/Red user programmable LED, Vibrator for haptic feedback |
| Keyboard | On-screen keyboard |
| Audio | Dual microphone with noise cancellation, Dual speakers with combine a receiver on the top, Bluetooth headset support, USB-C PTT headset and USB-C headset support |
| Buttons | Dual scan buttons (programmable buttons), Power button, Push to talk button, Volume up/down buttons |
| Integrated Peripherals | |
| Sensors | Light sensor (automatically adjust backlight brightness), Proximity sensor (disable display and touch when placed against head during the call), Accelerometer |
| Battery | Rechargeable, 3.85V/4520mAh, Warm Swap battery mode, Qualcomm Quick Charge 4 |
| Dimensions | Unpackaged: 6.65" x 3.07" x 0.65" / 168.8 mm x 78 mm x 16.5 mm, Packaged: 8.66" x 5.28" x 2.91" / 220 mm x 134 mm x 74 mm |
| Weight | Unpackaged: 298g, Packaged: 700g |
| Drop Specification | 4ft/1.2m drops per MIL810-G; 6ft/1.8m drops with the protective boot per MIL 810-G |
| Tumble Specification | 1000 tumbles, 1.6ft./0.5m with the protective boot per IEC 60068-2-32 |
| Sealing | IP68 per IEC standard 60529 |
| Temperature | Operating: -4°F to 122°F (-20°C to 50°C); Storage: -22°F to 140°F (-30°C to 60°C) |
| Humidity | 5% to 95% non-condensing |
| Warranty | 1 Year |
