Elo TouchSystems M60
The pictures shown are general images for product M60 and may not be applicable to all part numbers
M60 Mobile Computers
This product replaces the older Elo TouchSystems M50.
Designed to support your everyday business, the Elo M60 Pay delivers an enterprise-grade, Android mobile point of sale system ready to help you assist customer. Complete with a 6-inch HD touch display, integrated payment, flexible Android 10 OS and Qualcomm 660 octa-core processor, the handheld pos computer provides seamless integration, effortless provisioning and simplified device management via EloView or your preferred 3rd‑party MDM.

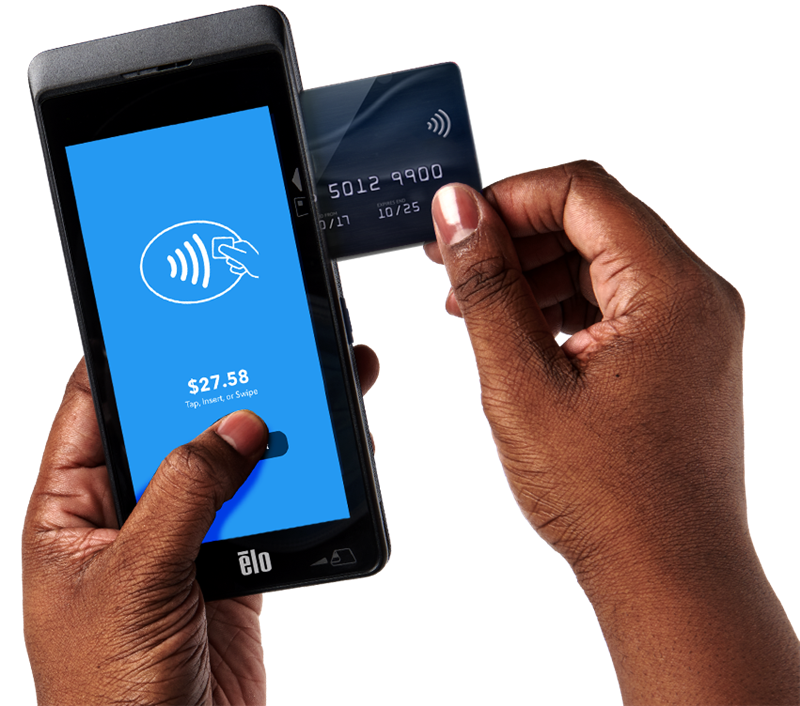

Accept payments anytime. Anywhere.
Accept all forms of payment with the M60 Pay POS terminal. Whether your customers have a physical card or contactless via their mobile phone, the M60 Pay has you covered wherever your customers are – in line, at the counter, table-side or in their seat. Integrated EMV, MSR, and NFC Payment Solutions mean that the Elo M60 is ready to tackle any transaction.
Android device management made easy.
With EloView, you can deploy and securely manage your entire network of Android-powered Elo devices from anywhere in the world. Provision your devices in seconds with a seamless out‑of‑the‑box experience. Leverage Elo Home to create a customized (locked-down) interface on your mobile POS android device. Deploy a package of apps, Google apps included, and set specific apps available to admins only. Manage battery life with ease – view up-to-date battery statistics directly on the device or manage your entire fleet directly from EloView.
Highlighted Features
- Integrated 2D Barcode Scanner
- Integrated EMV, MSR, and NFC Payment Solutions
- Android 10 with Google Play Services (AOSP capable). Planned upgrade to Android 12 available with OS 360 subscription.
- Cellular Options Available. LTE US Carriers: AT&T, T-Mobile
- Rated for multiple 1m drops & 200 tumbles at 1.6ft./0.5m.
- IP54 Rating
Payment Certifications:
- PCI-PTS 6.0
- EMV L1 & L2
- Visa PayWave
- Mastercard PayPass
- Amex ExpressPay
- Discover D-PAS
- Mastercard TQM
- Apple Pay™
- Google Pay™
- Samsung Pay™
| Product Specifications | |
|---|---|
| Processor | Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor |
| RAM | 3GB |
| Storage | 32GB |
| Operating System | Android 10 with Google Play Services (AOSP capable) Planned upgrade to Android 12 available with OS 360 subscription |
| Display Size | 6” Optically Bonded High Definition LCD |
| Touch Screen | PCAP (Projected Capacitive) - 2 Touch with Corning Gorilla Glass, Water rejection, and Anti-Fingerprint Coating technology |
| Pixel Resolution | 1440 x 720 |
| Battery | Rechargeable Li-Polymer, 3.8V/4000mAh |
| Cellular Radio | LTE US Carriers: AT&T, T-Mobile. For E862945 (M60C), E898054 (M60SC): WCDMA: B2, B4, B5 LTE: B2, B4, B12, B13, B66 For E993295 (M60C), E897852 (M60SC): WCDMA: B1, B8 LTE: B1, B3, B7, B8, B20 |
| IO Ports | USB Type-C for display, charging and data |
| Camera | 8MP Auto-Focus with Flash LED and Flashlight (Torch) |
| Payments Supported | EMV Contactless ISO 14443-A/B, MiFare, ISO-18092 EMV Chip Card Reader (chip and pin-on-glass) 3-track MSR ISO 7810/7811 |
| Barcode Scanners | SE4720 scan engine (1D/2D Imager)* on M60S/M60SC models only |
| Bluetooth | Bluetooth 5.0 |
| Dimensions | M60/M60C: 7.32" x 3.40" x 0.77" / 186 mm x 86.4 mm x 19.5 mm M60S/M60SC: 7.32" x 3.40" x 1.27" / 186 mm x 86.4 mm x 32.3 mm |
| Weight (Packaged) | M60: 1.61 lbs / 730 g M60C: 1.63 lbs / 740 g M60S: 1.74 lbs / 789 g M60SC: 1.75 lbs / 795 g |
| Operating Temperature | 0°C to 50°C / 32°F to 122°F |
| Storage Temperature | -30°C to 60°C / -22°F to 140°F |
| Drop Rating | Multiple 1m drops. 200 tumbles, 1.6ft./0.5m per IEC 60068-2-32 |
| Warranty | 1-year |
| Sealabilty | IP54 per IEC standard 60529 |
| What's In the Box | Elo M60 Pay USB Type C Charger with Qualcomm Quick Charge 4.0 Quick Install Guide |
Elo TouchSystems M60 Reviews
Customer Reviews
| Downloads |
|---|
| Elo M60 Spec Sheet |
| Elo M60 User Guide |
