Honeywell CK75
The pictures shown are general images for product CK75 and may not be applicable to all part numbers

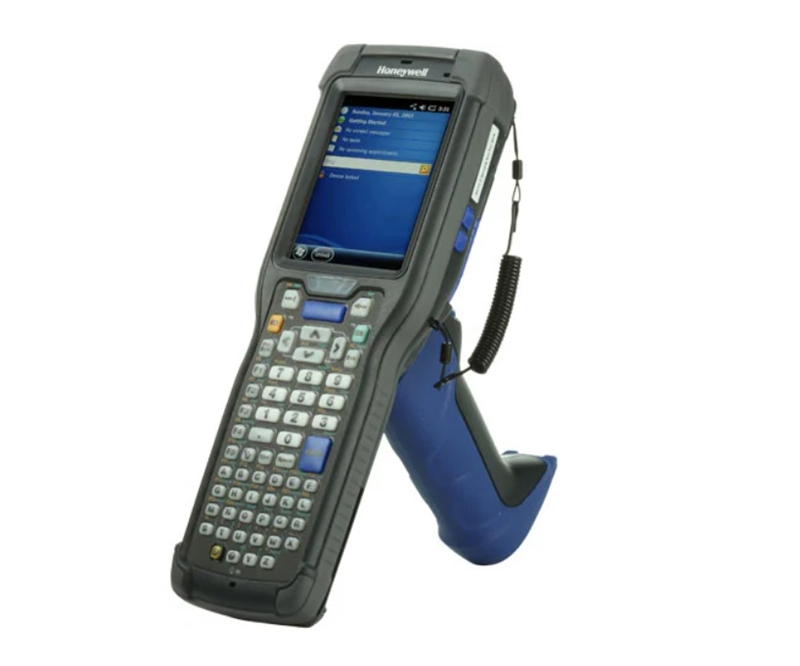

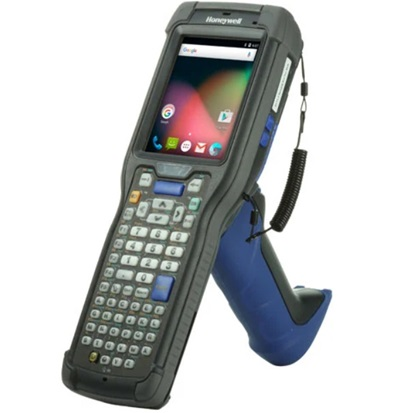

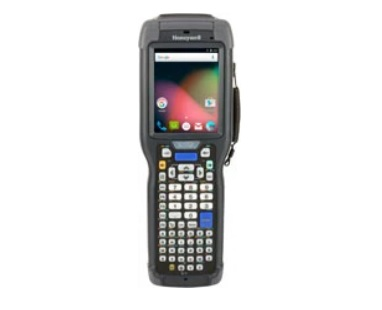

CK75 Mobile Computers
The Honeywell CK75 has reached end of life.
Honeywell offers a true no-compromise solution with the CK75 UltraRugged Mobile Computer. In addition to being 31% smaller and lighter than any other form factors in its class, the CK75 mobile computer is optimized for warehouse and distribution environments with premium, industrial-grade materials for the perfect balance of ruggedness and duty cycle, along with features that focus on enabling flexibility and agility, even in the most extreme conditions. Extend the use of the CK75 mobile computer into cold storage and freezer environments with the heater-equipped Cold Storage CK75 Mobile Computer.
When workload demands shift unexpectedly, the CK75 mobile computer gives workers the flexibility to quickly transition to tasks that require near or far scanning, speech, voice and image capture, without wasting time finding and reorienting themselves on unfamiliar devices. Because the CK75 mobile computer supports Honeywell wired or wireless headsets and voice software, customers have the option of traditional or voice-enabled workflows. With a dual-band 802.11 a/b/g/n WLAN radio, the CK75 mobile computer delivers rock-solid performance and consistently fast response times, even in areas where you might experience low signal levels or intermittent connections.
The CK75 mobile computer also offers unparalleled deployment flexibility, allowing the choice of Windows® Embedded Handheld 6.5 or Android™ 6 operating systems on a single device. Today’s Windows Embedded Handheld 6.5 users can continue to deploy CK75 mobile computers into their existing applications running existing software. When the time comes for a transition to new applications based on Android, the CK75 units can be converted to Android 6, saving the investment in computers and peripherals.
Product Specifications | |
---|---|
Dimensions (L x W x D) | 23.7 cm x 8.0 cm x 5.0 cm (9.33 in x 3.16 in x 1.98 in) |
Weight | 584 g (19.75 oz) with battery |
Operating Temperature: | Standard Temp Unit: -20°C to +60°C (-4°F to +140°F), transitory exposures to -30°C (-22°F) Cold Storage Unit: -30°C to +60°C (-22°F to +140°F) |
Environmental seal | IP67 |
Drop Specification | : 2.4 m (8 ft) to concrete per MIL-STD 810G; 1.8 m (6 ft) to concrete across operating temperature range per MIL-STD 810G |
Tumble Specifications | 2,000 (1 m) tumbles per IEC 60068-2-32 specification |
Main battery | Battery Pack: 3.7 V, 5200 mAh; Li-Ion, removable, rechargeable |
Supported Operating Systems | Microsoft® Windows Embedded Handheld 6.5 Android 6.x.x Marshmallow with GMS |
Processor | Texas Instruments 1.5 GHz OMAP 4470 dual-core, multi-engine processor architecture |
Memory (RAM) | RAM: 2 GB RAM |
ROM Storage | ROM: 16 GB Flash |
Display | (3.5 in) Transmissive VGA, 480 x 640 pixels |
Connectivity | Wireless LAN: IEEE 802.11a/b/g/n dual-band WLAN Security: Wi-Fi Certified for WPA and WPA2, WAPI Certified Authentication: IEEE 802.1x Cisco Compatibility: CCXv4 Encryption: WEP (64- or 128-bit), AES, TKIP Wireless PAN: Integrated Bluetooth® Power Class 1.5 Version 4 |
Scanner Specs | EX25 Near/Far High-Performance 2D Imager: Capable of scanning 1D and 2D barcodes from 15.2 cm to 16.2 m (6 in to 50 ft) N5603ER High-Performance 2D Imager: Capable of scanning all common 1D and 2D barcodes; 1D as small as 5 mil; standard UPC codes up to 53 cm (21 in) Optional licensing for Direct Part Marking (DPM) reading capability |
Accessories | FlexDock modular docking system, vehicle dock and holder, snap-on adapters, removable scan handle and magnetic stripe reader |
