Honeywell CT45 / CT45 XP

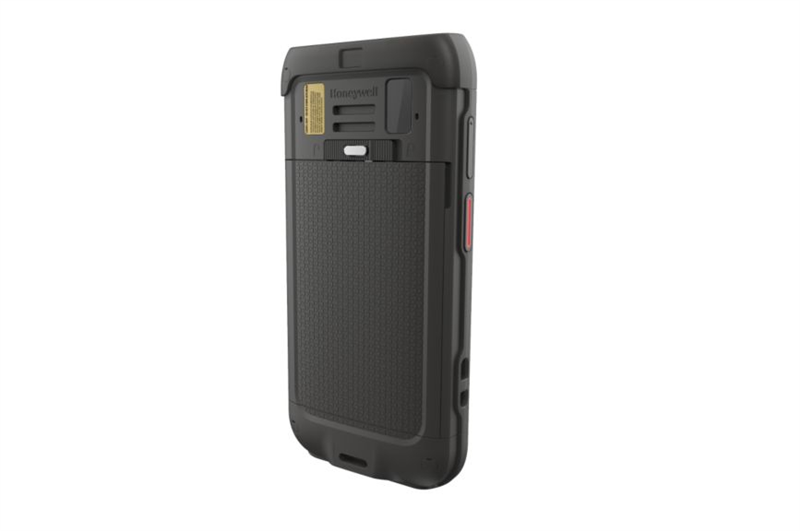

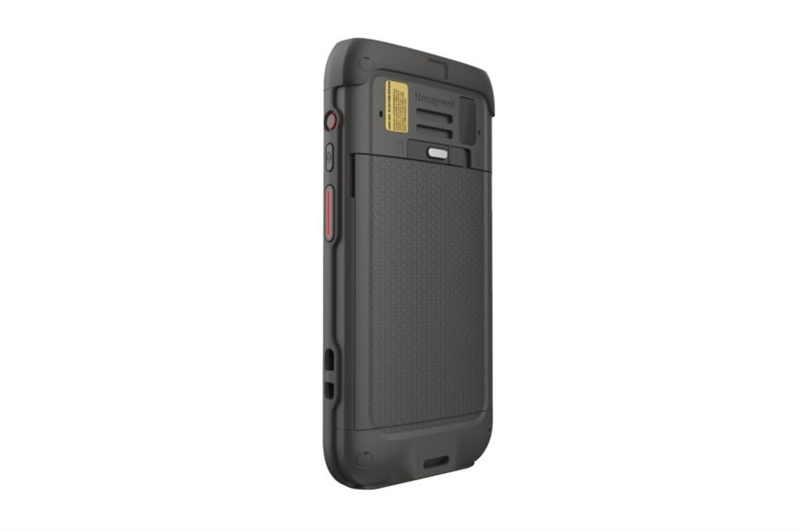

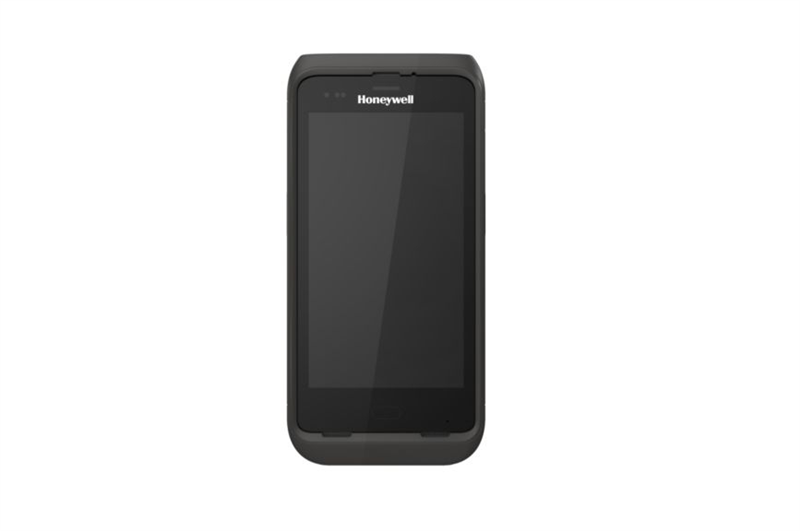

The pictures shown are general images for product CT45 / CT45 XP and may not be applicable to all part numbers
CT45 / CT45 XP Mobile Computers
The CT45 / CT45XP is Honeywell's mid-range mobile computer and offers a stable operating environment through a powerful Qualcomm processor that Honeywell guarantees will support Android 11 through Android 13. Android 14 and 15 are committed subject to feasibility.
Designed to withstand challenging environments with no adverse damage or compromise to device integrity or sacrifice to ergonomic benefits. Built on a sleek design with enhancement on superior ruggedness, the CT45 product family delivers a compact device that mobile workers can carry comfortably throughout the shift and which can endure accidental drops and falls. The CT45 XP also leverages the latest Wi-Fi 6 and 4G-LTE technology to facilitate access to essential information with low latency, even in a highly dense connected environment.
The CT45/CT45XP ships with a FlexRange imager and an 8-megapixel front facing camera, as well as a full suite of booted accessories/ Coupled with a 1920*1080p full high-definition display, it significantly increases the user experience.
Decode Ranges
S0703 Imager
- 5 mils Code 39: 3.11" - 10.63"
- 10 mils Code 39: 1.57" - 17.72"
- 20 mils Code 39: 1.73" - 26.53"
- 15 mils Code 128: 1.65" - 22.52"
- 15 mils QR: 1.54" - 15.35"
N6803 FlexRange Imager
- 5 mils Code 39: 5.43" - 14.4"
- 10 mils Code 39: 4" - 47.2"
- 20 mils Code 39: 3" - 85.1"
- 100 mils Code 39: 1" - 388"
- 15 mils Code 128: 3" - 62"
- 100 mils Data Matrix: 1" - 177"
| Product Specifications | |
|---|---|
| Dimensions (H x L x W) | 163 mm x 79 mm x 19.2 mm |
| Weight | 282 g (9.9oz) with battery pack |
| Display Size | 5" |
| Display Resolution | CT45: 1280 x 720 CT45XP: 1920 x 1080 |
| IO Ports | Durable, flat IO connector, USB Type C connector |
| Drop Specification | : Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H; multiple 2.4 m (8 ft) drops to concrete with protective boot at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H |
| Tumble Specifications | Exceeds 1,500 times at 1m (3.28 ft) per IEC 60068-2-32 specification |
| ESD Protection (Air Discharge) | ±8 kV direct; ±15 kV air |
| Environmental seal | Independently certified to meet IP68 and IP65 standards for moisture and particle intrusion |
| Processor | Qualcomm QCS4290/ QCM4290 octa-core, 2.0GHz |
| Operating System | Each Android version guaranteed from Android 11 to at least 13, committed support for Android 14 and Android 15, pending feasibility |
| Memory (RAM) | CT45: ; 4 GB DDR4x RAM, 64 GB
UFS Flash CT45XP: 6 GB DDR4x RAM, 64 GB UFS Flash |
| Camera | : 13-megapixel rear camera; 8-megapixel front-facing camera. |
| SIM Slots | CT45: Available with configurations of 2 Nano SIMs CT45XP: : Available with configurations of eSIM and Nano SIM or configurations of 2 Nano SIMs |
| Main battery | Li-Ion, 3.85 V, 4020 mAh; smart
battery with integrated diagnostic tools. Battery warm swap available on CT45 XP |
| Charge Time | Less than 3 hours to be fully charged. Hours of Operation: 12+ hours |
