Honeywell Dolphin 70e Black

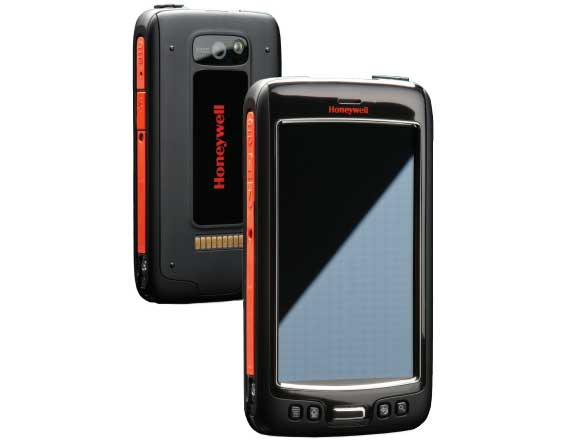

The pictures shown are general images for product Dolphin 70e Black and may not be applicable to all part numbers

Dolphin 70e Black Mobile Computers


The Honeywell Dolphin 70e Black has reached end of life. It has been replaced by the Honeywell CT50.

This product replaces the older Intermec CS40.

The Honeywell Dolphin 70e Black enterprise smartphone offers the power of an enterprise device in the familiar form of a modern smartphone. Lightweight and incredibly durable, the Dolphin 70e Black is a fantastic choice for mobile field crews wanting to consolidate to a single, elegant solution.

Available with your choice of Windows Embedded Handheld 6.5.3 or Android 4.0, the Dolphin 70e Black is ideally suited to support existing mobile software packages as well as newer platforms. A fast TI OMAP processor and 512 MB of RAM ensure applications of all sizes run smoothly. For data storage, the Dolphin 70e Black comes with 1 GB of Flash and supports micro SD cards up to 32 GB in size.

The enterprise smartphone has a 2D imager built-in, giving you faster and more precise barcode scanning when compared to a camera. For image capture, including delivery verification, the Dolphin 70e Black's optional 5 megapixel camera provides crisp full color images. For future-proof payment management, the Dolphin 70e Black supports an optional NFC reader, allowing for secure mobile payment.

Wireless communication is vital, both in and out of the office, and thankfully the Dolphin 70e Black has the tools you need for maximum connectivity. A software-definable 3.9G cellular radio keeps you connected from virtually anywhere, while the 802.11a/b/g/n WiFi provides faster access while in the office. Assisted GPS is included as well, vital for route management and turn-by-turn navigation.

The Honeywell Dolphin 70e Black has been built from the ground up to handle the abuse that would destroy lesser smartphones. A reinforced Gorilla Glass screen and rubber molding protect the Dolphin 70e Black from drops of four feet to concrete. What really sets the smartphone apart from consumer-grade equipment is the IP54 & IP67 environmental seal options. The IP54 protects from dust and water splashes and the IP67 models completely protect components from dirt and dunks into water. With a 1-year warranty standard and optional extended warranties available, the Honeywell Dolphin 70e Black is a great way to consolidate technology while on the road.

    Features
  • Windows Embedded Handheld 6.5.3 or Android 4.0
  • 512 MB RAM, 1 GB Flash
  • 1 GHz TI OMAP processor
  • 2D imager built-in, optional 5 megapixel camera
  • 802.11a/b/g/n, Bluetooth, GPS, 3.9G GSM Radios
  • IP54 seal from dust and splashes - optional IP67, sealed from dirt & dunks into water
  • Survives 4-foot drops to concrete
Product Specifications
Weight 7.2oz / 240g
Dimensions 5.3˝ x 2.9˝ x 0.7˝ (134 mm x 73 mm x 18 mm)
Operating System Microsoft® Windows® Embedded Handheld 6.5
Google® Android™ version 4.0
Processor 1GHZ single core TI OMAP
Memory 512MB RAM X 1GB FLASH
Display 4.3˝ WVGA (480 x 800)
Seal Specification IP54
IP67 some models
Battery Standard: Li-ion 3.7 V, 1670 mAh
Extended: Li-ion 3.7 V, 3340 mAh
Camera 5.0 megapixel camera
Interfaces Available Micro USB
Cellular Radio IEEE 802.11 a/b/g/n; Wi-FiTM certified
Expansion microSD slot accessible
Operating Temperature -4°F to 122°F (-20° to 50°C)
Humidity 0 to 95% (non-condensing)
Keyboard On-screen keypad, Dedicated scan key
Scan Method 1D and 2D Barcode Imager
Color Options Black
Warranty 1 year factory warranty

Honeywell Dolphin 70e Black Reviews

POSGuys Rating:

Customer Reviews

Frequestly Asked Questions

Recommended Models

Dolphin 70e Mobile Computer, Black/Red with Windows Embedded Handheld 6.5 Pro, Standard Battery, IP67, 2D Imager, Camera, GPS, Bluetooth, 802.11a/b/g/n, Software Definable Radio GSM+
Please Call
Interface:Bluetooth
Operating System:Windows Embedded Handheld 6.5 Pro
Battery:Standard
Scanner:2D
Radio:802.11a/b/g/n, SDR, GSM+
Included Accessories:Camera, GPS
Seal Specification:IP67
Dolphin 70e Mobile Computer, Black/Red with Android 4.0, Standard Battery, IP67, 2D Imager, Camera, Bluetooth, WLAN
Please Call
Interface:Bluetooth
Operating System:Android 4.0
Battery:Standard
Scanner:2D
Included Accessories:Camera
Seal Specification:IP67
Radio:WLAN
Dolphin 70e Mobile Computer, Black/Red with Android 4.0, Standard Battery, IP67, 2D Imager, Camera, GPS, Bluetooth, Software Definable Radio Replaces 70E-LG0-C122SE
Please Call
Interface:Bluetooth
Operating System:Android 4.1.2
Battery:Standard
Scanner:2D
Included Accessories:Camera
Seal Specification:IP67
Radio:SDR
Dolphin 70e Mobile Computer, Black/Red with Android 4.0, Extended Battery, IP67, 2D Imager, Camera, GPS, Bluetooth,WLAN
Please Call
Interface:Bluetooth
Operating System:Android 4.1.2
Battery:Extended
Scanner:2D
Included Accessories:Camera
Seal Specification:IP67
Radio:WLAN

Additional Models

Dolphin 70e Mobile Computer, Black/Red with Windows Embedded Handheld 6.5 Pro, Standard Battery, IP67, 2D Imager, Camera, NFC, GPS, Bluetooth, 802.11a/b/g/n, Software Definable Radio --- Replaces 70E-LGN-C111SE
Please Call
Interface:Bluetooth
Operating System:Windows Embedded Handheld 6.5 Pro
Battery:Standard
Scanner:2D
Radio:802.11a/b/g/n, SDR
Included Accessories:Camera, NFC, GPS
Seal Specification:IP67
Dolphin 70e Mobile Computer, Black/Red with Android 4.0, Standard Battery, IP67, 2D Imager, Camera, NFC, GPS, Bluetooth, 802.11a-b-n, Software Definable Radio, GSM + CDMA --- Replaces 70E-LGN-C122SE
Please Call
Interface:Bluetooth
Operating System:Android 4.1.2
Battery:Standard
Scanner:2D
Radio:802.11a-b-n, SDR, GSM + CDMA
Included Accessories:Camera, NFC, GPS
Seal Specification:IP67

Accessories

Dolphin 70e Extended Warranty, 3-Day Turnaround, Comprehensive Coverage, 3-Year Plan (Must Be Purchased Within 30 Days of Dolphin 70e)
Dolphin 70e Extended Warranty, 3-Day Turnaround, Comprehensive Coverage, 5-Year Plan (Must Be Purchased Within 30 Days of Dolphin 70e)
Dolphin 70e Extended Warranty, 3-Day Turnaround, Comprehensive Coverage, 1-Year Plan (Must Be Purchased Within 1 Year of Dolphin 70e, Device Must Be In Working Condition)
Dolphin 70e Extended Battery Door
Dolphin 70e Extended Battery Door With Stylus Holder, Stylus, and Tether
Dolphin 70e Standard Battery Door
Dolphin 70e ChargeBase, 4-Bay Charging Cradle, Includes Power Supply and Line Cord
Dolphin 70e HomeBase, Single Bay Charging/Communications Cradle, Includes Power Supply and Line Cord, Ethernet, USB Interfaces
Dolphin 70e HomeBase, Single Bay Charging/Communications Cradle, Includes Power Supply and Line Cord, USB Interface
Dolphin 70e Mobile Base Vehicle Kit, Suction Cup Mounting, Internal Speaker, Charges Using Included Cigarette Lighter Adapter
Dolphin 70e Mobile Charger, Connects via Micro USB Port, Charges from Cigarette Lighter Adapter
Dolphin 70e NetBase, 4-Bay Charging/Communications Cradle, Includes Power Supply and Line Cord, Ethernet Interface
$1400.19 Add to Cart
Dolphin 70e Power Adapter, Wall Adapter with USB Cable
Dolphin 70e Extended Battery, 3340 mAh (Batteries must be shipped via ground shipping)
Dolphin 70e Standard Battery, 1670 mAh (Batteries must be shipped via ground shipping)
