Honeywell Dolphin CN80

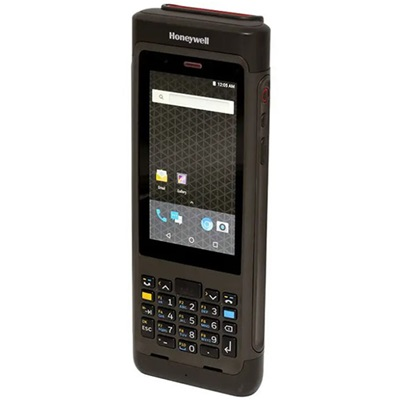

Dolphin CN80 Product Image

The pictures shown are general images for product Dolphin CN80 and may not be applicable to all part numbers

Dolphin CN80 Mobile Computers


The Honeywell Dolphin CN80 has reached end of life.

This product replaces the older Honeywell Dolphin 99EX.

Logistics, warehouse, and field mobility organizations alike are transitioning to devices built on Android and from keypad-centric devices to full touchscreen. But many legacy applications have not yet been updated for this new touch-centric world and for many use cases, keys remain essential for data capture.

Fortunately, there's one ultra-rugged mobile computer that helps bridge the gap. The Dolphin CN80 device offers both a large 4.2-inch vivid color touchscreen and a choice of numeric or QWERTY keypads, allowing users to pick the best input method for their environment today, and also be ready for the touch-centric applications of the future.

Features

  • The Mobility Edge hardware platform and enterprise lifecycle tools drive an integrated, repeatable, scalable approach for accelerated and secure development, deployment, performance management, and lifecycle management.
  • The CN80 device provides future-proof investment protection with support for five Android generations, starting with Android 8 (O). Security updates are also available for up to two years past the last Google patch through Honeywell Sentinel.
  • The large touchscreen with a 23-key numeric or 40-key QWERTY keypad supports both legacy keycentric applications and newer touch applications. Keypads allow input in extremely harsh environments and optimize efficiency in all environments.
  • Ultra-rugged construction withstands 3.0 m (10 ft) drops to concrete and 2,000 1.0 m (3.3 ft) tumbles. IP65/IP67 ratings against dust/water spray. Cold storage and non-incendive options support operation where other products can’t be used.
  • Enhanced 1D/2D scanning/data capture with read ranges of 0.15 m to 15.2 m (6 in to 50 ft) typically required in today’s warehouses. Optional scan handle for flexibility to switch between handheld and pistol grip operations.
Product Specifications
Processor 2.2 GHz Qualcomm® Snapdragon™ 660 octa-core
Operating System Android 8, upgradable through Android R
Memory 3 GB/4 GB RAM, 32 GB Flash
Display 4.2 in
Keypad 40-key QWERTY keypad or 23-key numeric function keypad
Battery Li-Ion, 3.85 V, 5800 mAh with integrated battery diagnostics
Warranty 1 year
Dimensions (L x W x H): N6603ER Version: 20.4 cm x 7.8 cm x 3.32 cm (8.03 in x 3.07 in x 1.31 in) Weight: 500 grams (17.6 oz) with battery pack EX20 Version: 20.53 cm x 7.8 cm x 3.97 cm (8.08 in x 3.07 in x 1.56 in) Weight: 550 grams (19.4 oz) with battery pack
Operating Temperature: Standard Temp Unit: -20°C to 50°C (-4°F to 122°F) Cold Storage Unit: -30°C to 50°C (-22°F to 122°F)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Humidity : 0 to 95% relative humidity (noncondensing)
Drop 3 m (10 ft) to concrete at room temp per MIL-STD 810G; 1.8 m (6 ft) to concrete at -20ºC to 50ºC (-4°F to 122°F) temperature range; 1.6 m (5 ft) to concrete down to -30ºC (-22°F)
Environmental Sealing : Independently certified to meet IP67 and IP65 standards for moisture and particle intrusion

Honeywell Dolphin CN80 Reviews

POSGuys Rating: Not Rated

Customer Reviews

Recommended Models

CN80 Mobile computer with WiFi, Red Dot Near/Far Imager, Numeric, 3GB RAM, 32GB Flash, Camera, GMS, FCC, Software Client Pack
Please Call
CN80 Mobile computer with WiFi, Red Cross Extended Range Imager, QWERTY, 3GB RAM, 32GB Flash, Camera, GMS, FCC, Software Client Pack
Please Call
CN80 Mobile computer with WiFi, Red Dot Near/Far Imager, QWERTY, 3GB RAM, 32GB Flash, Camera, GMS, FCC, Software Client Pack
Please Call

Accessories

3-Year Gold Comprehensive Warranty for CN80. Covers Accidental Damage & Normal Wear & Tear. 5-Day Depot Turnaround Time for Replacements. New Contract. Can Be Added Up to 90 Days After Product Purchase.
CN80 4-bay Charge Base with US Cord
CN80 EHOME BASE FOR NA
CN80 1 BAY CHARGE BASE WITH US CORD
CN80 4 BAY NET BASE WITH US CORD
$1367.17 Add to Cart
Spare or replacement Battery, CX80
CN80 4 BAY QUAL BATTERY CHARGER WITH US CORD
CN80 4-bay Charge Base
$1017.52 Add to Cart
CN80 ETHERNET HOME BASE
CN80 HOME BASE
CN80 4 BAY QUAL BATTERY CHARGER
North American Power Cord for 9 Volt Power Supply
Cable Assembly - USB Type A to Type B
Cigarette lighter power adapter, 1.8 mm (0.07 in).
Power Adapter USB 5V/2A EDA50 incl 4 plugs
CN80 scan handle, dockable with charging dock
CN80 HOLSTER WITHOUT SCAN HANDLE
CN80 HOLSTER WITH SCAN HANDLE
CN80 STD RUBBER BOOT W/O SCAN HANDLE
CN80 LONG RANGE RUBBER BOOT W/O SCAN HANDLE
Black rubber protective boot for CN80 extended-range configuration. Compatible with scan handle CN80-SH-DC
Black rubber protective boot for CN80 extended-range configuration. Compatible with scan handle CN80-SH-DC
CN80 SCREEN PROTECTOR, 10PC
CN80 wired dock with serial and USB host communication
Cable, power cord, AC outlet to power supply/device, straight (US type B grounded 3 prong, C13), 2.5m (8.2ft)
CN80 snap on adapater with USB port, Hardwired cable is 47.24 inches, Ends in USB-A (M), supports USB Client
Power Adapter,12V 7A, without power cord, for RP4 battery charger. For use with quad battery charger. Requires country-specific line cord to be ordered separately.
CN80 SNAP ON ADAPTOR WITH SERIAL PORT
