Honeywell Dolphin CT60XP

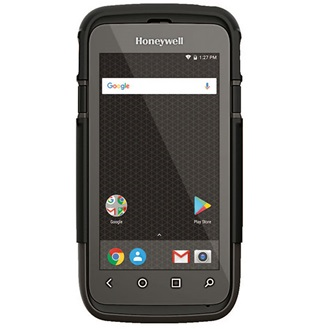

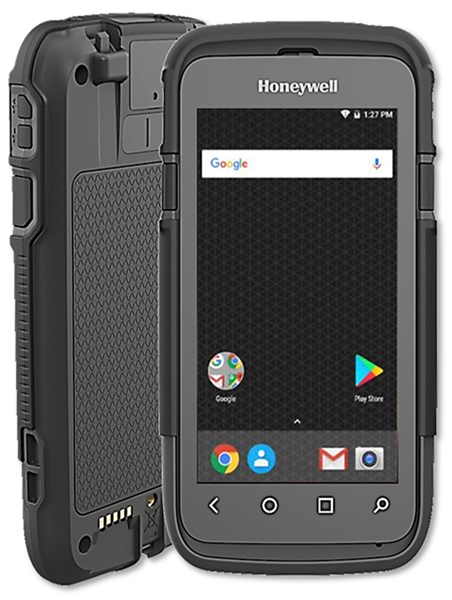

Dolphin CT60XP Product Image

The pictures shown are general images for product Dolphin CT60XP and may not be applicable to all part numbers

Dolphin CT60XP Mobile Computers


The Honeywell Dolphin CT60XP has reached end of life.

This product replaces the older Intermec CN51.

The CT60 XP is designed for highly mobile, frontline workers and managers in scan intensive workflows who need secure mobile data collection and processing. The CT60 XP is part of the CT60 product family which is the main offering for the touch-only rugged mobile computers in the Honeywell portfolio. Built on the Mobility Edge platform with enhanced ruggedness, it delivers best-in-class total cost of ownership while offering a secure and longest lifecycle for the Android system. The CT60 XP comes with the technologically-advanced FlexRange imager which has scan performance in the most compact form factor in its class.

Standard Features Include:
  • Connectivity: 802.11 a/b/g/n/AC (Wi-Fi 5), Cellular(Select Models), Bluetooth
  • Display: 5.5" FHD (2160 x 1080), LED backlight, Rugged multi-touch capacitive touch panel, Glove, stylus and rain modes supported. Water droplet rejection with screen protector mode. Covered with Gorilla Glass 5 for increased resistance to drops.
  • Power: 4775mAh standard battery, 4680mAh wireless battery, 7692mAh extended battery. Smart battery with integrated diagnostics tools and Warm Swap.
  • CPU: Qualcomm QCS6490/ QCM6490 octa-core, 2.7GHz
  • Operating System:  Each Android version planned from Android 12 to 16
  • Memory: 6GB DDR4x RAM, 128GB UFS Flash; 8GB DDR4x RAM, 128GB UFS Flash
  • Drop Specifications: 3.0m (10ft) to concrete at room temperature per MIL-STD 810H booted. 2.4m (8 ft) to concrete at -20°C to 50°C (14°F to 122°F) per MIL-STD 810H booted; 2.4m (8ft) to concrete at room temperature per MIL-STD 810H, 1.8m (6ft) to concrete at -20°C to 50°C (14°F to 122°F) per MIL-STD 810H
  • Tumble Specification: Exceeds 3500 0.5 m (1.64 ft) tumbles and 2000 1.0m (3.28 ft) tumbles per IEC 60068-2-32 specification
  • Sealing: Independently certified to meet IP65 and IP68 standards for moisture and particle intrusion
  • Scanning: Honeywell FlexRange™ XLR, Honeywell FlexRange S0803, Honeywell S0703 (1D/2D barcode symbologies), Honeywell SDKs for Android, SmartOCR, DPM supported via license
  • Camera: 13-megapixel rear camera, 8-megapixel front-facing camera

  • Built on the Mobility Edge platform, the CT60XP has received a prestigious STIG (Security Technical Implementation Guide) designation from the Defense Information Systems Agency (DISA) for its security capabilities. This recognition from DISA and the U.S. Department of Defense acknowledges the advanced security applications and tools the CT60XP encompasses, ensuring your data is kept safe and secure throughout the life of the device.
  • Common hardware platform and enterprise lifecycle tools drive an integrated, repeatable, scalable approach for accelerated and secure development, deployment, performance management and lifecycle management.
  • Support for five Android generations starting with Android 9 (P). Additionally, customers using Windows-based operating systems can migrate to Android without sacrificing reliability, performance or management features.
  • The CT60 XP mobile computer is the first enterprise-grade device with LTE-Advanced and carrier aggregation for speeds up to 300 Mbps. Provides better network coverage, speed, anytime, anywhere connectivity and device longevity
  • Includes FlexRange, the featurerich, long-range image capture technology with breakthrough scan performance and best-inclass compact package. Optional scan handle for flexibility to switch between handheld and pistol grip operations to reduce user fatigue.
  • Sleek, lightweight and rugged. Fits easily into a pocket. IP65 and IP68 ratings against dust/water spray: can withstand multiple 2.4 m (8 ft) drops to concrete and 2,000 1.0 m (3.3 ft) tumbles.

Product Specifications
Processor 2.2 GHz Qualcomm® Snapdragon™ 660 octa-core
Operating System Android 7.1 Nougat, upgradable through Android R
Memory 3 GB/4 GB DDR4 RAM, 32 GB Flash
Display 4.7 in High Definition (1280 x 720)
Battery Li-Ion, 3.6 V, 4040 mAh with integrated battery diagnostics Hours of Operation:
Dimensions 160 mm x 82.5 mm x 19 mm (6.3 in x 3.2 in x 0.75 in)
Weight 350 grams (12.4 oz) with battery pac
Operating Temperature : -20°C to 50°C (-4°F to 122°F)
Storage Temperature -30°C to 70°C (-22°F to 158°F)
Humidity 0% to 95% relative humidity (non-condensing)
Drop 2.4 m (8 ft) to concrete at room temp per MILSTD 810G; 1.5 m (5 ft) to concrete at -10ºC to 50ºC (14ºF to 122ºF) temperature range; 1.2 m (4 ft) to concrete down to -20ºC (-4ºF)
Environmental Sealing Independently certified to meet IP67 and IP65 standards for moisture and particle intrusion

Honeywell Dolphin CT60XP Reviews

POSGuys Rating: Not Rated

Customer Reviews

Downloads
Data Sheet

Recommended Models

CT60XP Mobile Computer with Red Cross Standard Range Imager, 4GB RAM/32GB FLASH, 1280x720 HD, WiFi 5, GMS, FCC, 1 Year DCP Pre-Loaded
Please Call
FCC Compliant:FCC
Connectivity:WiFi
Barcode Scanner:Red Cross Standard Range Imager

Additional Models

CT60XP Mobile Computer with Red Cross Standard Range Imager, 4GB RAM/32GB FLASH, 1280x720 HD, WiFi 5 & Cellular, GMS, 1 Year DCP Pre-Loaded, Disinfectant Ready
Please Call
Non-Incendive:Disinfectant Ready
Connectivity:WiFi 5 & Cellular
Barcode Scanner:Red Cross Standard Range Imager
CT60XP Mobile Computer with Red Dot FlexRange Imager, 4GB RAM/32GB FLASH, 1280x720 HD, WiFi 5 & Cellular, GMS, 1 Year DCP Pre-Loaded, Disinfectant Ready
Please Call
Non-Incendive:Disinfectant Ready
CT60XP Mobile Computer with Red Dot FlexRange Imager, 4GB RAM/32GB FLASH, 1280x720 HD, WiFi 5, GMS, FCC, 1 Year DCP Pre-Loaded
Please Call
FCC Compliant:FCC
Connectivity:WiFi
Barcode Scanner:Red Dot FlexRange Imager
CT60XP Mobile Computer with Red Dot FlexRange Imager, 4GB RAM/32GB FLASH, 1280x720 HD, WiFi 5 & Cellular, GMS, FCC, 1 Year DCP Pre-Loaded
Please Call
FCC Compliant:FCC
Connectivity:WiFi 5 & Cellular
Barcode Scanner:Red Dot FlexRange Imager
CT60XP Mobile Computer with Red Cross Standard Range Imager, 4GB RAM/32GB FLASH, 1280x720 HD, WiFi 5 & Cellular, GMS, FCC, 1 Year DCP Pre-Loaded
Please Call
FCC Compliant:FCC
Connectivity:WiFi 5 & Cellular
Barcode Scanner:Red Cross Standard Range Imager
CT60XP Mobile Computer with Red Dot FlexRange Imager, 4GB RAM/32GB FLASH, 1280x720 HD, WiFi 5, GMS, 1 Year DCP Pre-Loaded
Please Call
Connectivity:WiFi
Barcode Scanner:Red Dot FlexRange Imager
CT60XP Mobile Computer with Red Dot FlexRange Imager, 4GB RAM/32GB FLASH, 1280x720 HD, WiFi 5 & Cellular, GMS, 1 Year DCP Pre-Loaded, Disinfectant Ready
Please Call
Non-Incendive:Disinfectant Ready
Connectivity:WiFi 5 & Cellular
Barcode Scanner:Red Dot FlexRange Imager
CT60XP Mobile Computer with Red Cross Standard Range Imager, 4GB RAM/32GB FLASH, 1280x720 HD, WiFi 5 & Cellular, GMS, FCC, 1 Year DCP Pre-Loaded, Disinfectant Ready
Please Call
Non-Incendive:Disinfectant Ready
FCC Compliant:FCC
Connectivity:WiFi 5 & Cellular
Barcode Scanner:Red Cross Standard Range Imager
CT60XP Mobile Computer with Red Dot FlexRange Imager, 4GB RAM/32GB FLASH, 1280x720 HD, WiFi 5 & Cellular, GMS, FCC, 1 Year DCP Pre-Loaded, Non-Incendive
Please Call
FCC Compliant:FCC
Non-Incendive:Non-Incendive
Connectivity:WiFi 5 & Cellular
Barcode Scanner:Red Dot FlexRange Imager
CT60XP Mobile Computer with Red Dot FlexRange Imager, 4GB RAM/32GB FLASH, 1280x720 HD, WiFi 5 & Cellular, GMS, 1 Year DCP Pre-Loaded, Non-Incendive
Please Call
Non-Incendive:Non-Incendive
Connectivity:WiFi 5 & Cellular
Barcode Scanner:Red Dot FlexRange Imager

Accessories

CT50 charge base kit, which includes dock, power supply, NA power cord. It can recharge up to 4 computers.
CT50 QBC FOR NA
BATTERY, STD, 4020mAh, CT50/60, MAXELL
BATTERY, STD, 4020mAh, MAXELL,CT60 ATEX
CT60XP, 4020mAh ,BATTERY,STD,MAXELL
CT60 XP NI/ATEX battery.
For recharging upto 4 computers. Kit includes Dock and Power Supply, must order Power Cord separately
Non-Cancellable/Non-Returnable. CHRG-COMM 4SLOT ETH W/DOCK PSU NOPCCT50, For Ethernet comms and recharging upto 4 computers. Kit includes Dock and Power Supply, must order Power Cord separately.
$1585.86 Add to Cart
Non-Cancelable/Non-Returnable CT50, For Ethernet comms and recharging upto 4 computers. Kit includes Dock, Power Supply, NA Power Cord.
$1441.69 Add to Cart
Cable Assembly - USB Type A to Type B
Cigarette lighter power adapter, 1.8 mm (0.07 in).
MOBILE BASE XP W/CIGARETTE PSU CT50CT50-MB-1-XP
Vehicle Dock CT60, Gen 1, 2 and XP w/ hard wired 3-pin power cable and a standard USB Type A cable. Cig Lighter adapter not included. Mounting (805-611-001) and vehicle power connection kit (226-109-003 or -004) sold separately. Works with all CT60 models
SCREEN PROTECTOR CT60
Intermec s FLEXDOCK CUP,CT60 and CT50
Scan handle for CT60 XP DR. It is not compatible with previous releases of the CT60. It allows the device to be docked and charged while mounted.
HOLSTER, CT50
HOLSTER SCAN HANDLE CT50/CT60
IH25/IH40 BRACKET FOR CT60,KITTING
CT50 HAND STRAP, pack of 3
CT50, Snap-on cup with Std Type A connector. Supports USB client. (For AC charging must order power plug adapter kit 213-029-001)
Universal AC Charger Kit (with Cable)
Power Adapter,12V 7A, without power cord, for RP4 battery charger. For use with quad battery charger. Requires country-specific line cord to be ordered separately.
Power Adapter and Plugs, Kit: 5V/2A Power supply w/ 5 country specific plugs
Power Adapter,12V 3A, without power cord, for CT50 and CT60 HB/EB/QBC
CT60 HOMEBASE 1 BAY, US POWER CORD
CT60 CHARGEBASE 4 BAY, US POWER CORD
Cable, power cord, AC outlet to power supply/device, straight (US type B grounded 3 prong, C13), 2.5m (8.2ft)
