Honeywell ScanPal EDA52
The pictures shown are general images for product ScanPal EDA52 and may not be applicable to all part numbers

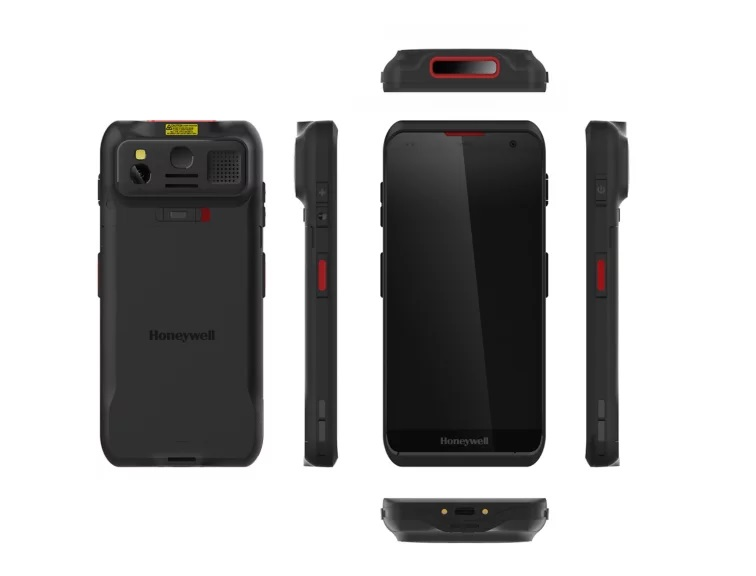

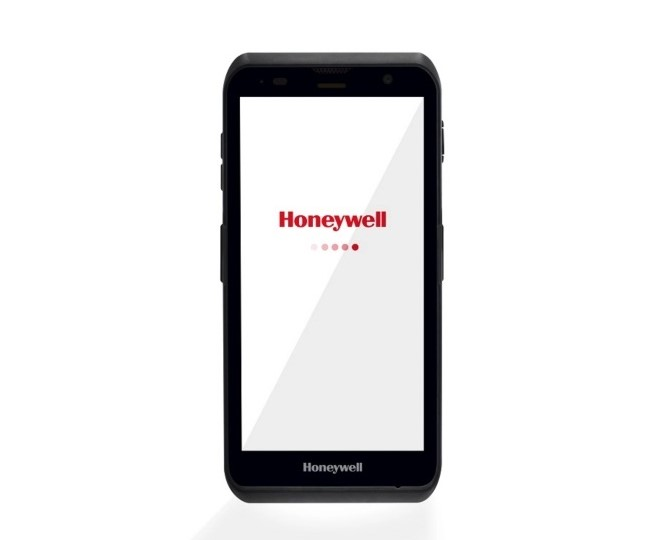

ScanPal EDA52 Mobile Computers
This product replaces the older Honeywell ScanPal EDA51.
The Honeywell ScanPal™ EDA52 is an Enterprise Class Mobile Computer that provides reliable and secure connectivity between frontline workers and back-end business systems. Designed for use in Retail, Transportation & Logistics, Manufacturing, Healthcare, and Public Service Applications.
- Connectivity: 802.11 a/b/g/n/ac (Wi-Fi 5), Bluetooth, Cellular
- Display: Gorilla Glass 5, 5.5-inch Display with 1440 x 720 High Definition resolution. Multi-touch capacitive (CTP), GFF
- Dimensions: 159mm x 75 mm x 14.4 mm (6.26 in x 2.95 in x 0.57 in)
- Power: Removable Li-Ion, 3.8 V, 4,500 mAh. Less than 3.5 hours charging time.
- CPU: Qualcomm Snapdragon SM6115, Quad high-performance Kryo cores 2.0 GHz +Quad low-power Kryo cores 1.8 GHz
- Operating System: Android 11, and upgradeable to Android 13
- Memory: 3 GB RAM/32 GB Flash; 4 GB RAM/64 GB Flash; 6 GB RAM/128 GB Flash
- Drop Specifications: Multiple 1.3m (4.3ft) per MIL-STD 810G drops to concrete at room temperature Multiple 1.5m (5ft) per MIL-STD 810G drops with rubber boot concrete at room temperature
- Tumble Specification: 550 times at 0.5 m (1.64 ft)
- Sealing: IP67
- Scanning: Honeywell S0703 Slim Imager (1D/2D barcode symbologies); Non-imager version (optional)
- Rear Camera: Rear Camera: 13-megapixel color camera. Front Camera: 5-megapixel color camera.
ScanPalEDA52 is Honeywell’s next generation ScanPal series mobile computer equipped with the latest Qualcomm Snapdragon octa-core 2.0GHz processor and robust wireless connectivity through NFC, Wi-Fi5, Bluetooth5.1 and 4GLTE communication.
A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Its lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day.
The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication.
The EDA52 incorporates the all-new and powerful Honeywell S0703 scan engine which enables fast reading even of damaged or incomplete barcodes.
Outfitted with a rugged housing and IP67 rated sealing, the EDA52 can operate under rough usage and demanding environmental conditions. A 4500mAh battery allows for prolonged and uninterrupted use between each charge. The battery is also easily removable and supports quick charge 3.0.
The EDA52 (WWAN version) supports one nano SIM and one e-Sim simultaneously. An eSIM enables simple management of subscriptions to different mobile network carriers, thereby allowing easy switch between carriers without the need to manage multiple physical SIM cards.
The EDA52 is built on Android11 and can be upgraded to Android13* minimizing maintenance issues and ensuring long-term feature support. It is validated under AER (Android Enterprise Recommended), a Google-led initiative that helps businesses confidently select, deploy, and manage Android devices and services best suited to their needs.
The EDA52 can be easily paired with Honeywell’s IH25/IH40 RFID reader. Users can quickly capture large volume of RFID information in applications such as retail and warehouse inventory tracking.
For existing Honeywell mobile computer users, the EDA52 can be backward-compatible with existing Honeywell accessories, the ScanPal EDA51 single charging dock by adding an adapter cup. This will further help our existing customers reduce their total cost of ownership (TCO).
Features - ScanPal™ EDA52 Mobile Computer
- Powerful hardware platform based on the Qualcomm SM6115 octa-core processor, 3GB/32GB, 4GB/64GB, and 6GB/128GB memory options to handle different workloads.
- Large 5.5-inch full touch display screen. Lightweight and pocketfitting IP67 design that can withstand rugged usage under tough field service environments.
- Multiple fast connections by WWAN (Nano and eSIM) or WLAN, Bluetooth 5.1, NFC, GMS and 4G LTE.
- Removable 4500 mAh lithium-ion battery that can last for more than 12 hours of straight use.
- Easily scan barcodes, even damaged ones, with the Honeywell enterprise level S0703 imager. Document images with the 13MP auto-focus camera and make video calls with the 5MP front camera.
BOX CONTENTS
- Rechargeable li-ion battery
- USB charging cable
- Hand Strap (optional)
Removable Li-Ion, 3.8 V, 4,500 mAh. Less than 3.5 hours charging time.
| Product Specifications | |
|---|---|
| Dimensions | |
| Weight | 258g |
| Display Size | Gorilla Glass 5, 5.5-inch |
| Resolution | 1440 x 720 High Definition |
| Backlight | LED |
| Touchscreen | Multi-touch capacitive (CTP), GFF |
| Hard Keys | 5 side keys for volume up/down, right and left scan keys and power on/off |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Humidity | 5% to 90% (non-condensing) |
| Drop | |
| Tumble | 550 times at 0.5 m (1.64 ft) |
| Environmental Sealing | IP67 |
| Processor | Qualcomm Snapdragon SM6115, Quad high-performance Kryo cores 2.0 GHz +Quad low-power Kryo cores 1.8 GHz |
| Memory | |
| Operating System | Android 11, and upgradeable to Android 13* |
| Storage Expansion | MicroSD (up to 128 GB) |
| Rear Camera | 13-megapixel color camera |
| Front Camera | 5-megapixel color camera |
| PC Interface | USB 2.0 with Type-C interface |
| Interface Ports | 2 pin bottom connection |
| Battery | Li-Ion, 3.8 V, 4,500 mAh, removable |
| Real-Time Clock (RTC) | 10 min backup via super-cap |
| Charging Time | Less than 3.5 hours |
| Battery Runtime | More than 12 hours |
| Scan Engine | Honeywell S0703 Slim Imager (1D/2D barcode symbologies); Non-imager version (optional) |
| WLAN (Wi-Fi Alliance certified) | IEEE 802.11 a/b/g/n/ac |
| Additional WLAN Features | 802.11 d/e/h/i/k/ r/u/w /v , 1X1 MU-MIMO |
| Bluetooth | Bluetooth Class 5.1 |
| WWAN Radio | |
| NFC | Integrated Near Field Communication |
| GPS (WWAN only) Supported Protocols | Simultaneous receiver support for GPS, GLONASS, and BeiDou |
