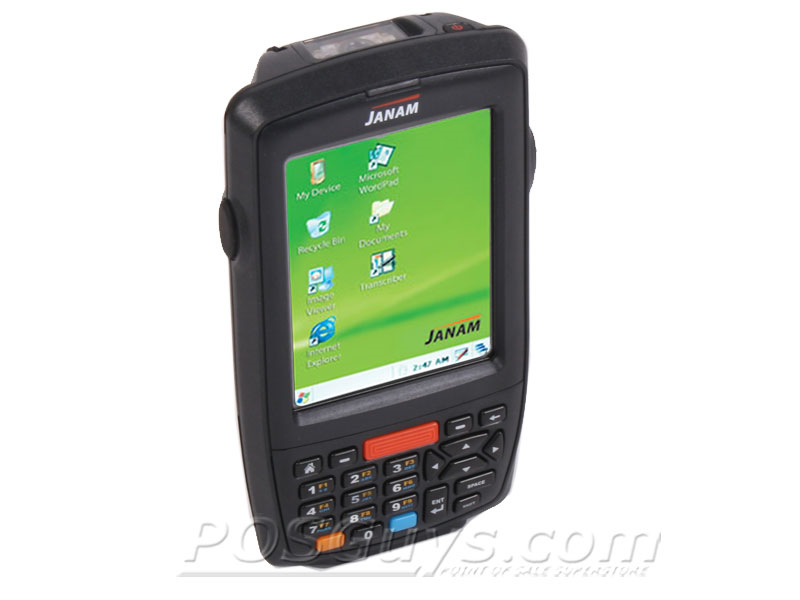

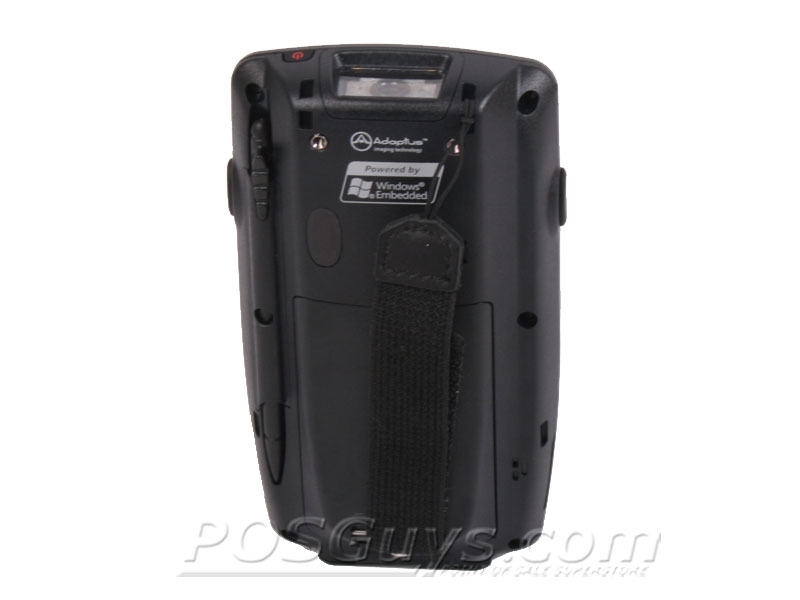

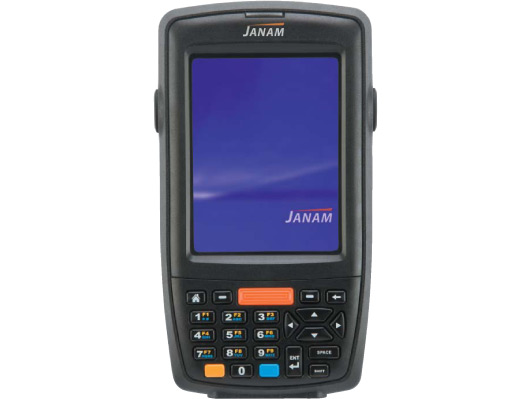

XM60 Series Mobile Computers

The Janam XM60 series mobile barcode scanner** puts the power of Windows Mobile or Windows CE 5.0 into the same ruggedized body as their popular Palm XP series, providing versatility in a familiar form factor. The XM series uses Adaptus Imaging Technology to guarantee fast and accurate 1D and 2D (optional) barcode reading, essential for demanding inventory or field work. An IP54 seal protects the XM series from wind and rain, while the ruggedized, attractive body keeps it safe from 4' drops to concrete.

Requires charging cable (UC-XP-1) and Power Supply (AC-XP-1).

Features

533 MHz Freescale MX31 processor

128 MB SDRAM, 128 MB Flash ROM

Can upgrade to 2 GB storage via mini-SD slot

Available with USB, Bluetooth, or 802.11a/b/g interfaces

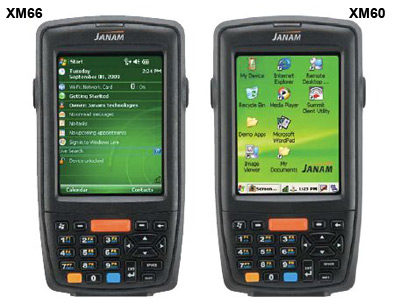

Available Models
XM60+: Windows CE 5.0
XM65: Windows Mobile 5.0
XM66: Windows Mobile 6.1

Charging Note: The XM Series does not ship with charging/communications cables. We recommend JANAM-COMM-KIT
** Not all options come with a scanner

Product Specifications
Weight	9.88 oz (280 g)
Dimensions	1.2H x 3.11W x 5.75L in (30.5 x 79 x 146 mm)
Operating System	Windows CE 5.0, Windows Mobile 6.1
Processor	533 MHz Frescale i.MX31
Memory	128 MB RAM, 128 MB Flash ROM
Screen	3.5" TFT LCD at 240 x 320 (QVGA)
Seal Specification	IP54
Battery	3.7V 2000 mAh Li-ion
Interface	USB, Bluetooth, 802.11a/b/g
Expansion	MicroSD Slot
Operating Temperature	14° to 122° F
Humidity	5% to 90% non-condensing
Drop Specification	Withstands 4-foot drops to concrete
Keyboard	PDA keypad (with 4-way navigation) or numeric keypad
Scan Method	Linear Imager or 2D Imager

Downloads
Data Sheet
Manual
Quick Start Guide
Windows 10 Sync Issues Fix
Service Contract Overview
Battery Charger Product Guide
Four Slot Cradle Guide
Microsoft ActiveSync Software
Modem Cradle Guide
USB/Serial Cradle Guide
XM60 SDK

Janam Technologies XM60 Series Reviews

POSGuys Rating:

Customer Reviews

Recommended Models

XM66W-1NAFBV00

XM66 Mobile Computer, Black with Windows Mobile 6.1, Numeric Keypad, 1D Scanning, Bluetooth, 802.11a/b/g Radios

Click to See Price

Add to Cart

color: Black
interface: Bluetooth
keypad: Numeric
operating system: Windows Mobile 6.1
scanner: 1D
wifi: 802.11a/b/g

XM66N-1NXKYV00

XM60 Mobile Computer, Black with numeric keypad, Windows Embedded Handheld 6.5, Bluetooth, 2D Imager (Requires Power, Communication cables)

Click to See Price

Add to Cart

batch: Yes
color: Black
interface: Bluetooth
keypad: Numeric
operating system: Windows Embedded 6.5
scanner: 1D/2D
wifi: No

Accessories

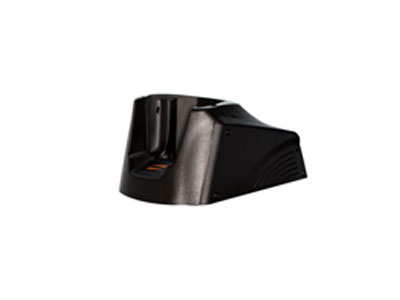

CKT-P1-002U Janam Universal Accessories Cradle Kit (Serial, USB, Power Supply, LC) for the XP30, XM66, XM66+ and XM70 Only, USB
