Motorola MC9190

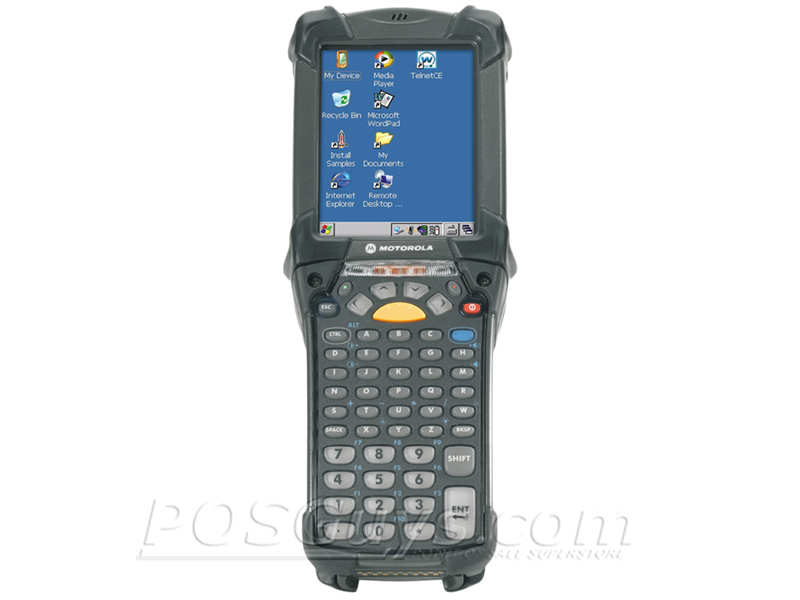

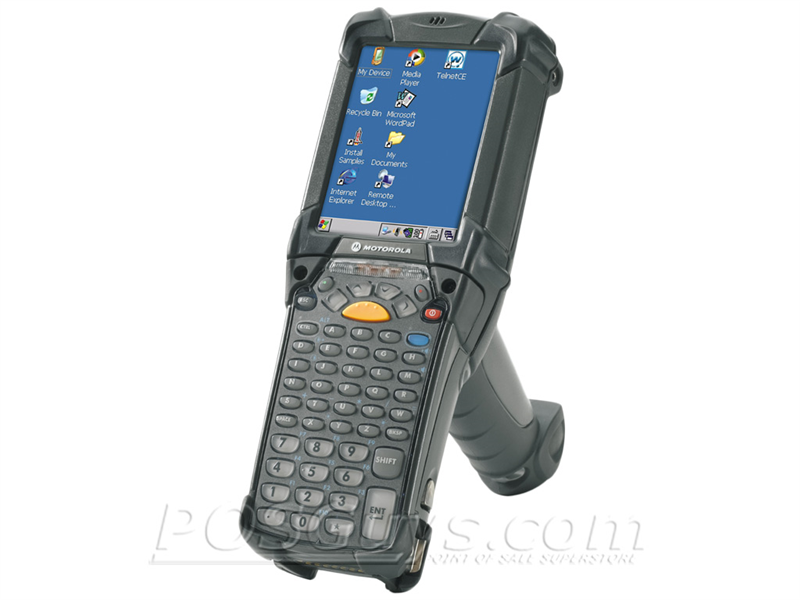

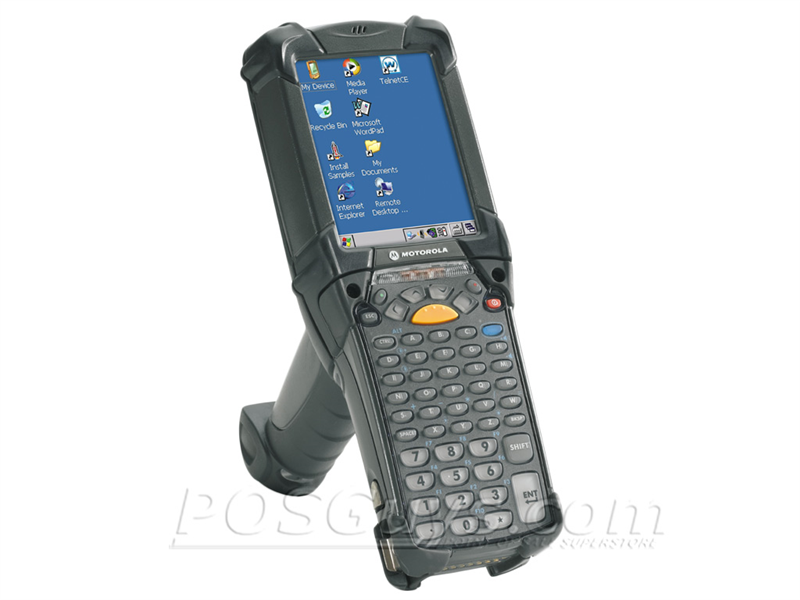

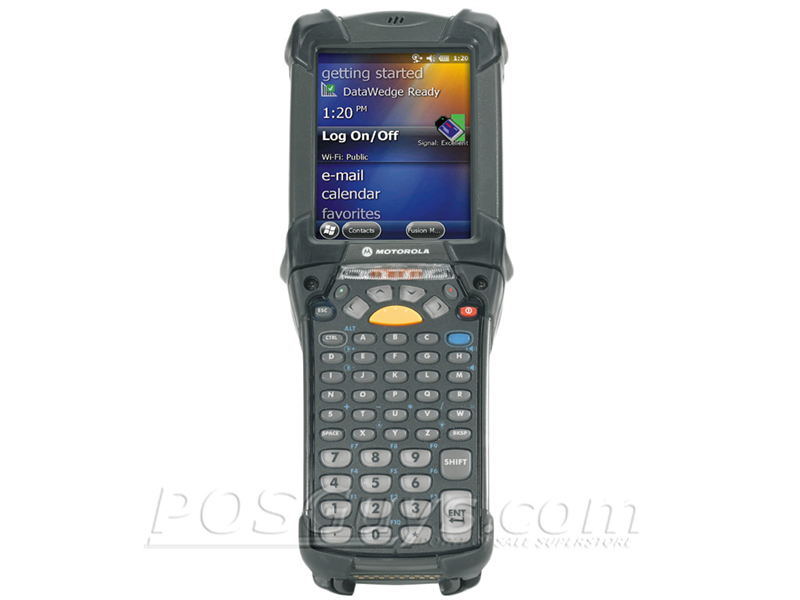

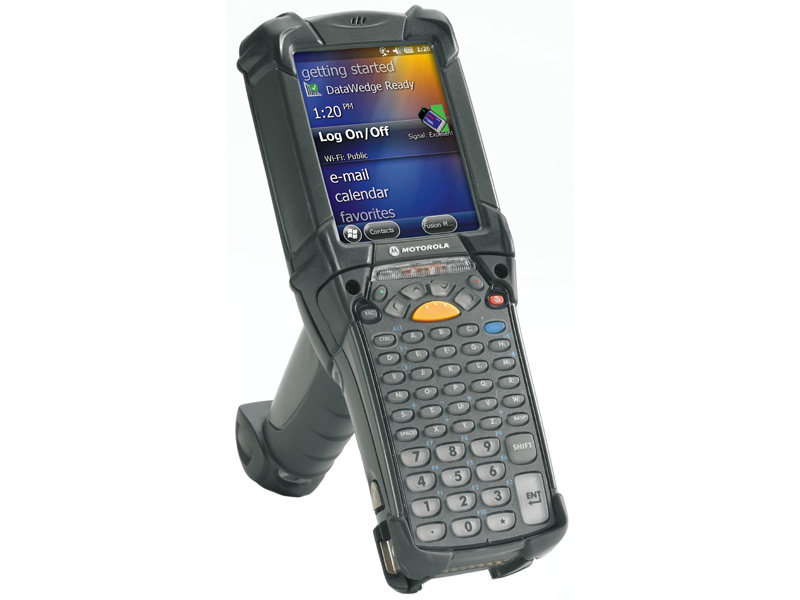

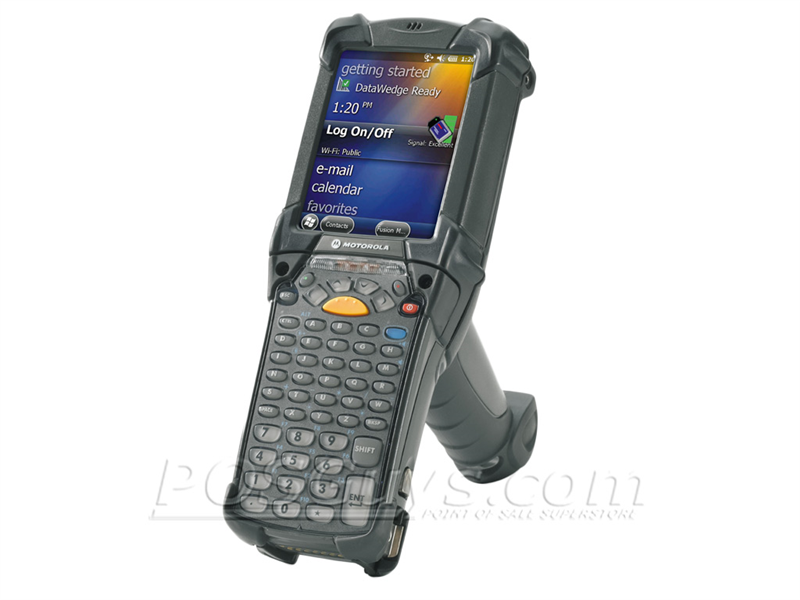

The pictures shown are general images for product MC9190 and may not be applicable to all part numbers

MC9190 Mobile Computers


The Motorola MC9190 has reached end of life. It has been replaced by the Zebra MC9200.

This product replaces the older Motorola MC9000 Series.

The Motorola MC9190 mobile computer builds on the highly successful MC9000 series, giving you a high-powered solution for portable data management. Running either Windows Mobile 6.5.3 or Windows CE 6, the MC9190 supports the mobile apps vital to inventory management, picking, or data capture.

All models ship with 802.11a/b/g, ideal for maintaining connectivity in warehouse environments. If you need access to peripherals such as headsets for picking/shipping applications or a mobile printer, the MC9190's Bluetooth with EDR ensures easy wireless device pairing. For wired device pairing, Motorola has an adapter that enables support for DEX, Paxar, O'Neil, and Zebra cables.

With the MC9190, you get a variety of scanning options, ideal for various job applications. The MC9190 ships with your choice of standard range laser scanner, Lorax long range laser scanner, standard range 2D imager with optional driver's license parsing, or long range 2D imager, ensuring you get the scanner best suited for your business's needs.

Durability is vital in heavy industrial environments, and the MC9190 meets the needs of the roughest users. The mobile computer has been reinforced to withstand drops of 6-feet to concrete as well as 2,000 3.28-foot tumbles. Sealed to an IP64 rating, the MC9190 is sealed against dust and splashes of water, making outdoor use no problem. The device also operates in temperatures as low as -4° F, making it a smart choice for cold storage inventory management. Optional models also offer condensation resistance, if needed.

Features
• 806 MHz Marvell PXA320 processor
• 256 MB RAM, 1 GB Flash
• Windows Mobile 6.5.3 or Windows CE 6
• IP64 seal protects from dust & water splashes
• Condensation-Resistant models available
• 28, 43, and 53 (standard, VT, 5250, 3720 emulation) Key Keypad

Quick jump: Recommended Products | Additional Products | Accessories
Product Specifications
Weight 27 oz
Dimensions 9.1" x 3.6" x 7.6"
Operating System Windows CE 6
Windows Mobile 6.5
Processor 806 MHz Marvell PXA320
Memory 256 MB RAM, 1 GB Flash
Screen 3.7" LCD at 640 x 480 (VGA)
Seal Specification IP64
Battery 7.2 V 2200 mAh Li-ion
Interface USB, Bluetooth, 802.11a/b/g
Expansion SD/MMC Slot
Operating Temperature -4° to 122° F
Storage Temperature -40° to 158° F
Humidity 5% to 95% Non-Condensing, Condensation Resistant Models Available
Drop Specification Withstands 6-foot drops to concrete
Keyboard 28-key, 43-key, 53-key keyboards, terminal emulation (5250, 3270, VT)
Scan Method 1D Laser Scaner
Lorax Long Range Laser Scanner
Standard Range 2D Imager
2D Imager with Drivers License Parsing
Long Range 2D Imager

Motorola MC9190 Reviews

POSGuys Rating: Not Rated

Customer Reviews

Accessories

MC9190 Service From the Start Service Center Gold, Includes Comprehensive Coverage, Does Not Cover Cradles, 5-Year Plan
MC9190 Replacement 2200 mAh Battery, 10-Pack of Batteries (Batteries must be shipped via ground shipping)
MC9190 Service From the Start Service Center Bronze, Includes Comprehensive Coverage, Does Not Cover Cradles, 5-Year Plan
MC9190 Service Center Bronze Plan, Does Not Include Comprehensive Coverage, Nor Cradles, 3-Year Plan
MC9190 Service From the Start Service Center Gold, Includes Comprehensive Coverage, Does Not Cover Cradles, 3-Year Plan
MC9XXX 4-Slot Battery Charger, Energy Star Compliant
MC9190 Service From the Start Service Center Bronze, Includes Comprehensive Coverage, Does Not Cover Cradles, 3-Year Plan
MC9XXX 4-Slot Battery Charger
MC9190 Snap on Magnetic Stripe Reader
MC9XXX Heated Boot, Allows Device to be Used in Freezer Applications.
MC9XXX Replacement 53-5250 Key Keypad
MC9XXX Replacement 53-3270 Key Keypad
MC9XXX Replacement 53-VT Key Keypad
MC9XXX Replacement 43 Key Keypad
MC9XXX Replacement 53 Key Keypad
MC9XXX Replacement 28 Key Keypad
MC9XXX Replacement 53 Key Keypad, White
MC9XXX Car Charging Cable, 24V, Requires Adapter (Part # ADP9000-100R)
MC9190 Adapter Kit, Includes Adapter, Power Supply, US Line Cord (Parts ADP9000-100R, PWRS-14000-148R, 23844-00-00R)
Power Supply for 4-Slot Battery Charger (SAC9000-4000R), works with DC Line Cord (25-72614-01R). Must purchase 3 Wire GROUNDED AC line cord separately.
MC9XXX 4-Slot Charge Only and Ethernet Cradle Power Supply, Requires 3-Wire Grounded AC Line Cord
MC9XXX Adapter Module, Provides Support For AC Charging or Printing, Must Order Cables Separately
MC9190-G Fabric Holster
DEX cables w/ floating Jack Screws
USB Cable for Cable Adapter Module (ADP9000-100R must be ordered seperately)
DEX Cable for Cable Adapter Module (ADP9000-100R must be ordered seperately)
Paxar Printer cable. (ADP9000-100R must be ordered seperately)
O'Neil Printer cable. (ADP9000-100R must be ordered seperately)
MC9190 Four Slot Cradle DC Line Cord
MC90XX and MC9190-G Plastic Screen Guards (Pack of 3)
USB Cable for the cradle to the host system
7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW
MC9190 Single Slot Charging/Communications Cradle, Requires Power Supply PWRS-14000-148R, Line Cord 23844-00-00R, and interface cable
Power Supply (Formerly Motorola), Requires DC Line Cord CBL-DC-388A1-01 & AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle)
7.5ft. DC Cable For Use with Power Supply Brick PWR-BGA12V50W0WW
Zebra Presentation Cradle and Mobile Computer Power Kit (Three Piece) - Includes power supply (PWR-BGA12V50W0WW), Line Cord (23844-00-00R), and DC Line Cord (CBL-DC-375A1-01). (Presentation Cradle or Mobile Computer Only)
