Opticon H16

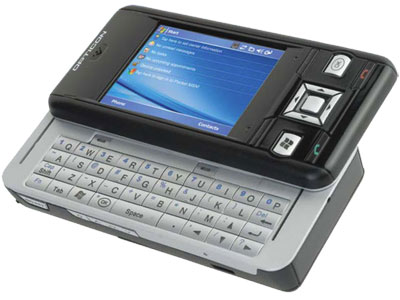

The pictures shown are general images for product H16 and may not be applicable to all part numbers

H16 Mobile Computers

The Opticon H16 has reached end of life. It has been replaced by the Opticon H15.

The Opticon H16 combines the ease of use of a enterprise cellular phone with an aggressive scan engine, providing an excellent solution for mobile sales forces. With communications via mini-USB, Bluetooth, 802.11b/g, as well as GSM/GPRS/EDGE cellular networks, the H16 keeps field crews in contact wherever they may be. The 2.8" TFT LCD Touchscreen allows for handwriting recognition and softkey data entry, and for extended typing, the screen slides back, revealing a 41 key QWERTY touchpad, making the Opticon H16 an excellent mobile computing solution.

  • Windows Mobile TM 5.0
  • 64MB RAM, 128MB SD Flash ROM
  • 1.77 to 10.04" scan range at 10 mil
  • Scans 1D barcodes, as well as MicroPDF417 and PDF417 (H16B)
  • Product Specifications
    Weight 180 g (6.3 oz) - excluding battery
    Dimensions 2.36 x 5 x 1.1 in (60 x 127 x 28 mm)
    Processor 400 MHz Samsung 2440
    Memory 64 MB RAM, 128 MB Flash ROM
    Screen 2.8" TFT LCD at 240 x 320 (QVGA)
    Battery 4.2 V 1440 mAh Li-ion
    Interface USB, Bluetooth, 802.11b/g
    Cellular Radio Quad Band GSM, EDGE
    Expansion MiniSD slot
    Keyboard 41-Key QWERTY keyboard
    Scan Method 1D Laser Scanner or 2D Imager
    Scan Range Laser: 1.77" to 10.04" (10 mil), 2D Imager: 1.97" to 8.46" (13 mil)
    Color Options Black/Grey
    Operating System Windows Mobile 5.0
