UniTech HT730

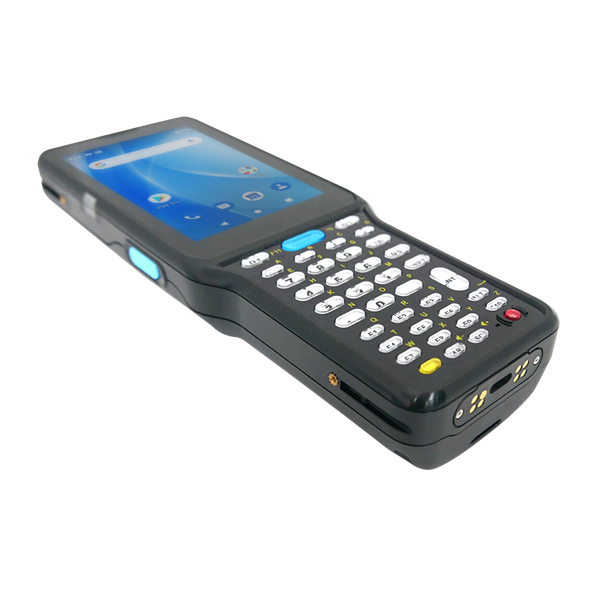

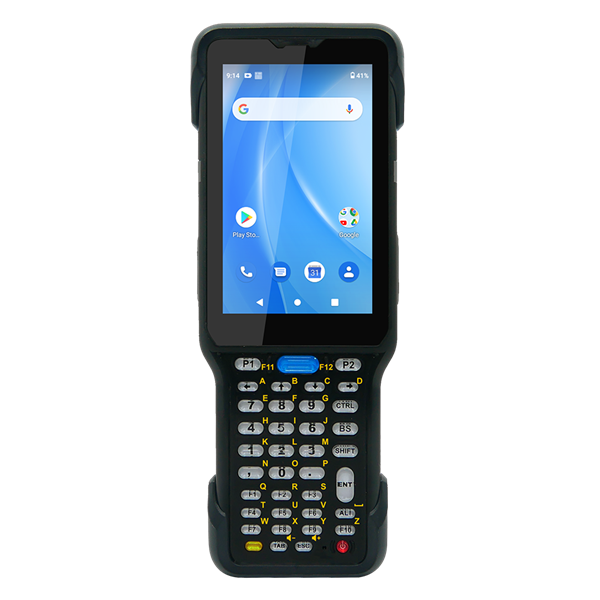

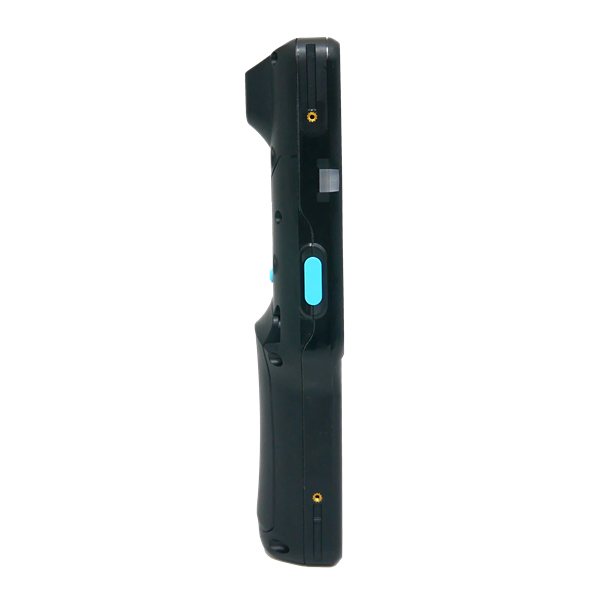

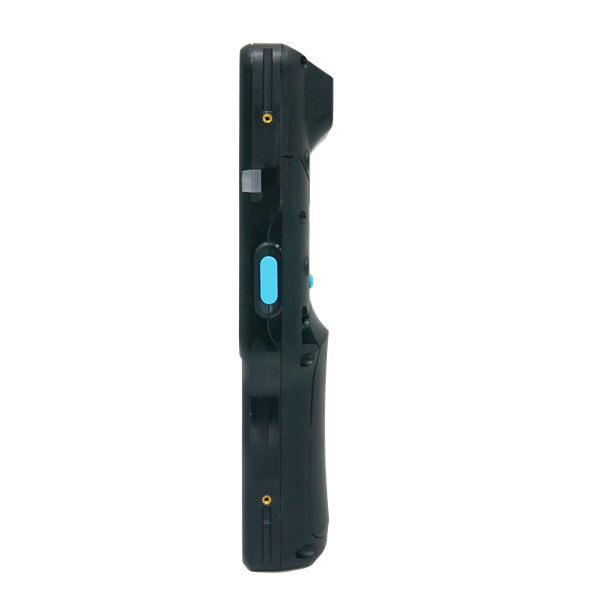

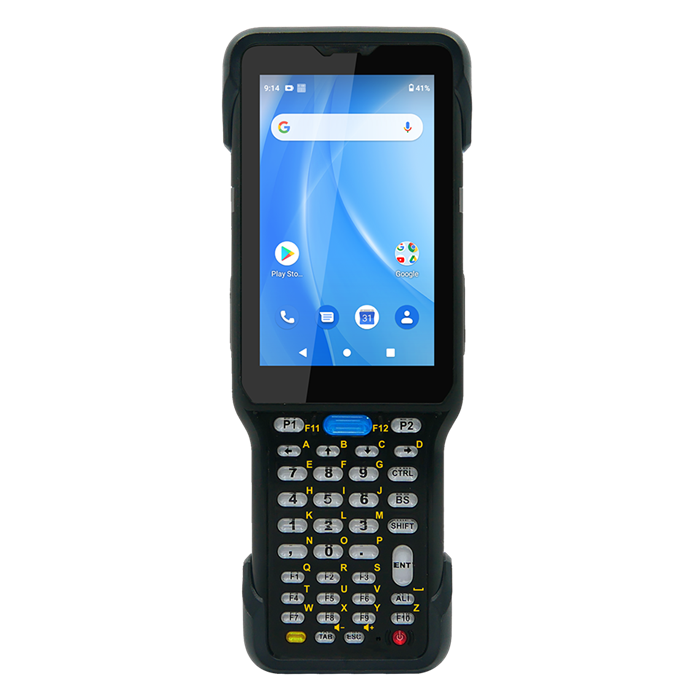

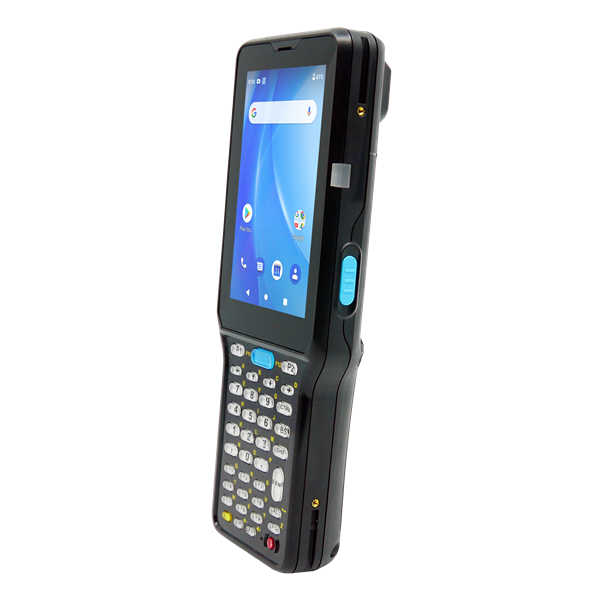

HT730 Product Image

The pictures shown are general images for product HT730 and may not be applicable to all part numbers

HT730 Mobile Computers


The unitech HT730 is an ergonomic one-hand operation handheld terminal with keypad and powerful data collection solutions. Offering Android 10 OS with GMS certification, the HT730 is equipped with Qualcomm® Artificial Intelligence (AI) CPU to deliver users excellent performance for smarter, more intuitive interactions which is suitable to improve your work efficiency in a wide range of applications in warehousing, logistics, and field service.

Standard Features for the HT730 Include:

  • Connectivity: 802.11 a/b/g/n/ac/ax (Wi-Fi 6), Cellular 5G (select models), Bluetooth, NFC
  • Display: 4”TFT-LCD WVGA (480x800) color screen (400 nits). Ultra-sensitive capacitive touch screen, compatible with gloves and support wet resistance.
  • Battery: Main battery 3.7V 6700mAh. Keeps applications active up to 1 minute.
  • Scan Engine:Superior 2D scanning performance: Support 30-degree scanning tilt down.
  • Camera: Rear 13 MP Autofocus with flash
  • CPU: Octa-core 2.3 GHz, Qualcomm 720G (SM7125)
  • Memory: 3-4GB RAM / 64GB Flash
  • Operating System: Android 10 with GMS
  • Drop Specifications: 1.8 m / 2.4 m(with Bumper)
  • Sealing: IP65 / IP67

Powered by Android 10 OS with GMS Certified


The unitech HT730 is an ergonomic one-hand operation handheld terminal with keypad and powerful data collection solutions. Offering Android 10 OS with GMS certification, the HT730 is equipped with 5th gen Qualcomm® AI Engine to deliver users excellent performance for smarter, more intuitive interactions that are suitable to improve your work efficiency in a wide range of applications in warehousing, logistics, and field service.

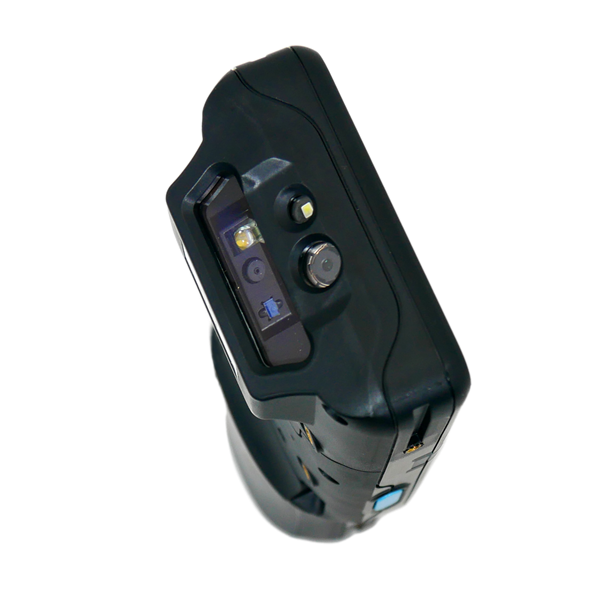

Superior Performance with Long Reading Distance


Specially built for an extended-range work environment, the HT730 4” rugged handheld terminal features a superior performance with the scanning range up to 20m away from the spot. The device supports full barcode symbologies including 1D, 2D, Dot Code, and OCR as well as boosts your scanning performance at a speed of 60fps.
Ideal for tasks that require heavy scanning, the HT730 is built-in a powerful megapixel 2D scanning engine with a wide variety of 30-degree scanning tilt-down design. It also delivers motion tolerance of up to 5m/s, the HT730 increases the operational effectiveness even while moving.

Ergonomic One-Hand Operation with Large Keypad


The 4-inch touch display with 400 nits of brightness means your inventory app will look great indoors or outdoors. The large-sized backlit keypad features high-end silicone keys with under-key label printing designed to stop the label legends from ever becoming unreadable, even after our tested 2.5 million key presses. Scanning buttons on both sides, top of the keypad, or on the optional gun grip trigger, means you can capture barcode data in a manner ergonomically best for you.

No Downtime with True Hot-Swap Battery


Featuring hot-swap technology, the HT730 allows batteries to be swapped without interrupting within 1 minute. With a long-lasting 6700 removable battery, the HT730 allows continuous use for 20-26 hours operation and it is easily replaced whiles running out of power seamlessly.

Boost Wireless Communication Performance


The HT730 supports 2X2 MU-MIMO antennas that boost the wireless performance with a faster and better data transferring experience, allowing staff to get connected immediately. Built-in 4G dual-SIM slots, it provides double signal coverage and real-time communications even in different countries. Furthermore, it has a 13MP camera that gives an easy way to prove delivery or shipment issues.

Boost Wireless Communication Performance


The HT730 supports 2X2 MU-MIMO antennas that boost the wireless performance with a faster and better data transferring experience, allowing staff to get connected immediately. Built-in 4G dual-SIM slots, it provides double signal coverage and real-time communications even in different countries. Furthermore, it has a 13MP camera that gives an easy way to prove delivery or shipment issues.

SmartPA: Better Audio Output


SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.

Product Specifications
Operation System
  • OS: Android 10
  • GMS certified: YES
  • CPU: Octa-core 2.3 GHz, Qualcomm 720G (SM7125) 4GB
  • Memory: RAM / 64GB Flash
  • Languages support: Multi-languages
  • AI: 5th Gen Qualcomm AI Engine
Display
  • Screen Size: 4” TFT-LCD WVGA (480x800) color screen (400 nits)
  • Touchpanel: Ultra-sensitive capacitive touch screen, compatible with gloves and support wet resistance

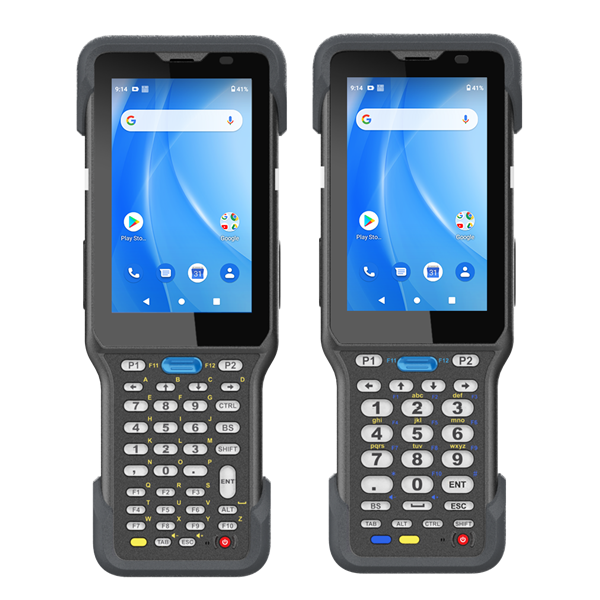

Keypad Numeric (29 keys)/ Function Numeric (38 keys) with backlight
Camera Rear 13 MP Autofocus with flash
Indicator LED, Speaker, Vibrator
Symbologies
  • 1D Barcodes
  • 2D Barcodes

*Reference Spec Sheet for specifics
Enclosure
  • Dimensions: 195 mm x 72 mm x 34 mm
  • Weight: 395 g (with battery)
Power Source
  • Main battery: Main battery 3.7V 6700mAh
  • Hot Swap Battery: Keeps applications active up to 1 minute
RFID
  • HF: Support HF/NFC
  • Frequency: 13.56MHz
  • Support: ISO14443A/B, ISO15693 standard
Communication
  • Bluetooth®: Bluetooth® 5.1
  • WLAN: IEEE 802.11a/b/g/n/d/h/i/k/r/v/ac/ax ready (8ss and TWT), 802.11ac Wave 2 (Dual Antenna, 2X2 MU-MIMO support)
  • WWAN: LTE Advanced Support Up to CAT4 LTE downlink 300Mbps/uplink 100Mbps
    • LTE (FDD) – Bands 1, 2, 3, 4, 5, 7, 8, 17, 20, 28
    • LTE (TDD) – Bands 38, 39, 40, 41
    • UMTS/HSPA+ (3G) – Bands 1, 2, 5, 8
    • GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz)
  • GPS: GPS, GLONASS, Galileo, BeiDou
  • Sensors: Gyroscope, G-sensor, E-compass, Light & Proximity Sensor
I/O Interfaces
  • USB: USB 3.1 (type-C) support USB OTG
    • Support Display Port Mode
    • Ethernet/USB-Host via cradle
  • OTG: Yes, over USB Type-C
  • POGO PIN: Custom IO connector (include USB Host)
  • SIM Slot: Nano SIM Slot x 2
  • Expansion Slot: Micro SD/TF x 1 (Support SD, SDHC and SDXC) up to 256GB
  • Audio: 2W output, 105 dB at 10cm, Dual-Microphone, support noise cancellation
Durability
  • Drop Specification: 1.8 m / 2.4 m (with Bumper)
  • Sealing: IP65 / IP67
Environmental
  • Operating Temperature: -20°C to +50°C
  • Storage Temperature: -30°C to 70°C (without battery)
  • Charging Temperature: 0°C to 45°C
  • Relative Humidity: 5% ~ 95% (non-condensing)
Software SOTI, Ivanti Wavelink, AirWatch, 42Gears, and MoboLink
Accessories
  • USB Type C cable
  • Single Slot Charging cradle
  • Single Slot Ethernet cradle with USB host
  • 4-Slot Charging cradle
  • 4-Slot Ethernet cradle
  • 4-Slot battery charger
  • Hand strap
  • Glass Screen Protector

UniTech HT730 Reviews

POSGuys Rating: Not Rated

Customer Reviews

Downloads
HT730 Spec Sheet

Recommended Models

HT730 Mobile Computer 2D Standard Range, 38-key, WiFi and Bluetooth, 4GB RAM / 64GB Flash, Scanner, Camera(13MP) with Battery, Hand Strap and Bumpers (Charging Accessories Not Included).
Standard or Long Range:Standard Range
Standard or Long Range:Standard Range
Connectivity:WiFi
Keyboard:38-key
Keyboard:38-key

Additional Models

HT730 Mobile Computer 2D Long Range, 38-key, WiFi & Bluetooth, 4GB RAM / 64GB Flash, Camera(13MP) with Battery, Hand Strap and Bumpers (Charging Accessories Not Included).
$1008.00 Add to Cart
Standard or Long Range:Long Range
Standard or Long Range:Long Range
Connectivity:WiFi
Keyboard:38-key
Keyboard:38-key
HT730 Mobile Computer 2D Long Range, 38-key, WiFi, Bluetooth & Cellular, 4GB RAM / 64GB Flash, Camera, GPS, with Battery, Hand Strap and Bumpers (Charging Accessories Not Included).
$1018.00 Add to Cart
Connectivity:Cellular & WiFi
Connectivity:Cellular & WiFi
Standard or Long Range:Long Range
Standard or Long Range:Long Range
Keyboard:38-key
Keyboard:38-key
HT730 Mobile Computer 2D Standard Range, 29-key, WiFi & Bluetooth, 4GB RAM / 64GB Flash, Camera(13MP), Terminal with Battery, hand strap and Bumpers (Charging Accessories Not Included).
Standard or Long Range:Standard Range
Standard or Long Range:Standard Range
Connectivity:WiFi
Keyboard:29-key
Keyboard:29-key
HT730 UHF Mobile Computer 2D Standard Range, 38-key, WiFi & Bluetooth, 4GB RAM / 64GB Flash, Camera(13MP) with Battery, Hand Strap and Bumpers (Charging Accessories Not Included).
$1126.00 Add to Cart
Standard or Long Range:Standard Range
Standard or Long Range:Standard Range
Connectivity:WiFi
Keyboard:38-key
Keyboard:38-key
HT730 Mobile Computer 2D Standard Range, 29-key, WiFi, Bluetooth & Cellular, 4GB RAM / 64GB Flash, Camera(13MP) with Battery, Hand Strap and Bumpers (Charging Accessories Not Included).
Connectivity:Cellular & WiFi
Connectivity:Cellular & WiFi
Standard or Long Range:Standard Range
Standard or Long Range:Standard Range
Keyboard:29-key
Keyboard:29-key
HT730 Mobile Computer 2D Standard Range, 29-key, WiFi and Bluetooth, 3GB RAM / 32 GB Flash, Camera(13MP) with Battery and Hand Strap, No Bumpers (Charging Accessories Sold Separately).
Standard or Long Range:Standard Range
Standard or Long Range:Standard Range
Connectivity:WiFi
Keyboard:29-key
Keyboard:29-key
HT730 Mobile Computer 2D Standard Range, 38-key, WiFi, Bluetooth & Cellular, 3GB RAM / 32GB Flash, Camera(13MP) with Battery, Hand Strap and Bumpers (Charging Accessories Not Included).
Connectivity:Cellular & WiFi
Connectivity:Cellular & WiFi
Standard or Long Range:Standard Range
Standard or Long Range:Standard Range
Keyboard:38-key
Keyboard:38-key

Accessories

Power Supply For Unitech Multi-Slot Charging Cradles.
HT730 6700mAh Li-iON battery pack.
HT730 Screen Protector Glass Sticker (108mm x 64mm_9H)
HT730 4-Slot Battery Charger
HT730 standard gun grip
USB 3.0 Type C Cable for PA760 and HT730
Stylus with Coil Strap for EA602 and HT730
HT730 Single Slot Charging Cradle with Spare Battery Charger - includes Power Supply
HT730 4-Slot Charging Cradle - includes Power Supply

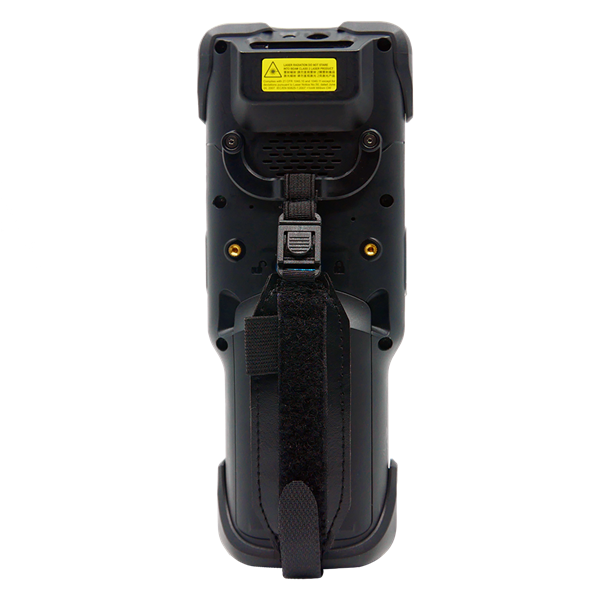

Hand Strap for HT730
