UniTech PA690

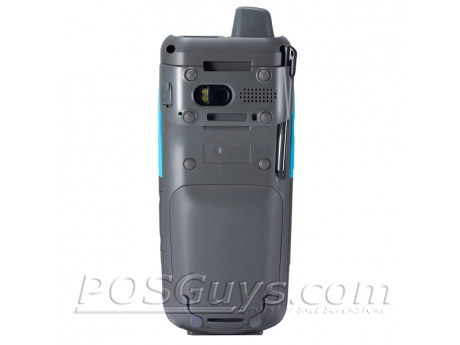

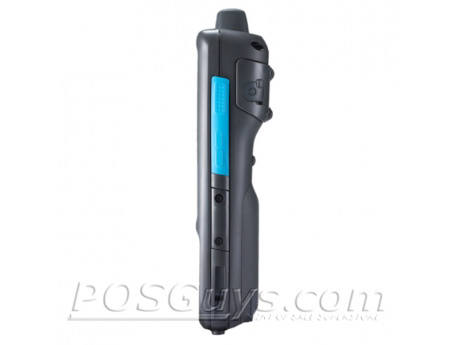

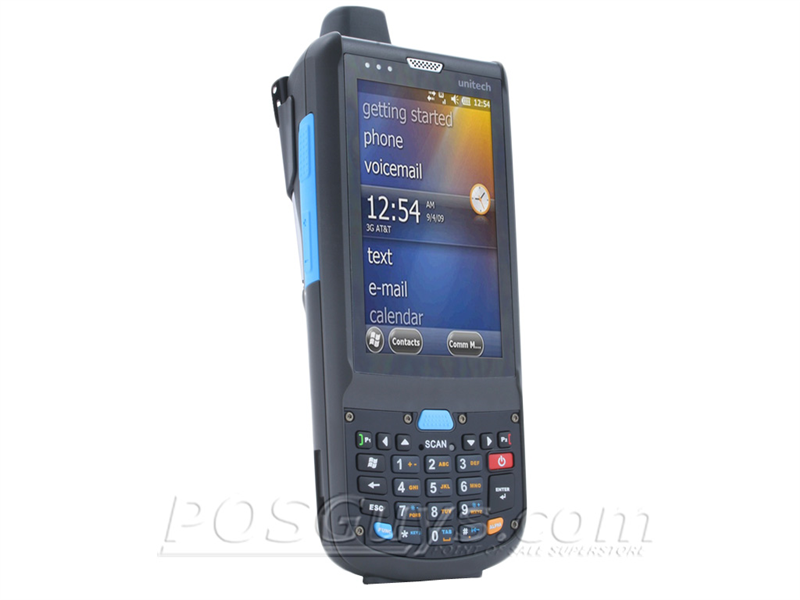

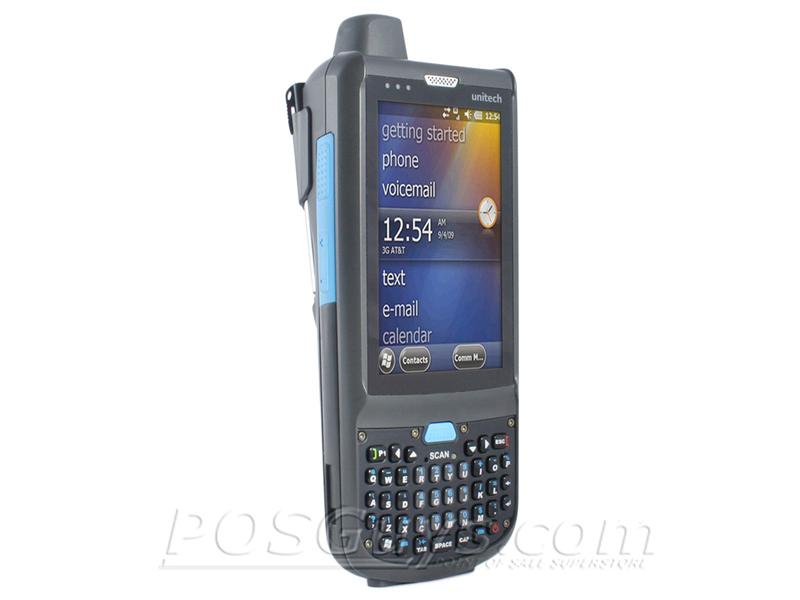

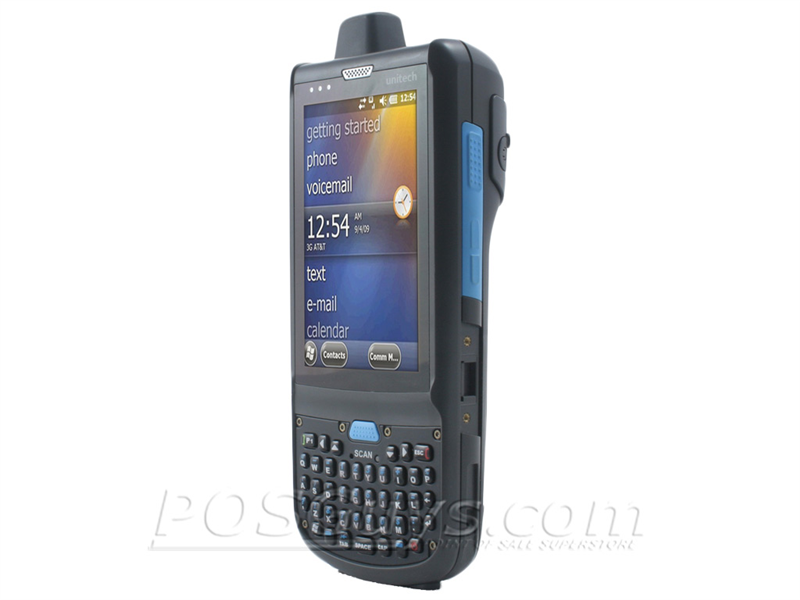

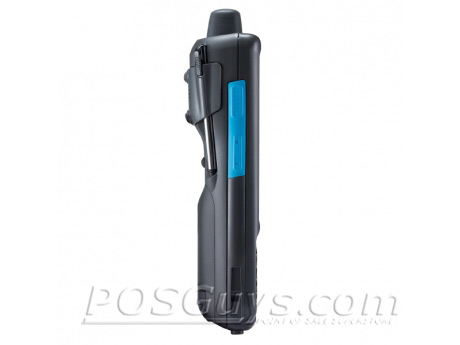

PA690 Product Image

The pictures shown are general images for product PA690 and may not be applicable to all part numbers

PA690 Mobile Computers


The UniTech PA690 has reached end of life. It has been replaced by the UniTech PA962 / PA963.

This product replaces the older UniTech PA600.

The Unitech PA690 mobile computer offers a rugged design and unique feature set ideal for field service, delivery, and data management inside or outside the four walls. 802.11a/b/g and BlueTooth radios come standard, making it easy to maintain data connections while indoors. Optional models come equipped with additional GPS and GSM/GPRS, turning the PA690 into a fantastic route management and field service solution.

At 3.8" diagonal, the PA690's screen is the largest in the industry, giving you full 800 x 480 WGA resolution. This extended space is fantastic for route delivery services, maximizing displayable data during signature capture. The crisp display is also reactive to ambient light, automatically adjusting screen brightness to maintain easy reading and extend battery life.

Unitech built the PA690 to withstand rough and demanding environments, reinforcing it against damage that would take out lesser mobile computers. The body is built to withstand drops of 5-feet, excellent if knocked out of an employee's hand or off the seat of a truck. Environmental sealing gives the PA690 an IP65 seal rating, completely sealing internal components against dirt and protecting it from low pressure jets of water. With a 1-year standard warranty and optional extended coverage, the Unitech PA690 is a fantastic industrial mobile computing solution.

Features
• Windows Mobile 6.5
• 806 MHz Marvell PXA320 Processor
• 256 MB RAM, 512 MB Flash
• Largest in industry 3.8" WVGA touchscreen
• Optional gun grip for easy use
• Power and interface cables included

Everything you need to get connected is included with the PA690.
Product Specifications
Weight 13.76
Dimensions 2.9" x 1.6" x 7"
Operating System Windows Mobile 6.5
Processor 806 MHz Marvell PXA320
Memory 256 MB RAM, 512 MB Flash
Screen 3.8" TFT LCD at 800 x 480 (WVGA)
Seal Specification IP65
Battery Standard: 3.7 V 2200 mAh, Extended: 3.7 V 4000 mAh
Interface USB, Bluetooth, 802.11a/b/g
Cellular Radio 3.5G Five Band: GSM/GPRS, UMTS WCDMA/HSDPA, GPRS Edge
Expansion MicroSD Slot
Operating Temperature 14° to 122° F
Humidity 5% to 95% non-condensing
Drop Specification Withstands 6-foot drops to concrete
Keyboard 44-Key QWERTY or 26-Key Numeric
Scan Method 1D Laser Scanner
Color Options Grey
