UniTech PA692

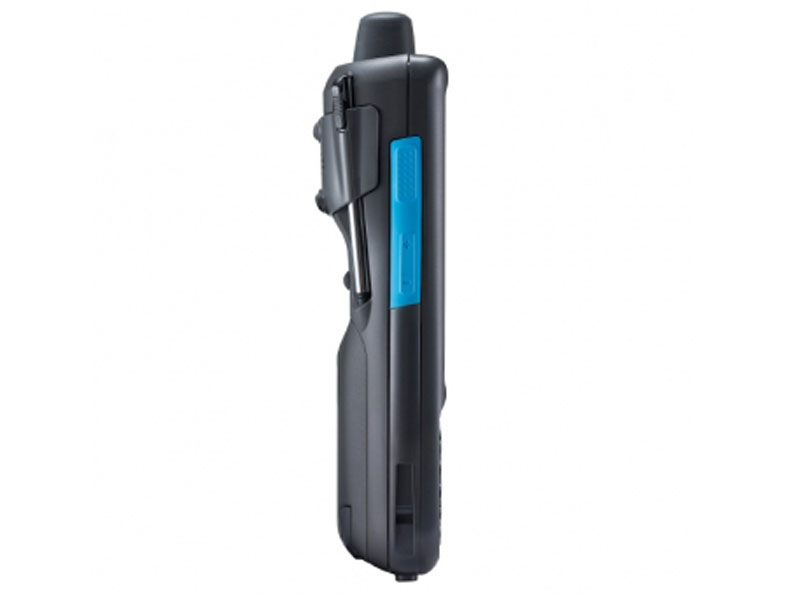

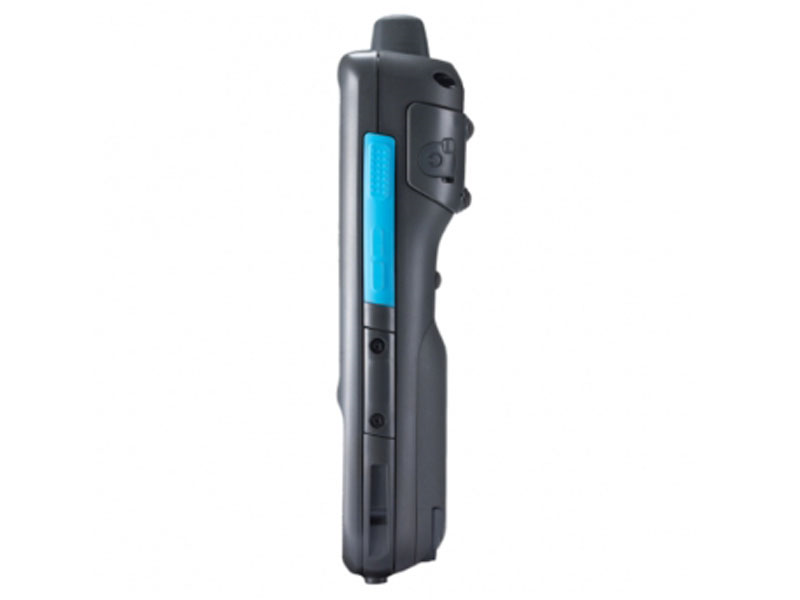

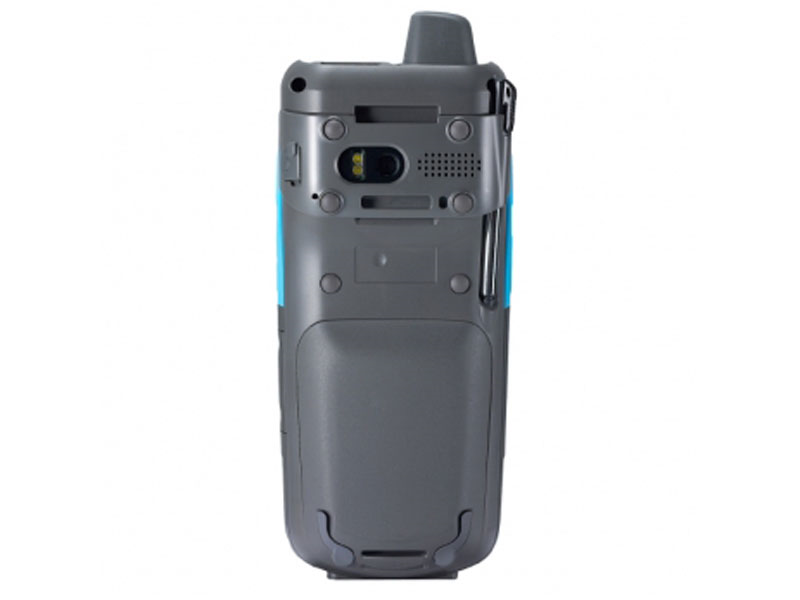

The pictures shown are general images for product PA692 and may not be applicable to all part numbers
PA692 Mobile Computers
The UniTech PA692 has reached end of life. It has been replaced by the UniTech PA760.
This product replaces the older UniTech HT660e.
The PA692 is a rugged handheld computer designed to yield impressive results in various work environments.
Please go to the downloads to install the Windows Mobile Helper to help Windows Mobile Sync after a recent update has created problems with the Windows Mobile Device Center. Read more about this here:
https://posguys.com/blog/tech-support/article/windows-10-mobile-sync-fix
- Features
- Windows Embedded Handheld 6.5 Pro
- Industrial Grade 1G MHz Processor
- 3.8" WVGA High Resolution LCD
- IP65 Rated and 1.5M Drop Certified
- Built in 1D/2D Scanner and RFID Reader
- Dual Microphone
Charging Note: The PA692 does come with charging equipment. Additional USB cables, charging docks, and power supplies must be purchased separately. See Accessories for all your charging needs.
| Product Specifications | |
|---|---|
| Weight | 13.76 oz (390g) with 2200mAh Battery 15.7oz (430g) with 4000mAh Battery |
| Dimensions | 17.7 cm (7 in) x 7.4 cm (2.9 in) x 4 cm (1.6 in) |
| Operating System | Windows Embedded Handheld 6.5 Professional and Classic |
| Processor | TI AM3715 1G MHz |
| Memory | 512MB Mobile DDR RAM 512MB NAND Flash |
| Screen | Transflective color 3.8” full WVGA with backlight 800 x 480 sunlight readable LCD |
| Seal Specification | IP65 |
| Camera | 5.0 megapixel autofocus camera with flash Unitech MPEG-4 video codec (VGA resolution) |
| Battery | Main Battery: 8.14 Watt-Hour 3.7V @2200 mAh, 14.8 Watt- Hour 3.7V @4000 mAh Backup Battery: Li-Coin battery Supports 2 hours backup |
| Interface | USB 2.0 WLAN Bluetooth WWAN |
| Cellular Radio | 3.75G Radio UMTS / HSPA+, 3GPP release 6 / 7 USA: Dual Band UMTS/HSPA+ (850, 1900 MHz), Dual-Band GSM (850/1900 MHz) EU: Dual Band UMTS/HSPA+ (900/2100 MHz) |
| Expansion | microSD slot with SDHC Support (up to 32GB) |
| Operating Temperature | 14˚F to 122˚F (-10˚C to 50˚C) |
| Humidity | 5% ~ 95% (non-condensing) |
| Drop Specification | 1.5m (5 feet) |

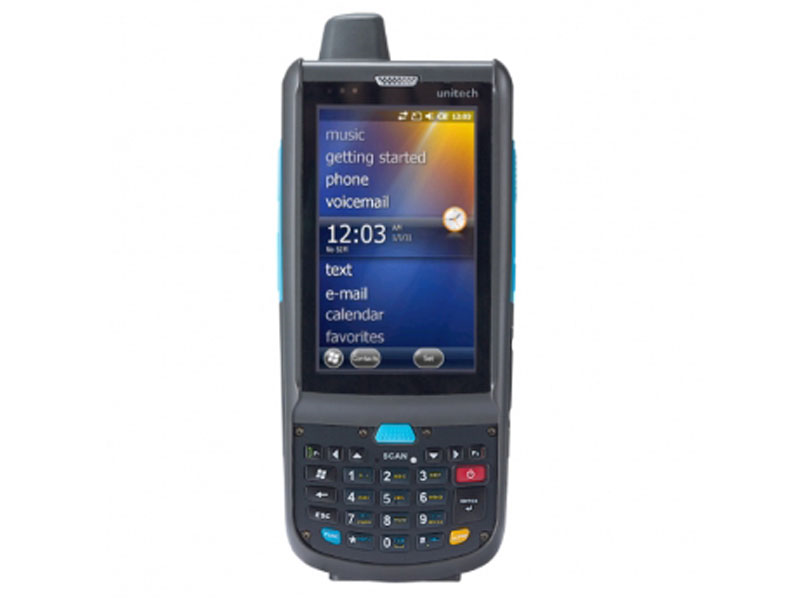

| Keyboard | 26-key Numeric keypad |
| Scan Method | 1D CCD Barcode scanner 2D Imager |
| Colors Options | Dark Grey |
| Languages Support | English, Simp. Chinese, Traditional Chinese, Japanese, Spanish, German, French |
| Warranty | 1 Year Warranty |
UniTech PA692 Reviews
Customer Reviews
Recommended Models

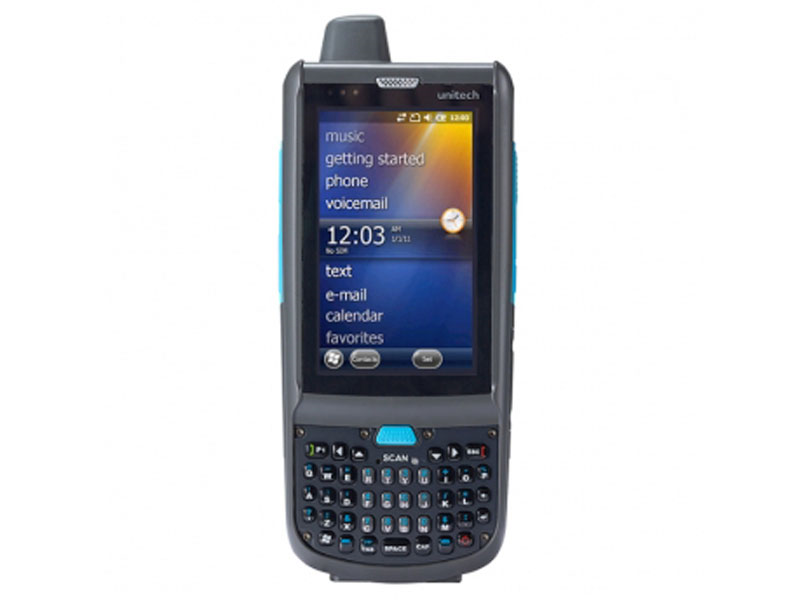

PA692 Mobile Computer, Grey with Laser Scanner, Camera, Wifi, Bluetooth, WEH 6.5, Battery, USB, Power Adapter, QWERTY Key Pad
Please Call
PA692 Mobile Computer, Grey with 1D and 2D Scanner, RFID, Bluetooth, Wi-Fi, Camera, QWERTY Keypad
Please Call
Additional Models
PA692 Mobile Computer, Grey with Laser Scanner, Camera, Wifi, Bluetooth, Windows Mobile 6.5, Battery, USB, Power Adapter, Numeric Key Pad
Please Call
Accessories
PA690 USB Desktop Cradle, 1-Bay with Bay for Spare Battery Charging, Includes USB Cable, Uses PA690 Power Supply for Charging
$116.64 Add to Cart

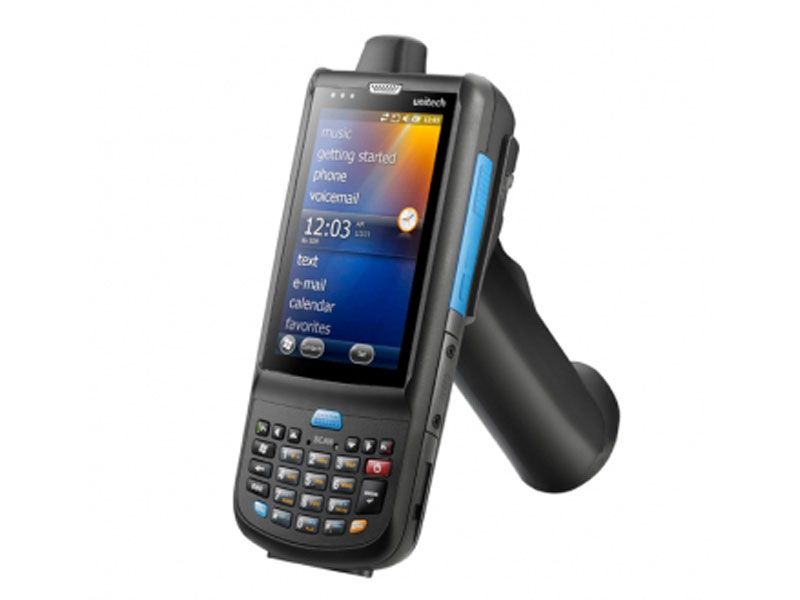

PA690 Gun Grip
