UniTech PA768

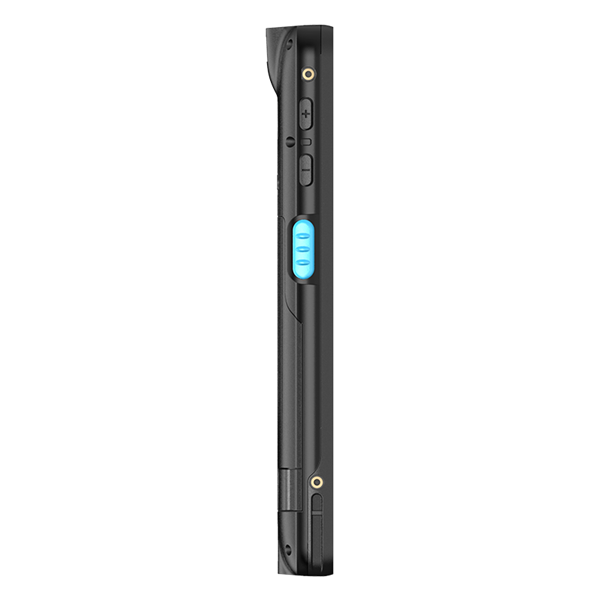

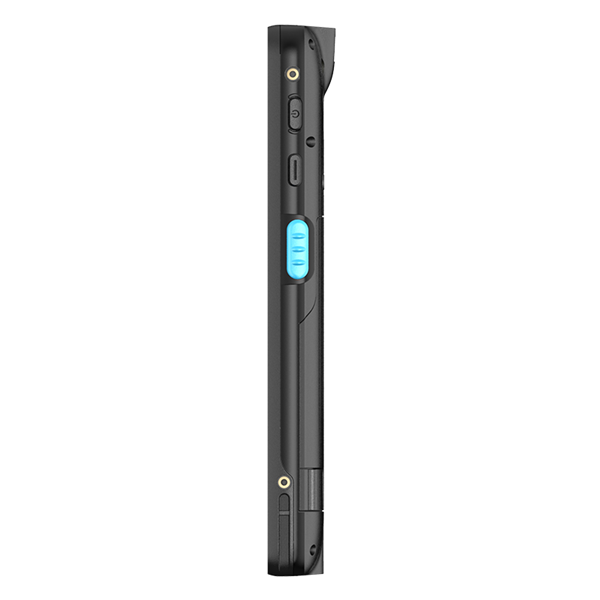

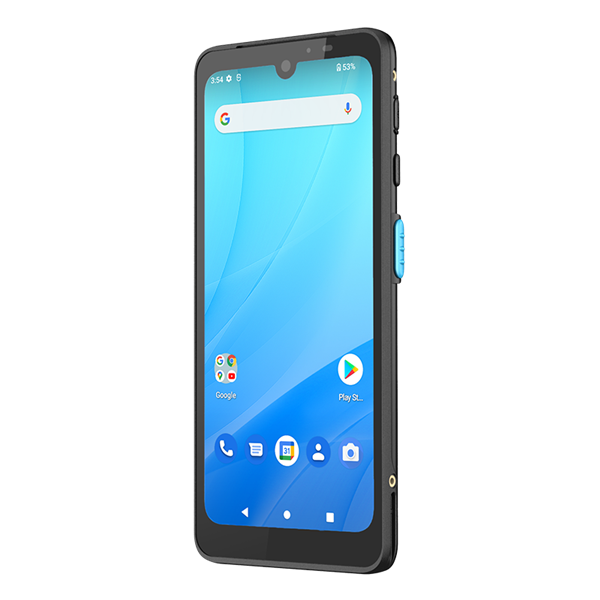

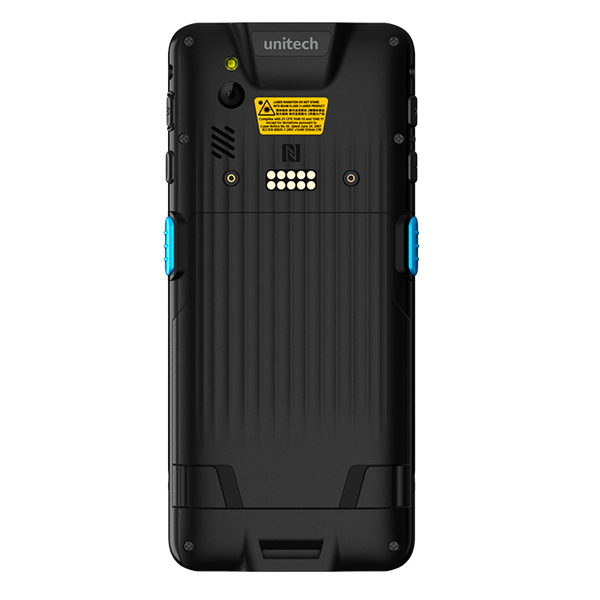

PA768 Product Image

The pictures shown are general images for product PA768 and may not be applicable to all part numbers

PA768 Mobile Computers


Unitech introduced its first 5G rugged mobile computer, PA768, which aims to boost the operation experience with speedy wireless communication, outdoor durability for various professions in field service, transportation and logistics applications.

Standard Features for the PA768 Include:

  • Connectivity: 802.11 a/b/g/n/ac/ax (Wi-Fi 6), Cellular 5G (select models), Bluetooth, NFC
  • Display:6.3” Color LCD 1080 X 2340 (FHD+) High Resolution Display High sunlight visibility- LCD backlight up to 500nits. Gorilla Glass with Multi-Touch Capacitive Touch Panel, support stylus, glove, wet-finger Compatibility
  • Power: Hot Swappable 5100mAh UL certified Li-ion battery / battery with cover in one piece 7700mAh UL certified Li-ion battery / battery with cover in one piece (optional). How Swap Keeps applications active up to 1 minute
  • Scan Engine: Superior barcode engine scans 1D/ 2D/ DPM (7mil) / DOT code/ barcodes on screens/ OCR. Multi-Scan function: Available to read 10 barcodes at one time
  • Camera: 5 MP Front camera. 16 MP Rear Camera with LED flash and auto-focus function. Support Google ARcore.
  • CPU: Qualcomm Snapdragon™ 6490 Processor, 64bits, Octa Cores up to 2.7 GHz
  • Memory: 6 GB RAM / 64GB UFS Flash (128GB option)
  • Operating System: Android 12 with GMS & AER certified
  • Drop Specifications: 1.8m drops with bumper to plywood over concrete at room temperature of 25°C per MIL-STD 810H
  • Sealing: IP65 & IP68 per IEC 60529
  • Vibration/Tumble test: Tumble 600 times (1.6 ft./0.5 m)

Powered by Android 12 OS with GMS & AER Certified


  • 6.3 inch (20:9) Android 12 rugged mobile computer with Split Screen function
  • Advanced 64-bit Octa Cores CPU up to 2.7 GHz
  • Google Certification: Google Mobile Service(GMS)/ Android Enterprise Recommended (AER)

Outstanding Long Range Barcode Reading Technology


Utilizing a premier 2D barcode scanning technologies, the PA768 rugged touch computer enables barcode reading at distances up to 10m* with 5G and Wi-Fi6E connectivity. It delivers a perfect solution for the warehousing environment that users can enjoy the high performance of barcode reading even from a short or a long distance and optimize work efficiency.

*Optional Middle range engine support read range up to 10 meters.

Support ARCore Technology


The PA768 rugged touch computer supports ARCore technology that allows developers to create augmented reality apps to sense its environments and interact with information. The PA768 enhances the CPU and built in the quality of both the camera and the motion sensors, it gives users stable performance to handle everything.

The ARCore technology transforms the way people work that helps to locate and identify the elements in warehouse management, allows training for the user while executing the production processes, and precise details of the areas at risk allow for increased vigilance limiting accidents in field service applications.

Reliable at its best


The PA768 also comes with the GMS certified that makes your toughest workdays easier. Reaching IP65 & IP68 enterprise protection and withstanding 1.8M drop makes PA768 a perfect tool to maximize data collection, management, and traceability in nearly every practice of transportation & logistics, field service, manufacturing, and more!

User-Friendly Functionality


• True Hot-swap battery design without downtime.
• Ergonomic handle design for long time use with a durable trigger key.
• Workers can run more smooth operations while wearing gloves (thickness ≤ 4mm) or wet-fingers.
• Various Accessories for customer needs.
• Support MDM Software Solutions and utilities such as Airwatch, SOTI, Ivanti Wavelink and MoboLink.

SmartPA: Better Audio Output


SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.

Optical Character Recognition (OCR)


• Easily convert numbers or characters to digital formats on cardboards, paperwork, electronic chips.
• Minimize the typing mistakes when entering the numbers.
• Streamline your tedious typing process.

Effortlessly Process Payments with Softpay


The Unitech PA768 offers support for the Softpay softPOS application, providing a unique mobile point-of-sale solution. This empowers store staff to assist customers on the shop floor and process payments anywhere within the store, eliminating the need for traditional cashier counters. By simply downloading the Softpay solution onto your existing PA768 device, it transforms into a versatile contactless payment terminal. Over time, this innovation allows users to reduce the number of conventional checkout counters in their stores, resulting in a more streamlined and seamless customer experience.

Passed Apple Value-Added Services (VAS)


AppleVAS, developed by Apple, simplifies the transfer of tickets and passes (like event tickets, membership cards, and discount coupons) from the Apple Wallet on iOS devices to compatible NFC terminals. This means users can present their passes effortlessly, without physical cards, directly from their Apple Wallet. Experience streamlined access to events, membership benefits, or coupon redemptions with the AppleVAS protocol, making interactions quicker, more secure, and completely hassle-free. With the PA768 and your iOS device, forget about digging through your wallet. Simply unlock your device using Face ID, Touch ID, or a password, and bring it close to the PA768. This method marries convenience with security—the data transmission is encrypted and secure, safeguarding your information. Enjoy swift, secure pass reading without physical contact or traditional methods.
Product Specifications
Operation System
  • OS: Android 12 with GMS & AER certified
  • CPU: Qualcomm Snapdragon™ 6490 Processor, 64bits, Octa Cores up to 2.7 GHz
  • Memory: 6 GB RAM / 64GB UFS Flash (128GB option)
  • Languages support: Multiple languages
  • AI: 6th Gen Qualcomm AI Engine
Display
  • Screen: 6.3” Color LCD 1080 X 2340 (FHD+) High Resolution Display
    High sunlight visibility - LCD backlight up to 500 nits
  • Touch Panel: Gorilla Glass with Multi-Touch Capacitive Touch Panel, support stylus, glove, wet-finger compatibility
Keypad Programmable key, Volume up/down key, Left/Right scan key, Power key
Indicator LEDs, Vibrator, Speaker
Camera
  • 5 MP Front camera
  • 16 MP Rear Camera with LED flash and auto-focus function, Support Google ARcore
RFID
  • UHF: UHF gun grip (see RG768)
  • HF: Support HF/NFC
    • Frequency: 13.56 MHz
    • Support: ISO14443A/B, ISO15693, Mifare, Felica (ISO/IEC18092)
  • Apple VAS: Apple VAS certified
    *available only for specific SKU
Power Source
  • Main battery: Hot Swappable 5100mAh UL certified Li-ion battery / battery with cover in one piece
  • Extended battery: 7700mAh UL certified Li-ion battery / battery with cover in one piece (optional)
  • Hot Swap: Yes, keeps applications active up to 1 minute
Enclosure
  • Dimensions (H x W x D): 167mm x 75.5mm x 17mm
  • Weight: 297 g (with bumper & standard battery)
Symbologies
  • Built-in 2D imager engine with red laser aimer, with 1 Mpx & global shutter function
  • Optional Middle range engine support read range up to 10 meters
  • Support all 1D & 2D major barcodes
Communication
  • Bluetooth®: Bluetooth® 5.2, BLE 5, Class 1.5
  • WLAN:
    • Wi-Fi 6E+DBS, 2.4GHz & 5GHz & 6GHz
    • IEEE 802.11a/b/g/n/ac/ax/d/e/h/i/k/r/v (2x2 MU-MIMO)
    • Security: WPA3, WPA2, WPA & WEP
  • WWAN:
    • 5G Sub 6GHz: N1/N2/N3/N5/N28/N41/N48/N71/N77/N78/N79 (4x4 MIMO)
    • 4G LTE (FDD) – Bands 1, 2, 3, 4, 5, 7, 8, 17, 20, 28, 48
    • (TDD) – Bands 38, 39, 40, 41
    • 3G UMTS/HSPA+ – Bands 1, 2, 5, 8
    • 2G GSM/GPRS/EDGE (850/900/1800/1900 MHz)
    • *Support Dual SIM Dual 5G
    • *Support 4G LTE Advanced, Up to CAT12 LTE downlink/uplink
  • GPS: GPS, GLONASS, Galileo, Beidou, OZSS, SBAS, supports L1+L5, a-GPS, XTRA
  • Sensors: Gyroscope, G-sensor, E-compass, Light & Proximity Sensor
I/O Interfaces
  • USB: USB 3.1 type C, support fast charging, OTG, Display Port Mode by dongle or USB-C of Ethernet cradle
  • POGO PIN: Bottom pogo pin for cradles, rear pogo pin for gun grips
  • SIM Slot: Nano SIM Slot x 2
  • Expansion Slot: Micro SD x 1, up to 1TB
  • Audio:
    • SmartPA Speaker support 100 dB at 10cm
    • Dual-Microphone support noise cancellation
Environmental
  • Operating temperature: -20°C to 55°C (-4°F to 131°F)
  • Storage temperature: -40°C to 70°C (-40°F to 158°F), without battery
  • Relative Humidity: 5% ~ 95% (Non-Condensing)
  • Drop test to Concrete: 1.8m drops with bumper to plywood over concrete at room temperature of 25°C per MIL-STD 810H
  • Environmental Sealing: IP65 & IP68 per IEC 60529
  • Vibration/ Tumble test: Tumble 600 times (1.6 ft./0.5 m)
Accessories
  • Hand Strap
  • USB 3.0 type-C cable
  • Fast Charge Adaptor
  • 9H Glass Screen Protector
  • Multi-Slot Terminal Charging / Ethernet Cradle / Battery Charger
  • 1-Slot Charging / USB / Ethernet cradle
  • Standard/UHF Gun Grip
  • Stylus & Coiled Strap

UniTech PA768 Reviews

POSGuys Rating: Not Rated

Customer Reviews

Recommended Models

PA768 Mobile Computer 2D Standard Range, WiFi, Bluetooth, Camera, USB Cable, Power Adapter, Bumpers and Handstrap.
Standard or Long Range:Standard Range
Connectivity:WiFi

Additional Models

PA768 Mobile Computer 2D Standard Range, WiFi, Bluetooth and Cellular, Camera, USB Cable, Power Adapter, Bumpers and Handstrap.
$1013.00 Add to Cart
Connectivity:Cellular & WiFi
Standard or Long Range:Standard Range
PA768 Mobile Computer 2D Standard Range (No Radios, No Cameras, No Microphones, No GPS, No NFC), USB Cable, Power Adapter, Bumpers and Handstrap. TAA Compliant.
$1215.00 Add to Cart
Standard or Long Range:Standard Range
TAA Compliant:TAA Compliant
Connectivity:USB Only
PA768 Mobile Computer 2D Far Range, WiFi and Bluetooth, Camera, USB Cable, Power Adapter, Bumpers and Handstrap.
$1079.00 Add to Cart
Standard or Long Range:Long Range
Connectivity:WiFi
PA768 Mobile Computer 2D Standard Range, WiFi, Bluetooth & Cellular, Camera, USB Cable, Power Adapter, Bumpers and Handstrap. Supports HF RFID. TAA Compliant.
$1170.00 Add to Cart
Connectivity:Cellular & WiFi
Standard or Long Range:Standard Range
TAA Compliant:TAA Compliant

Accessories

Power Supply For Unitech Multi-Slot Charging Cradles.
USB 3.0 Type C Cable for PA760 and HT730
PA768 hand strap w/ buckle, including fixed arm-1, screw-2, single packing
Stylus Tether (for HT680 / HT682 / PA550 / PA690 / PA692 / PA968)

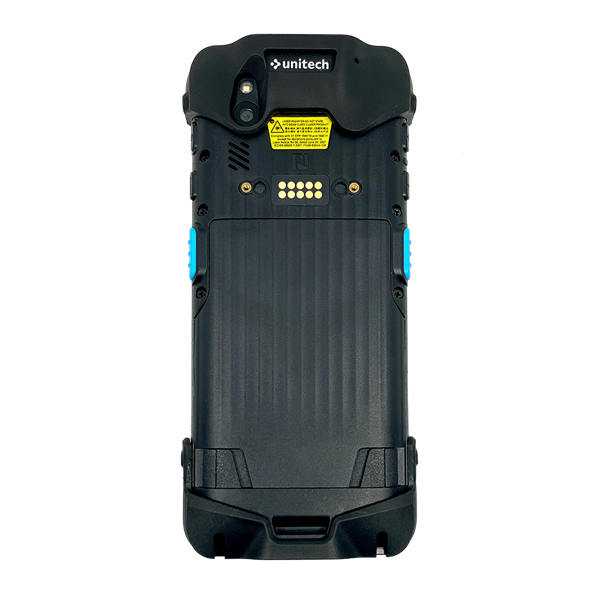

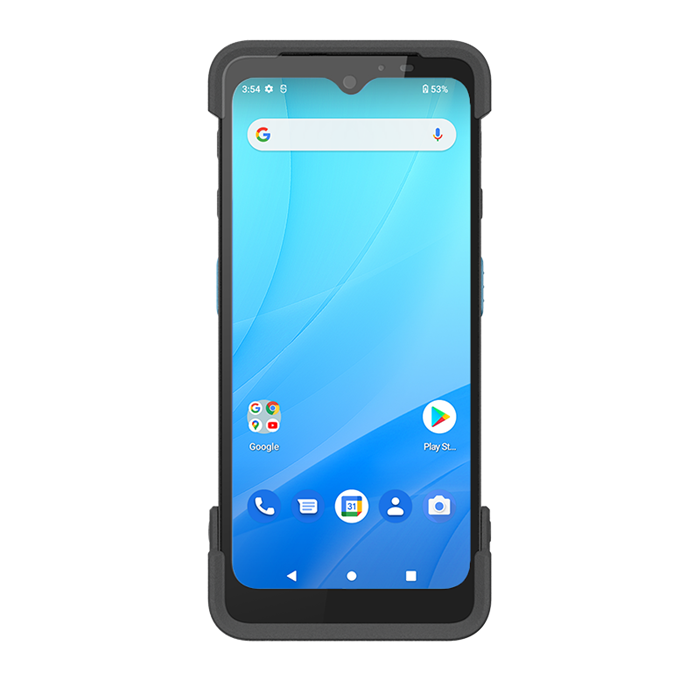

PA768 bumper
PA768 standard gun grip - Before installing, remove bottom bumper, black mylar over pogo pin, and hand strap & bridge from PA768
RG768 UHF RFID Gun Grip for PA768 with Bumper
PA768 Extended Battery: 3.85V, 7700mAh Li-ion smart battery w/ packing.
PA768 5-Slot Charging Cradle w/ power
PA768 1-Slot Charging Cradle w/ power supply (5V/6A)
PA768 1-Slot Ethernet Cradle w/ power supply (5V/6A)
PA768 Battery: 3.85V, 5100mAh with packing.
Power Adapter 5V/3A
