Zebra MC3200

The pictures shown are general images for product MC3200 and may not be applicable to all part numbers

MC3200 Mobile Computers

The Zebra MC3200 has reached end of life. It has been replaced by the Zebra MC3300.

This product replaces the older Zebra MC3100.

Windows Mobile and WinCE are no longer available please contact POSGuys for alternatives or to check refurbished stock

The Zebra Enterprise MC3200 mobile computer adds improvements on the MC3100 line, creating a robust and powerful way to improve productivity at your business. Available with a variety of configurations and operating system choices, the MC3200 is a smart choice for shipping/picking applications, warehouse inventory management, and other jobs within the four walls.

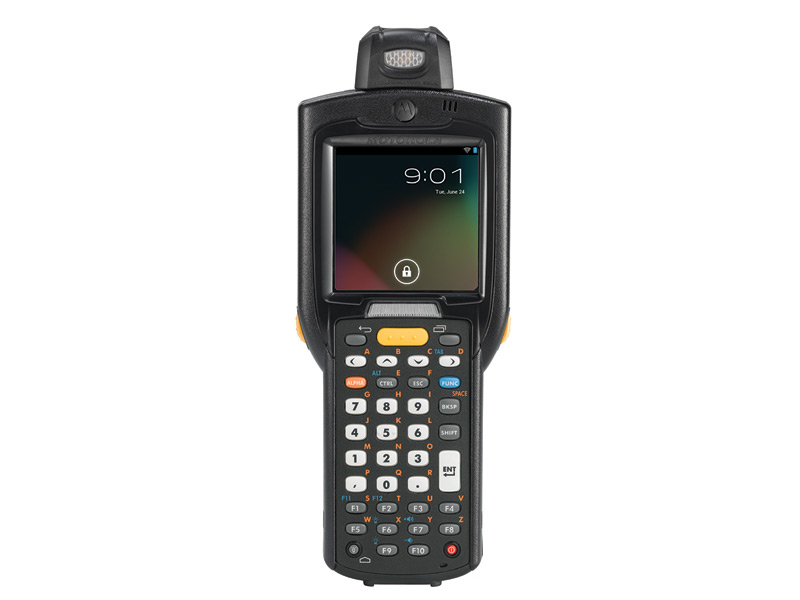

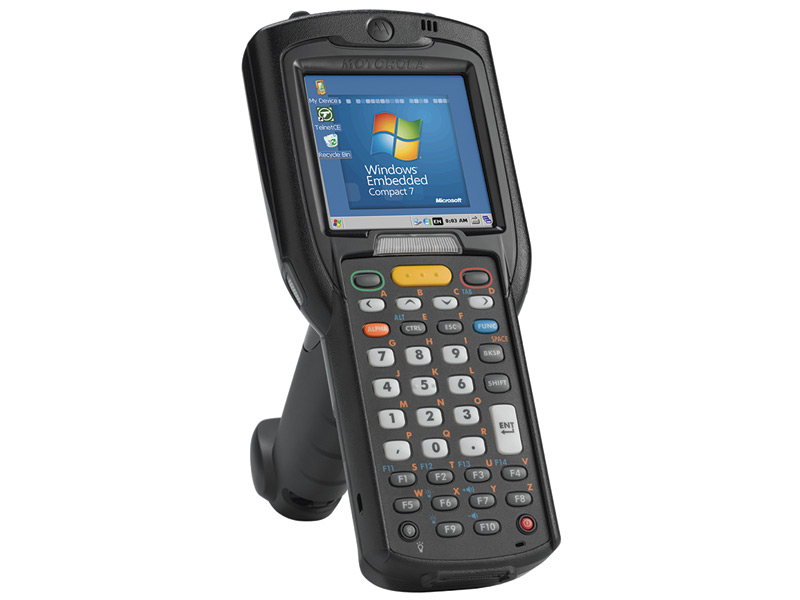

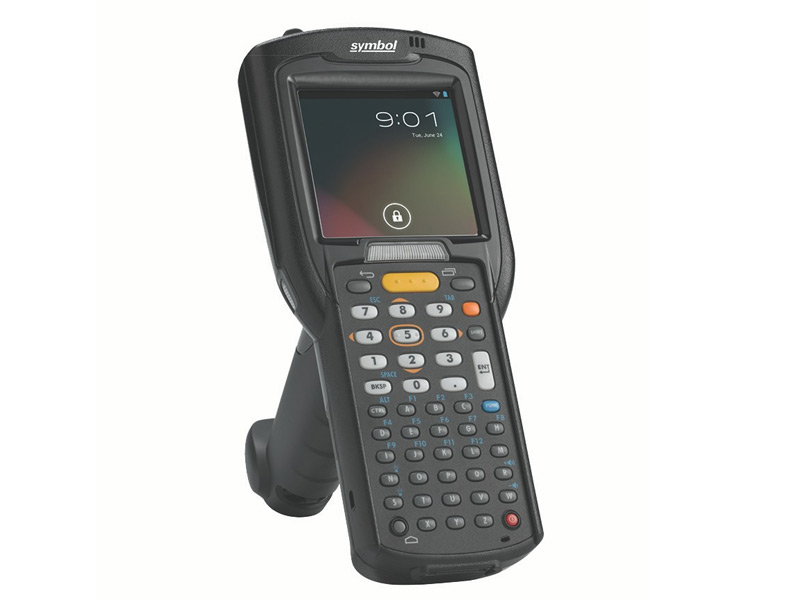

The MC3200 is available in three form factors: a straight shooter brick model, a model with rotating scanning turret, and a model with trigger grip. Running your choice of Windows CE 7.0 or Android 4.1, the MC3200 is ideally suited for running legacy mobility apps as well as newer Android-based productivity platforms. You also get your choice of 1D laser scanner or 2D area imager, allowing you to tailor your data capture to your specific needs. 3 keypad layouts are available, making it easy to find a design ideal for your workforce.

Staying in contact within the four walls is vital, and the MC3200 is designed to keep that going easily. Bluetooth in the mobile computer allows you to connect wireless headsets for picking, mobile printers, or other necessary peripherals. For up to the minute data synchronization, the MC3200's 802.11a/b/g/n Wifi radio can keep you connected to virtually any wireless network. The mobile computer even supports push-to-talk, great for quick communication with supervisors and coworkers who might not be nearby.

Zebra Enterprise built the MC3200 to handle the rough use that can happen in industrial settings, ensuring you get the most from your investment. The mobile computer can withstand 4-foot drops to concrete, so the knock off a counter or out of a holster won't slow it down. It's rated to operate in cold temperatures, making it a smart choice for cold storage or deep freezer data management. And an IP54-rated seal ensures windblown dust and water splashes won't harm internal components. A 1-year warranty is standard, and Zebra Enterprise offers additional Service from the Start coverage contracts.

  • Windows CE 7.0 or Android 4.1 operating system
  • 28-key, 38-key, and 48-key keypad layouts
  • Straight shooter, rotating scanner, or gun style form factors
  • 802.11a/b/g/n, Bluetooth radios
  • 1-year warranty
Charging Note: The MC3200 does NOT come with any charging equipment. USB cables, charging docks, and power supplies must be purchased separately. See Accessories for all your charging needs.
There are many MC3200 configurations available. We recommend using the feature highlighter below to help determine the model with the right features for your needs.

The Zebra Enterprise MC3200 was previously known as the Motorola MC3200.

Product Specifications
Weight Straight Shooter: 12.88 oz./365 g
Rotating Turret: 13.13 oz./372 g (with standard battery)
Gun: 18.0 oz./509 g (with extended battery)
Dimensions Straight Shooter: 7.49 in. L x 3.22 in. W x 1.78 in. D 190.4 mm L x 81.9 mm W x 45.2 mm D At grip: 2.40 in. W x 1.35 in. D 60.9 mm W x 34.2 mm D
Rotating Turret: 8.37 in. L x 3.22 in. W x 1.57 in. D 212.6 mm L x 81.9 mm W x 40.0 mm D At grip: 2.40 in. W x 1.35 in. D 60.9 mm W x 34.2 mm D
Gun: 7.59 in. L x 3.18 in. W x 6.5 in. D 192.7 mm L x 80.8 mm W x 166 mm D
Operating System Windows Embedded Compact 7.0 (Standard or Premium) or
Android 4.1 (Premium)
Processor Dual core 800 MHz OMAP4 Processor (Standard) o
Dual core 1 GHz OMAP4 processor (Premium)
Memory 512 MB RAM/2 GB Flash (Standard)
1GB RAM/4 GB Flash (Premium)
Screen 3.0 in. color (TFT) (320 x 320) display
Keyboard 28-key Numeric
38-key Shifted Alpha
48-key Alpha-Numeric
Battery PowerPrecision Li-Ion batteries Two options: High Capacity 4800 mAh or
Standard Capacity 2740 mAh (not available on gun form factor)
Camera n/a
Scan Method 1D Laser1 : SE965 Standard Range with Adaptive Scanning (all models)
1D/2D Imager: SE4750-SR (Straight Shooter and Gun models only)
Expansion User accessible Micro SD slot; (supports up to 32 GB microSDHC)
Operating Temperature -4° F to 122° F/-20° C to 50° C
Humidity 10 - 95% non-condensing
Seal Specification IP54
Drop Specification 4 ft./1.2 m drops to concrete
Wireless Bluetooth®
WiFi 802.11a/g: up to 54 Mbps; 802.11b: up to 11 Mbps; 802.11n: up to 65 Mbps (72 Mbps w/SGI)
Warranty 1 Year
