Zebra MC3100

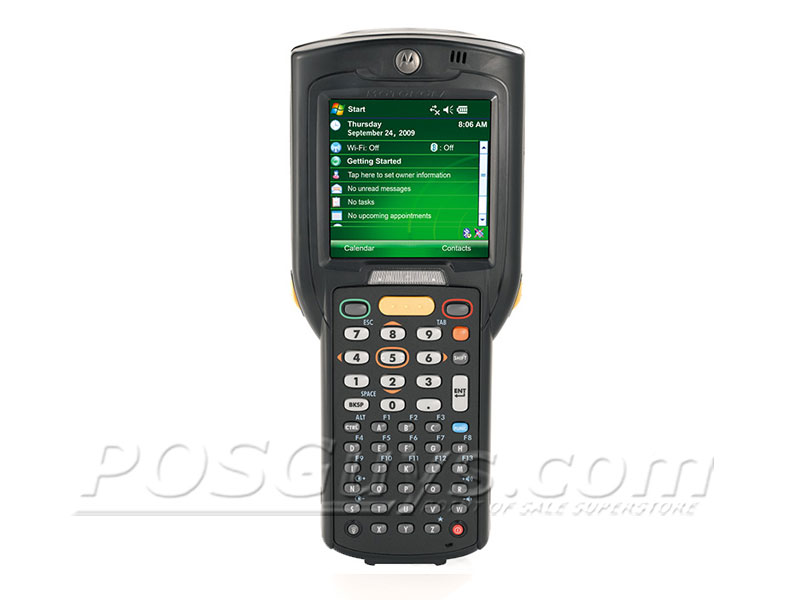

MC3100 Product Image

The pictures shown are general images for product MC3100 and may not be applicable to all part numbers

MC3100 Mobile Computers


The Zebra MC3100 has reached end of life. It has been replaced by the Zebra MC3200.

This product replaces the older Motorola MC3000.

The Zebra Enterprise MC3100 and MC3190 mobile computers build on the strengths of the MC3000, giving you a fantastic and rugged solution for data capture within the four walls. Three unique form factors - a straight shooter, rotating scan engine, and traditional gun-style - meet the specific needs of different applications while eliminating unnecessary features.

Powered by your choice of Windows Mobile 6.5 or Windows CE 6.0 Pro, the MC3100 is compatible with most major mobile application platforms. 256 MB of RAM ensures applications run quickly and easily, and up to 1 GB of flash storage can hold even massive data files. Data capture on the MC3100 is a snap with your choice of 1D laser scanner or 2D imager. For data transmission, the MC3100 provides quick batch processing, while the MC3190 offers 802.11a/b/g wireless connectivity.

Zebra Enterprise built the MC3100 with industrial applications in mind, and the durability of the mobile computer will keep it running well. The rugged design of the MC3100 protects it from drops of 4 feet to concrete, and the IP54 environmental seal keeps dust and water splashes from harming the internal components. Able to operate at temperatures as low as -4° F, the Motorola MC3100 is an ideal choice for outdoor or cold storage inventory management. Additional Service from the Start warranties, including comprehensive coverage, further protect your investment, making the Motorola MC3100 a smart and economical choice.

Features
• 624 MHz Marvell PXA320 Processor
• 256 MB RAM; 512 MB or 1 GB Flash ROM
• Runs Windows CE 6.0 Pro or Windows Mobile 6.5 Classic
• IP54 seal protects from windblown dust & water splashes
• Operates in temperatures as cold as -4° F

Product Breakdown

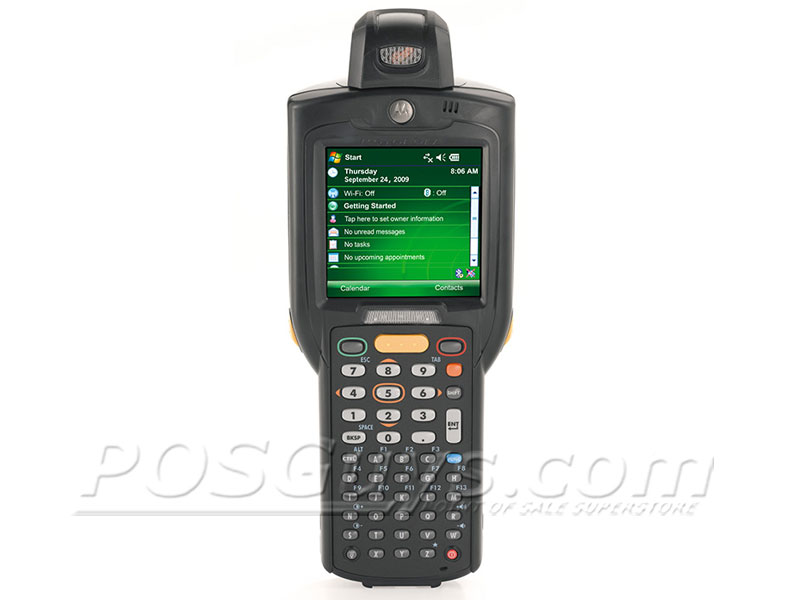

• MC31XX-R: Rotating Scan Engine, Laser Scanning Only
• MC31XX-G: Gun-Style Body, Laser Scanner or 2D Imager
• MC31XX-S: Straight Shooter Brick-Style Body, Laser Scanner, 2D Imager, or DPM Scanner

The MC3100 does not ship with charging or communications cables. We recommend purchasing MC3000/MC3100 Cradle Kit (CRD3000-100RES).

The Zebra Enterprise MC3190 mobile computer was also known as the Motorola MC3190.

Product Specifications
Weight 14.95 oz (424 g) - including strap, stylus, and battery
Dimensions 7.49L x 3.25W x 1.77D in (190.4 x 82.6 x 45.2 mm)
Seal Specification IP54
Expansion SD/MMC Slot
Processor 624 MHz Marvell PXA320
Drop Specification Withstands 4-foot drops to concrete
Humidity 5% to 95% non-condensing
Screen 3-Inch TFT LCD at 320x320
Keyboard 28-Key Numeric, 38-Key Shifted Alpha, or 48-Key Alphanumeric
Color Options Black
Scan Method 1D Laser Scanner or 2D Imager
Storage Temperature -40° to 158° F
Operating Temperature -4° to 122° F
Operating System Windows CE 6.0 Pro, Windows Mobile 6.5 Classic
Memory 256 MB RAM, 512 MB or 1 GB Flash ROM

Zebra MC3100 Reviews

POSGuys Rating:

The MC3000 was one of our top sellers, and we expect the MC3100 to keep pace. The combination of industrial capabilities and a reasonable price makes the MC3100 is a great fit for retailers needing advanced durability but not all the features of a high-end industrial mobile computer. The addition of Zebra's "Blockbuster" SE4500 scan engine makes data capture easier than ever.

Customer Reviews

Accessories

MC3100 Replacement Battery, High Capacity (4800 mAh) (Compatible with MC3100 Imager) (Batteries must be shipped via ground shipping)
MC3100 Replacement Battery 10-Pack, High Capacity (4800 mAh) (Batteries must be shipped via ground shipping)
MC3000 Battery: 2740 mAh High Capacity, Lithium Ion, 3.7V (Compatible with MC3000 Laser) (Batteries must be shipped via ground shipping)
MC3100 Replacement Battery 10-Pack, Standard Capacity (2700 mAh) (Batteries must be shipped via ground shipping)
MC3100 Service Center Bronze Warranty, Does Not Include Comprehensive Coverage, Nor Cradles, 1 Year Contract
MC3100 Service Center Bronze Warranty, Does Not Include Comprehensive Coverage, Nor Cradles, 3 Year Contract
MC3100 Service from the Start 3 Year Contract, Includes Comprehensive Coverage, Does Not Include Cradles
MC3100 Service from the Start 5 Year Contract, Includes Comprehensive Coverage, Does Not Include Cradles
MC3100 Service Center Gold Warranty, Includes Comprehensive Coverage, Does Not Include Cradles, 3 Year Contract
MC3100 Service Center Gold Warranty, Includes Comprehensive Coverage, Does Not Include Cradles, 5 Year Contract
MC3000/MC3100 Cradle Kit, Includes Single Slot Cradle, Power Supply, Line Cord, USB/Serial Interface (Order Interface Cable Separately)
USB Charging/Communications Cable, Requires Power Supply and 2-Wire Line Cord (PWRS-14000-249R, 50-16000-182R)
AC Line Cord or Zebra Power Supplies
RS-232 Micro USB Interface Cable, For Cradle To Host Communication
MC3100 Service from the Start RENEWAL, additional 1 year, Includes Comprehensive Coverage, Does not cover cradles - this is for a renewal only
Power Supply, LEVEL VI AC/DC (Brick) AC Input: 100-240V, 0.6A DC Output: 5.4V, 3A, 16W Requires: DC Line Cord (CBL-DC-383A1-01) And Country Specific Un-Grounded AC Line Cord - Replaces PWRS-1400-249R
DC Line Cord For Use With Zebra Power Supply

Previously Available Models

Previously Available Accessories
