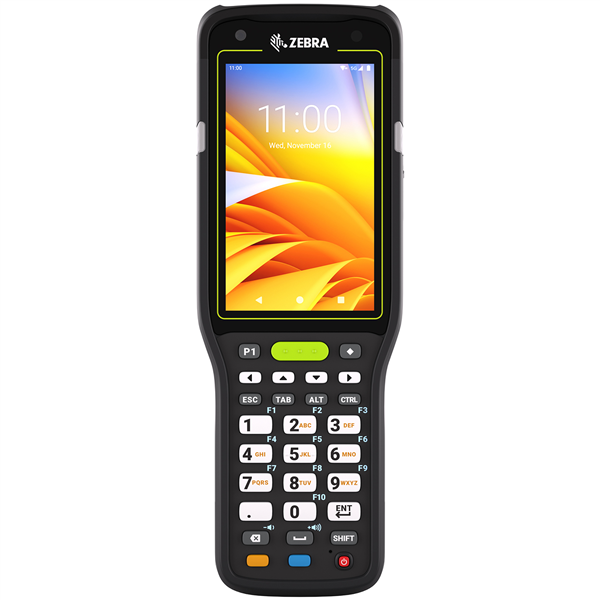

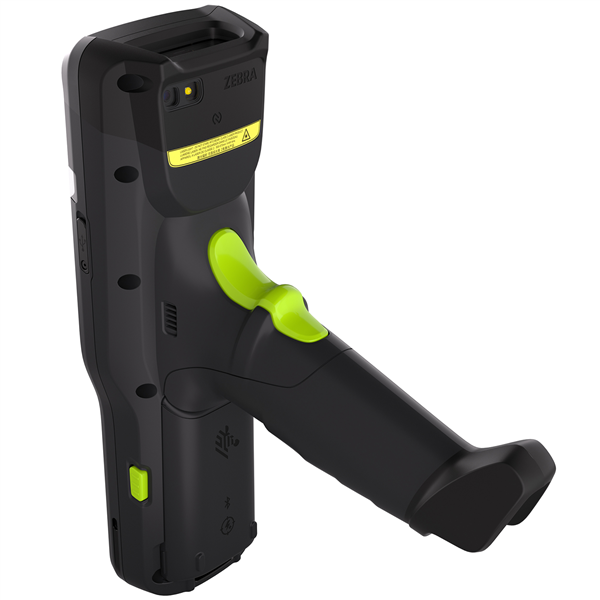

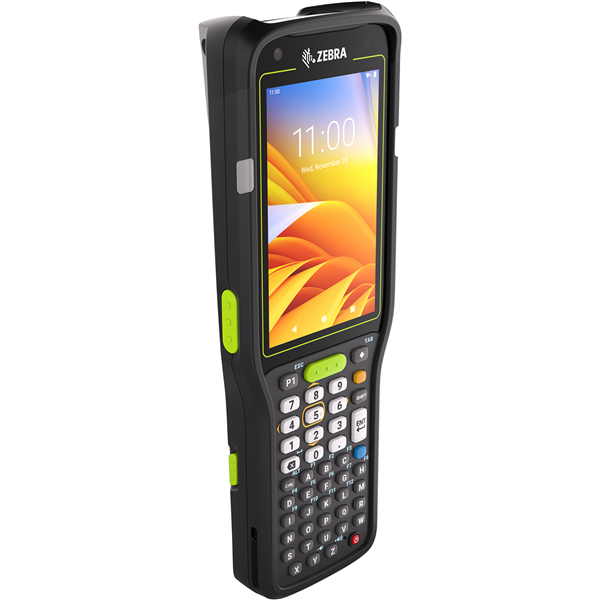

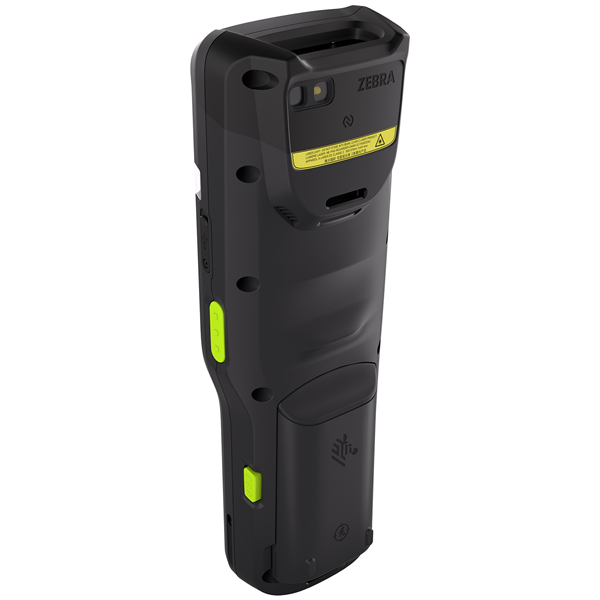

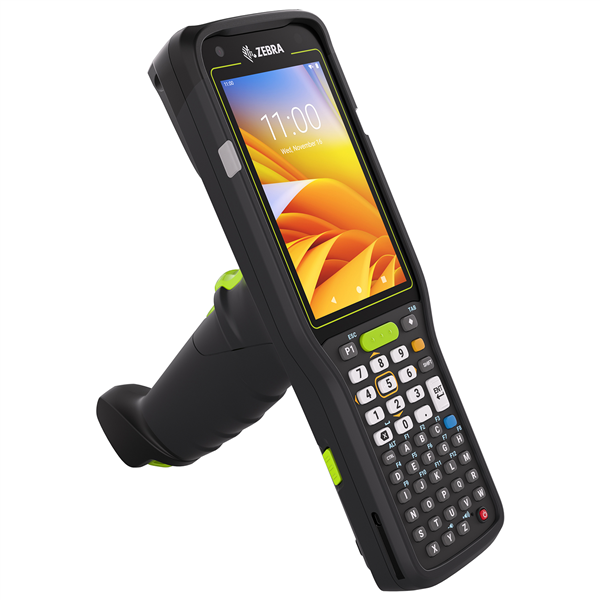

Zebra MC3400 / MC3450

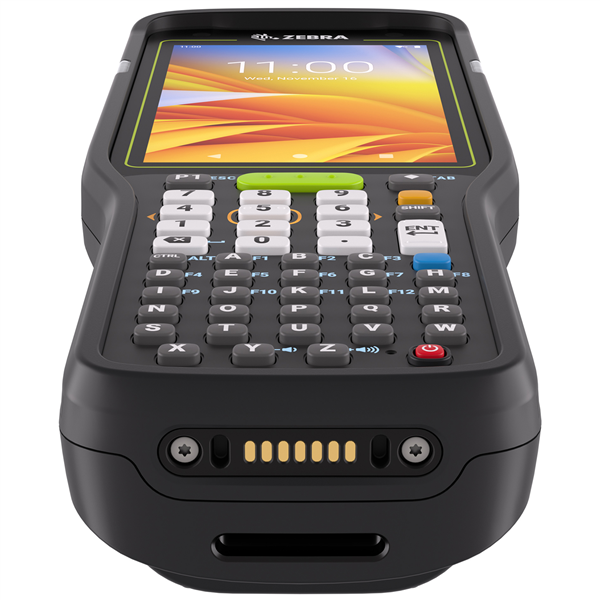

The pictures shown are general images for product MC3400 / MC3450 and may not be applicable to all part numbers





MC3400 / MC3450 Mobile Computers
The Ultimate Cost-effective Tool for Small Businesses — with Big Business Features.
- Connectivity: Wi-Fi 6e, Cellular 5G (select models), Bluetooth, NFC
- Display: 4 in WVGA (800 x 480), color display, Standard: 350 NITS (typical), Expanded/Full: 600 NITS (typical). Corning® Gorilla® Glass.
- Battery: Standard Rechargeable Li-Ion: 3.6V, 7000mAh (25.20 Wh); Optional BLE Battery Li-Ion 3.6V, 7000mAh (25.2 Wh); Hot swap battery backup with temporary session persistence
- Scan Engine:SE58 1D/2D Extended Range Scan Engine with IntelliFocus™ technology; SE55 Advanced Range Scan Engine with IntelliFocus™ technology; SE4770 1D/2D Scan Engine; SE4710 1D/2D Scan Engine
- Camera: Front: 5 MP; Rear: 13 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR
- CPU: Qualcomm® 4490 octa-core, 2.4 GHz
- Memory: Standard: 4 GB RAM/64 GB Flash; Expanded: 6 GB RAM/64 GB Flash; Full: 6 GB RAM/128 GB Flash
- Operating System: Standard: Upgradeable to Android 15
Expanded and Full: Upgradeable to Android 18 - Drop Specifications: Per MIL-STD 810H: 8 ft (2.4m)⁷ to concrete at (+23C/+73F); 6 ft (1.8m) to concrete across temperature (-20C to +50C/-4F to +122F) exceeding MIL-STD-810H
- Tumble Specification: 4,000 3.3 ft (1m) tumbles; meets or exceeds IEC tumble specification
- Sealing: Dual IP65 and 67 rating with battery per applicable IEC sealing specifications
Maximize User Productivity
Keep workers connected, no matter where they are
Wi-Fi 6E plus private and public 5G connectivity provides workers with fast and reliable wireless connections — from the production floor to the farthest corner of the warehouse, including vast outdoor ports and yards. And with a physical nano SIM and eSIM, you can support two networks on a single device.
Choose the right scanner for the job
Different use cases require different scanners. For standard barcode capture, choose the SE4710 1D/2D Scan Engine.
To capture barcodes, photos and documents indoors and outdoors — even in bright sunlight — choose the SE4770 1D/2D Scan Engine with a red laser aimer. Need a flexible scan range? The SE55 1D/2D Advanced Range Scan Engine with Intellifocus™ technology captures barcodes in-hand and on a top warehouse rack — over 40 ft (12.2m) away. And if you need extended range scanning up to 100 ft (30.5m) away, the SE58 Extended Range 1D/2D Scan Engine is ideal for scanning containers in ports and yards. And all options deliver split-second first time capture of virtually every barcode, regardless of condition.
Faster, easier and more accurate data entry — even with gloves

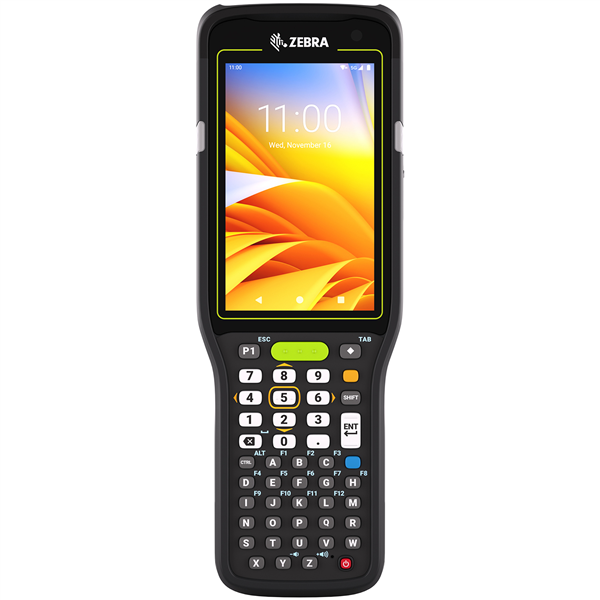

With larger keys and more space between the keys, data entry is easier — increasing productivity and reducing keying errors. And you can choose the keypad that best suits the type of data your workers enter with a choice of 47-key, 38-key and 29-key keypads.
High resolution front and rear cameras in all models
All models now offer a front-facing 5 MP camera. The rear-facing 13 MP camera, previously only available in the straight shooter (brick) form factor, is now available in the gun model as well. Now, workers can place a video call to resolve an issue faster, document damage to an incoming shipment or capture a document, such as a bill of lading or a return receipt, regardless of which model you choose.
Ensure only authorized users access your devices
Give users nearly instant access to devices with Identity Guardian, which enables secure login with biometric facial recognition via the front-facing camera. And APIs enable easy integration with your custom developed apps.
Maximize lifecycle and ROI with an advanced platform
Power practically any application
The Qualcomm® 4490 processor delivers nearly 2.5x more power, providing superior application performance. And with 50% more RAM and four times the Flash, there’s plenty of memory for data storage — and multi-tasking.
Future Android support — guaranteed
Support for future versions of Android™ provides the peace of mind that the devices you purchase today will support the new features of Android, well into the future.
More rugged, more reliable, more uptime
The MC3400 and MC3450 are the most rugged MC3000 Series devices yet, now drop-proof, tumble-proof, dust-proof and waterproof — able to handle being submerged in water and hosed down.
Easily upgrade from legacy MC33 Series devices
Since the look and feel is nearly identical to prior MC33 Series devices, your users will instantly feel at home with the MC3400 and MC3450, virtually eliminating training and ensuring instant adoption. And compatibility with existing MC33 Series accessories — including chargers and batteries — enables a cost effective upgrade to the newest mobile computing handheld device.
Run your Terminal Emulation apps right out of the box
With Ivanti Velocity pre-installed and pre-licensed on every model, you can run your green-screen apps ‘as is’ — no changes required.1 Staylinked’s SmartTE is also pre-installed, making it easy to transform green-screen apps into intuitive modern touch apps that boost workflow efficiency and worker productivity.
Do More with Your Devices With Read-to-Use Solutions
Add new capabilities with easy-to-manage Zebra DNA tools
Zebra DNA simplifies owning Zebra mobile devices with a comprehensive suite of software apps — many at no cost.
Enhance device usability and management effortlessly, saving time for users and IT staff. Manage Zebra DNA tools through Zebra DNA Cloud, a user-friendly portal for easy licensing, configuration and deployment. And you can integrate Zebra DNA Cloud with your existing Enterprise Mobility Management (EMM) system or run as a standalone app.
Locate lost devices
The BLE battery works hand-in-hand with Device Tracker to enable lost or misplaced devices to be located quickly and easily — even if the device is powered off or the battery is depleted.2
Task management made easy
Workcloud Task Management is a ready-to-use Zebra solution that allows you to prioritize and send tasks in real time. Tasks can be automatically divided equally among associates or sent to the best person for the task, based on location, skill set or job title.
Enable superior team collaboration
Connect all of your team members with the power of instant communication with Zebra’s Workcloud Communication.3 Turn the MC3400 and MC3450 into walkie-talkies with push-to-talk communications over Wi-Fi and cellular networks; fully featured PBX handsets with a customized interface that simplifies even the most complex telephony features. And enable secure text messaging, complete with an audit trail.
Maximize Device Uptime — Value Veyond the Hardware
Get around the clock support with Zebra OneCare Select
Keep your devices up, running and in the hands of your workers with a Zebra OneCare Select support contract. You get comprehensive coverage — if it’s broken, we fix it. With live 24/7 agent technical support, help is available when you need it. There’s no waiting for devices to be returned — a ‘like new’ ready-to-use replacement device arrives the next day, complete with your apps, OS version, network configuration and more.4 LifeGuard for Android5 provides timely OS security updates to keep your devices secure, every day they are in service. And you can customize your support plan with numerous options — for example, you can take the worry out of battery performance with Battery Service enhancements.
Cut Zebra device management costs nearly in half
With Zebra’s VisibilityIQ Foresight, you’ll spend less time managing devices but have more visibility into the health and utilization of your devices and their batteries, all on a single dashboard. Armed with this information, you can proactively predict and prevent device issues before they result in device downtime. And powerful predictive analytics help forecast season needs and ensure devices are fully utilized to minimize your total cost of ownership and maximize the return on your Zebra device investments.
Product Specifications | |
---|---|
Dimensions |
|
Weight | Straight Shooter: 15.6 oz (442g)
Gun: 18.6 oz (528g) |
Display | 4 in WVGA (800 x 480), color display, Standard: 350 NITS (typical), Expanded/Full: 600 NITS (typical) |
Imager Window | Corning® Gorilla® Glass |
Touch Panel | Dual mode capacitive touch with finger, gloved finger or stylus input (conductive stylus sold separately); Corning Gorilla Glass optically bonded |
Power | Standard Rechargeable Li-Ion: 3.6V, 7000mAh (25.20 Wh); Optional BLE Battery Li-Ion 3.6V, 7000mAh (25.2 Wh); Hot swap battery backup with temporary session persistence |
Expansion Slot | MicroSD supports up to 2 TB |
SIM | MC3450 only: 1 nano SIM; 1 eSIM |
Network Connections | MC3400/MC3450: WLAN, WPAN (Bluetooth), USB 2.0 High Speed (host and client); MC3450 only: WWAN 5G, data only |
Notifications | Numeric (29 key), Function Numeric (38 key), Alpha Numeric (47 key) |
Voice and Audio | Speaker, microphone, Push-to-Talk (PTT Voice; internal speaker, Bluetooth wireless headset support, USB-C headset) |
Buttons | Trigger scan button (Gun); Keypad scan button, Side Scan Keys (Straight Shooter) |

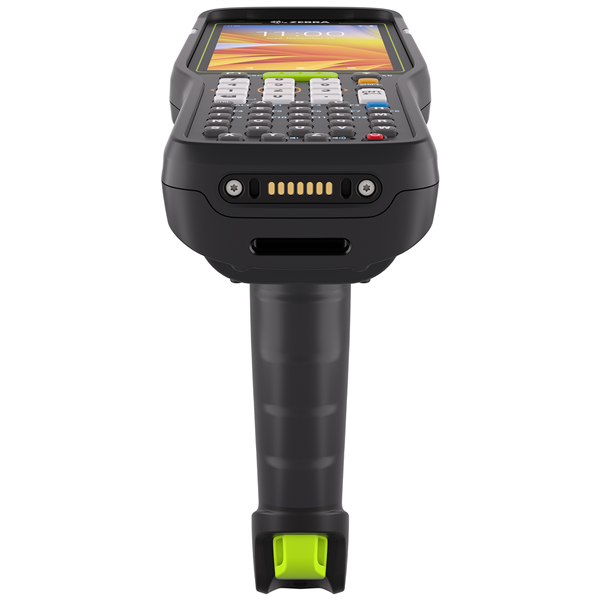

Interface Ports | USB 2.0 (Bottom pogo connector and side USB-C connector) — High Speed (Host and Client) |
CPU | Qualcomm® 4490 octa-core, 2.4 GHz |
Operating System | Standard: Upgradeable to Android 15 Expanded and Full: Upgradeable to Android 18 |
Memory | Standard: 4 GB RAM/64 GB Flash; Expanded: 6 GB RAM/64 GB Flash; Full: 6 GB RAM/128 GB Flash |
Security | FIPS 140-2 Validated; Common Criteria certified; Supports Secure Boot and Verified Boot |
Operating Temperature | -4F to +122F (-20C to +50C) |
Storage Temperature | -40F to +158F (-40C to +70C) |
Humidity | 5% to 95% non-condensing |
Drop Specification | Per MIL-STD 810H: 8 ft (2.4m)⁷ to concrete at (+23C/+73F); 6 ft (1.8m) to concrete across temperature (-20C to +50C/-4F to +122F) exceeding MIL-STD-810H |
Tumble Specification | 4,000 3.3 ft (1m) tumbles; meets or exceeds IEC tumble specification |
Sealing | Dual IP65 and 67 rating with battery per applicable IEC sealing specifications |
Vibration | 4 g’s PK Sine (5 Hz to 2 kHz); 0.04g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis |
Electrostatic Discharge (ESD) | +/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge |
Light Sensor | Automatically adjusts display backlight brightness (Expanded and Full) |
Magnetometer | MC3450 only: eCompass automatically detects direction and orientation |
Motion Sensor | 3-axis accelerometer with MEMS Gyro |
Scanning | SE58 1D/2D Extended Range Scan Engine with IntelliFocus™ technology; SE55 Advanced Range Scan Engine with IntelliFocus™ technology; SE4770 1D/2D Scan Engine; SE4710 1D/2D Scan Engine |
Camera | Front: 5 MP; Rear: 13 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR |
NFC | NFC Forum; ISO 14443 Type A and B; FeliCa and ISO 15693 tags and cards |
Radio Frequency Band | 3G: NA: B2/4/5; ROW: 1/2/4/5/8; China+Japan: B1/5/6/8; 4G: NA: B2/4/5/7/8/12/13/14/17/25/ 26/29/30/38/41/48/66/71; ROW: B1/2/3/4/5/6/ 7/9/10/14/17/18/20/26/28/38/39/40/41/42/43/ 66/71; China+Japan: B1/3/5/7/8/28/34/38/39/40/41/42 5G FR1: NA: n2/5/7/8/12/13/14/25/26/30/38/41/48/ 66/71/77/78; ROW: n1/2/3/5/7/8/12/18/20/26/28/38/ 40/41/66/71/77/78; China+Japan: n1/3/5/7/8/28/38/40/41/77/78/79Supports private networking (LTE/5G) |
GPS | MC3450 only: GPS, GLONASS, Galileo, QZSS Dual-Band GNSS — Concurrent L1/G1/E1 (GPS/QZSS, GLO, GAL) + L5/E5a/BDSB2a (GPS/QZSS, GAL) a-GPS Supports XTRA |
Multimedia | Wi-Fi Multimedia™ (WMM) and WMM-PS; including TSPEC |
VOIP Communications | Supports Workcloud CommunicationTM PTT
Express and Workcloud Communication PTT Pro |
Radio | IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2x2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz); Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6 |
Bluetooth | Class 1 and Class 2 configurable; Bluetooth v5.3 and Secondary BLE for beaconing within BLE battery |
