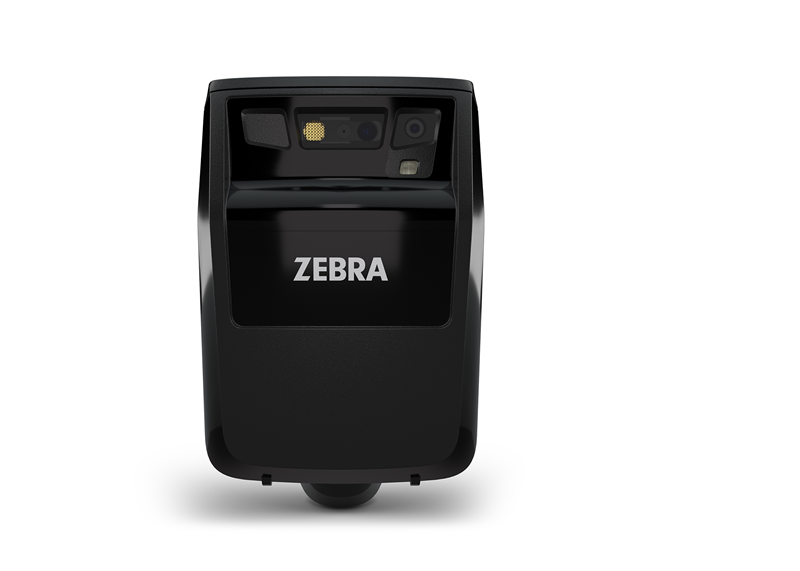

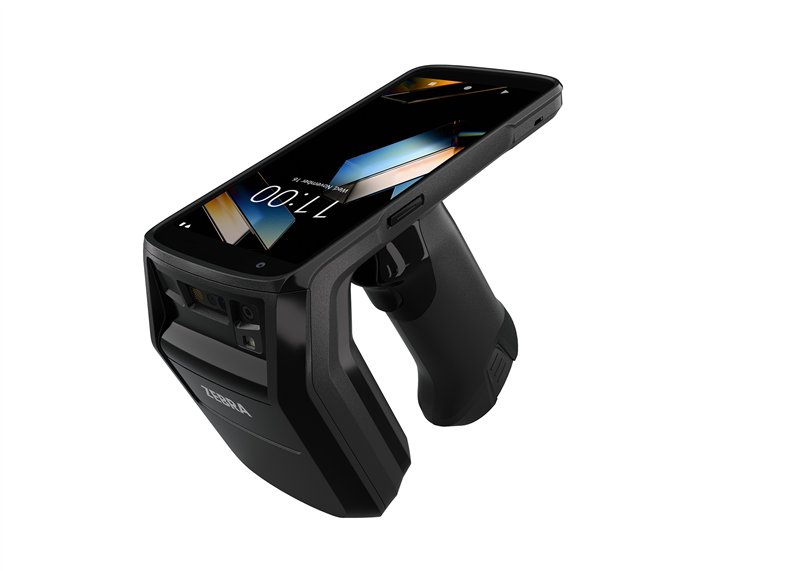

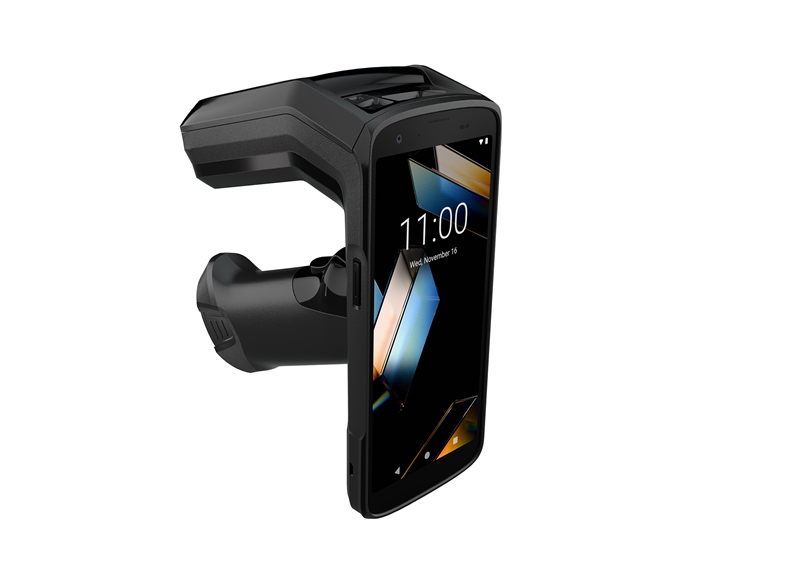

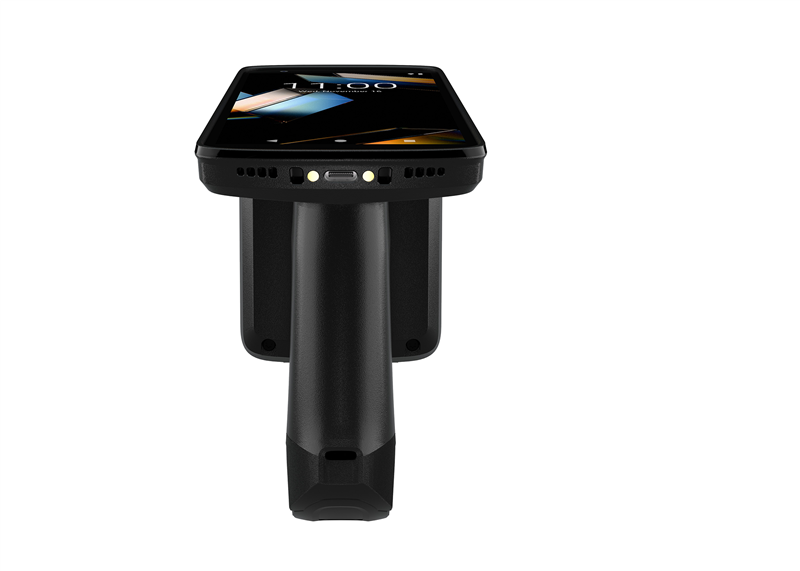

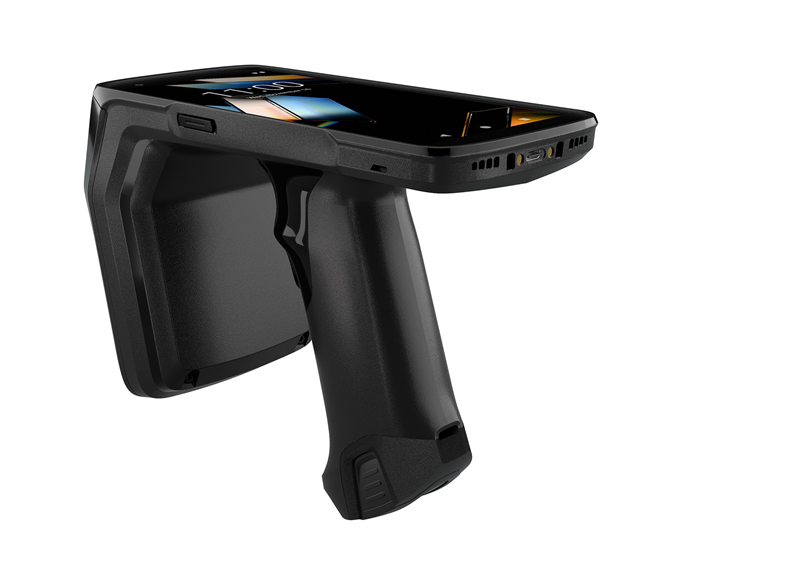

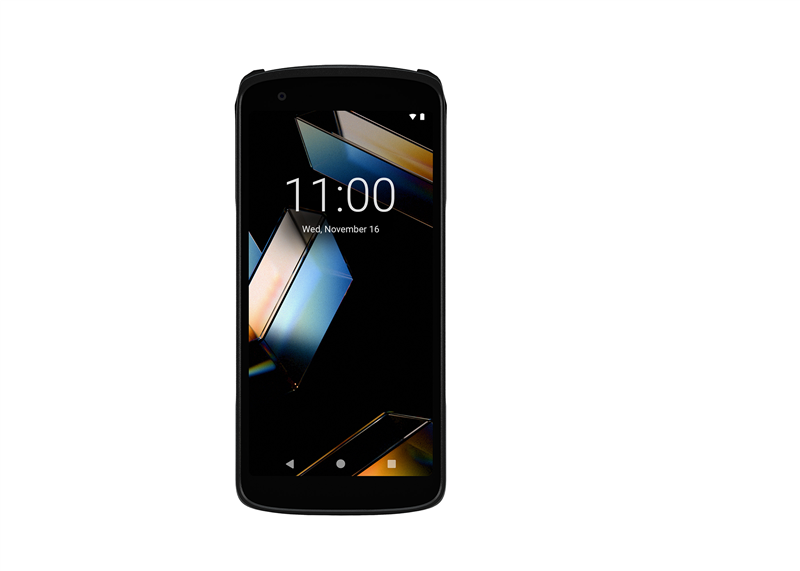

Zebra TC22R
The pictures shown are general images for product TC22R and may not be applicable to all part numbers
TC22R Mobile Computers
Track assets easily with a lightweight, all-touch design
In an increasingly competitive marketplace, you need to stay a step ahead with asset tracking that’s easy, intuitive and efficient. The Zebra TC22R Integrated Handheld RFID Reader provides an integrated, lightweight, all-touch design that helps your associates keep track of assets and inventory for extended periods with less fatigue. Capture data in less time and with less effort using a TC22R handheld reader that delivers industry-leading performance, such as read rates up to 1,300 tags per second, in an all-in-one form factor.
And with the latest Bluetooth® and Wi-Fi capabilities, the TC22R handheld reader offers easy deployment that gives your business a competitive edge.
Industry-Leading Performance
With a robust read rate of up to 1,300 tags per second, the TC22R handheld reader enables greater insights into asset movement and real-time data from the first mile to the last or from the front of the store to the back. In addition, because the TC22R handheld reader has an integrated NFC reader built-in that assists with mobile POS applications, you can capture data in less time and with less effort.
Easy Connectivity
With Wi-Fi 6 and Bluetooth, the TC22R handheld reader is easy to use and manage across your network. That means implementation takes less training time, allowing you to reduce deployment timelines and streamline configuration.
Get the Most Out of Your RFID Investment—From the Leader in RFID
Zebra has more fixed, handheld and portal RFID systems installed than any other RFID provider, giving you the peace of mind that comes from choosing RFID products that are well-tested in practically every industry—and in some of the world’s largest companies. And with over 300 RFID technology patents that have allowed us to deliver many industry firsts, you can count on our best-in-class advanced technologies to maximize the performance of your RFID solution.
Ergonomic Design for All-Day Comfort
The TC22R handheld reader combines real-time visibility with simplicity and ease of use. This lightweight reader enables workers to continue cycle counts with less fatigue than heavier devices. That means you get the high performance that comes with field-proven Zebra software in a compact, all-in-one device.
Simplified Deployment
The TC22R handheld reader offers a fully integrated Android-based solution that can be supported by mainstream MDMs, reducing deployment headaches and management overhead.
| Product Specifications | |
|---|---|
| Dimensions |
|
| Weight | 20.07 oz. / 569 g |
| Display | 6.0 in. color Full High Definition+ (1080 x 2160), LED backlight, 450 nits |
| Touch Panel | Multi-mode capacitive touch with bare or light gloved fingertip input |
| Power | User-removable, quick-release, rechargeable 7,000 mAh Li-Ion battery with PowerPrecision+ for real-time battery metrics |
| Network Connections | WLAN, WPAN |
| Notifications | Audible tone, vibration |
| Indicators | Decode LEDs, battery status LED, beeper |
| Keypad | On-screen keypad |
| Buttons | User-programmable button for barcode scanning (default), PTT or other use, volume up/down, power |
| User Input | Tri-function user-programmable trigger |
| Interface Ports | USB 3.1 (Bottom Type C), Super Speed (host and client) |
| Operating Temperature | 14° F to 122° F / -10° C to +50° C |
| Storage Temperature | -40° F to 158° F / -40° C to +70° C |
| IP Sealing | IP65 |
| Humidity | 5–95% non-condensing |
| Electrostatic Discharge |
|
| Tumble Specification | 500 cycles (1,000 drops, 1.6 ft./0.5 m) at room temperature |
| Drop Specification | Multiple 5 ft./1.5 m drops to concrete |
| CPU | 5430 hexa-core 2.1 GHz |
| Memory | 6 GB RAM / 64 GB Flash |
| Standards Supported | EPC Class 1 Gen 2; EPC Gen 2 V2 |
| RFID Engine | Zebra Proprietary Radio Technology |
| Maximum RFID Read Rate | Up to 1,300 tags/sec |
| Nominal RFID Read Range - Integrated Antenna | 40 ft. / 12.2 m |
| Frequency Range and RF System Output |
|
| Integrated RFID Antenna Gain | 4 dBi |
| Scanning | SE4710 1D/2D scan engine |
| Camera | Forward-facing 16 MP camera, front-facing 5 MP camera |
| NFC | NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, NFC Forum tags 2,3,4,5; Host Card Emulation, Contactless Payment Support |
| Bluetooth | Class 2, Bluetooth v5.2 |
