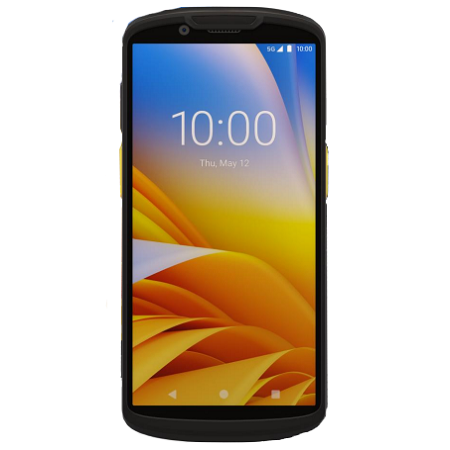

Zebra TC53 / TC58
The pictures shown are general images for product TC53 / TC58 and may not be applicable to all part numbers
TC53 / TC58 Mobile Computers
Introducing the new TC53 (WLAN) and TC58 (WWAN/Cellular) mobile computers, the new generation of our bestselling enterprise mobile computer. The newest device in the TC5 lineup balances enhanced durability with ergonomics and intuitive design for maximum usability and productivity in retail, manufacturing, field service and logistics verticals. Launching with Android 11 and designed exclusively for front-line workers, TC53/TC58 features 5G, CBRS (US only) and Wi-Fi 6E connectivity, the latest Qualcomm octa-core 2.7 GHz processor to facilitate instant updates and access to corporate data for more accurate inventory visibility and on-time delivery status. TC53/TC58 also incorporates enterprise-grade Wi-Fi functionality for optimized indoor connectivity performance in large buildings including faster roaming between access points and network fault recovery to eliminate dropped connections and app interrupts and to maximize voice-over-IP (VOIP) call quality.
TC53/TC58 enhances both retail and field-based workflows with a large bright 6” FHD+ Gorilla Glass display which can be used when wet or with bare or gloved hands or with a conductive stylus. An integrated SE55 Advanced Range Scan Engine with IntelliFocus™ technology allows workers to scan items in hand or across the room – capturing topshelf barcodes without a ladder and low barcodes without bending down. An improved 16 MP rear camera with Optical Image Stabilization (OIS) enables better low light and high dynamic range performance, and a new, integrated time-of-flight (ToF) depth sensor empowers high accuracy parcel dimensioning. ARCore certification enables accurate AR assisted applications such as BOPIS picking, worker training and material location tracking.
Highlighted Features
- Latest Qualcomm 6490 octa-core CPU, with a performance core running at 2.7 GHz
- SE55 Advanced Range Scan Engine with IntelliFocus™ technology or SE4720 1D/2D Scan Engine
- 16MP Color Rear Camera with flash, 8MP front camera leveraging Zebra’s new and improved camera app delivering functionality and improved user experience; Optical Image Stabilization (OIS) available in premium SKUs
- Removable lithium-ion battery options available: 4400 mAh standard battery, 6600 mAh Extended Range,4400 mAh BLE Beacon battery
- TC58 Premium SKUs support wireless charging through a 4400 mAh Wireless Charge battery and Wireless
| Product Specifications | |
|---|---|
| Dimensions (L x W x H): | s 6.48 in. L x 3.04 in. W x 0.66 in. H |
| Weight | 10.3 oz./293 g with standard battery |
| Display Size | 6.0 in. Full High Definition; 1080x 2160; LED backlight; 600 NITS; optically bonded to touch panel |
| CPU | Qualcomm 6490 octa-core, 2.7 GHz |
| Operating System | Android 11; upgradeable to Android 14 |
| Memory (RAM) | 4GB RAM/64GB UFS Flash; 4GB RAM/128GB UFS Flash; 8GB RAM/64GB UFS |
| Operating Temperature | -4°F to 122°F/-20°C to 50°C |
| Sealing | IP68 and IP65 with battery per applicable IEC sealing specifications |
| Drop Specification | Multiple 6 ft./1.8 m drops to concrete over operating temp (-20°C to 50°C/-4°F to 122°F) with protective boot per MIL STD 810H; Multiple 5 ft./1.5 m drops to tile over concrete (-10°C to 50°C/14°F to 122°F) per MIL STD 810H |
| Tumble Specifications | 1000 1.6 ft./0.5 m tumbles at room temperature without protective boot, meets or exceeds IEC tumble specification; 1000 3.2 ft./1.0 m tumbles at room temperature with protective boot, meets or exceeds IEC tumble specification |
| Scan Engine | SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology; SE4720 1D/2D Scan Engine |
| Camera | Front—8 MP; Rear—16 MP autofocus; flash LED generates balanced white light; supports Torch mode + HDR (standard); Optical Image Stabilization (OIS) (premium SKUs only), Time of Flight (ToF) Sensor (premium SKUs only) |
