Zebra TC55

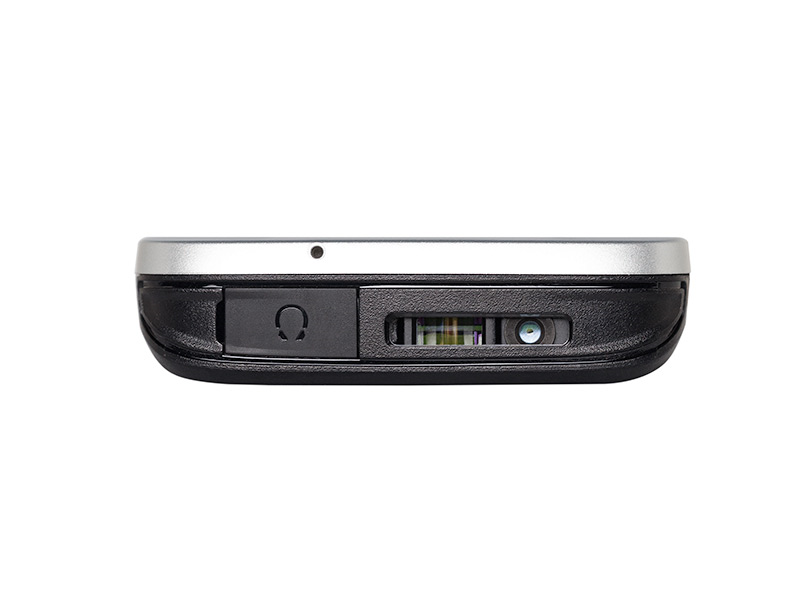

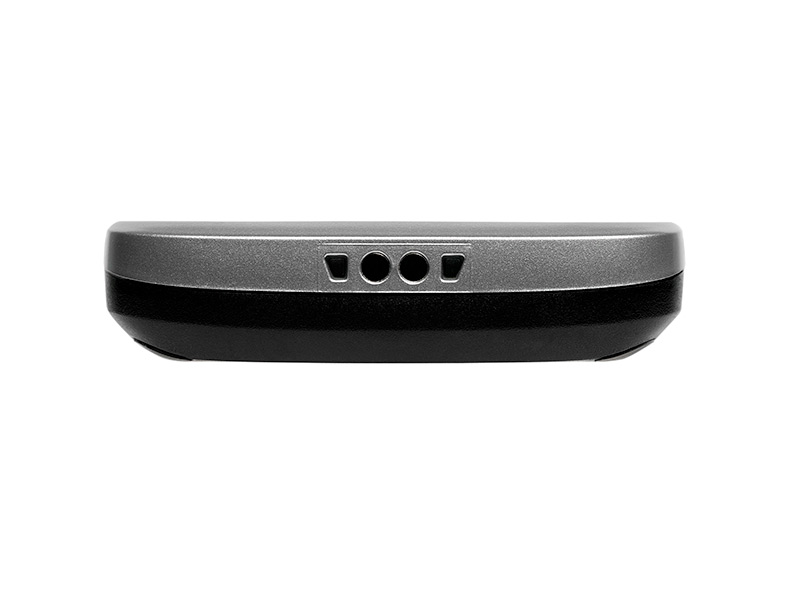

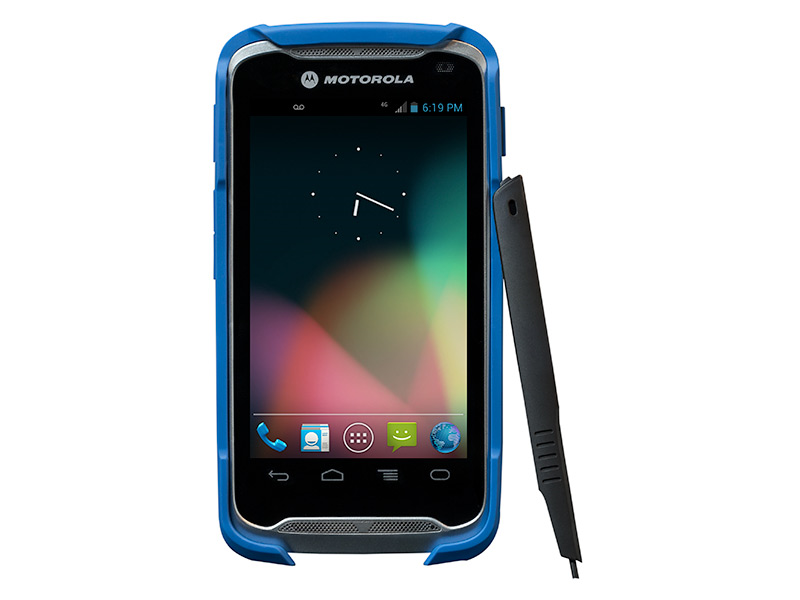

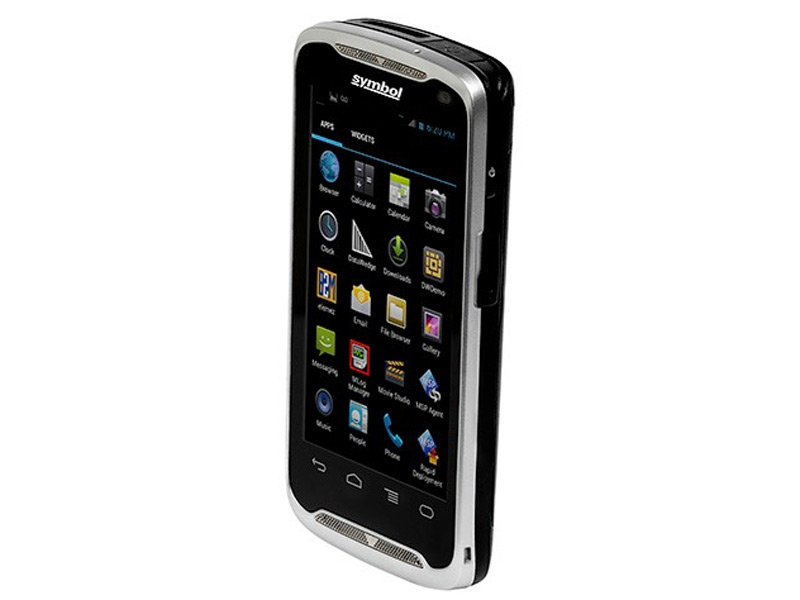

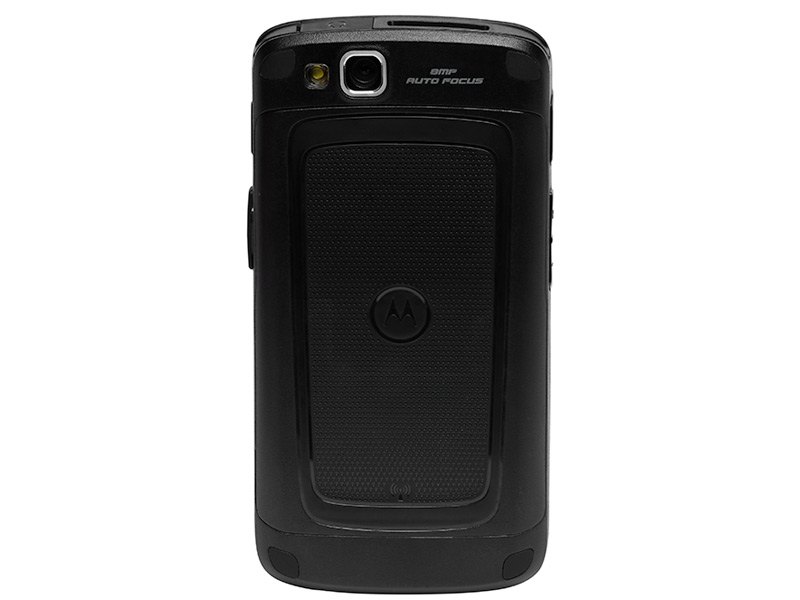

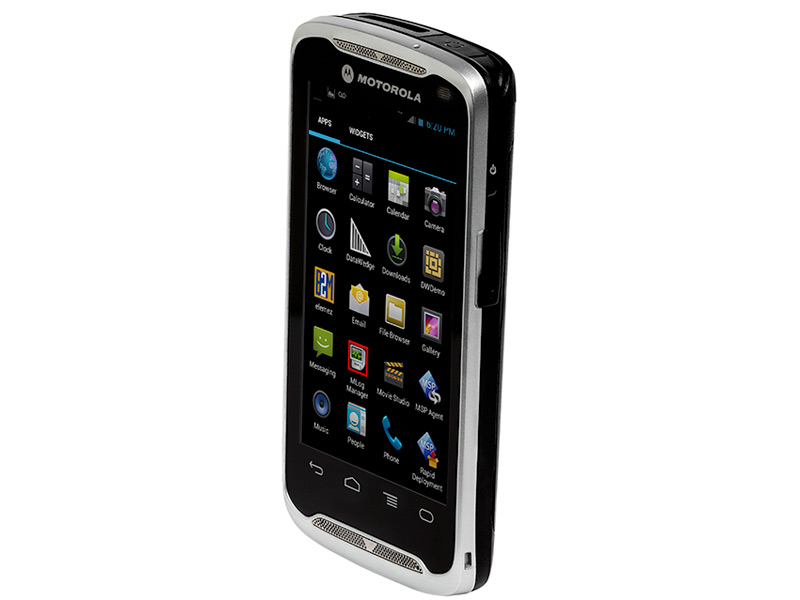

The pictures shown are general images for product TC55 and may not be applicable to all part numbers

Zebra TC55

The Zebra TC55 has reached end of life. It has been replaced by the Zebra TC51 / TC56.

This product replaces the older Motorola ES400.

The Zebra TC55 offers the power and durability you need when capturing and managing data in the office and on the road. Running the familiar Android OS and built to handle even rough environments, the TC55 is great for delivery services, retail inventory management, and route services management.

Running Android Jellybean, the TC55 provides employees with a familiar interface and support for newer data management software packages. The fast processor and 8 GB of Flash storage ensures even huge databases and multiple concurrent apps. For data capture, you can use the built-in 8 megapixel camera or optional 1D linear imager. For more advanced scanning the TC55's Bluetooth radio allows you to integrate a cordless scanner, such as the RS507 ring scanner.

While most smartphones fail in extreme use, the TC55 shines. The smartphone is gasket-sealed, providing an IP67 seal meaning the TC55 is fully sealed against dust and can be dunked in water with no problem. Gorilla glass and a rugged design protect the smartphone from 4-foot drops and even allow it to operate in temperatures as low as 14 degrees. A one year warranty is standard, though models are available with 2-year service from the start plans as well. If you need to maximize your mobile computing return on investment, the Zebra TC55 is a smart solution.

  • Android 4.1.2 Jellybean
  • 1.5 GHz dual core processor with 1 GB RAM, 8 GB Flash
  • 8 MPixel autofocus camera with user-controllable flash
  • Optional 1D linear imager
  • Bluetooth, 802.11a/b/g/n, NFC, GPS, 4G LTE Radios
  • IP67 Seal, sealed against dust, can be dunked in water
  • 1 year warranty, optional Service From the Start plans available
Please note the Zebra TC55 if formerly known as the Motorola TC55.
Product Specifications
Weight 7.8 oz./220 g with battery
Dimensions 5.4 in. L x 2.7 in. W x 0.63 in. D
137 mm L x 69 mm W x 15.9 mm D
Operating System Android 4.1.2
Processor 1.5 GHz Dual Core Processor
Memory 1GB RAM/ 8GB Flash
Display Blanview® LCD display, 4.3 in. WVGA
Seal Specification IP67
Battery Lithium Ion Standard: 2940 mAh; Extended 1.5x: 4410 mAh
Camera Autofocus 8M with Flash
Interfaces Available USB 2.0 High Speed (host and client), WLAN, WWAN and Bluetooth
Cellular Radio 4G LTE, HSPA+, EDGE/GPRS/GSM
Expansion 32 GB microSD slot
Operating Temperature 14°F to 122°F/-10°C to 50°C
Humidity 5% to 85% non-condensing
Keyboard On-screen Keypad
Scan Method Integrated 1D linear imager
optional RS507 Bluetooth ring-style imager
