    Zebra WS301 Wearable

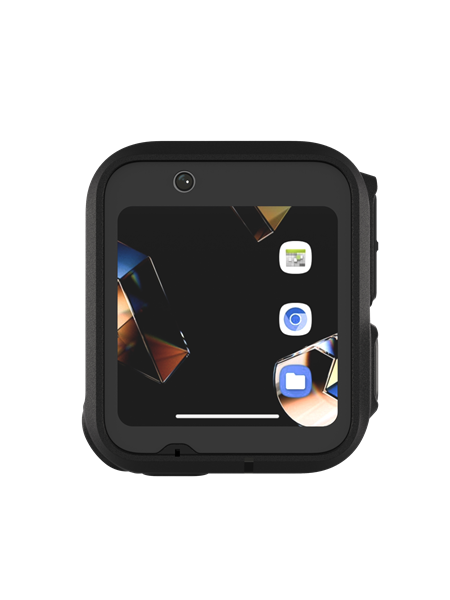

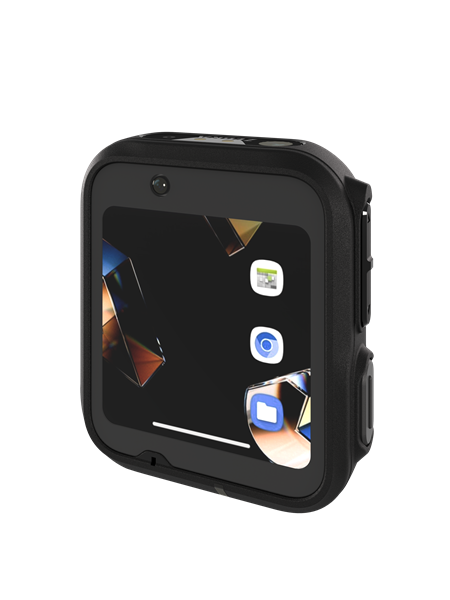

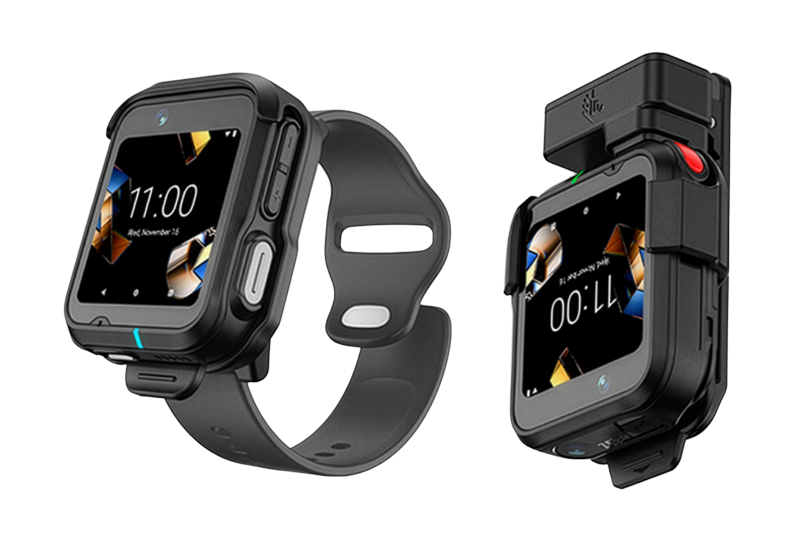

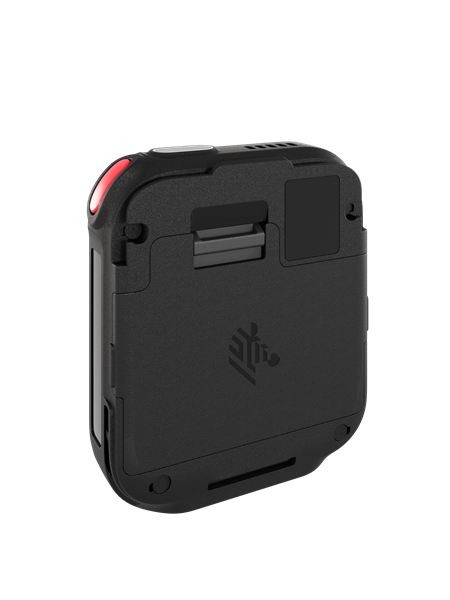

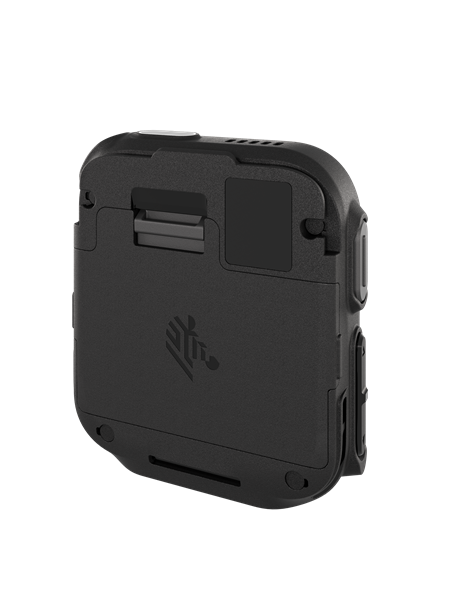

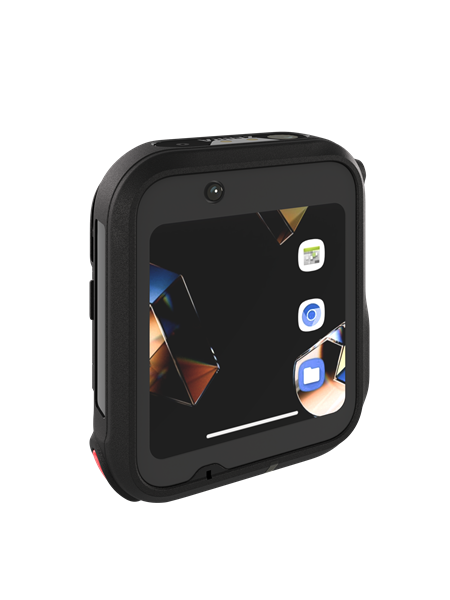

    WS301 Wearable Product Image

    The pictures shown are general images for product WS301 Wearable and may not be applicable to all part numbers

    Alternate image for WS301 Wearable
    Alternate image for WS301 Wearable
    Alternate image for WS301 Wearable
    Alternate image for WS301 Wearable
    Alternate image for WS301 Wearable
    Alternate image for WS301 Wearable
    Alternate image for WS301 Wearable
    Buy it now View Accessories
    POSGuys Rating:Not Rated
    Lifetime Support
    1 Year Warranty
    15 Day Return Period
    Free Shipping
    WS301 Wearable Features
    Android 14
    IP65

    WS301 Wearable Mobile Computers


    Connect all of your disconnected frontline workers with the WS301 — the right-sized, right-featured, right priced tiniest Android enterprise mobile computer with all the right features for task-oriented workers. With the power of instant push-to-talk voice and data on a wrist or clipped onto an apron, lapel or belt, productivity and workflow efficiency are increased, improving the speed and quality of your customer service.

    • Powered by Zebra’s Android platform, the WS301 integrates with your devices, supports future versions, and offers enterprise-class flexibility with Mx and OEMConfig.
    • With Workcloud Sync, the WS301’s voice-first interface enables seamless PTT calls and task updates. Bluetooth 5.3 and NFC make pairing with headsets and printers effortless, ensuring clear communication even in noisy environments
    • With Zebra Guardian, misplaced WS301 devices are easy to find. A removable 10-hour battery ensures the device is always in service, powering through even the longest shifts.
    • Dual cameras enhance efficiency: a 13 MP top-facing camera for data capture and a 5 MP front-facing camera for barcode lookups, video calls, and seamless task handling.
    • Choose a clip or wrist mount. The AMOLED display is crisp with fast refresh rates, while Wi-Fi 6 and audio/vibration alerts keep workers connected and informed, even in noisy environments
    Product Specifications
    Dimensions
    • 2.20 in (L) × 1.89 in (W) × 0.59 in (D) / 56 × 48 × 15 mm
    Dimensions – Device in Clip Mount
    • 3.39 in (L) × 2.09 in (W) × 1.14 in (D) / 86 × 53 × 29 mm
    Dimensions – Device in Wrist Mount
    • 2.52 in (L) × 2.05 in (W) × 0.59 in (D) / 64 × 52 × 15 mm
    Weight
    • 2.08 oz (59 g)
    Weight – Device in Clip Mount
    • 3.07 oz (87 g)
    Weight – Device in Wrist Mount (standard strap)
    • 3.10 oz (88 g)
    Display
    • 2 in AMOLED color display
    • 460 × 460 resolution
    • Optically bonded to touch panel
    Camera Window
    • Corning Gorilla Glass
    Touch Panel
    • Capacitive touch
    • Supports fingertip and gloved use
    • Corning Gorilla Glass
    Power
    • 2.91 Wh
    • 750 mAh battery
    • PowerPrecision+ technology
    Network Connections
    • USB 3.1 Superspeed (host and client)
    • WLAN
    • Bluetooth
    Notifications
    • Audible tones
    • Charge and OS notification LED
    • Haptic feedback
    Voice and Audio
    • Speaker rated up to 90 dBA
    • Two internal microphones with noise and echo cancellation
    • Bluetooth headset support
    • 3.5 mm PTT headset support (when in clip mount)
    Buttons
    • Programmable multifunction button:
      • Defaults to PTT when in mount
      • Defaults to scan trigger when not in mount
    • Volume up / down buttons
    • Programmable Duress button
    Interfaces
    • Docking contacts for charging
    • USB 3.1 Type-C host/client and charging
    • Wrist: compatible with off-the-shelf 26 mm wrist straps
    CPU Qualcomm QC2290
    Operating System Android 14
    Memory
  • 4 GB RAM
  • 64 GB Flash storage
    		•
    Operating Temperature +14°F to +122°F (-10°C to +50°C)
    Storage Temperature -40°F to +158°F (-40°C to +70°C)
    Humidity 5% to 95% non-condensing
    Drop Specification 4 ft (1.21 m) drop to concrete across operating temperature range
    Tumble Specification 1,000 tumbles at 1.6 ft (0.5 m), meets or exceeds IEC tumble spec
    Sealing IP65
    Vibration
  • 4 g peak sine, 5 Hz to 2 kHz, 1 hour per axis
  • 0.04 g²/Hz random, 20 Hz to 2 kHz, 1 hour per axis
    		•
    Electrostatic Discharge (ESD)
    • ±15 kV air discharge
    • ±8 kV direct / indirect contact
    Interactive Sensor Technology (IST)
    • Light Sensor
      • Automatically adjusts display backlight brightness
    • Motion Sensor
      • 6-axis accelerometer with MEMS gyro
    Data Capture

    Data Capture

    • Camera

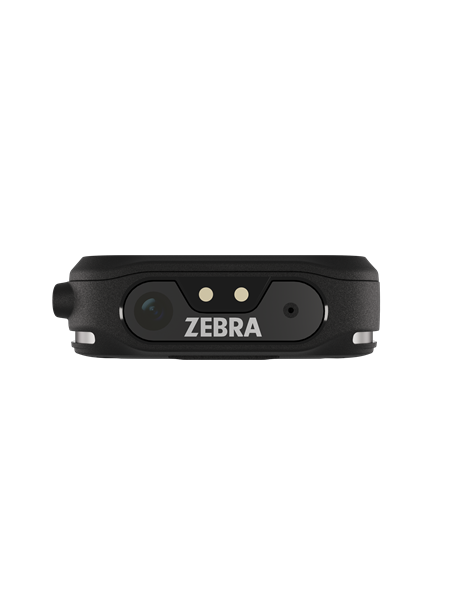

      • Top-facing 13 MP autofocus camera
      • Front-facing 5 MP fixed-focus camera, 120° field of view
    • NFC
      • Tap-to-pair capability
      • Supports ISO 14443 Type A and B
      • Supports Felica
      • Supports ISO 15693 cards
    Radio
    • IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax
    • Wi-Fi 6, 2×2 MU-MIMO
    • Wi-Fi certified
    • IPv4 and IPv6 support
    Data Rates
    • 5 GHz: 802.11a/n/ac/ax, 20/40/80 MHz channel widths, up to 1201 Mbps
    • 2.4 GHz: 802.11b/g/n/ax, 20 MHz channel, up to 286.8 Mbps
    Operating Channels
    • 2.4 GHz: Channels 1–13 (2412–2472 MHz)
    • 5 GHz: Channels 36–165 (5180–5825 MHz)
    • Channel bandwidths: 20 / 40 / 80 MHz
    • Actual channels and bandwidths depend on local regulatory approvals
    Security and Encryption
    • WEP (40 / 104-bit)
    • WPA / WPA2 Personal (TKIP, AES)
    • WPA3 Personal (SAE)
    • WPA / WPA2 Enterprise (TKIP, AES)
    • WPA3 Enterprise (AES) – EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD
    • WPA3 Enterprise 192-bit mode (GCMP256) – EAP-TLS
    • Enhanced Open (OWE)
    Certifications
    • Wi-Fi Alliance: 802.11n, 802.11ac, 802.11ax
    • WPA2-Personal, WPA3-Personal
    • WPA2-Enterprise, WPA3-Enterprise
    • Protected Management Frames (PMF)
    • Wi-Fi 6 and Agile Multiband
    Wireless PAN
    • Bluetooth
      • Bluetooth 5.3
      • Classic Bluetooth Basic Rate / Enhanced Data Rate (BR/EDR)
      • Bluetooth Low Energy (BLE)
      • Class 1 radio
    Markets and Applications

    Markets and Applications

    Retail

    • Hands-free customer assistance
    • Push-to-talk (PTT) communication for team coordination
    • Item lookup and inventory management
    • Task assignment and status tracking

    Hospitality

    • Hands-free handling of guest service requests
    • PTT communication across departments
    • Item lookup to support guest needs
    • Task management for events and daily operations

    Light Manufacturing

    • Hands-free workflow execution
    • PTT communication for line and team collaboration
    • Item lookup and inventory control
    • Task management for shift operations
    Warranty, Services, and Software
    • Standard hardware warranty: 1 year from date of shipment (against defects in workmanship and materials)

    Recommended Services

    • Zebra OneCare Essential and Select maintenance plans:
      • Depot repair or advance device replacement
      • Technical support and software maintenance
      • LifeGuard security updates
      • Device Diagnostics tools
      • VisibilityIQ OneCare cloud dashboard for repair, case, contract, and update status
    • Optional VisibilityIQ Foresight:
      • Cloud dashboard with proactive device health and performance insights
      • Helps identify issues before they affect operations

    Software

    • Zebra DNA for Mobile Computers:
      • Software suite to improve accuracy, reliability, and worker productivity

    Zebra WS301 Wearable Reviews

    POSGuys Rating: Not Rated

    Customer Reviews

    Trustpilot

    Recommended Models

    WS3012-0M304E52ENA
    WS301 Wearable Solution, Clip Mount with 3.5mm Headset Support, 4GB/64GB Memory, Front Facing Camera, Side Facing Camera, 750mAh Removable Battery, North America
    $1222.57 Add to Cart

    Accessories

    SAC-WS3X-6S7-01
    WS301 6-Slot Spare Battery Charger, Allows Charging of 6 Spare Batteries. Country Specific Power Supply (PWR-WUA5V45W1xx) and USB-C Cable (CBL-EC5X-USBC3A-01) are all sold separately.
    $550.00 Add to Cart
    BTRY-WS3X-7MA-01
    WS301 Spare Battery, 750MAH
    $90.00 Add to Cart
    SG-WS3X-SCRNP5-01
    WS301 Screen Protector - 5 pack
    $55.00 Add to Cart
    SG-WS3X-CLPJK-01
    WS301 Replacement Clip Mount with 3.5mm Audio Jack
    $85.00 Add to Cart
    SAC-WS3X-30S7-01
    WS301 30-Slot Spare Battery Charger, Allows Charging of 30 Spare Batteries. Power Supply (PWR-BGA12V150W1WW) and Country Specific AC Line Cord are all sold separately.
    $1950.00 Add to Cart
